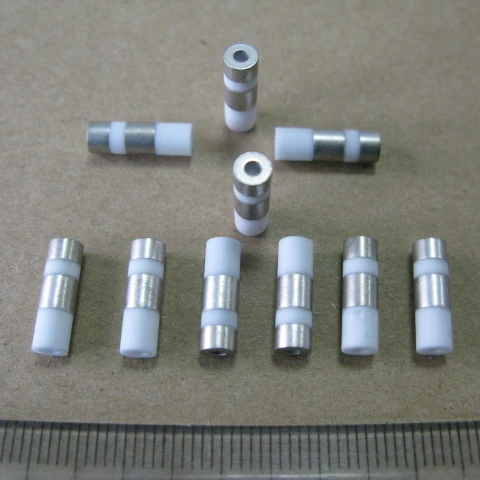

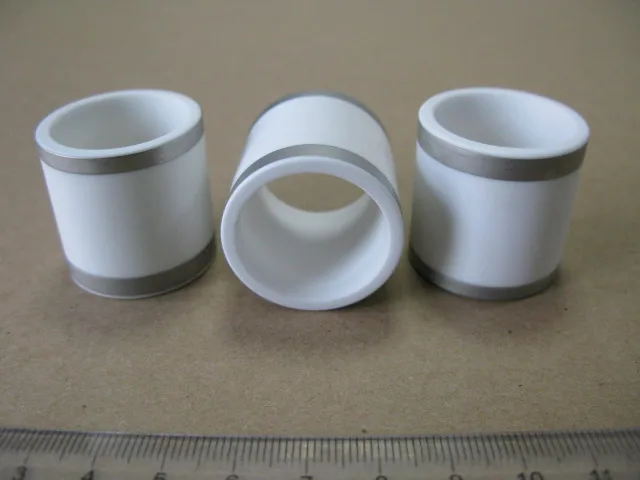

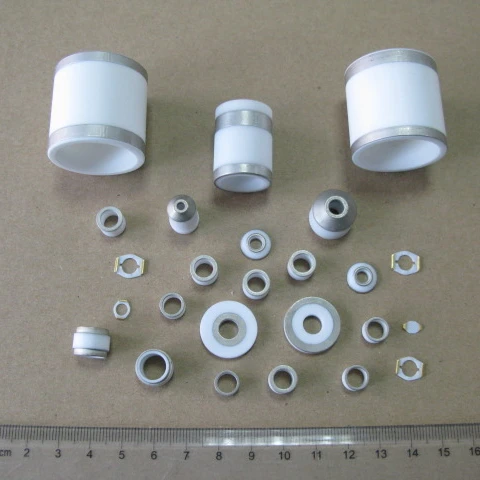

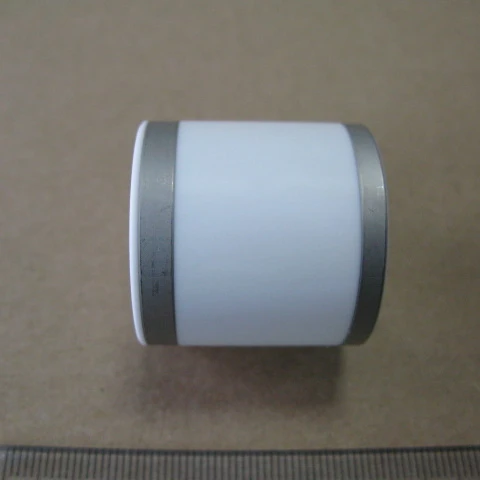

Advanced Industrial Metalized Alumina Ceramic Insulator with High Precision
- Category: Insulation Materials & Elements >>>
- Supplier: SHANGHAI FINE-BOON SCIENCE & TECHNOLOGY CO. LTD.
Share on (62166833265):
Product Overview
Description
Product Description
Advanced Industrial Metalized Alumina Ceramic Insulator with High Precision
Material : 96.0% alumina or 99.5% high purity alumina with Metalization treatment
- Either CIP or dry press formed bodies with secondary fine-machining
- High precision and good appearance after metalization
- Easy for brazing with Kovar alloy directly
- High bonding strength after brazing with kovar parts
- Good hermetic sealing result after brazing
- Good insulation, anti-magnetic, static electricity-free character for feedthrough use
- Excellent thermal shock resistance and good thermal stability after brazing
- Anti corrosion & abrasion resistance in harsh working environments
- Complying with ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional ceramic R&D team is available for your requests of various metalized ceramic parts
- Professional ceramic R&D team is available for your requests of various metalized ceramic parts
Product Name | Advanced Industrial Metalized Alumina Ceramic Insulator with High Precision |
Compositions | 96.0% alumina or 99.5% high purity alumina (Al2O3) |
Metalization | Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating |
Mo+Mn Layer | 25 +/-10μm in thickness |
Nickel Layer | 2 -10μm in thickness |
Material Density | 3.90 g/cm3 |
Tolerance | +/- 0.005mm |
Finishing | Ra 0.02 |
Leaking Rate | ≤ 1 x 10-11Pa.m3/s |
Metalization Tensile Strength | ≥150Mpa |
Max. Using Temperature | 1650 oC |
Using Fields | Feedthrough, Fuel cell, PVD or CVD machines, Semi-conductors, Vacuum Electronics, Traveling Wave Tubes, X-Ray Tubes |
Alumina Metalization
Belows are the Various Standard Alumina Performance Characters Data Sheets
& Various Zirconia Performance Comparison sheets with other ceramic materials
Production Equipment
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electric sintering furance with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory Birdview
Our factory for metalized ceramic insulators production
Workshops View
Our workshops for metalized ceramic insulators production
Packing & Delivery
Packing Details: Individual bubble bags for each metalized ceramic insulator, seaworthy package
Delivery Details: 30 days after purchase order of metalized ceramic insulators was issued
1. Shockproof bubble bags for each metalized ceramic insulator separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional ceramic factory with exporting office in Shanghai.
Q: How long is your delivery time for metalized ceramic insulators?
A: Generally it is 30 days for our metalized ceramic insulators after your purchase order was issued to us
Q: Do you provide samples of metalized ceramic insulators? is it free or charged?
A: Yes, we could offer the sample of our own metalized ceramic insulators for free, but don't afford freight.
Q: What is your terms of payment for metalized ceramic insulators?
A: Payment<=1000USD, 100% in advance before shipping.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question for our ceramic products, pls feel free to contact us as below:
