PC Computer Industrial Rack Mount Server Chassis Case 6U

Product Overview

Description

Product Description



Model	NP-F6650
Form Factor	6U Rackmount Server case
Mateial	Metal material	SGCC
	Metal thickness	1.2mm
M/B support	EEB (12″ x 13″), microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)
Size	D*W*H(mm)	650 x 482 x 267
	D*W*H(inch)	25.5  x 19 x10.5
Drive Bay	Internal 3.5"	2
	Internal 2.5"	26
Power Supply support	ATX power supply/ server power supply, 2pcs power supply optional

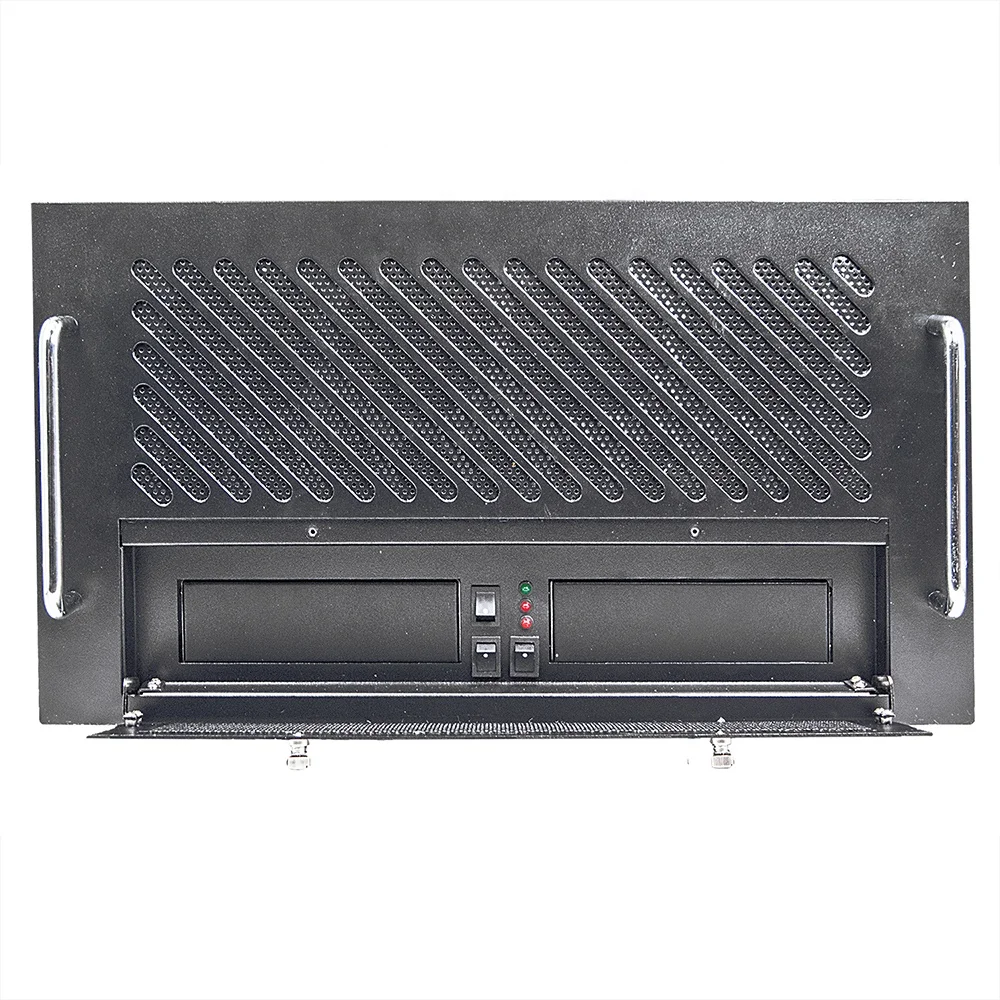

Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1
	Ports	USB 2.0 x 2
Expansion	Riser Slot	7
Hot-swap Backplane	NO
System cooling(optional)	front	4x 8025mm ball bearing fans
	middle	4x 8025mm ball bearing fans
	rear	2x 8025mm ball bearing fans
Net weight	20kg
Gross weight	22kg
Packing size	D*W*H(mm)	865*590*400
	D*W*H(inc)	34*23.2*15.7
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
