CNC Full automatic metal cutting band saw machine GZ4232

Product Overview

Description

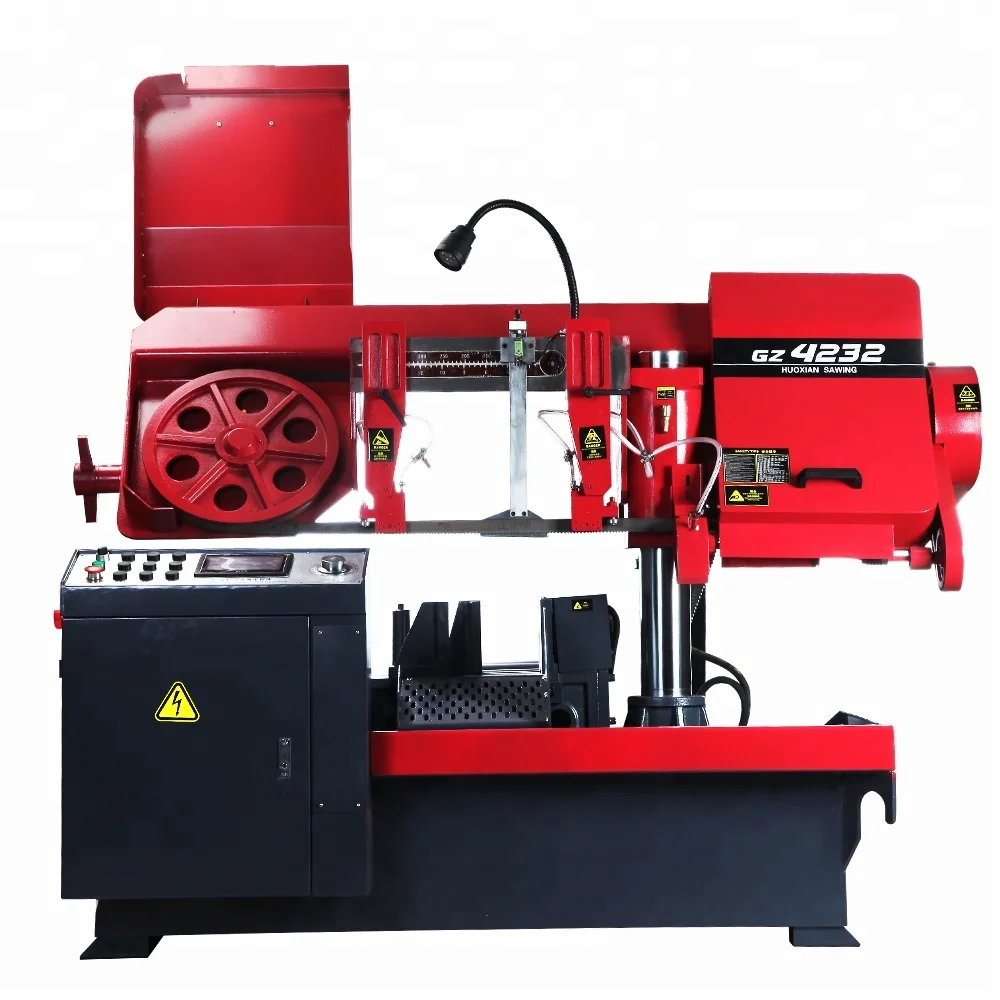

CNC  Full automatic metal cutting band saw machine GZ4232





Model	GZ4232
Max. Cutting Diameter	Round: 320	mm
	Plate: 320*320	mm
Blade Speed	30.46.58.83	m/min
Blade Size	1.1*34*4115	mm
Motor Output	4	kw
Hydraulic Pressure	0.75	kw
Coolant Pump	0.09	kw
Table height	600	mm
Machine Size(L*W*H) Package size	2300*2100*1500 2360*2160*1600	mm
Net /Gross Weight	1600 /1700	kg
Vice clamping	Hydraulic
Blade tensioning form	Maunal
Feeding cut adjust way	Hydraulic stepless
Feeding way	Automatic
Hydraulic cooling way	Copper pipe
Chip conveyor way	Automatic
Voltage	380V 50HZ







FAQ

1) Q: Can i have your quotation?

A: Yes ,of course ,but first, please offer us the information of your material size,

without these parameter, we can't recommend you the suitable machine.

2) Q: Do you have overseas service?

A: No,but we normally help our customers to solve the problems through phone,

E-mail, skype, internet video... high efficiency. We offer one year guaranteen, within

one year, if component of the  machine broken, we freely offer the component, but

the delivery fee should be paide by client.

3) Q: What is the voltage and Hertz in your country?

A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the

voltage and Hertz according to your requirment.

4) Q: How about the payment term

A: Small value orders:100% T/T payment

     Bulk order : T/T 30% deposit, 70% of balance paid before shipment.
