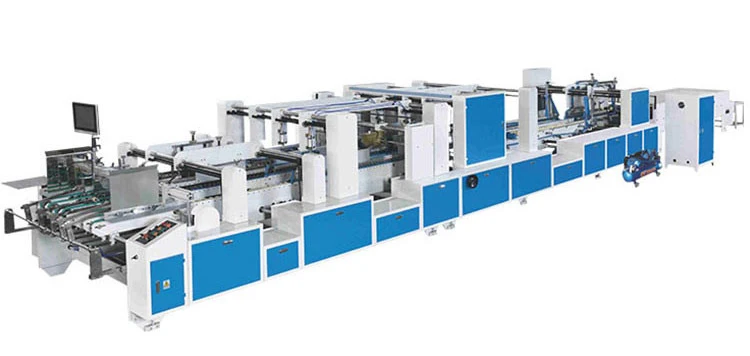

Crash lock bottom Box

Product Overview

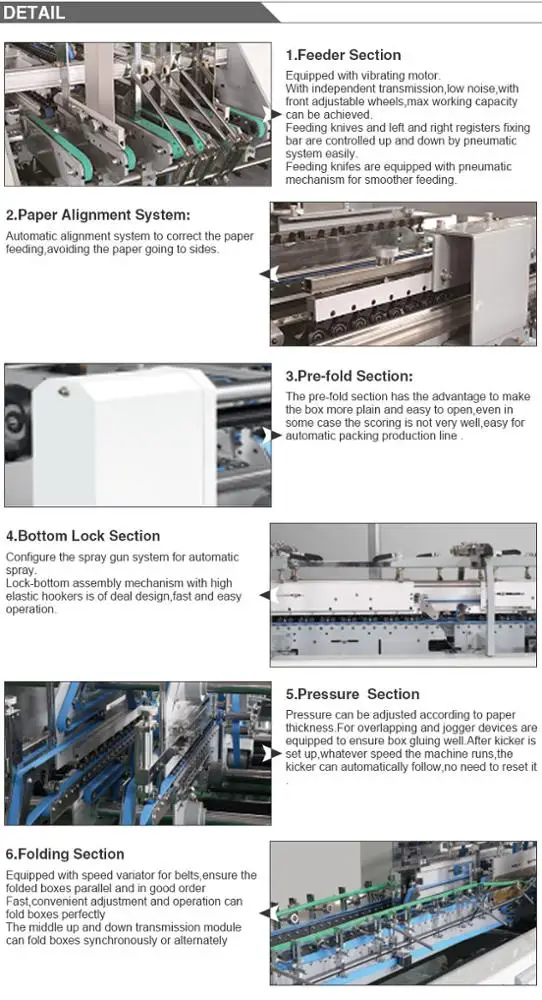

Description

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

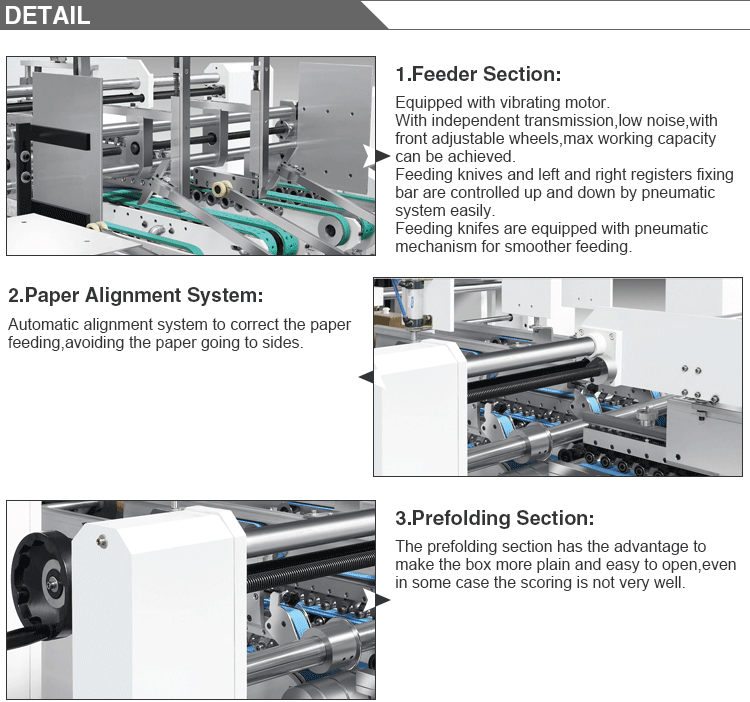

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.



Our product advantage:

Modular design allows different configurations, to meet customer's needs.

Wide range of accessories that allows to run thousands of designs.







Technical Parameters:

Description	Crash-lock bottom Box
Suitable material	Card board,E flute corrugated board
Feeding method	Automatic continuous feeding
Max mechanical speed	260m/min
Overall dimension	17000*2350*1650mm
Weight	11T
Power consumption	20.5KW
Main motor	Teco Taiwan
Inverter	Siemens
Timing belt and pulley	Optibelt German
Bearing	NSK
Main axis	Taiwan Chrome Plated Steel Bar
Wall thickness	20mm tempered
Feeding belt	Habasit switcherland
Plain belt	Nitta Japan
Low voltage apparatus	Omron
Fasten bolts	Level 8.9 tanwan

Model		ZH-A
A	MAX	1500	1100	1450	1300	1400
	MIN	300	350	350	400	400
B	MAX	1500	1300	1400	1100	1100
	MIN	80	200	150	250	250
C	MAX	730	1200	720	1000	1000
	MIN	140	150	170	200	200
D	MAX	350	250	350	300	300
	MIN	20	10	30	30	30













1. Why your machine similar with other supplier?



  We design machines by ourselves with advanced technology. Apperance just a part machine, service and quality is more important than it.



2. What kind of machines can you supply to customer?



  We could offer various kinds of machines and whole production line



Our Advantages

1.We have professional technical team,have many patent technology.

We can provide customized packaging solution.show us requirement,it's ok.

2.We have professional after-sale team, can provide services to customers at any time.

After sales director:0086-13906879103

Group Director:0086-13955806881

3.We have export to many European and American countries,Germany,USA,Canada,Portugal...Argentina and so on.



Warranty Service:

Machines are new (or unused) and the gurantee period will be given thirteen months from shipment date. During this period, the seller will offer free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishading and consumable parts are not covered by any warranty.
