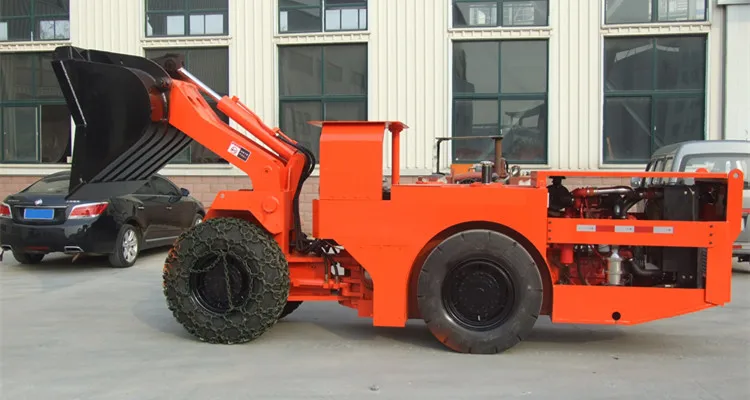

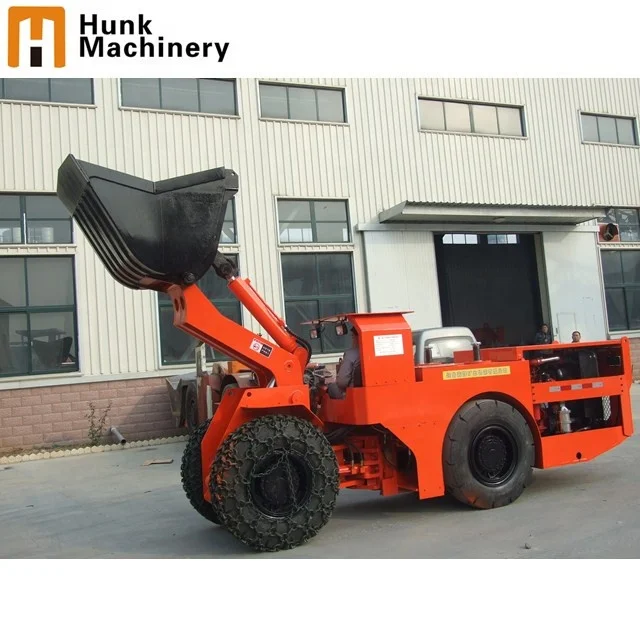

Diesel underground mining wheel loader with DEUTZ engine 1m3
- Category: Other Mining Machines >>>
- Supplier: Yantai Hunk Machinery Co. Ltd.
Share on (62170773658):
Product Overview
Description
Product Description
Product name: Underground Diesel Loader 1m3
==================================
Main Configuartion,Technical Charactersistics & Parameters
Diesel Engine: German DEUTZ or Cummins (option)
Motor: Variable hydraulic motor MV23
Pump: Variable hydraulic pump PV22
Drive Axle: PC15 homemade
Braking System: Dynamic service brake through the hydrostatic transmission
Bucket Capacity: 1.0m³(1.5 yd3)
Rated Loading Capacity: 2000kg
Max.Climbing Ability: 20°
Rear Drive Axle Swing Angle: ±8°
Min.Turning Radius: 4260mm (Outer) , 2540mm (Inner)
Dimensions(transport): 6030mm (L) * 1300mm(W) * 2000mm (H)
Weight: 7200kg
Specification of 1 CBM underground loader | ||||
Engine | Manufacturer | Deutz | ||
Model | F6L912W | |||
Rated Power | 63kw/2300rpm | |||
Main performance parameters | Max.Discharge Height | 1050 mm | ||
Min.Discharge Distance | 860 mm | |||
Max.Shovel Force | 48 KN | |||
Running speed | Full speed for forward or reverse | 0-10 Km/h | ||
Main Features
Piloted control, Variable Flow, Full reversible.
Detailed Images

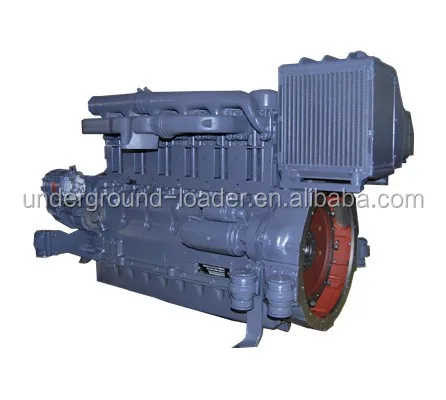

Engine: DEUTZ - F6L912W
Air-cooled 6-cylinder naturally aspirated engine in inline arrangement.
The very compact engine design and the flexibility of the positioning of the unit reduce the installation costs.
Low fuel consumption, low mainte- nance costs and long life reduce the running costs.
The very compact engine design and the flexibility of the positioning of the unit reduce the installation costs.
Low fuel consumption, low mainte- nance costs and long life reduce the running costs.

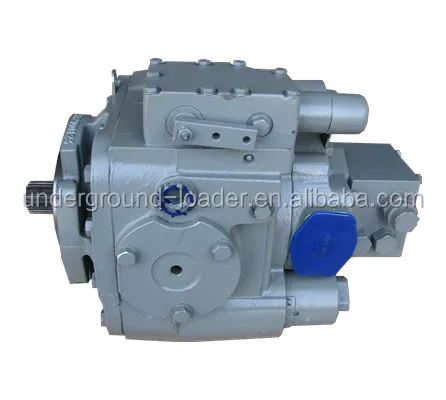

Motor: Variable hydraulic MV23
Piloted control
Variable Flow
Full reversible

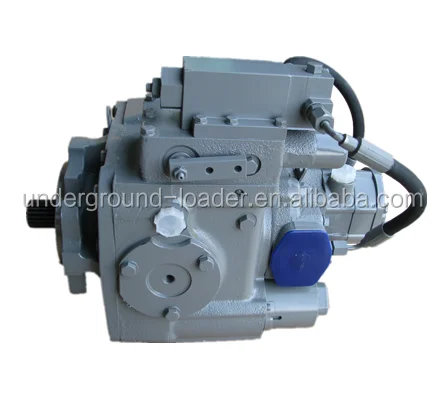

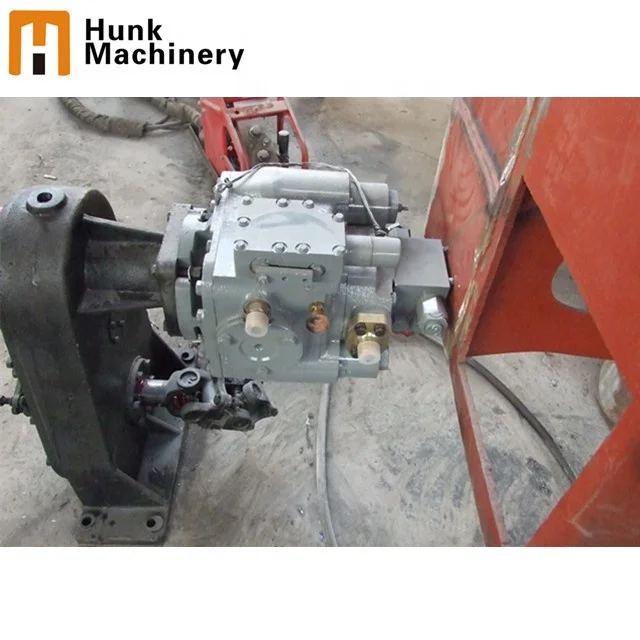

Pump: Variable hydraulic PV22
Piloted control
Variable Flow
Full reversible
Factory
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting.
After-Sales Service
* Training how to install & use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging & Delivery | ||
Size | 6030mmL * 1300mmW * 2000mmH | |
Weight | 7.1T | |
Packaging Details | Container | |
Packaging & Delivery | ||
Size | 6030mmL * 1300mmW * 2000mmH | |
Weight | 7.1T | |
Packaging Details | Container | |
