Single solar flex stainless steel pipe tube

Product Overview

Description

Single solar flex stainless steel pipe tube



Item Name	Single solar flex stainless steel pipe tube
Size	DN12,16,20,25
OD & ID	16mm*12mm,20mm*16mm,25mm*20mm,32mm*26mm
Wall thick	13mm,20mm
MOQ	100meters
Brand	GD-FLEX
Original	China







Introduction







GD-FLEX pre insulated solar hose only require 1 step to finish the Solar Water Heater Pipe Installation.

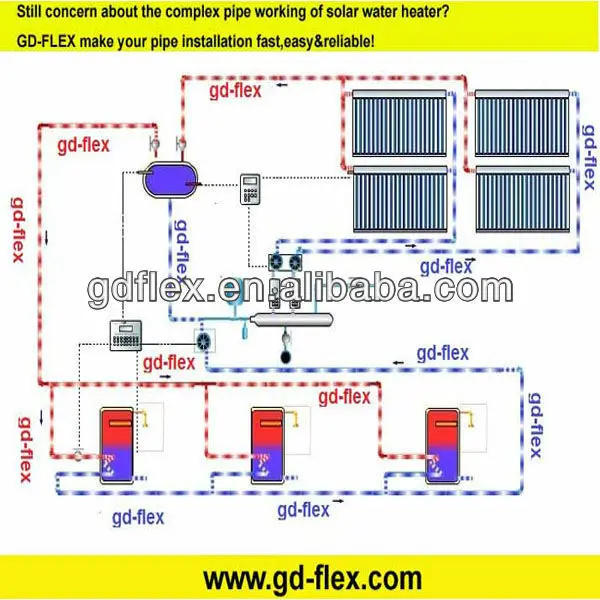

GD-FLEX pre insulated solar hose only require 1 step to finish the Solar Water Heater Pipe Installation. Our pre-insualted flexible stainless steel Solar Hose with high temperature EPDM insulation pipe ,Strong Jacketing protection and 2-core temperature sensor cable pre-assembled , it is an ideal choice for your solar thermal system. It realizes the fast pipe connection among solar collectors, the pump station and the water tank. Non-welding required! The system is light weight and space saving, which is easy to handle, even in confined spaces. Flow and return pipes are marked clearly and can be easily distinguished. Smart Design- Break Point does good to installer separate twin pipes into 2 pipes without any destroy of the jacketing protection, meeting the installation demand very well.





Application

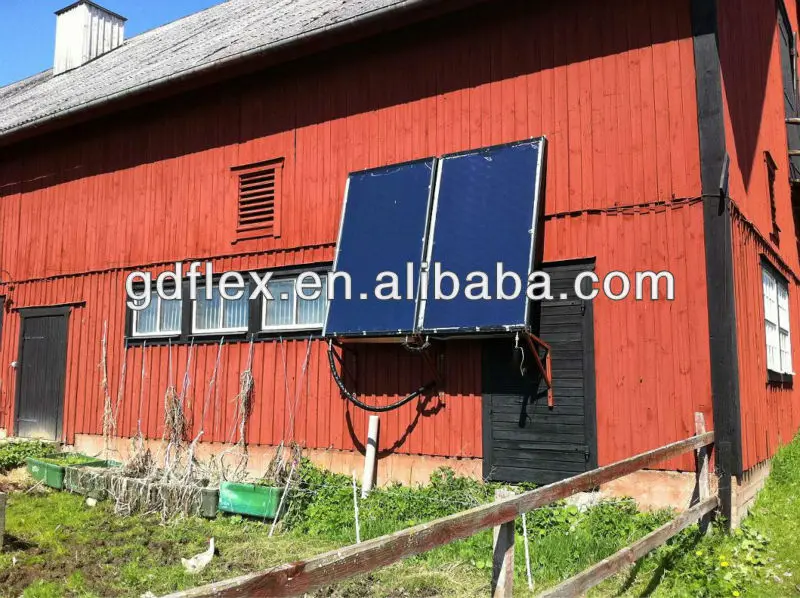

solar flex stainless steel pipe Piping systems for solar hot water, heating, heat pumps and air conditioning technology indoor, outdoor or underground piping system.

Structure



Twin pipe: It consisting of high temperature resistance EPDM insulation, 2 x flexible corrugated stainless steel tubes (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.



Single pipe It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube, UV-resistant, seamless jacketing protection.



Single pipe with  Temperature Sensor Cable It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube  (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.

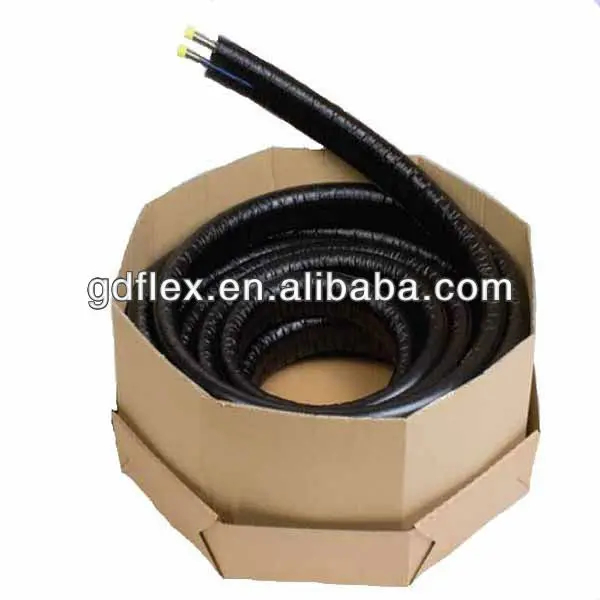

Single pre insulated corrugated stainless steel tube solar line sets

Type	Part No.	Flex SS Tube SIZE(OD*ID)	HT insulation pipe(Wall mm)	Connection Fitting Size	Temp	Supplied lengths (M)
DN12	GDTWHTCSST16025.13	16mm*12mm	13mm	1/2"	-50°C to 175°C	5/10/15 /20/30/60
DN12	GDTWHTCSST16025.20	16mm*12mm	20mm	1/2"	-50°C to 175°C	5/10/15 /20/30/60
DN16	GDTWHTCSST20025.13	20mm*16mm	13mm	3/4"	-50°C to 175°C	5/10/15 /20/30/60
DN16	GDTWHTCSST20025.20	20mm*16mm	20mm	3/4"	-50°C to 175°C	5/10/15 /20/30/60
DN20	GDTWHTCSST25030.13	25mm*20mm	13mm	1"	-50°C to 175°C	5/10/15 /20/30/60
DN20	GDTWHTCSST25030.20	25mm*20mm	20mm	1"	-50°C to 175°C	5/10/15 /20/30/60
DN25	GDTWHTCSST32030.13	32mm*26mm	13mm	1¼"	-50°C to 175°C	5/10/15 /20/30
DN25	GDTWHTCSST32030.20	32mm*26mm	20mm	1¼"	-50°C to 175°C	5/10/15 /20/30
