Insulated eps sandwich foam wall panel making machine
Insulated eps sandwich foam wall panel making machine
Insulated eps sandwich foam wall panel making machine
Insulated eps sandwich foam wall panel making machine
Insulated eps sandwich foam wall panel making machine
Insulated eps sandwich foam wall panel making machine
Insulated eps sandwich foam wall panel making machine

Insulated eps sandwich foam wall panel making machine

Share on (62172314906):


Price:$50,000.00

Quantity:


Product Overview

Description


Product Description

Insulated eps sandwich foam wall panel making machine is in order to adapt to recent development trend of building materials, our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.

\t
Machinery parameters
\t
Capacity
\t
10,000--500,000 squm per year
\t
Thickness
\t
50-200 mm, thickness can be adjusted
\t
Length
\t
2440-3300mm, can be customized
\t
Width
\t
610mm
\t
Raw materials
\t
cement, fly ash, eps beads/perlite/ceramsite, sand, sand etc.
\t
Finished panel type
\t

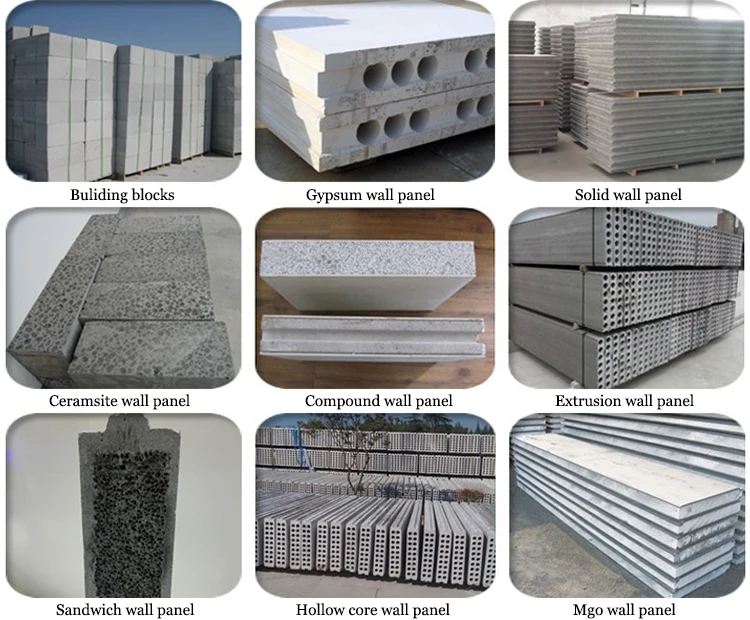

solid panel with or without face board, hollow panel, sandwich panel
\t
Surface board used
\t
calcium silicate board/fiber cement board/mgo board
Detailed Images

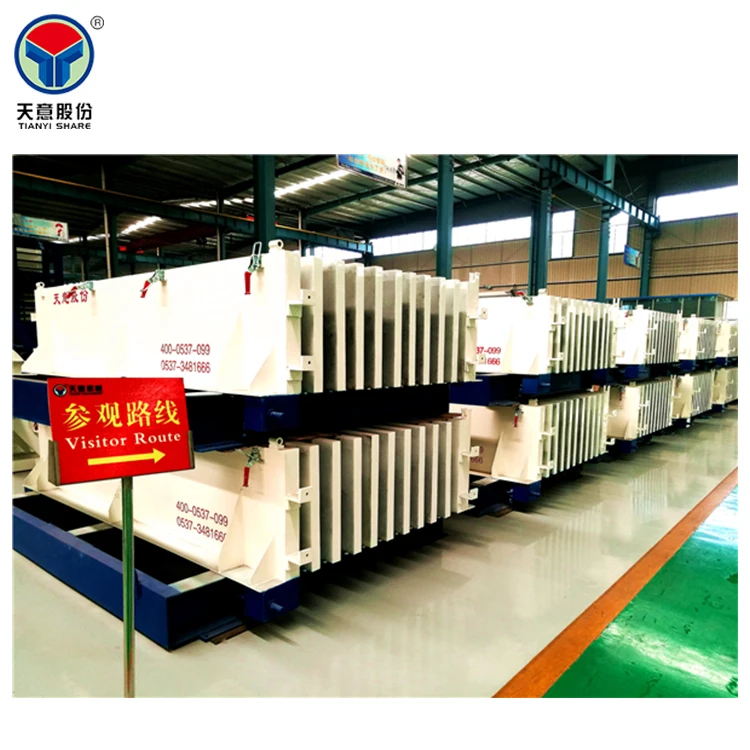

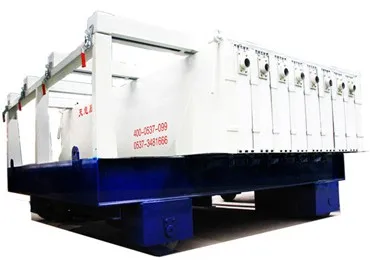

Name: mold car

Grouting slurry into the mold, then will form panels

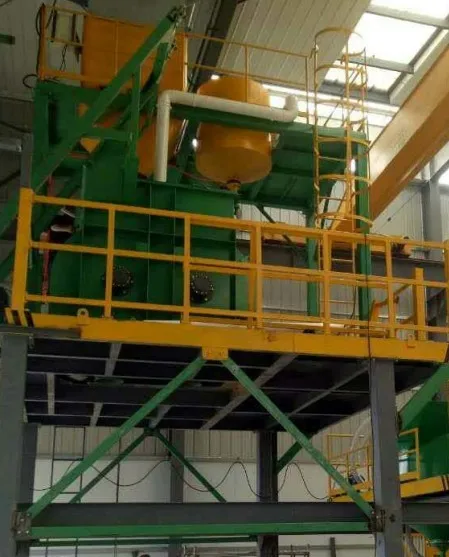

Name: mixing system

 Automatic raw materials feeding, matching, measuring, mixing, water supply etc, the automation function is realized, save laor.

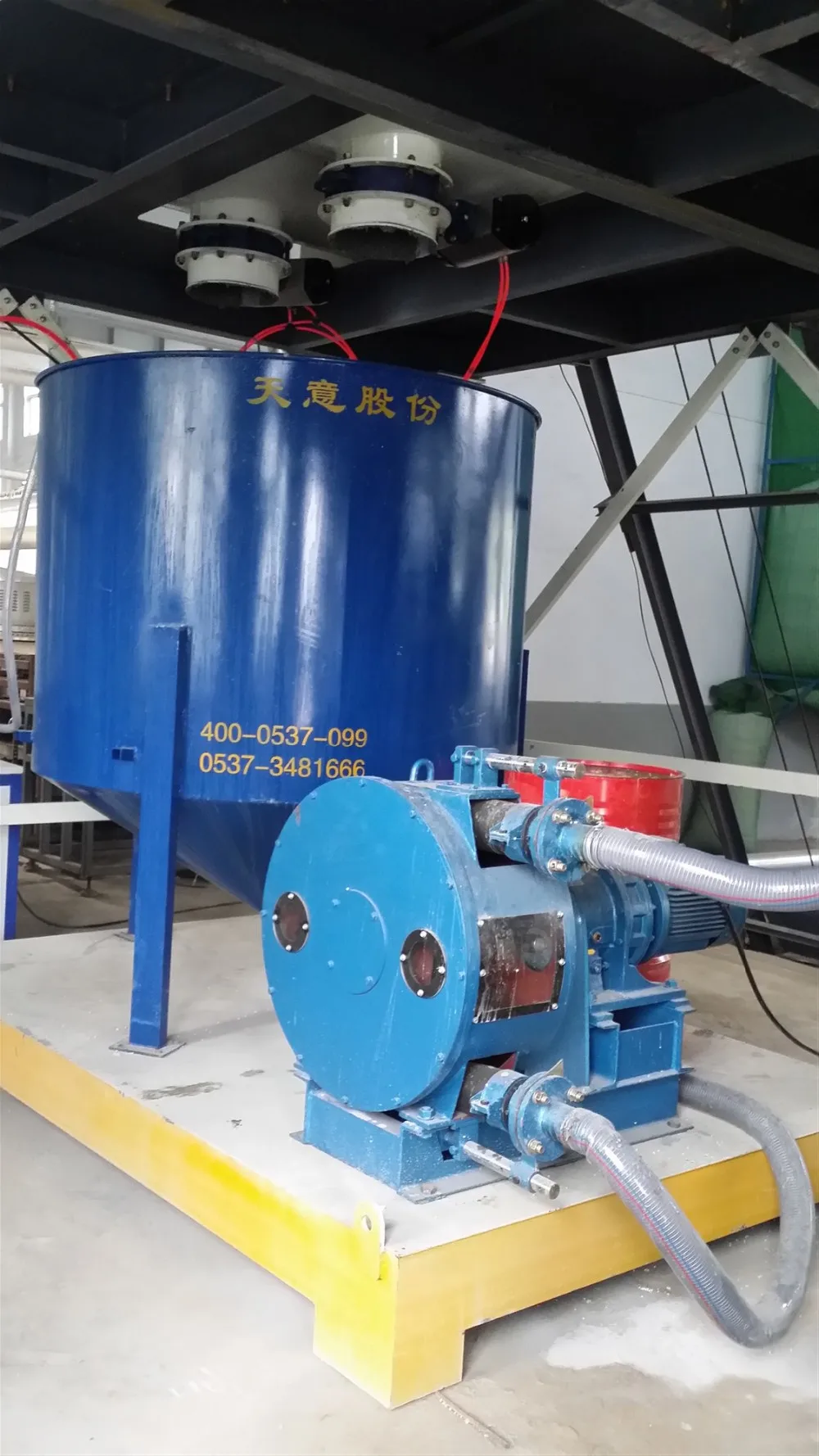

Name: grouting machine

  This machine can grout slurry into the mold, so that the slurry will be more even, no air holes,  the quality of finished panel will be better.

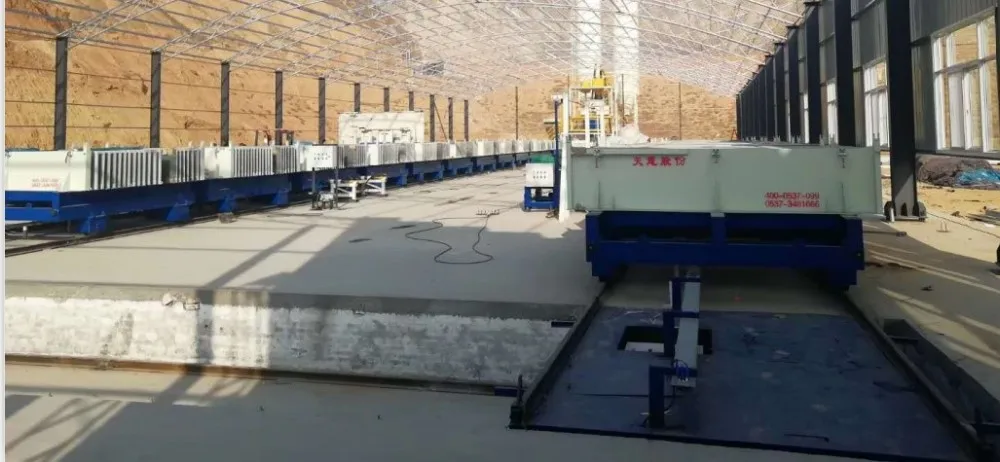

Name: demolding machine
  This machine can pull panels automatically, turning, then panels will be transported to storage area, can save labor

.

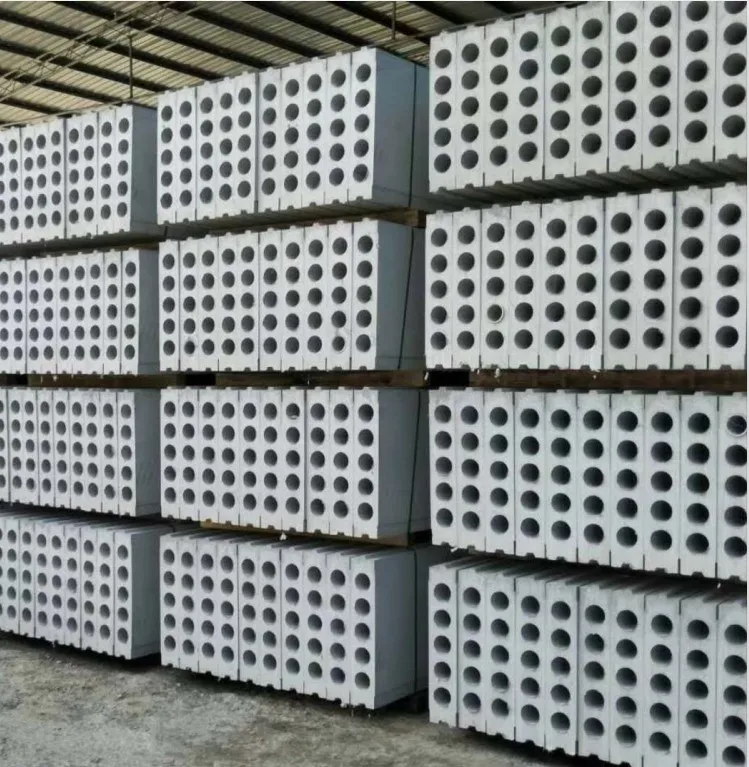

FInished products
\t
Item
\t
National standards
\t
Criterion of detection
\t
60mm
\t
90mm
\t
120mm
\t
60mm
\t
90mm
\t
120mm
\t
Shock resistance/second
\t
≥5
\t
≥5
\t
≥5
\t
≥8
\t
≥10
\t
≥15
\t
Bending failure load/weight ratio
\t
≥1.5
\t
≥1.5
\t
≥1.5
\t
≥3
\t
≥4
\t
≥5
\t
Compressive strength/Mpa
\t
≥3.5
\t
≥3.5
\t
≥3.5
\t
≥4
\t
Softening coefficiency
\t
≥0.8
\t
≥0.8
\t
≥0.8
\t
≥1
\t
Weight/kg/m2
\t
≤70
\t
≤90
\t
≤110
\t
≤55
\t
≤70
\t
≤85
\t
Drying shrinkage/mm/m
\t
≤0.6
\t
≤0.45
\t
≤0.5
\t
≤0.5
\t
Hanging force/N
\t
≥1000
\t
≥1200
\t
≥1300
\t
≥1500
\t
Sound resistance/dB
\t
≥30
\t
≥35
\t
≥40
\t
≥35
\t
≥40
\t
≥45
\t
Fire resistance rating/h
\t
≥1
\t
≥2.5
\t
≥3
\t
≥4
\t
Heat transfer coefficient b/w/m.k
\t
≤1.0
\t
≤1.0
\t
\t
Certifications
Our Service

We will despatch engineer to install and commission machinery for customers, and train your workers, provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
