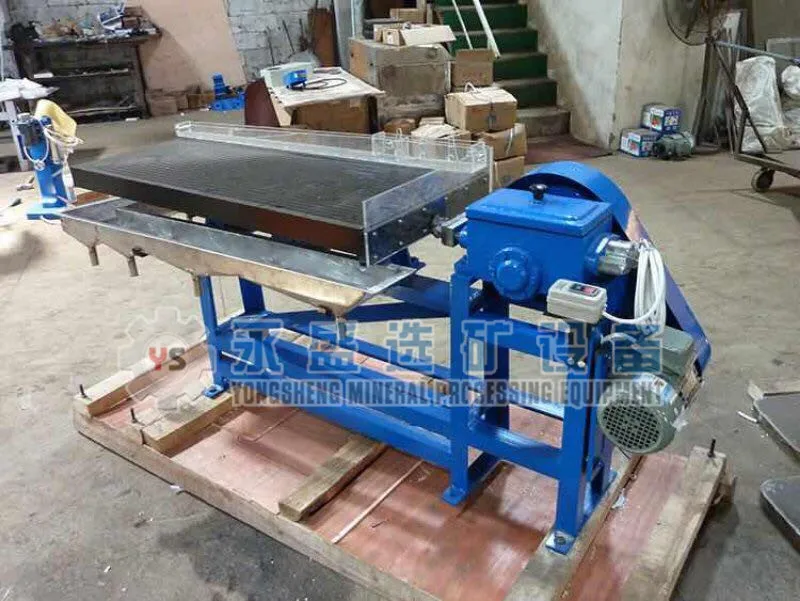

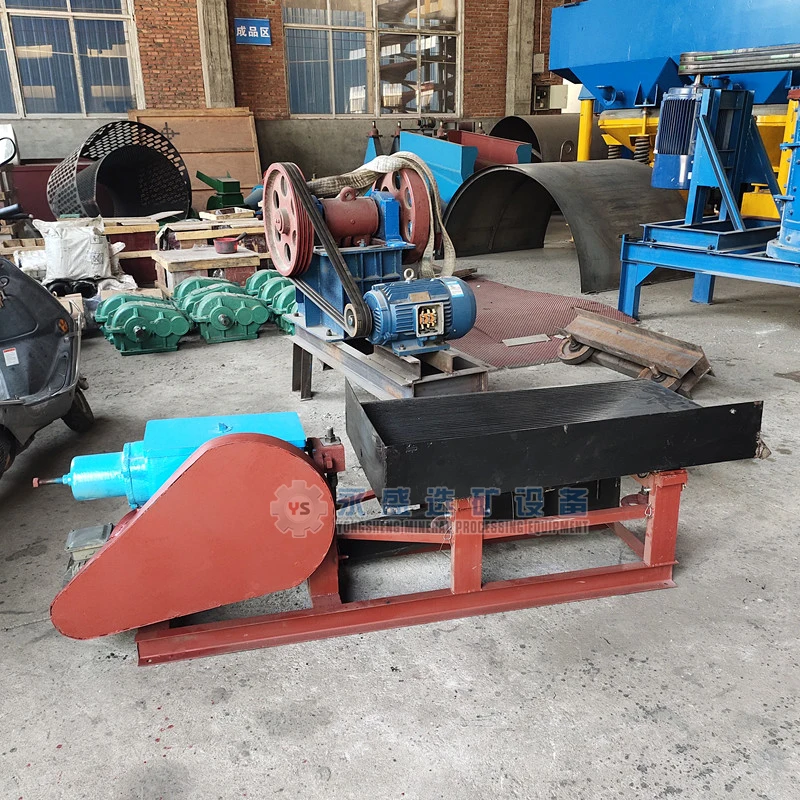

Маленькая встряхивающаяся Настольная мини машина для мелкого разложения песка, аллювиальный Золотой минеральный сепаратор, поставщик из Китая
- Category: Mineral Separator >>>
- Supplier: Jiangxi Shicheng Yongsheng Ore Processing Equipment Manufacturing Co. Ltd.
Share on (62172456746):
Product Overview
Description
Product Description

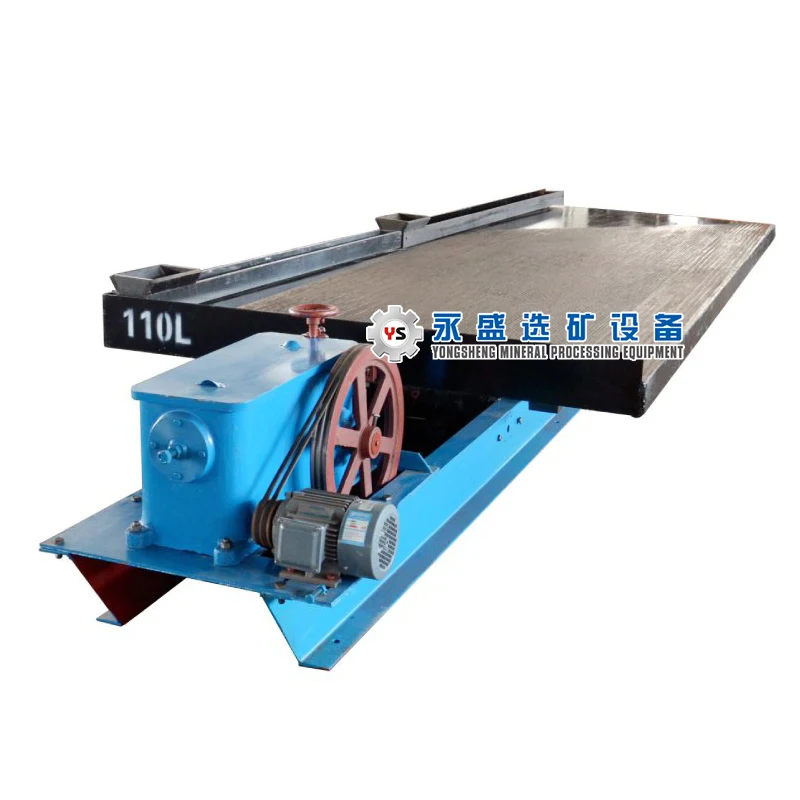

Ore Processing Equipment Shaking table is also called table concentrator, is a mineral separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum-Niobium, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Rutile, ilmenite, coal etc, can be separation all ore which have enough big specific gravity difference.
E-waste and copper wire material also can use this shaking table.
The range of effective separating particle size of shaking table is 0.02-2mm.
The working principle of shaking Table is separate the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.
The prominent advantage of ore shaking table is precise separation. The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals.
Gold Wash ShakerTable Main Material:
The decks are constructed of steel framework and covered 16mm fiberglass and emery, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
E-waste and copper wire material also can use this shaking table.
The range of effective separating particle size of shaking table is 0.02-2mm.
The working principle of shaking Table is separate the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.
The prominent advantage of ore shaking table is precise separation. The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals.
Gold Wash ShakerTable Main Material:
The decks are constructed of steel framework and covered 16mm fiberglass and emery, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Specification
Model | Stroke (mm) | Cross Slope (°） | Feed size （mm） | Feed Density (%) | Water Consumption (t/h) | Capacity (t/h) | Power (KW) | Weight (KG) |
6S-4450*1855*1546 | 8-22 | 1-4 | 2-0.074 | 15-30 | 0.4-1 | 0.6-1.8 | 1.1 | 800 |

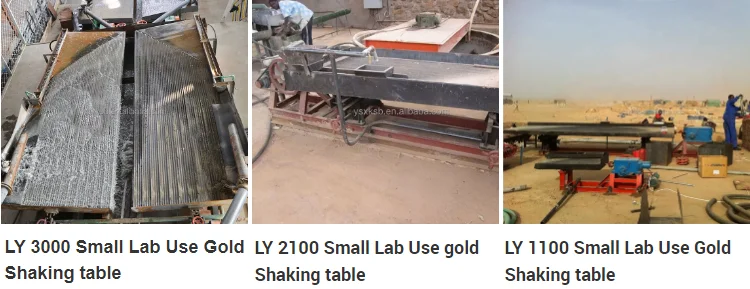

LY-3000*1620*1360 | 6-30 | 0-10 | 2-0.074 | 10-30 | 0.3-1.5 | 0.4-1.5 | 1.1 | 550 |
LY-2100*1050*850 | 12-28 | 0-8 | 2-0.074 | 10-30 | 0.2-1 | 0.3-0.8 | 1.1 | 350 |

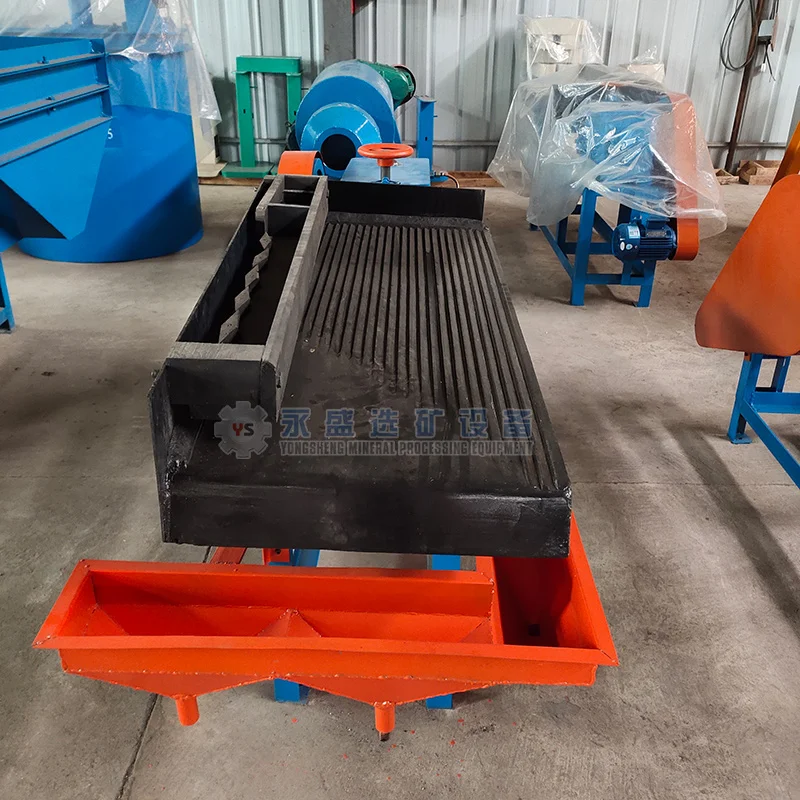

LY-1100*500*430 | 9-17 | 0-10 | 2-0.074 | 10-30 | 0.1-0.5 | 0.05-0.2 | 0.55 | 150 |
6S-4450 Big Channel Steel Shaking Table ( 28# steel)
More stable, more convenient, no need pour the concrete to fix the anchor bolts on the ground. Fast install and operation, easy to
dismount and move, especially apply cable to the uneven ground, false and virtual ground operation.

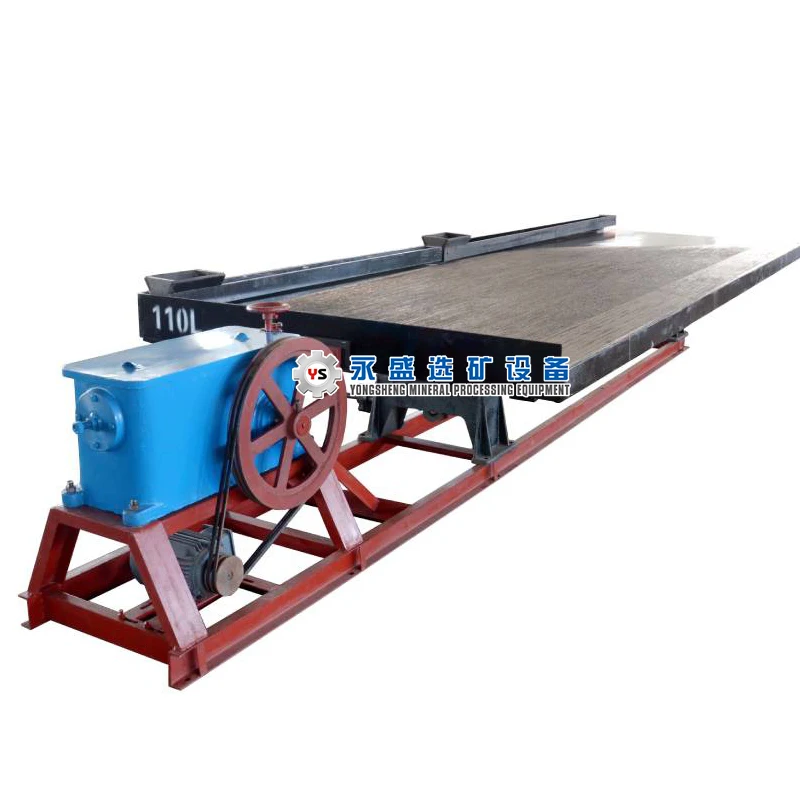

6S-4450 Small Channel Steel Shaking Table (12# steel)
Easy to install, just need pour concrete to fix the anchor bolts on the ground, same effect compare with the normal shaking table,
the price is moderate. Most clients like choose it.

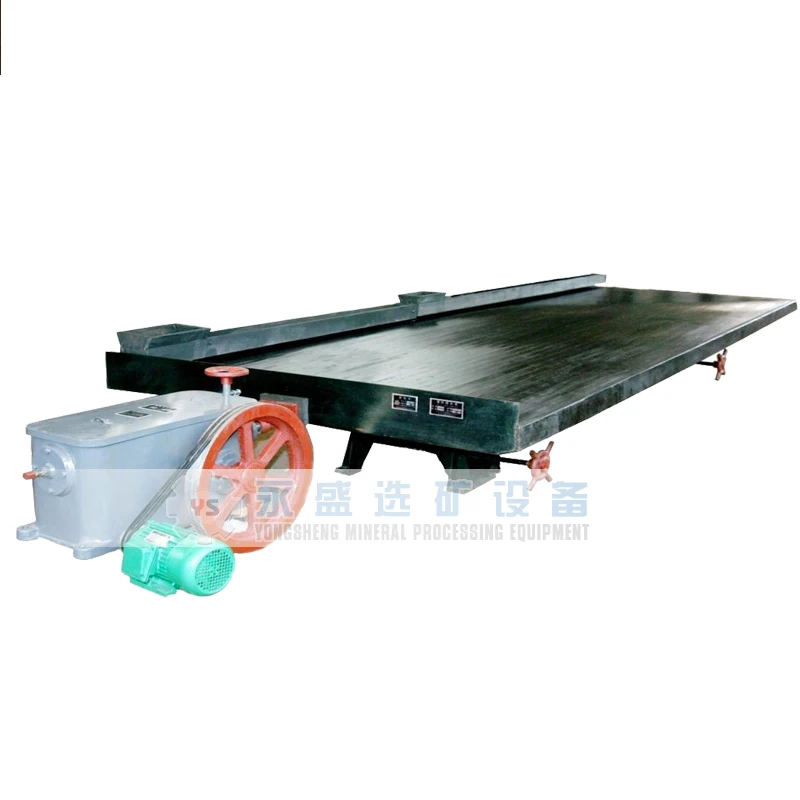

6S-4450 Normal Fixed Type Shaking Table
Without mounting bracket, need to use concrete pouring cement casting pile to put shaking table, not convenient to move, but
relatively save cost.
relatively save cost.
Packing & Delivery
Packing in the full container
-FCL: One 20' GP can Load into 10 sets shaking tables, One 40' GP & 40' HQ can load into 20 -26 sets shaking table.
Packing method ship by Bulk Cargo
-LCL: iron steel frame, convenient for transport.
Company Profile
Contact Me
Contact Person: Climber Zeng
Website 1: www.goldseparating.com (all languages)
Website 2: www.ysxksb.en.alibaba.com
E-mail: yongshengmachines@hotmail.com
Address.: No. 3, Industrial Avenue, Guzhang Industrial Park, Shicheng County, Ganzhou City, Jiangxi Province, China.
Website 2: www.ysxksb.en.alibaba.com
E-mail: yongshengmachines@hotmail.com
Address.: No. 3, Industrial Avenue, Guzhang Industrial Park, Shicheng County, Ganzhou City, Jiangxi Province, China.
FAQ
Q: What is the payment terms ?
A: 1.Total payment lower than 3000 USD : 100% payment by T/T before delivery.
2. Total payment higher than 3000 USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
3. Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 20-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
A: 1.Total payment lower than 3000 USD : 100% payment by T/T before delivery.
2. Total payment higher than 3000 USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
3. Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 20-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
