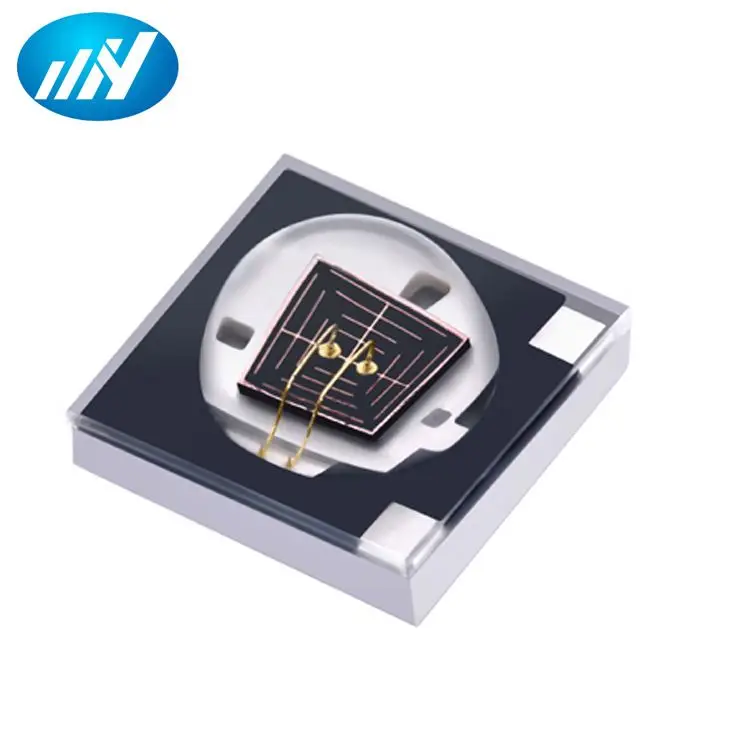

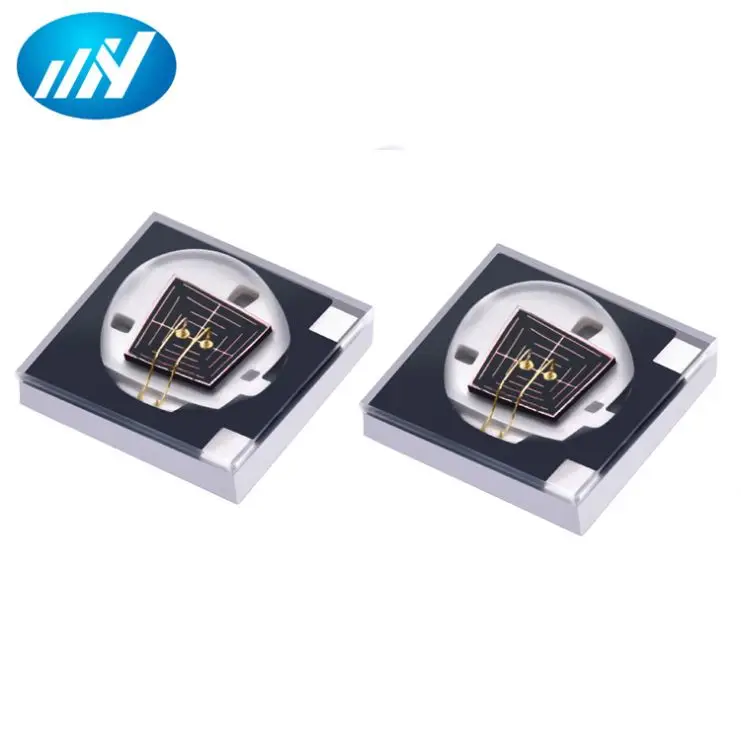

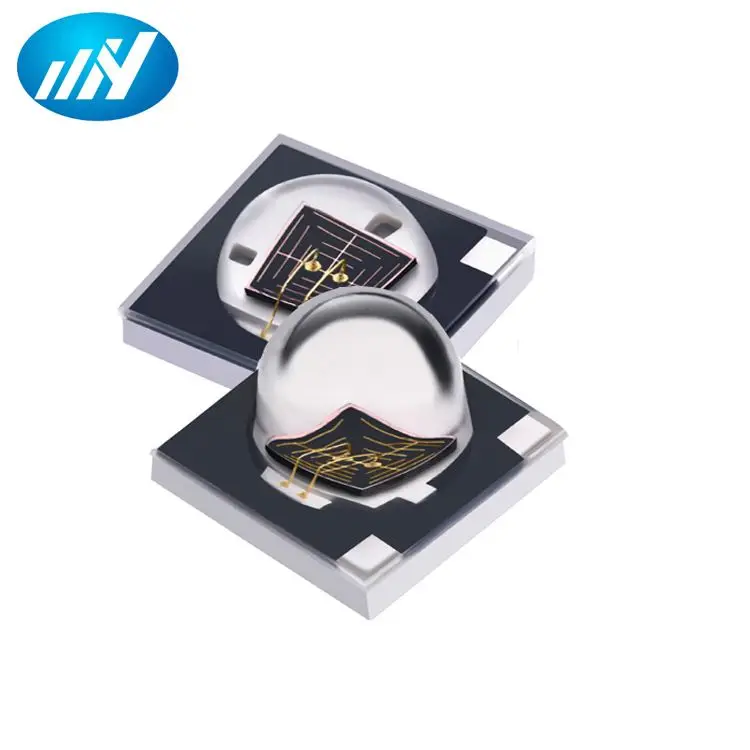

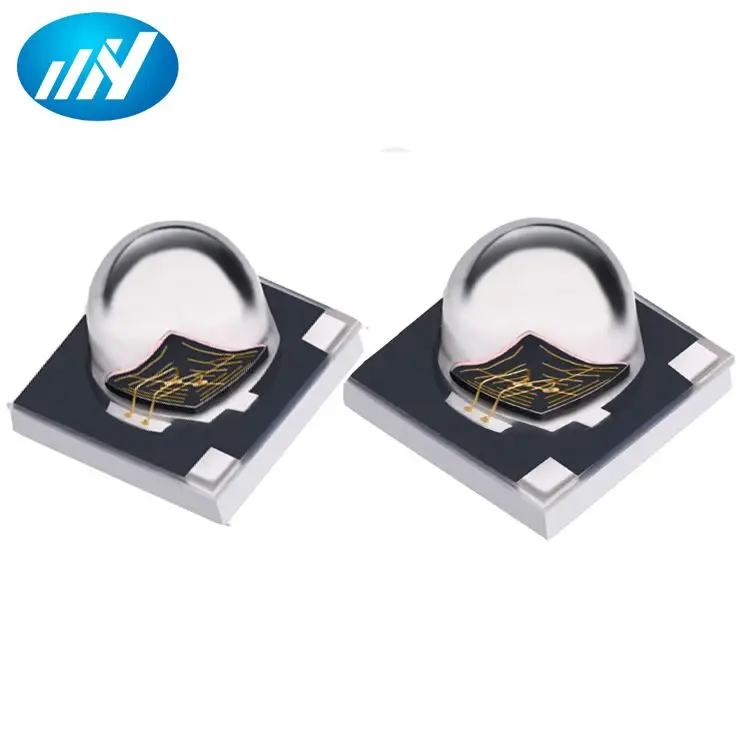

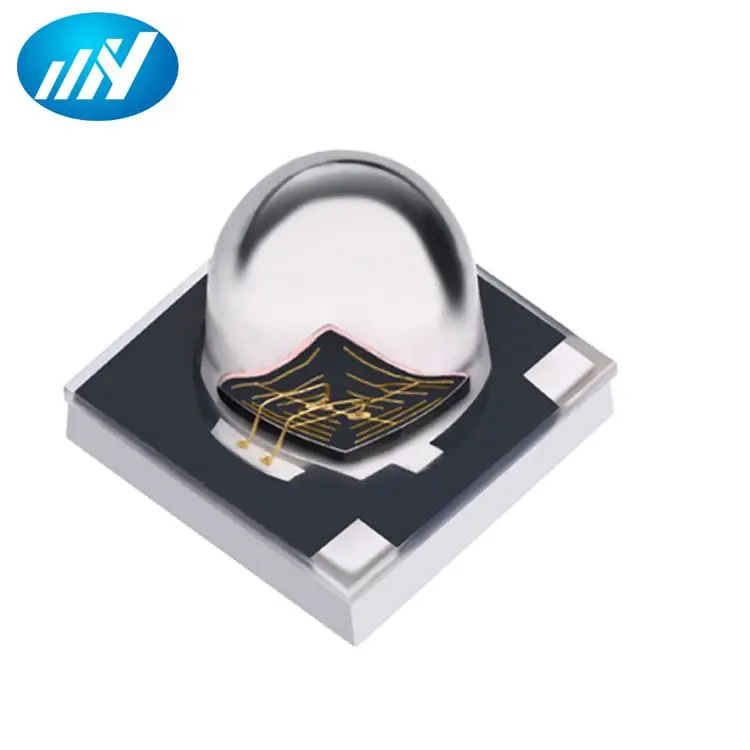

1w 800nm 810nm 820nm 830nm 840nm 850nm 860nm 880nm 890nm IR led

Product Overview

Description



Order Code	Voltage (V)	Peak     Wavelength (nm)	Radiant   Power (mW)	Radiant Intensity (mw/sr)	Current (mA)	Half Width (nm)	Angle (0)	Electric power (W)
HYQ35G42N700AB-D1	2.0-2.4	690-710	300-400	250	700	22	120	3
HYQ35E42N720AB-D1	1.8-2.2	720-730	800-1000	600	1000	22	120	3
HYQ35E42N730AB-D1	1.8-2.2	730-740	800-1000	600	1000	22	120	3
HYQ35L42N760AB-D1	1.6-2.0	760-780	500-700	390	700	24	120	3
HYQ35L42N780AB-D1	1.6-2.0	780-800	500-700	430	700	25	120	3
HYQ35L42N800AB-D1	1.4-1.8	800-820	500-700	450	700	32	120	3
HYQ35G42N820AB-D1	1.6-2.0	820-830	500-600	400	700	35	120	3
HYQ35E42N850AB-D1	1.4-1.8	840-860	850-1200	420	1000	35	120	3
HYQ35L42N880AB-D1	1.4-1.8	870-890	600-800	360	700	39	120	3
HYQ35L42N910AB-D1	1.4-1.8	900-920	800-1000	360	700	39	120	3
HYQ35G42N925AB-D1	1.4-1.6	920-930	600-800	330	700	39	120	3
HYQ35E42N940AB-D1	1.2-1.6	930-950	900-1100	380	1000	45	120	3
HYQ35L42N980AB-D1	1.2-1.6	960-980	700-900	340	700	52	120	3
HYQ35L42N1050AB-D1	1.0-1.4	1000-1100	600-700	200	1000	50	120	3
HYQ35L14P1350AB-D1	1.0-1.2	1300-1400	10-15	/	100	85	120	0.2
HYQ35L14P1450AB-D1	1.0-1.2	1400-1500	10-15	/	100	85	120	0.2
HYQ35L42P1450AB-D1	1.0-1.2	1400-1500	130-150	/	700	85	120	3
HYQ35L32N940AB-D1	1.2-1.4	930-950	400-500	/	700	35	120	3



Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements
