Overview

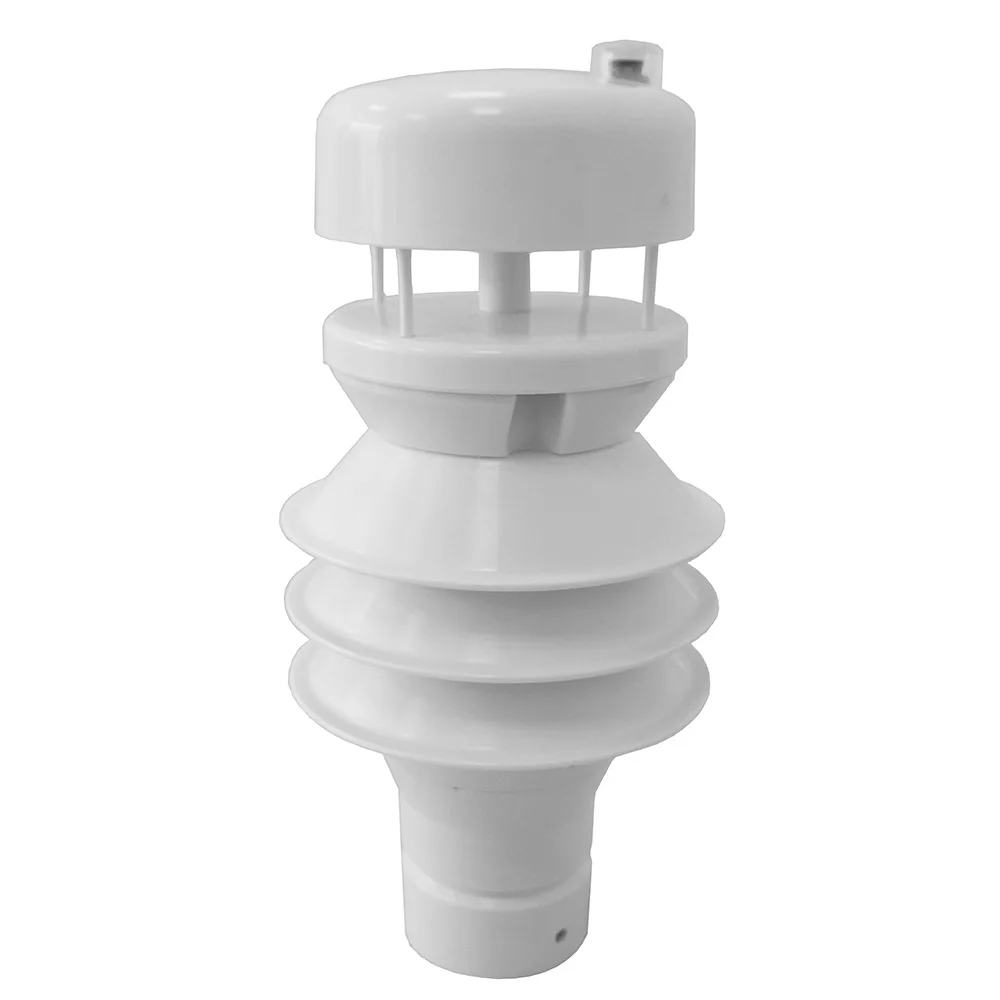

HY-WDC6 mini automatic climate weather station self-developed by HongYuv can simultaneously monitor multiple meteorological parameters: atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and precipitation.
HY-WDC6 adopts a low-power chip of consumption low to 1.7W, particularly suitable for solar or battery powered environments where power consumption requirements are extremely high. Due to the adoption of new technology and design, the structure is more compact and exquisite. We also have solar radiation and brightness detection module for your option, which is very suitable to be integrated into agrometeorological system.
Body material is ASA engineering plastic with two colors for your option:black and white.
Application
n Weather station for household
n Meteorological observation for farmland
n Wind speed & direction monitoring for tower crane
Specification
| Range | Accuracy | Resolution |
Wind Speed | 0 - 40m/s | ±3% | 0.1m/s |
Wind Direction | 0 - 359° | ±3 ° | 1° |
Air Temperature | -20℃ - +50℃ | ±0.5℃ | 0.1℃ |
Humidity | 0-100% | ±5% | 1 |
Air pressure | 300 - 1100hPa | ±1 | 0.1hPa |
Precipitation | 0-200mm/hr | ±5%( @ speed≤5m/s) | 0.01mm |
Altitude | -500m - 9000m | ±5% | 1m |
Solar Radiation (optional) | 0-2000 or 1630 W/m2 | ±5%( @ vertical irradiation) | 0.1 W/m2 |
Brightness (optional) | 0-200000 or 157000 lux | ±4%( @ vertical irradiation) | 0.1 lux |
Digital Output | RS232 or RS485 | ||
Baud Rate | 4800 - 19200 | ||
Communication Protocol | ModBus | ||
Protection Grade | IP65 | ||
Operating Temperature | -20℃ - +50℃ | ||
Operating Humidity | 0 - 100% | ||
Power Supply | VDC: 5-12V | ||
Power Consumption | 1.7W | ||
Dimension/Weight | Φ84×120mm ASA: 0.38kg | ||
Color of Body | Black or White | ||
Material | ASA Engineering Plastic | ||
Site Photos
Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.
Roadside weather station
Tunnel environment monitoring
