Product Overview

Description

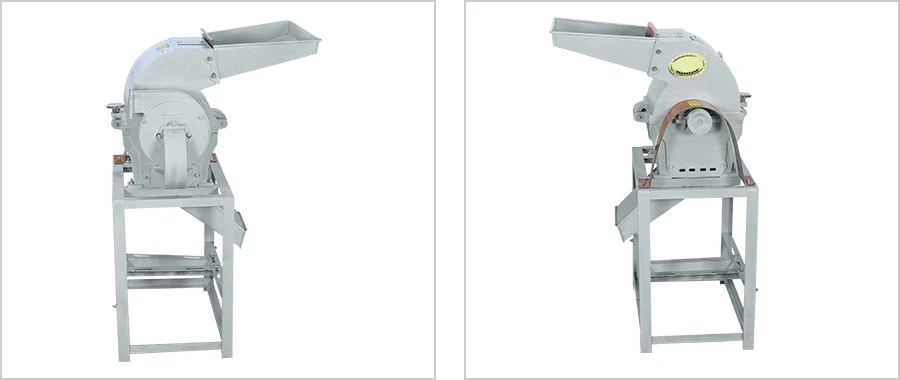

9FQ-20+ Hammer type pulverizer machine



 9FQ-20+ hammer mill effect

It is applied to the crushing of straw, corn, whole grains and the crushing of other corn hardness materials.



Advantages of the 9FQ-20+ hammer mill

Small in size and light in weight, it can be moved to production.

Professional custom motor, single-phase non-contact asynchronous jog static, 150V-240V wide voltage range, effectively solve the difficulties such as low voltage start, remote mountain areas can also be used with peace of mind.

The vibration is small during work and no special fixing is required.

The protection measures are good, and any venue can be used with confidence.

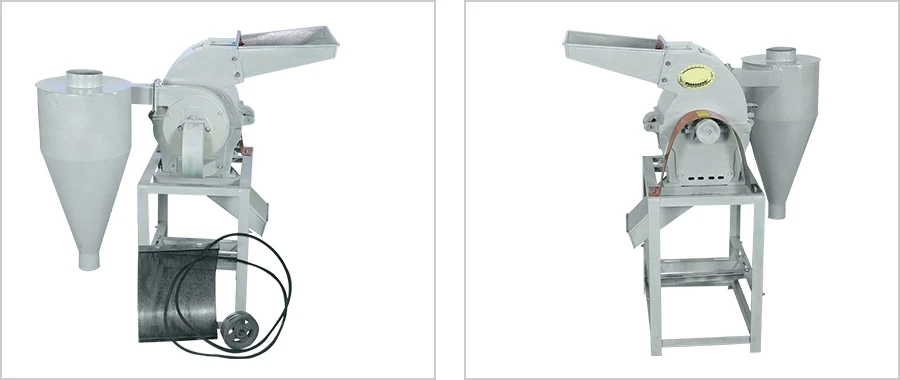

There is a vacuum cleaner in the discharge of the pulverizer, and the dust overflows little and is clean and hygienic.

The structure design is reasonable, and the granular material can be wet and dry.

When working, the noise of the machine is less than 80 decibels.

The main components are thickened to ensure stable operation of the machine for a long time.

The surface of the machine is sprayed with a fully automatic electrostatic spray process, which is bright and corrosion resistant.

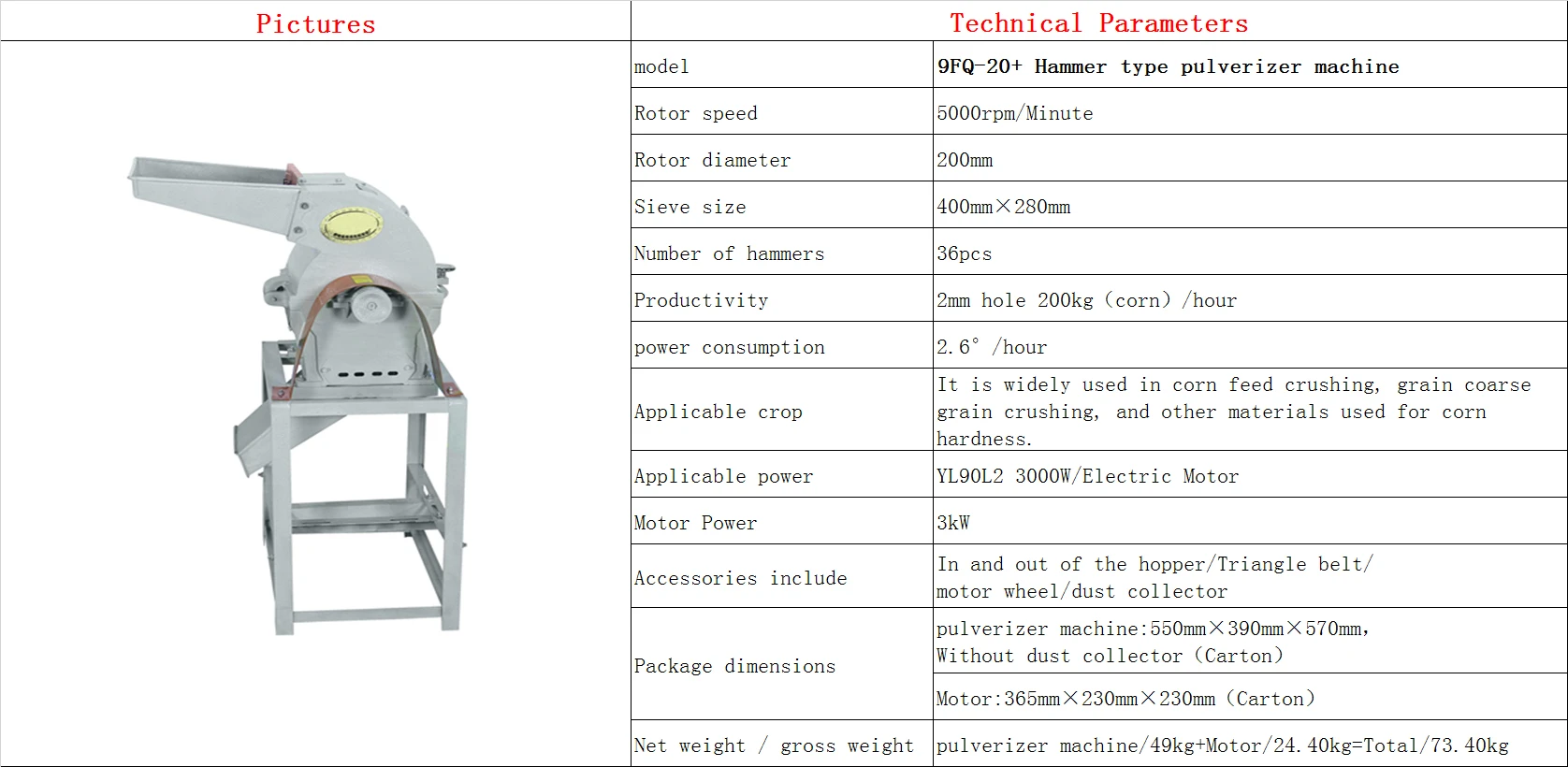

Technical Parameters
model	9FQ-20+ Hammer type pulverizer machine
Rotor speed	5000rpm/Minute
Rotor diameter	200mm
Sieve size	400mm×280mm
Number of hammers	36pcs
Productivity	2mm hole 200kg(corn)/hour
power consumption	2.6°/hour
Applicable crop	It is widely used in corn feed crushing, grain coarse grain crushing, and other materials used for corn hardness.
Applicable power	YL90L2 3000W/Electric Motor
Motor Power	3kW
Accessories include	In and out of the hopper/Triangle belt/ motor wheel/dust collector
Package dimensions	pulverizer machine:550mm×390mm×570mm, Without dust collector(Carton)
	Motor:365mm×230mm×230mm(Carton)
Net weight / gross weight	pulverizer machine/49kg+Motor/24.40kg=Total/73.40kg
