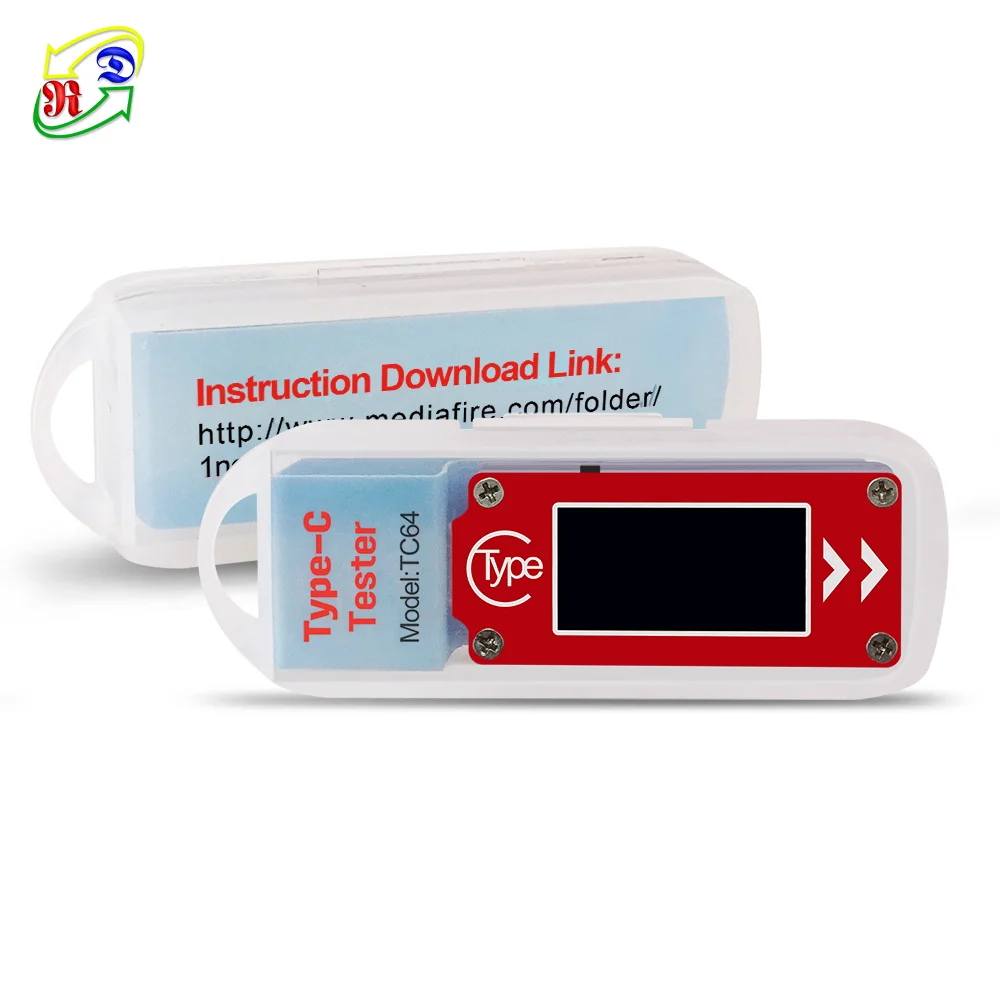

RD Type C TC64 DC USB voltage current tester voltmeter ammeter PD charger Color LCD Display power bank USB Meter
- Category: Voltage Meters >>>
- Supplier: Hangzhou Ruideng Technology Co. Ltd.
Share on (62174347250):
Product Overview
Description
Product Description
1.Technical parameters:
Product Model:TC64
Voltage measurement range:3.70-30.00V
Current measurement range:0-4.000A
Capacity accumulation rannge:0-99999mAh
Energy sccumulation range:0-99999mWh 999.99Wh
Load impedance range: 1Ω-9999.9Ω
Temperature range:-0℃~80℃/32℉~176℉
Working temperature range: 0~45℃/32℉~113℉
Refresh rate:2Hz
Voltage measurement range:3.70-30.00V
Current measurement range:0-4.000A
Capacity accumulation rannge:0-99999mAh
Energy sccumulation range:0-99999mWh 999.99Wh
Load impedance range: 1Ω-9999.9Ω
Temperature range:-0℃~80℃/32℉~176℉
Working temperature range: 0~45℃/32℉~113℉
Refresh rate:2Hz
Display screen:0.96 Inch color LCD display
Voltage measurement resolution:0.01V
Current measurement resolution:0.001A
Voltage measurement accuracy:±(0.8%+4digits at 25℃)
Current measurement accuracy: ±(1%+4 digits, at 25℃)
Power measurement range:0-120W
Temperature measurement error:±3℃/±6℉

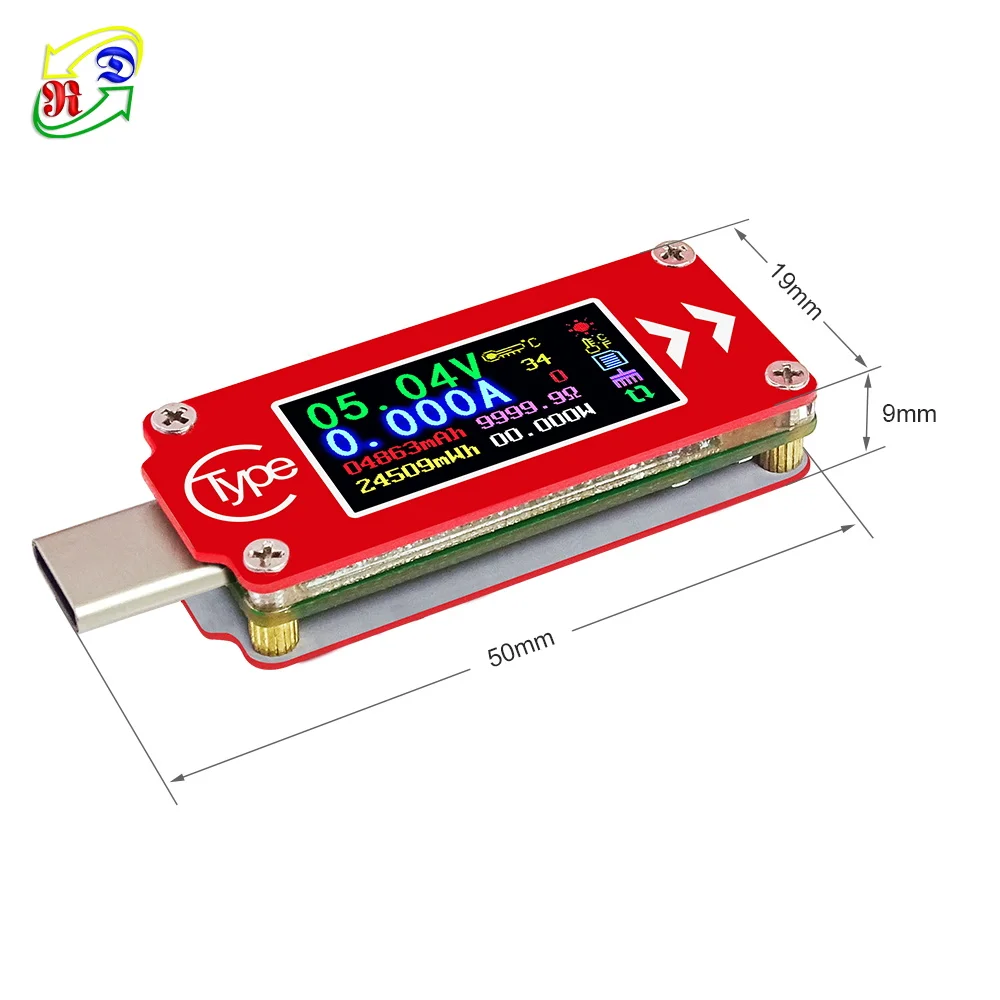

Product size:50mmx19mmx9mm
Product weight:7g( With packaging 14g)
Voltage measurement resolution:0.01V
Current measurement resolution:0.001A
Voltage measurement accuracy:±(0.8%+4digits at 25℃)
Current measurement accuracy: ±(1%+4 digits, at 25℃)
Power measurement range:0-120W
Temperature measurement error:±3℃/±6℉
Product size:50mmx19mmx9mm
Product weight:7g( With packaging 14g)
Quick charge recognition mode:QC2.0,QC3.0,APPLE 2.4A/2.1A/ 1A/0.5A,Android DCP,SAMSUNG
2.INTRODUCTION DOWNLOAD LINK:
//www.mediafire.com/folder/1ne1rbus2zxzc/TC643.NOTE
①The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.
②if you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable .
③Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance
(no type-c trigger)
④Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
4.RELATED PRODUCTS:
UM24C
UM25C
UM34C
TC66C
AT35
HD35
5.PRODUCT DESCRIPTION

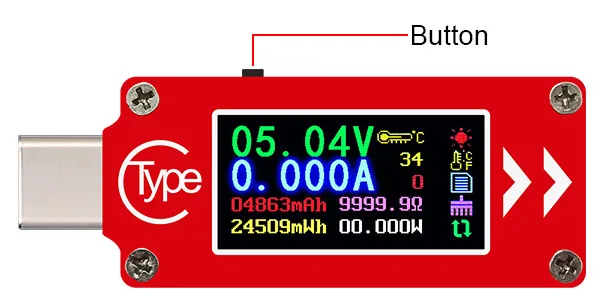

Button Instruction:
The button is located on side of the tester. There are 2 kinds operation way, long press and short press. Short press is to realize switch between Measurement Main Interface and Quick Charge Recognition Interface.
Function Interfaces:

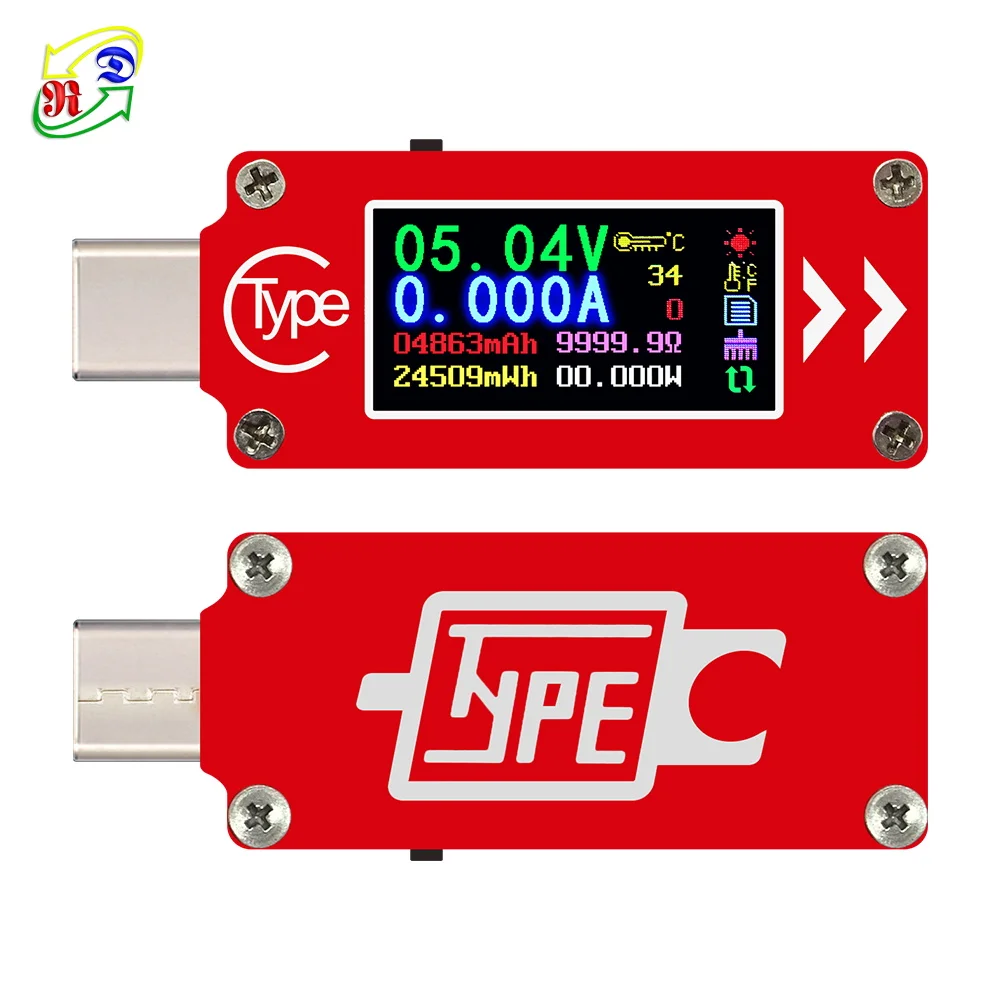

Measurement Main Interface
Parameter Setting:
Quick Charge Recognition Interface
1.Press and hold the button, until the corresponding icon will be selected and displayed (the background of icon turns
black to blue), then loosen the button to realize the function
2.Press and hold the button, the screen off icon will be selected and displayed, then loosen the button, screen will be
off, then press the button or power on again, the display will light again
3.Press and hold the button, the temperature unit switch icon will be selected and displayed, then loosen the button,
the temperature unit will be switched. Degree centigrade is the default temperature unit
4.Press and hold the button, the data group switch icon will be selected and displayed, then loosen the button, data
group will be switched. This tester can provide 2 groups to store and check, 0 and 1 data group. When the data set is 0 group, the current capacity will be stored after power off. When power on next time, the stored mAh and mWh is
blinking displayed. When the new mAh is up to 1 mAh, the stored mAh and mWh will be covered, and the values will
start over. When data set is group 1, the current capacity will be stored after power off. And the stored capacity will be
accumulated after power on.
5.Press and hold the button, the current data group reset icon will be selected and displayed, then loosen the button,
the data of the current data group will be reset.
6.Press and hold the button, the screen rotation icon will be selected and displayed, then loss the button, the screen will
be rotated 180 degree, and stored automatically, which is convenient for later using
COMPARISON CHART:
TC64 | TC66(C) | ||
USB port | Type-C port | Type-C port | |
Expansion port | None | MICRO-USB | |
Voltage measurement range | 3.70-30.00V | 0-30.0000V | |
Voltage measurement resolution | 0.01V | 0.0001V(0.1mV) | |
Current measurement range | 0-4.000A | 0-5.00000A | |
Current measurement resolution | 0.001A | 0.00001A(0.01mA) | |
Power measurement range | 0-120W | 0-150W | |
measurement method | current can pass in one direction | current pass in two direction | |
Identifiable fast charge protocol | QC2.0,QC3.0,APPLE2.4A/2.1 A/ 1A /0. 5,Android DCP,SAMSUNG | ||
Supported fast charge protocol | None | QC2.0,QC3.0,Huawei FCP,Huawei SCP, SAMSUNG AFC,PD | |
Trigger/decoy protocol | None | QC2.0,QC3.0,Huawei FCP, Huawei SCP,SAMSUNG AFC,PD2.0,PPS | |
Interface Introduction | 1.Main Interface 2.Quick Charge Recognition Interface | 1.Main Interface 2.Offline Recording Interface 3.Quick Charge Recognition Interface 4.Quick Charge Protocol Detection Interface 5.Trigger Interface 6.System Setting Interface 7.System Information Interface 8.Simple Measurement Interface | |
Communication Function | None | PC software: work on Win7 or above (PC software can only be connected by Micro-USB cable) Mobile Phone: Android5.0 or above;IOS8.0 above (Mobile Phone can only be connected to TC66C by Bluetooth) | |
Special Function | None | 1.detect supported/unsupported fast charge protocol 2.TC66(C) can store Voltage/Current data temporarily,and view data on PC software/APP when connected. 3.Trigger/decoy operation/PD tirgger operation4.adjust screen brightness 5.rotate screen direction 6.CC line mode select 7.Language select 8.Restore factory settings 9.Check Products series number/Firmware revision number/Boot times/Running time 10.Only show Voltage measurement/Current measurement/Power measurement/Current direction at Simple Measurement Interface | |
