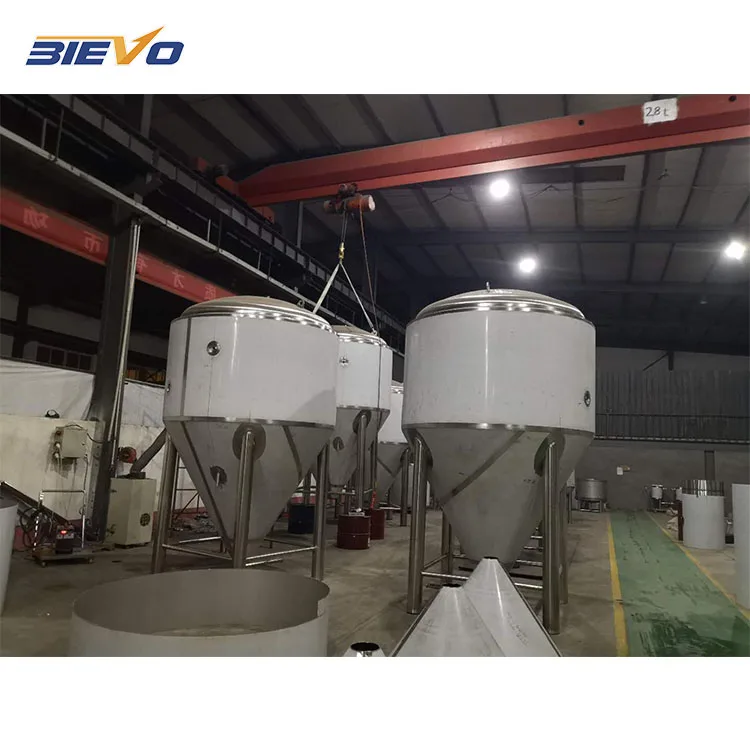

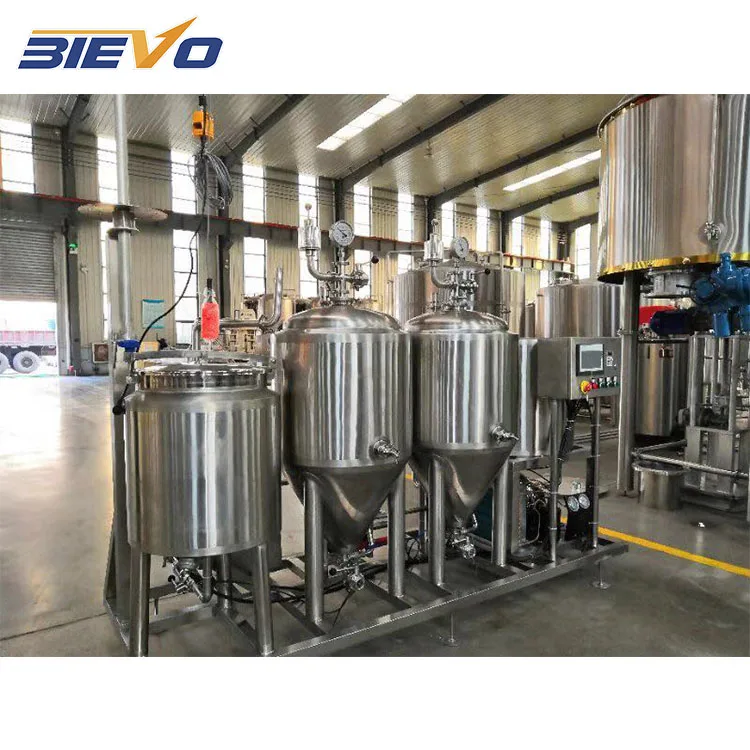

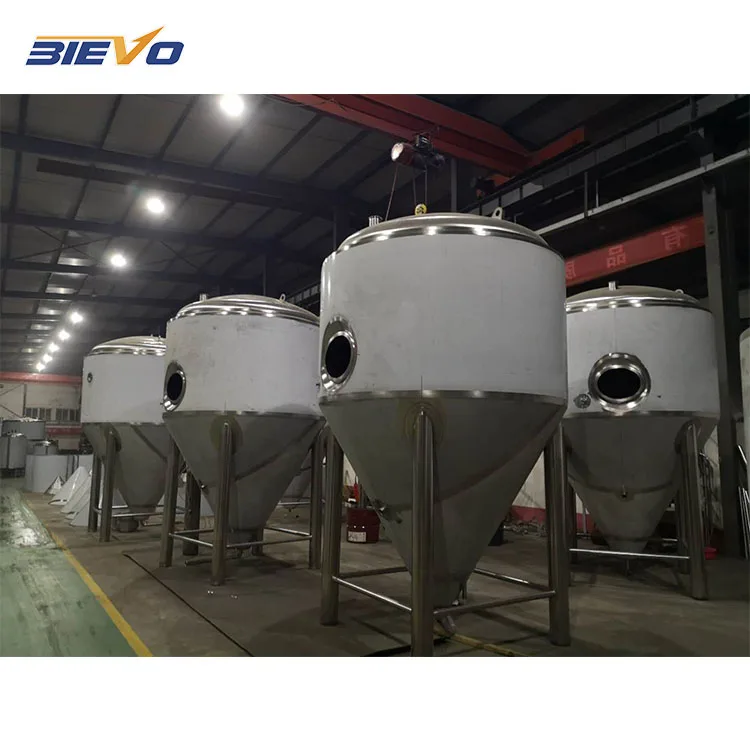

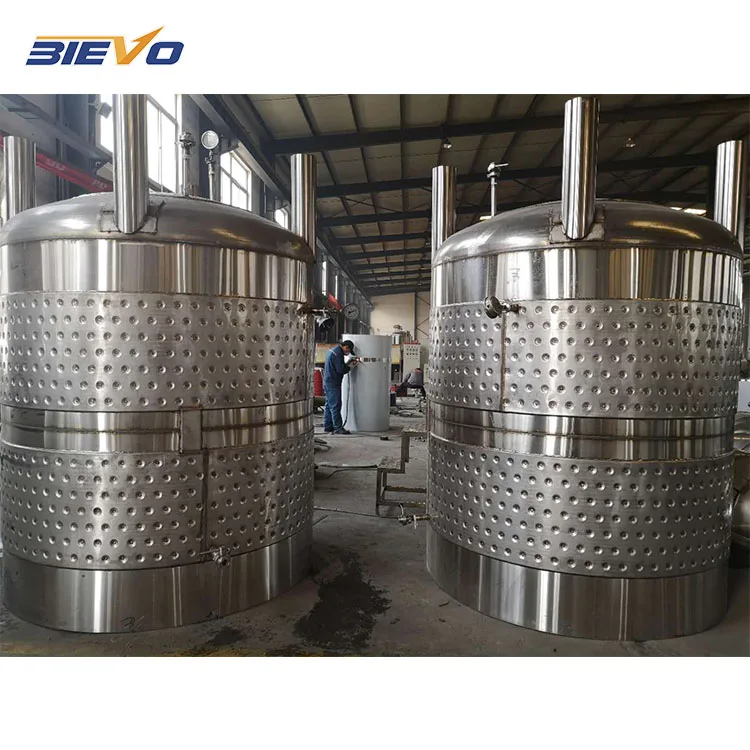

BIEVO's Fermenter is available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tanks have a Dish top, Cylinder body & 60 /70° Cone Bottom. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket forGlycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery's space and height restrictions.
<2> Steam heated, electrical heater or natural gas <3> Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304. <4> Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm. <5> Boiling the kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304. <6> Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.
Fermentation System.
<1> Capacity: 100L-30000L, 1bbl-100bbl, +25% Headspace <2> Interior shell thickness 3-6mm, Exterior shell=2mm <3> 100% TIG welding with pure argon gas shield <4> Interior finish: pickled and passivated, external polished, 80mm insulated <5> Test pressure 3 bar, working pressure 1.5 bar <6> Glycol zones (Both on the side and conical/bottom) <7> 60°conical bottom for Fermenter, Shadowless side manway
Cooling System.

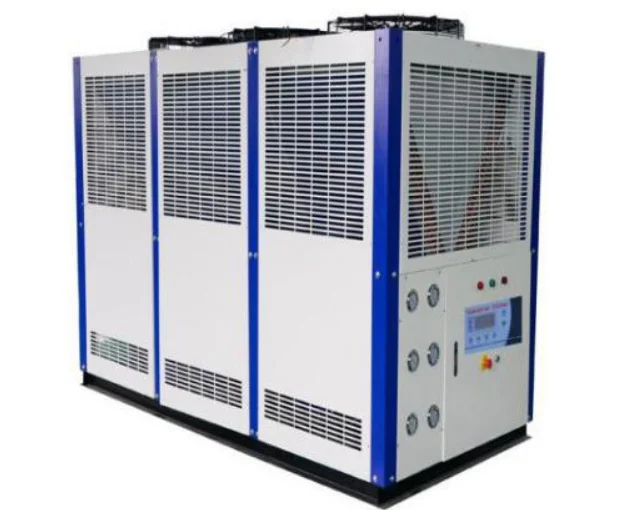

<1> Description: Air type chiller + Ice water tank or Glycol tank
<2> SIEMENS program S7-200, Siemens touch screen. <3> Pneumatic valves for optional

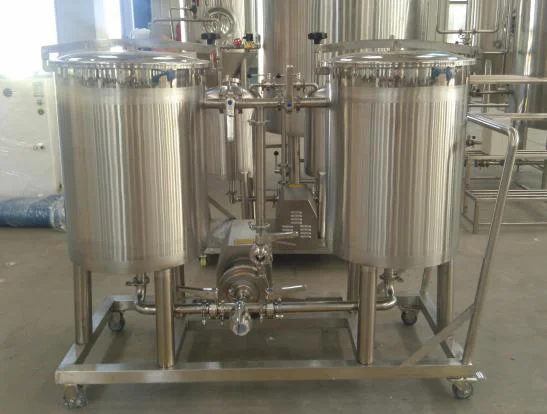

CIP System.
<1> Cleaning in Place, with disinfectant fluid in it.
<2> Stainless Steel material.
<3> To make cleaning without taking apart pipes or equipment availability can be improved and the intensity of labor lessened.
malt milling system

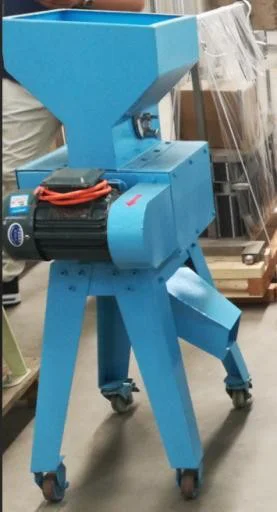

<1> malt miller machine
<2> grist case

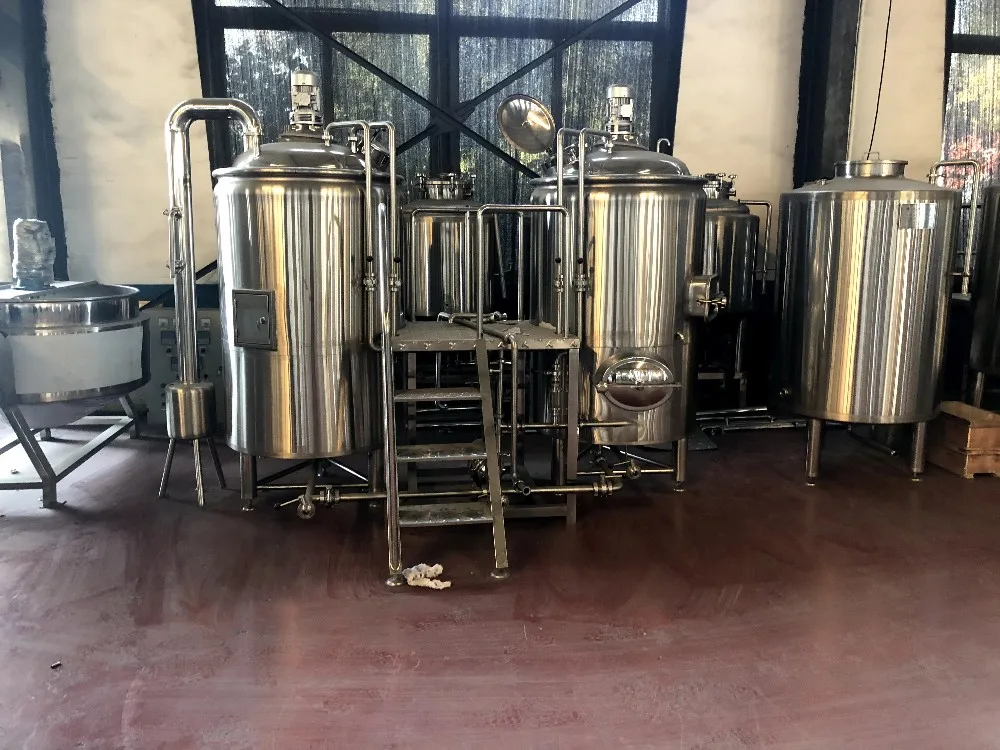

Mash system
<1> Mash tun/Brew kettle
<2> Lauter/whirlpool tank
(Or mash tun/lauter and brew kettle whirlpool)
<3> Hot water tank(optional)
<4> Mash/wort/hot water pump Motors
<5> Wort oxygenation device
<6> Operation platform
<7> Plate heat exchanger

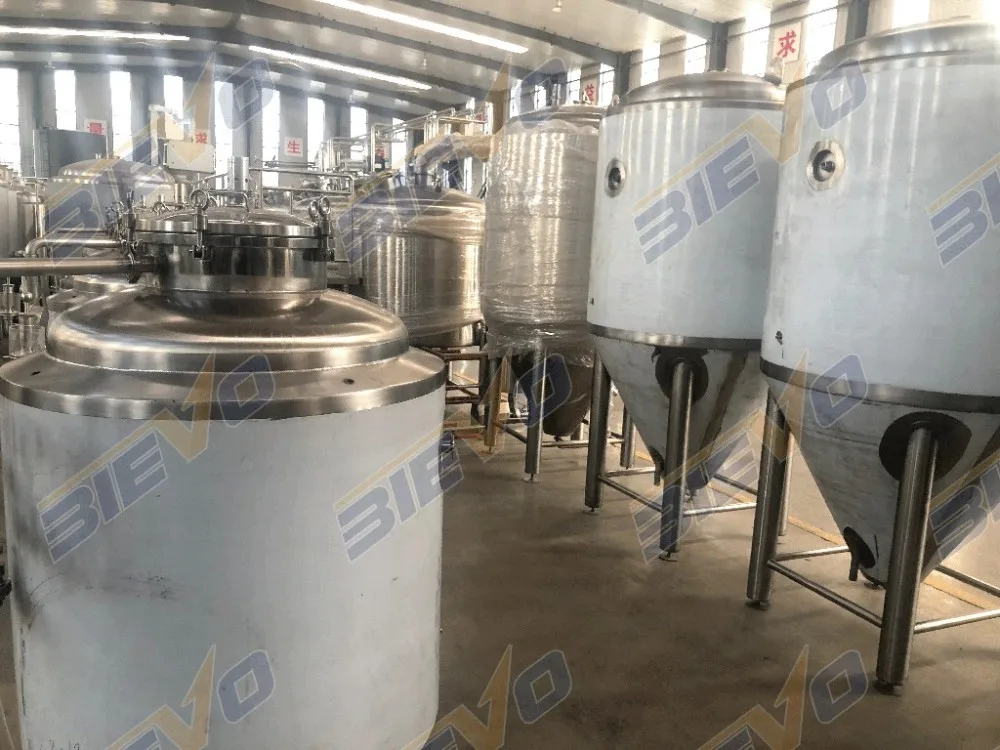

Fermenting system
<1> Beer fermenters
<2> Bright beer tanks
<3> Yeast adding tank
<4> Accessories, such as sample valve, pressure gauge, safety valve and so on
Cooling system
<1> Glycol tank
<2> Refrigerating unit
<3> Glycol pump
CIP cleaning system
disinfection tank & alkali tank &cleaning pump etc.
Controller

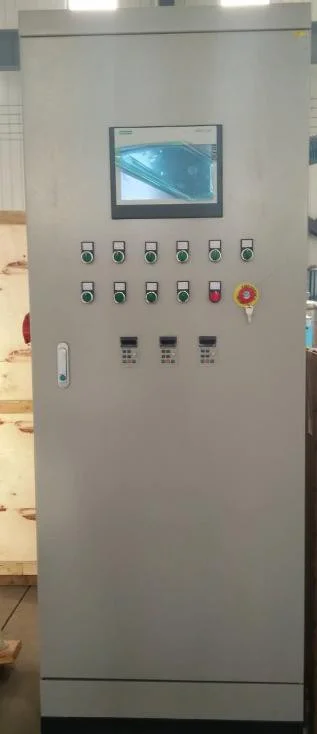

Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
Kegging system
kegging system ( keg washer and keg filler machine), the control system brand is Siemens.
Certifications
Why Choose BIEVO
Zhangjiagang City Bievo Machinery Co.,Ltd is a professional food and beverage machinery manufacturer.Bievo has its own special advantages in the research,design and manufacture,and offers technical support to customers.We also provide perfect after-sales service. Our Beverage Machinery includes carbonated soft drink production lines;non-aerated beverage bottled filling production lines and juice/tea beverage/wine bottled/barreled filling production lines.You are welcome to cooperate with us.
Working Office
BIEVO's Beloved Customers! Welcome to join us!!
Packing & Delivery
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport.
According to customers' special demand, we could adopt sheet iron case and so on.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Transport : By sea.
Punctual delivery time: - We put your order into our tight production schedule, ensure your punctual delivery time. - Production or inspection report before your order packed. - Shipping notice/ insurance to you as soon as your order is shipped.
Our Service
<1>Installation, debug After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
