220 В наружный водонепроницаемый настенный датчик движения PIR

With the Betterlux Motion detector your lights will turn on automatically when you enter a room. Perfect for your cellar, hallway, shed or outside wall.

Automatic lighting

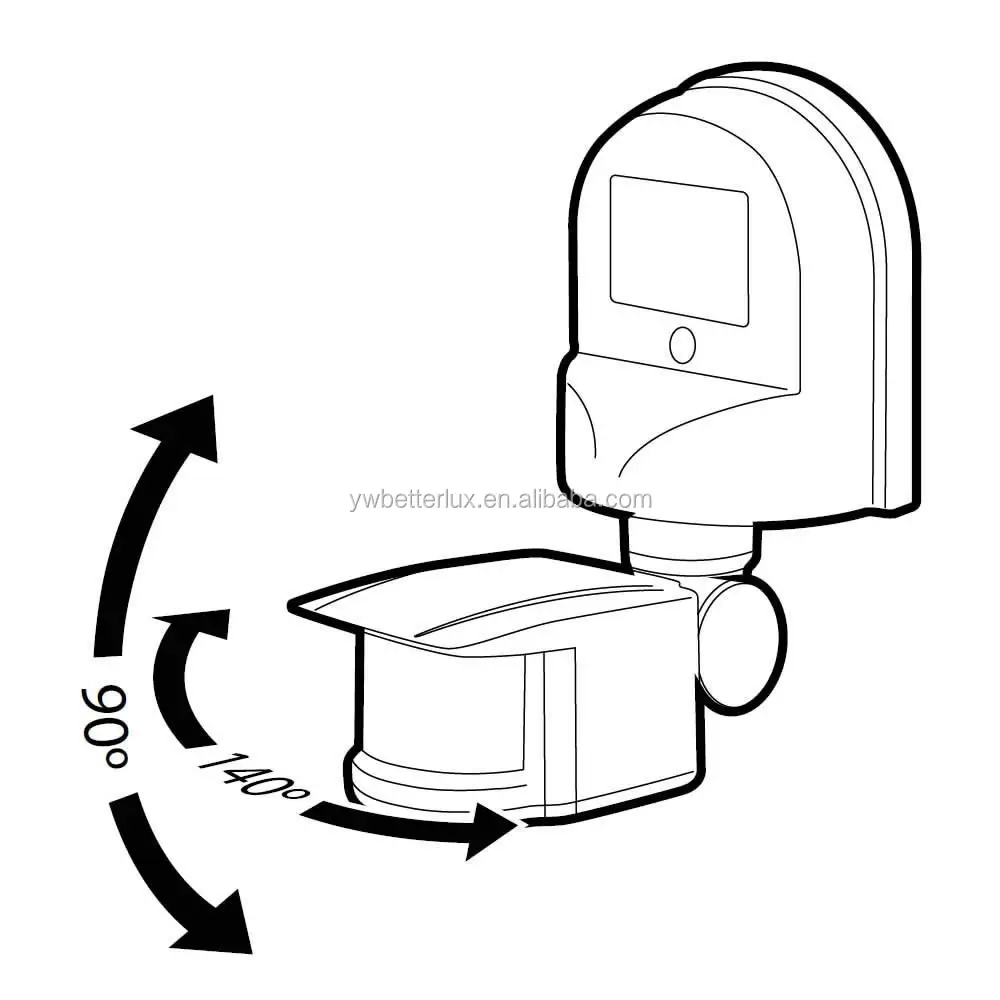

The motion detector turns your lighting automatically on when movement is detected. The sensor has 180° detection up to a distance of 12 meters.

Function:

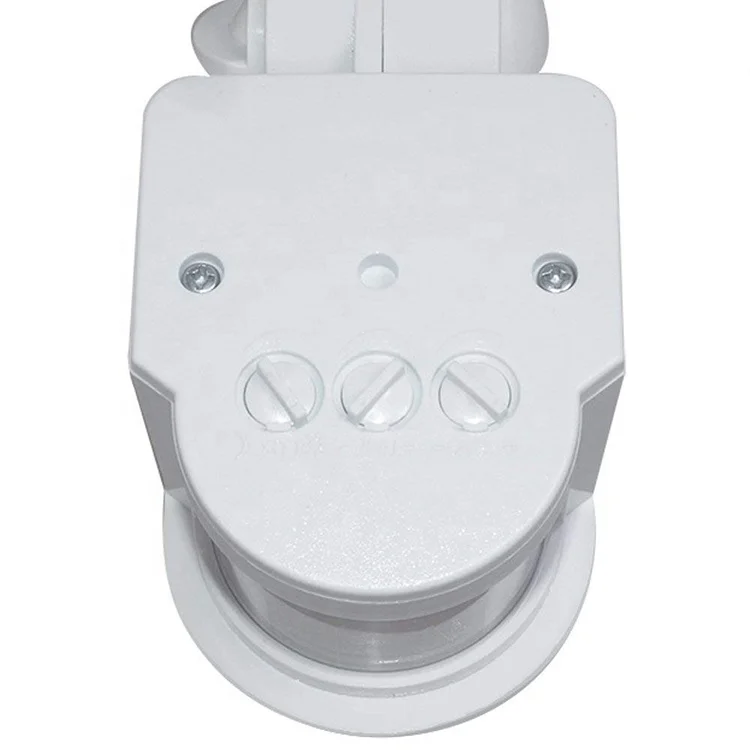

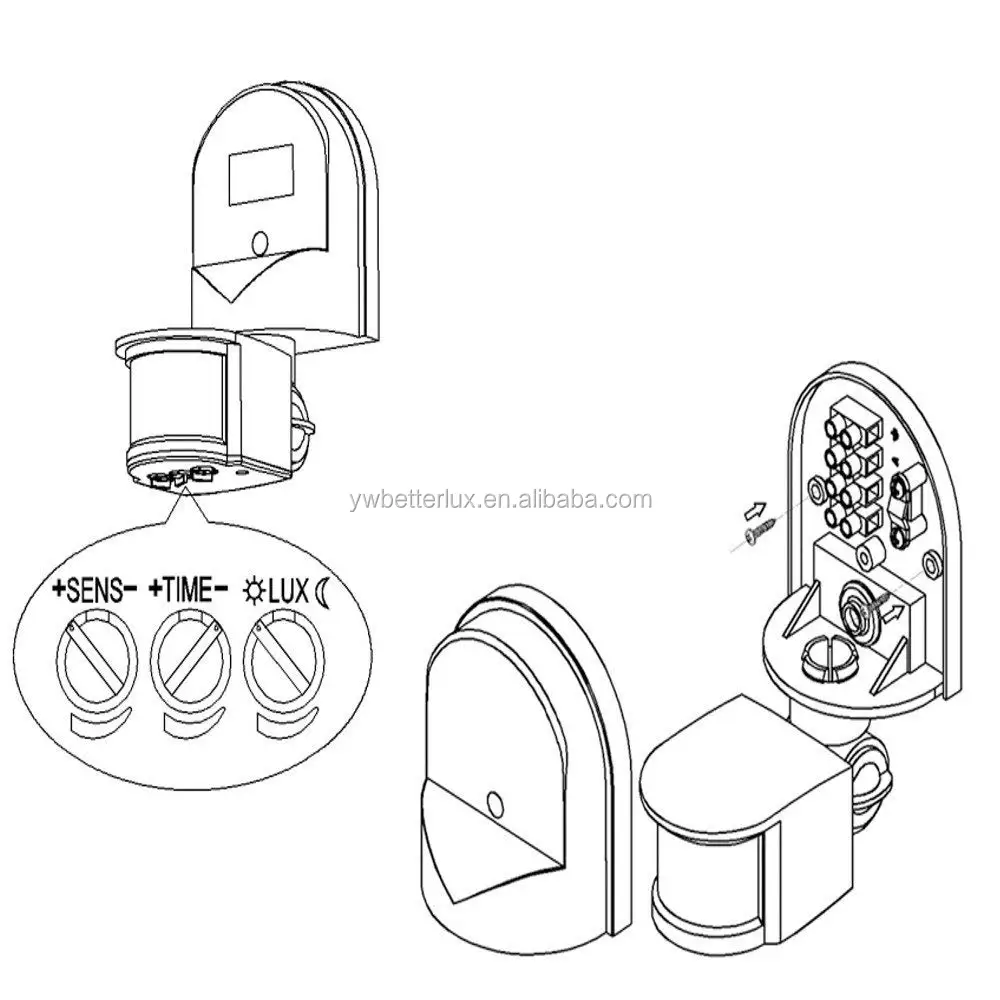

Set the sensitivity, lighting duration and light sensitivity with the turning dials on the bottom of the sensor. The sensitivity indicates how sensitive the sensor is to motion, the lighting duration indicates the duration of the lighting after motion is detected and the light sensitivity indicates if the sensor needs to be active 24 hours a day or only if the dusk falls. The lighting duration can be adjusted from 10 seconds to 7 minutes.



Specifications:



^{Power Sourcing: 220-240V/AC
Detection Distance: 12m max (24°C)
Detection Range: 180°
Power Frequency: 50Hz
Working Temperature: -20~+40°C
Ambient Light: 3-2000LUX (Adjustable)
Working Humidity: less than 93%RH
Time-Delay: min.10sec±3sec Max: 7min±2min (Adjustable)
Rated Load: 1200W (incandescent lamp) 300W (energy-saving lamp)
Detection Motion Speed: 0.6~1.5m/s
Installing Height: 1.8m~2.5m}



Package Content:

_{- 1 x Motion detector}

_{- 1 x User Instruction}

- 2 x Mounting kit



Installation:



The motion detector is for indoor and outdoor use. The included manual clearly describes the installation process.

On the Smartwares Motion detector you receive 24 months warranty.

♦PACKING: Neutral packing with new carton or according to customer requirments.

♦PAYMENT: T/T,Paypal,West Union,30% deposit, 70%  balance before delibery.

♦LEAD TIME: Sample in 3-5 working days and large order in 12-15 working days.

♦TRANSPORT: By DHL/UPS/FEDEX, Air cargo or Sea shipment.

♦PORT OF SHIPMENT: Shanghai,Ningbo,China.

♦MOQ: 10 piece. Providing DISCOUNT and OEM service for large order.

Check below for more information on placing orders:

You can directly make order online or contact me for more details, thanks for cooperation!
