PVC laminated gypsum board ceiling tile machine

PVC laminated gypsum board machine  is based on the paper faced gypsum board with thickness of 6mm to 8mm, spread with special glue on both side, then laminated PVC film and PET foil. After laminating, the board is cut into smaller size: 60 x 60mm. The gypsum board ceiling tile is used as false ceiling for interior decoration. It is a new construction decoration material. It has bright future and the profit margin is big.

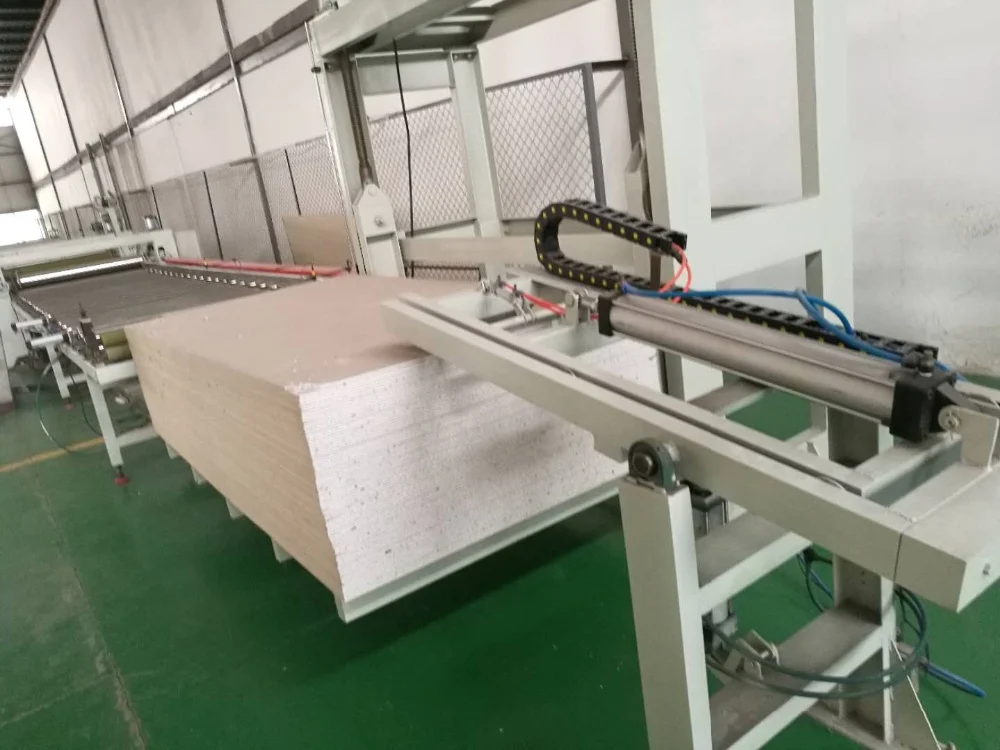

The PVC laminated gypsum board machine process:  big board loading -- glue spreading -- PVC film and PET foil laminating -- pressing -- first cutting -- second cutting -- side taping -- stacking --shrinking and packing ____ceiling tile

The main capacity of the machine:

2 million sqm per year

4 million sqm per year

6 million sqm per year.

The PVC film and PET foil are laminated simultaneously
Automatic film and foil cutting
automatic side taping
automatic shrinking and packing
PLC automatic control system

SPECIFICATIONS GYSPUM BOARD PVC  LAMINATING MACHINE
Raw material	gypsum board	8 feet x 4 feet,  thickness: 7mm, 8mm or 9mm
	PVC film	from 80 to 100 grammage,  1230mm width
	PET foil	8 to 10 grammage, 1230mm width
	glue	PVA emulsion
finished ceiling tile	length	width	thickness
	603mm	603mm	7mm, 8mm or 9mm
	595mm	595mm	7mm, 8mm or 9mm

Main Features

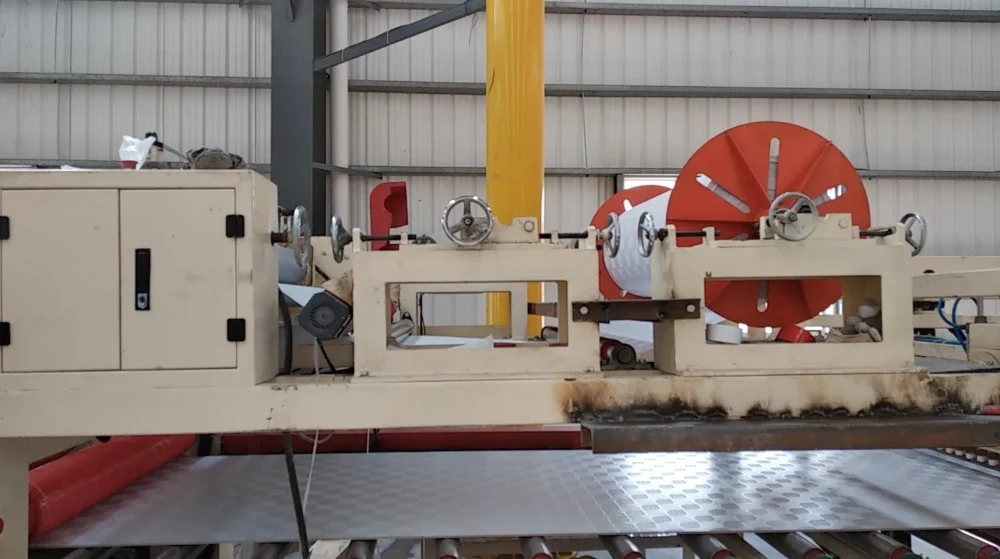

1) The PVC film and PET foil are laminated simultaneously
2) Automatic film and foil cutting

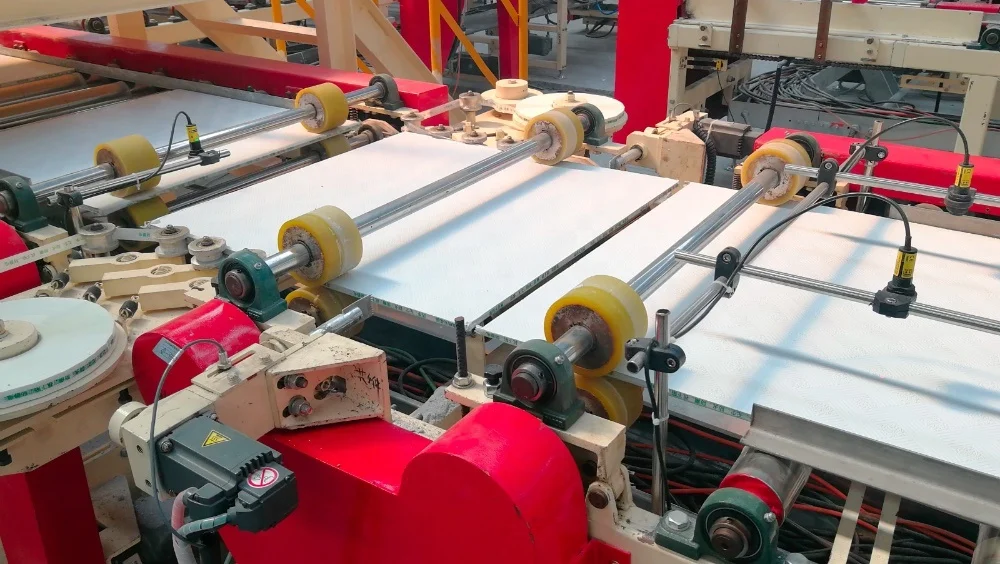

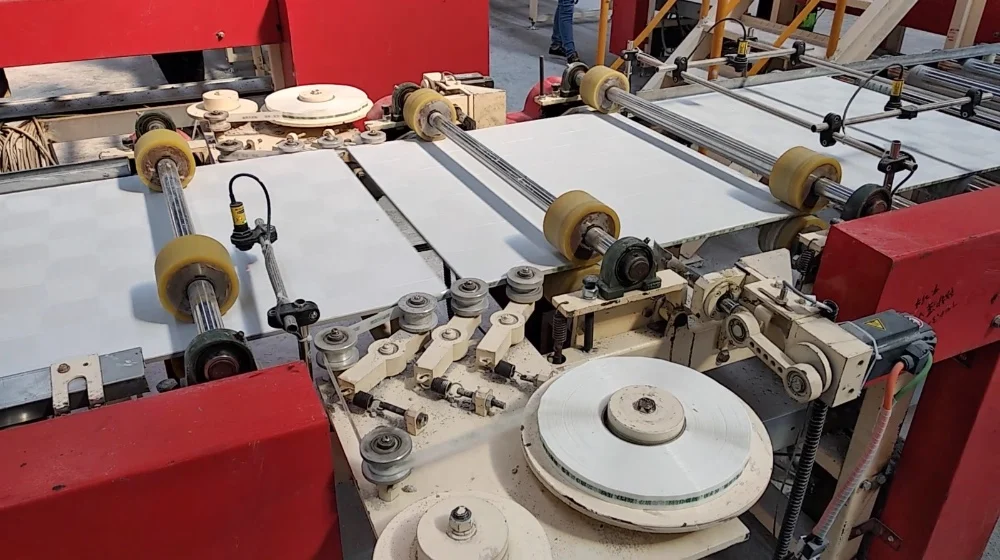

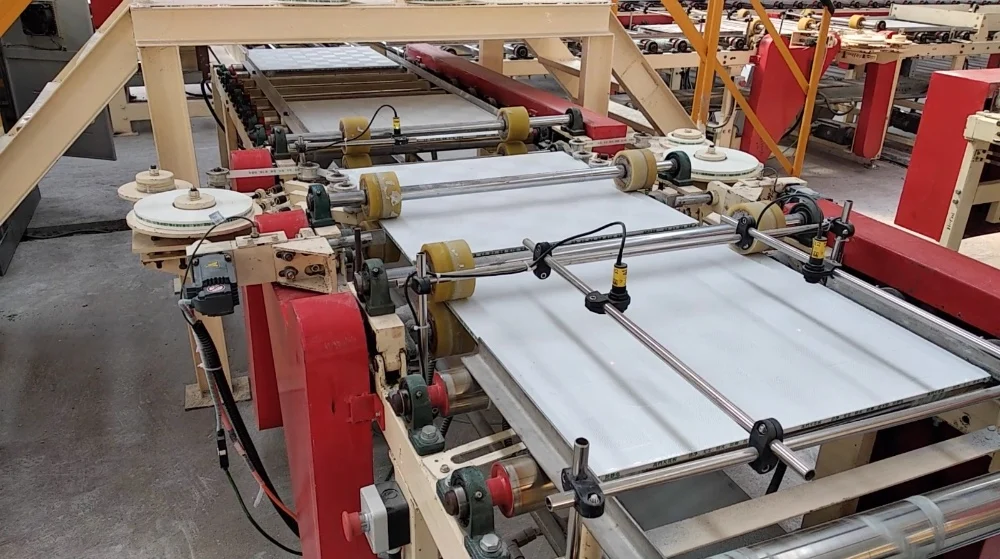

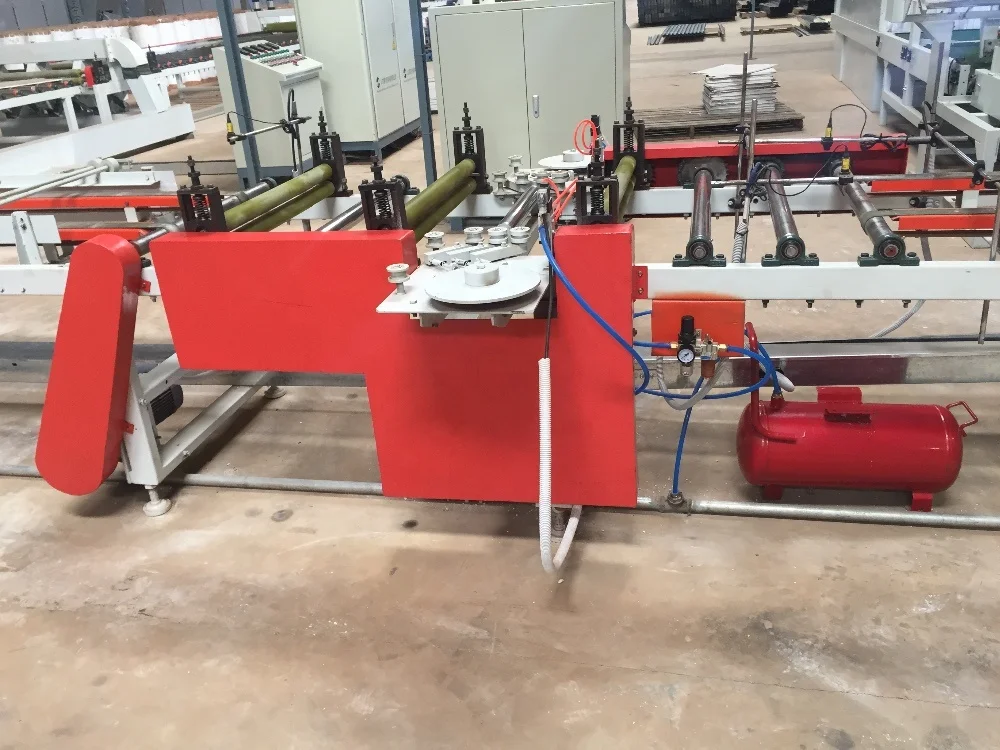

3) automatic side taping

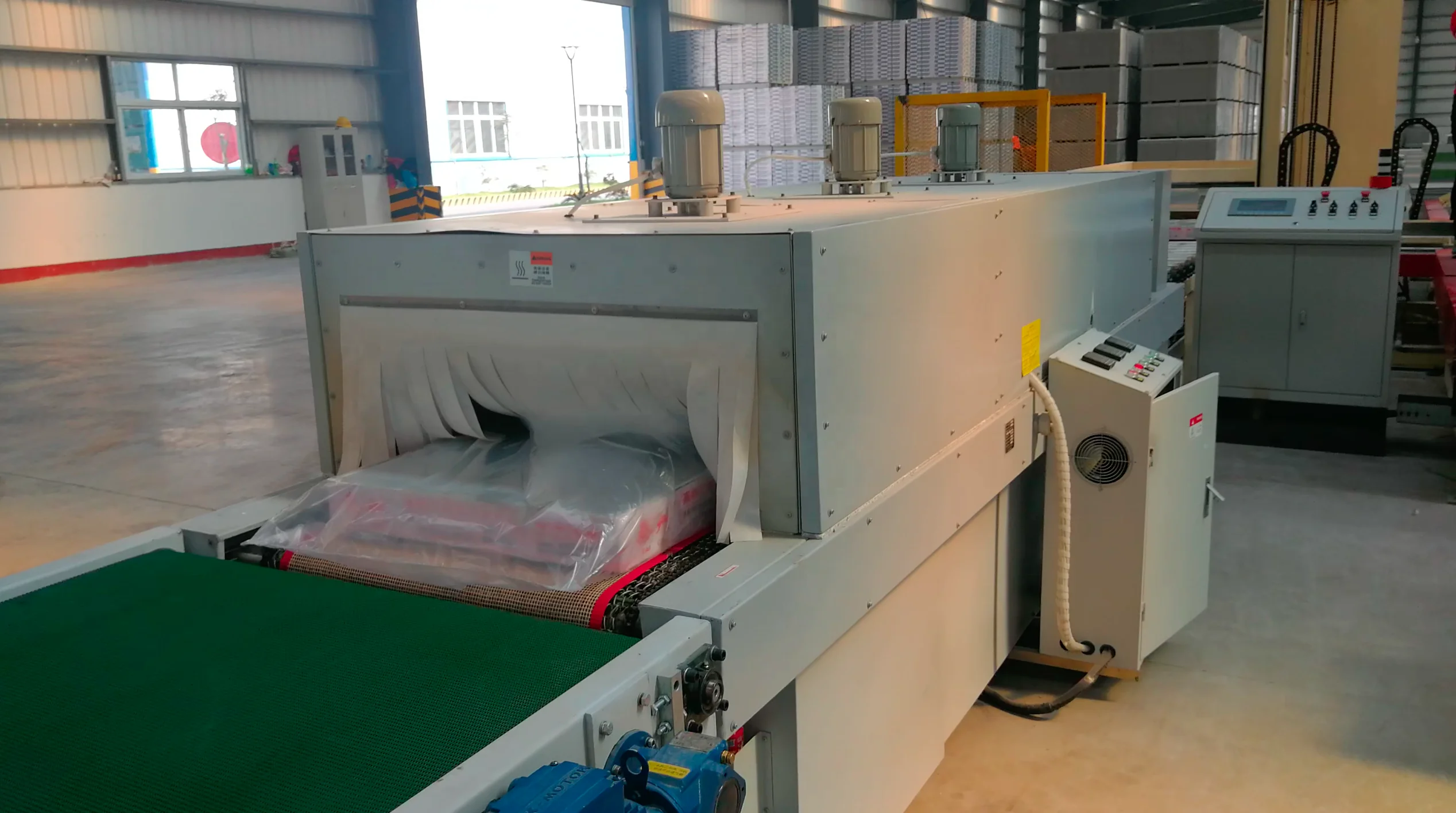

4) automatic shrinking and packing
5) PLC automatic control system

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
