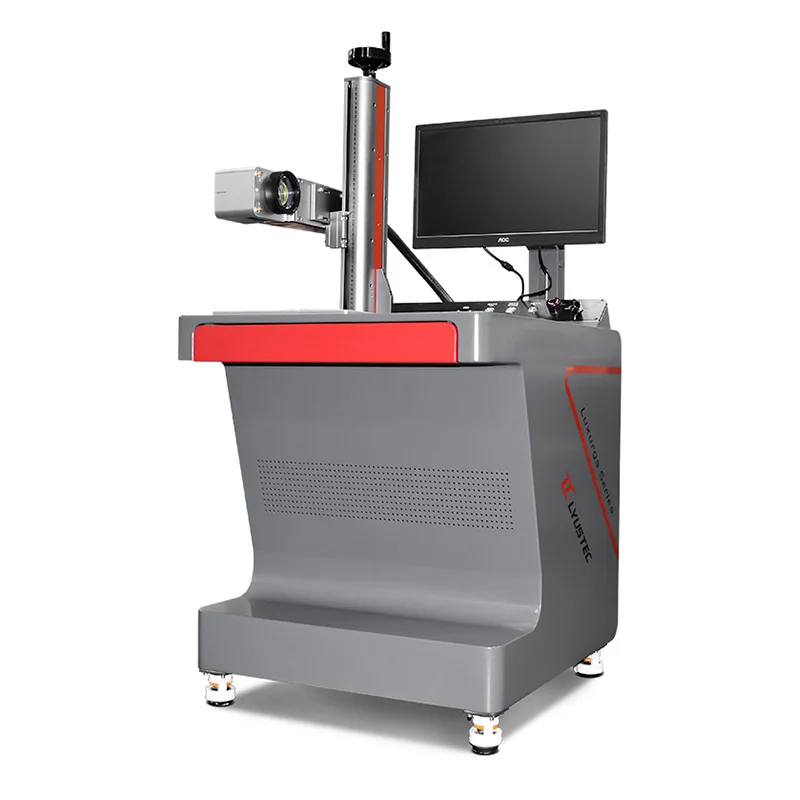

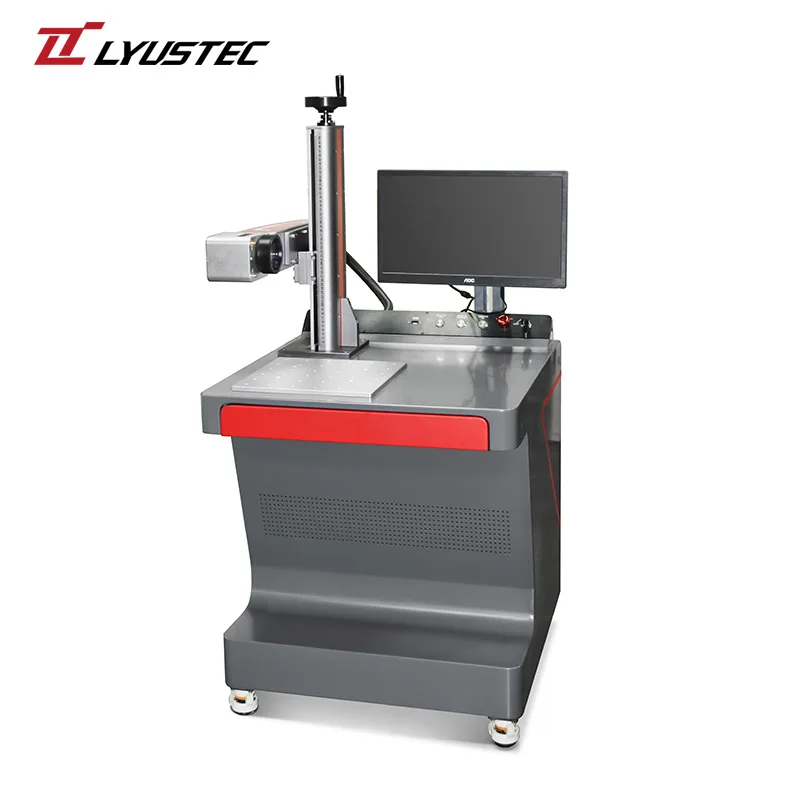

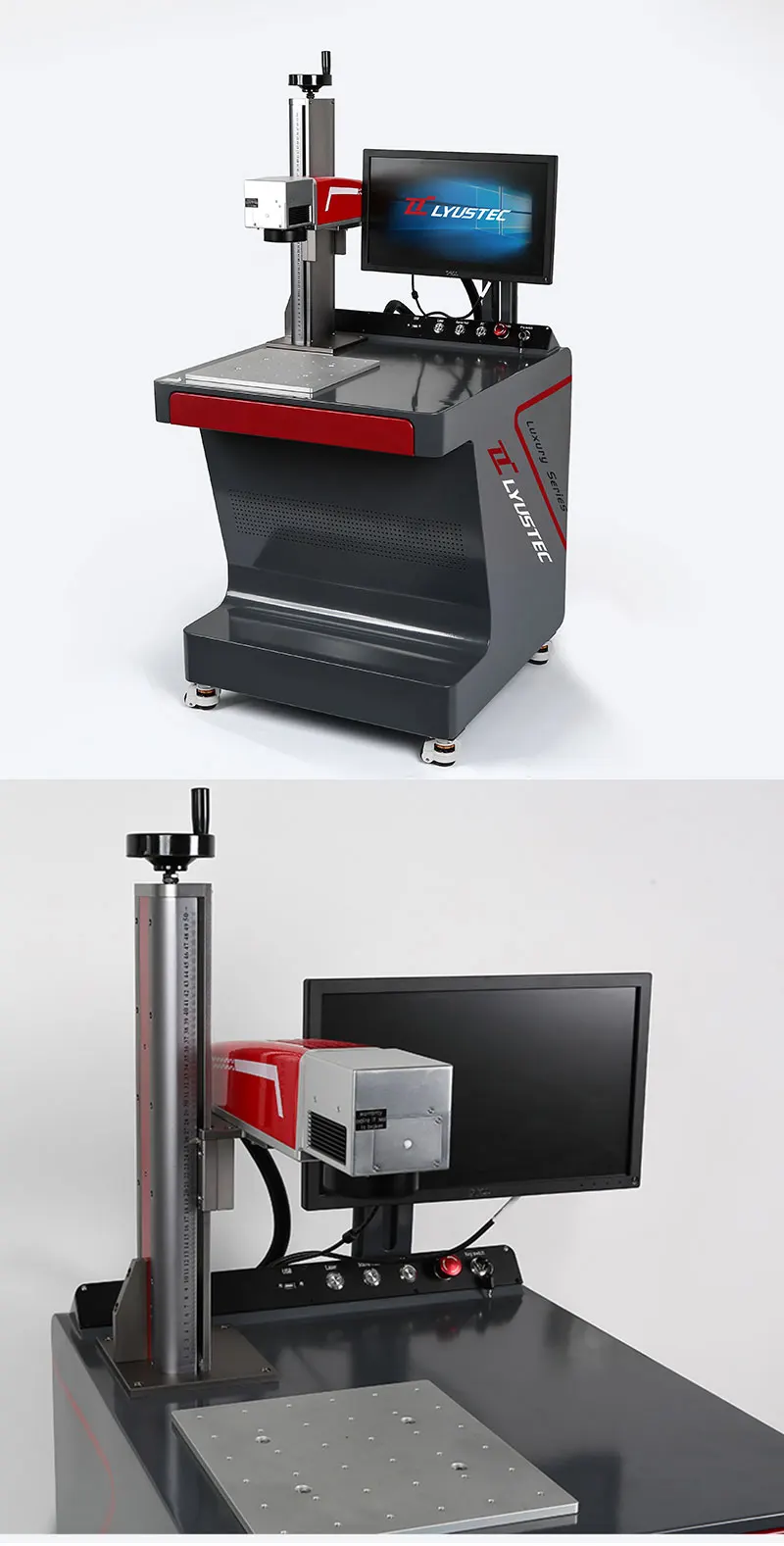

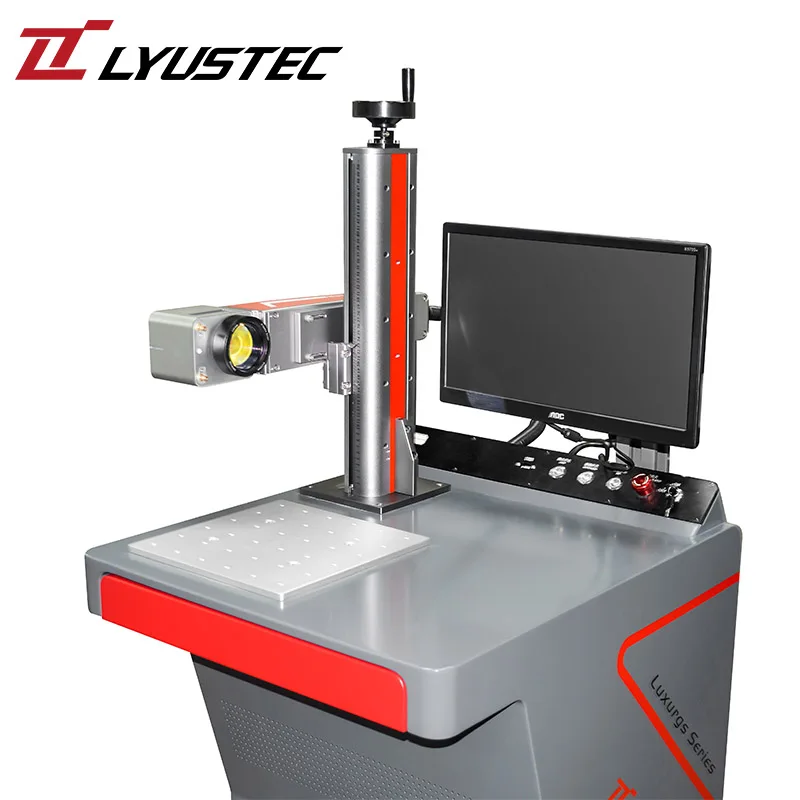

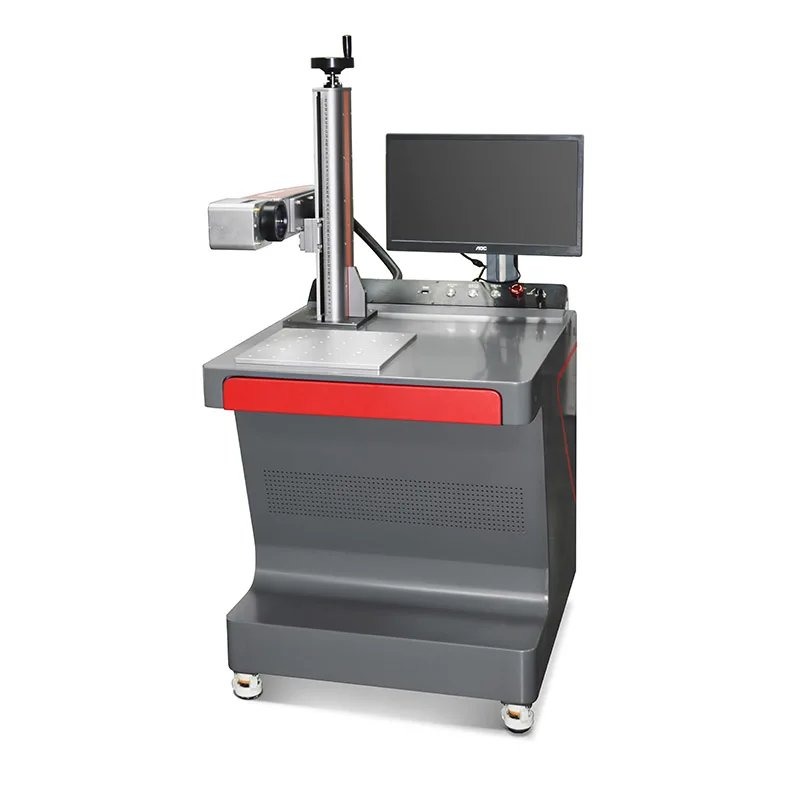

Hobby 20W Memory Card Making Machine Laser Marking with MOPA Color
Product Description
This Fiber Laser Marking Machine adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model 20W Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. Furthermore Fiber Laser Marking Machine Price also enjoys the advantages of easy operation, low running cost, long-term trouble –free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
Model
FastMarker-F20
Work Area (mm)
75x75-300x300(Customization)
Laser Power
10W/20W/30W/50W
Laser Pulse Frequency
20KHz – 200KHz
Beam Quality M2
<2
Wavelength
1064±10nm
Min Line Width
0.01mm
Min Character
0.15mm
Marking Speed
≤10000mm/s
Marking Depth
≤0.5mm
Repeat Precision
±0.01mm
Power Supply
220V(±10%)/50Hz/4A
Gross Power
<500W
Laser Module Life
100000h
Cooling Style
Air Cooling
System Composition
Control System, Industrial Computer, Working Table
Working Environment
Clean and Dust Free
Operating Temperature
10℃-35℃
Humidity
5% to 75% (Free of Condensed Water)
Power
AC220V, 50HZ, 10Amp Stable Voltage
Warranty
12 Months
Dimension (cm)
131x53x68
Main Feature
One-unit structure with manually focusing system and user-friendly operation.
Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.
Laser beam quality is much better than the traditional laser marking machine. Fiber laser beam mode is TEM00; focus diameter is less than 20um; expanding angle is only 1/4 of the YAG-DP. Therefore it is esp. good at delicate marking.
High electricity-laser exchange ratio, gross electricity consumption is less than 500W, which is 1/10 of the YAG's consumption Free from maintenance, long working life, small size, suitable for any working environment.
Fast marking speed, 2-3 times faster than the traditional marking machine.
