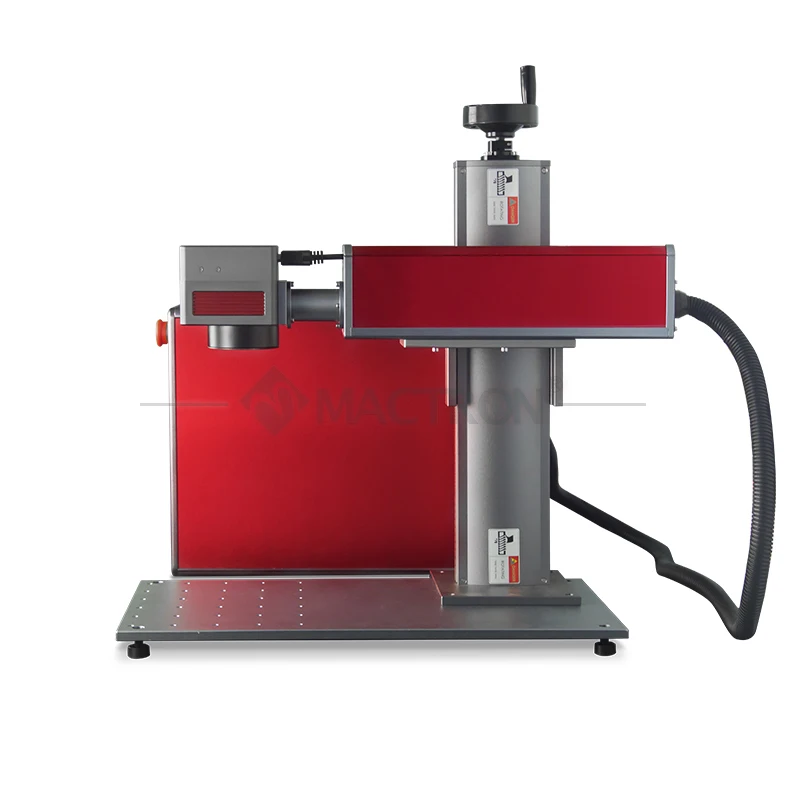

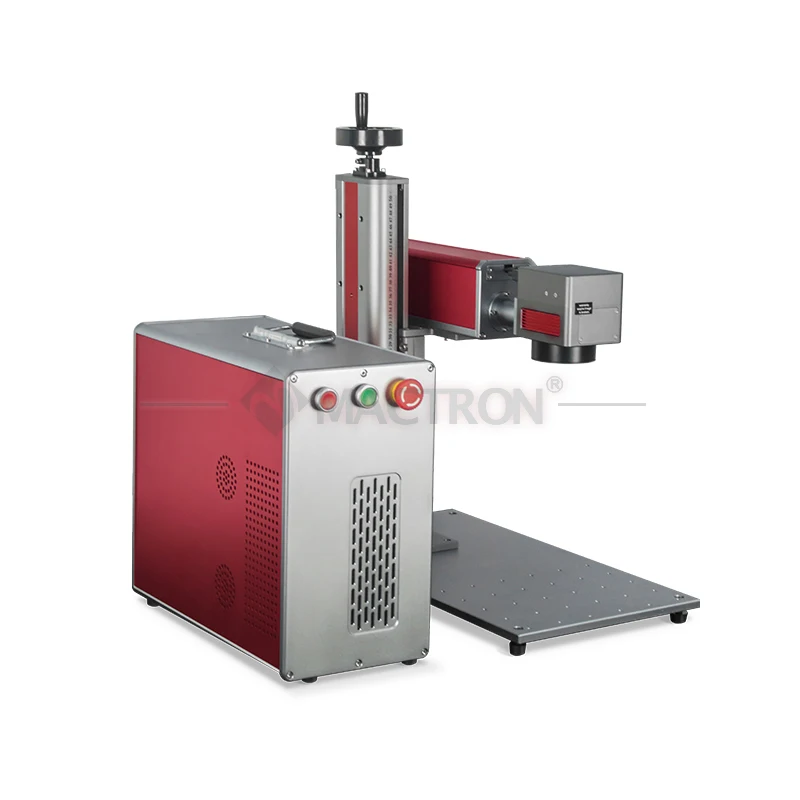

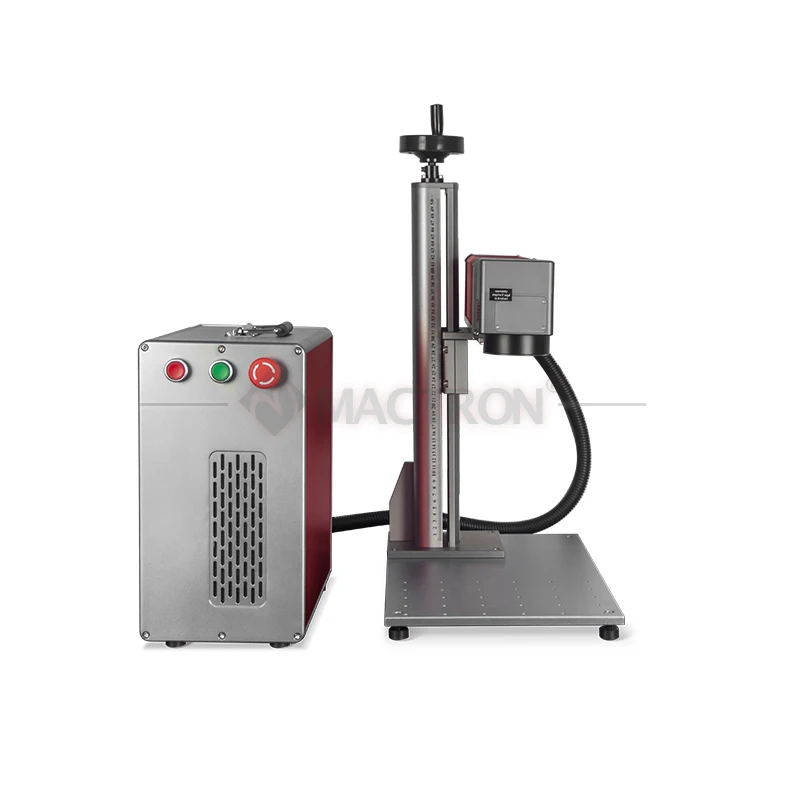

Portable Split 2D Fiber Laser Marking Machine 30W 50W Fiber Laser Raycus

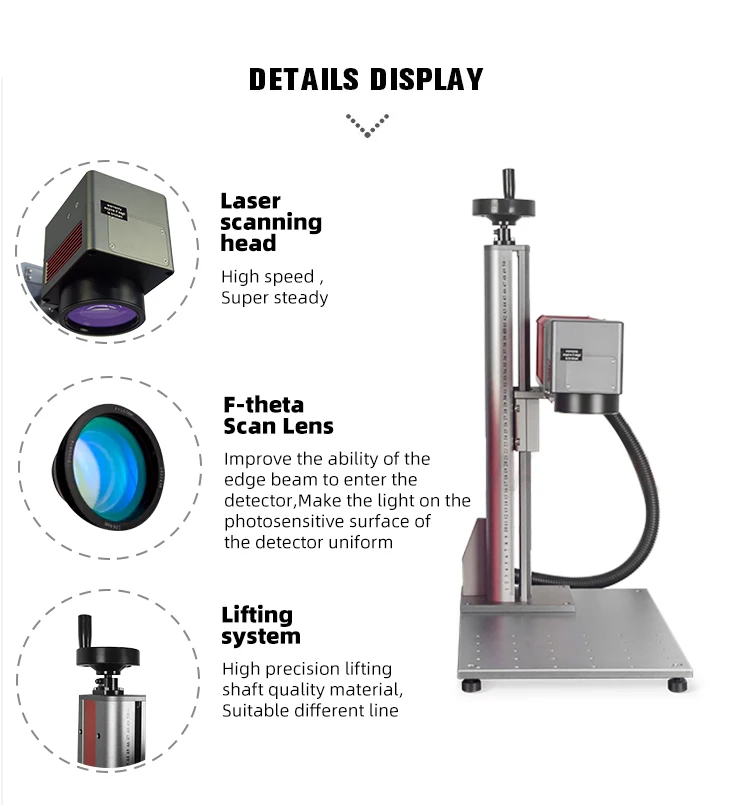

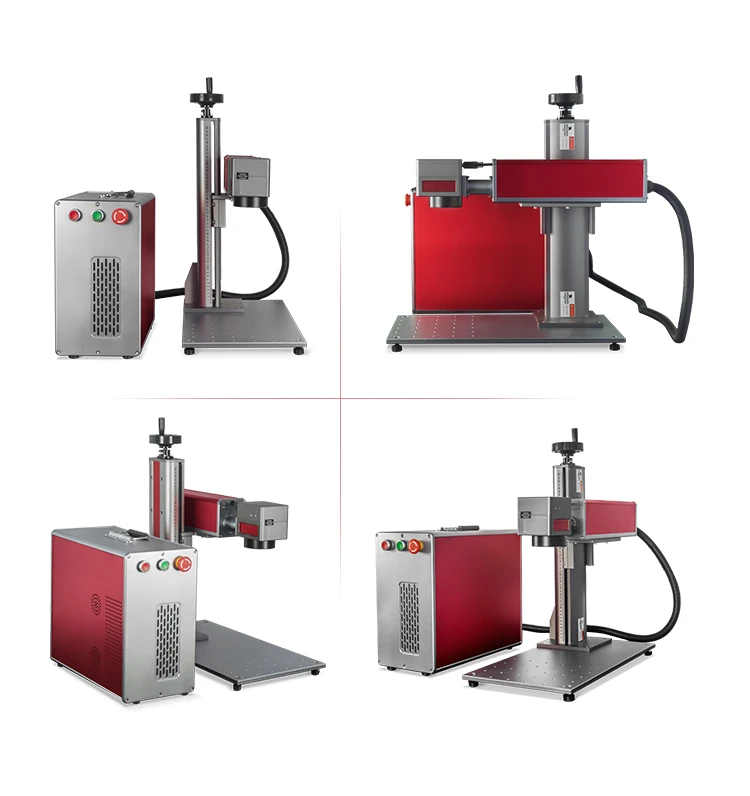

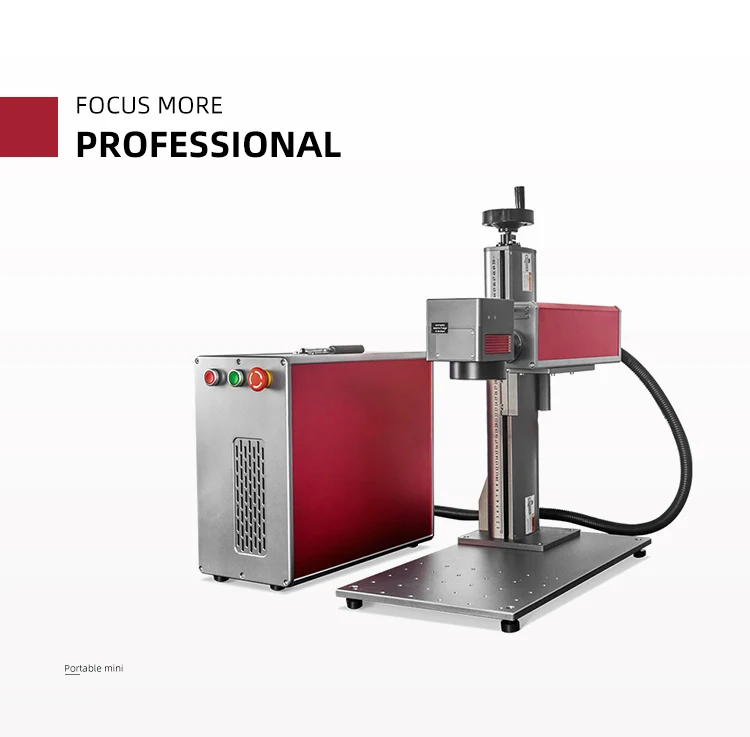

MT-FP series portable laser marker adopts advanced digital high speed scan galvanometer and Module design that separate laser generator and lifter, endowed with the qualities of small volume, quick speed and easily marking on big objects surface.
This kind of machines can satisfy marking applications like metal laser marking, plastic laser marking, food and beverage packaging marking in the fields of food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen&bathroom hardwares, mobile shells of watches, medical apparatus and instruments tools' fittings, electronics and other industries, auto spare parts and other industries.
|
Model |
MT-FP10/20/30/50 |
|
Peak Laser Power |
10W/20W/30W/50W |
|
Wavelength |
1064nm |
|
Processing Area |
70*70MM/110*110MM/175*175MM/300*300MM(Optional) |
|
Frequency Range |
20-200Khz |
|
Beam Quality |
<1.6M2 |
|
Laser Source Lifetime |
100000h |
|
Marking Speed |
<8000MM/S |
|
Marking Depth |
≤2MM |
|
Repetition Precision |
0.01MM |
|
Min.Line Width |
0.03MM |
|
Min.Character |
0.2MM |
|

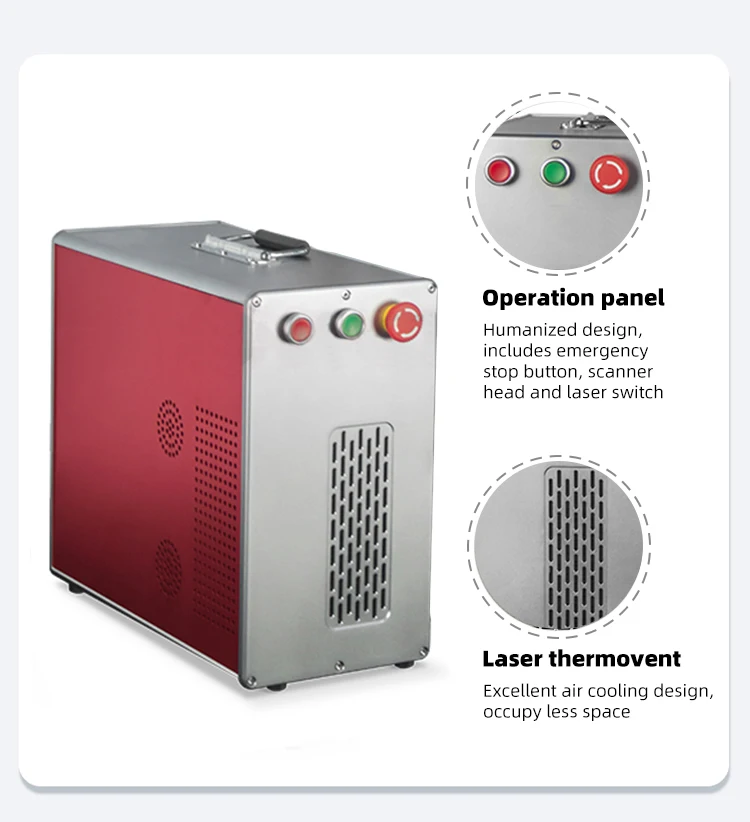

Cooling Mode |
Air Cooling |
|
Lifting Height |
100-500MM(700MM)Optional |
|
Graphic Formats Supported |
PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG |
|
Operating temperature |
10℃-40℃ |
|
Warranty |
1 Year |
|
Humidity |
5% to 85% (Free of Condensed Water ) |
|
Gross Power |
<500W |
|
Power source |
AC110V/220V± 10%, 50/60HZ |
