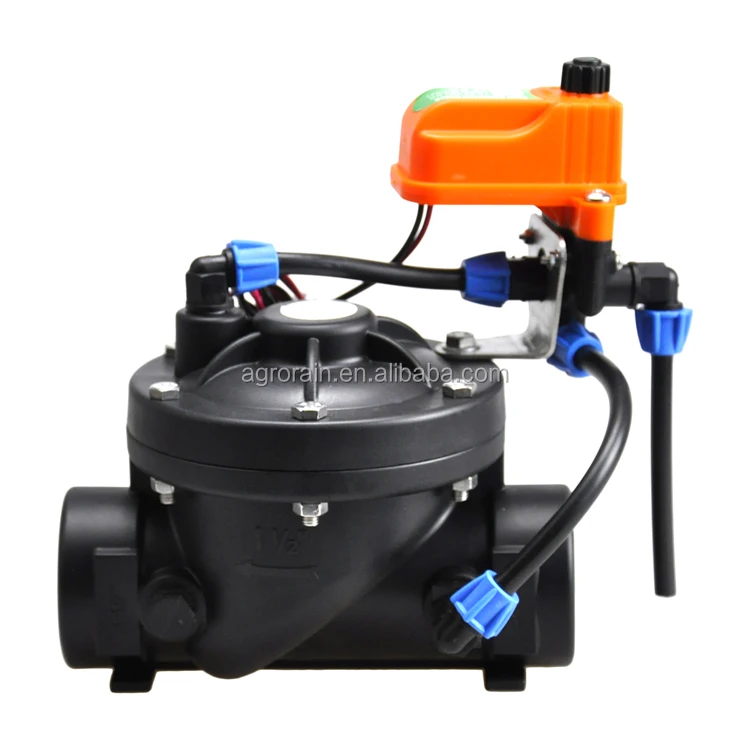

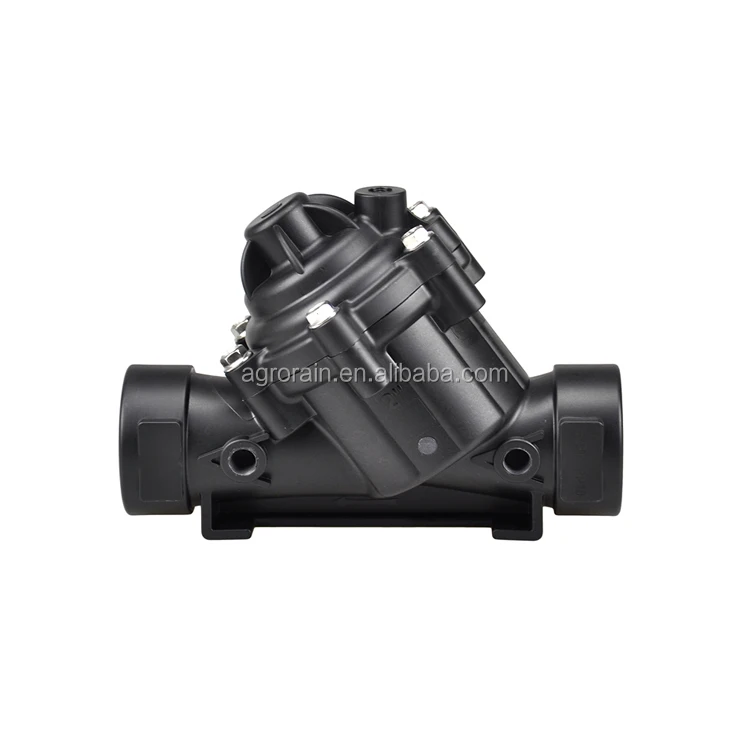

1.5 and 2 inch T Type Plastic Solenoid Valve, Hydraulic Control Valve, 24VDC Latching. Three Ways, Normal closed

Des.: T Type Controlling valve with Plus Solenoid, 24VDC  Latching. Three Ways, NC (Normal closed)

Code: E24HV0240B/N; E24HV0250B/N

Connecting size: 1 1/2" or 2" BSP/NPT Female Thread

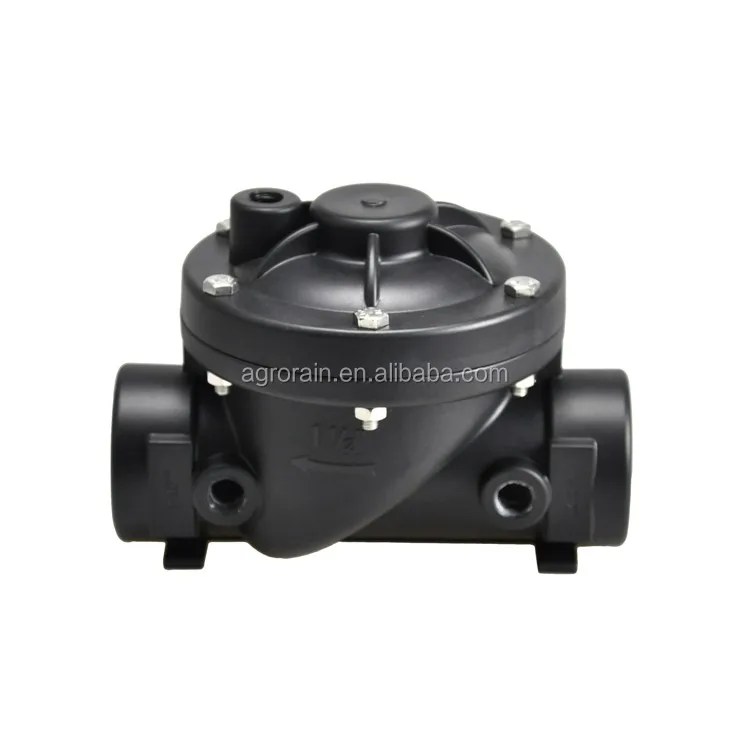

T Type Plastic Pressure Reducing Valve Advantage:

1. T Type Designed with Simply surface, economical and practical, small and easy to install.

2. With fixed inductive diaphragm inside, respond fast for closing and opening the valve.

3. Easy to operate as hydraulic controling, save effort to close or open and convenient maintenance.

4. Produced by Reinforced plastic material with excellent hydraulic and mechanical function, use for long time.

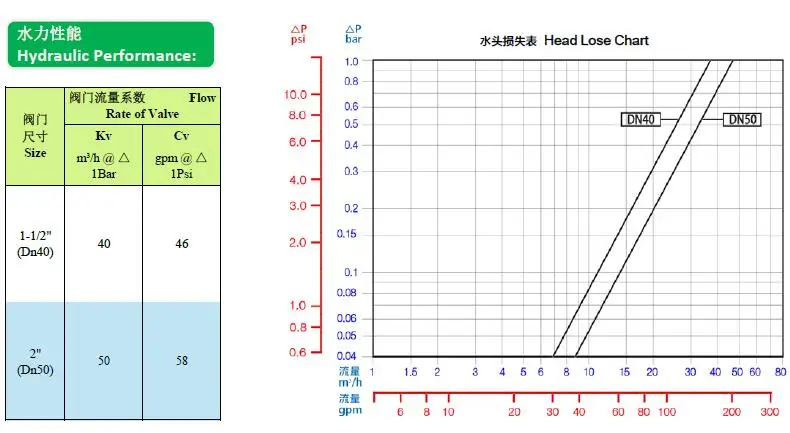

T Type Plastic Pressure Reducing Valve Technical data:

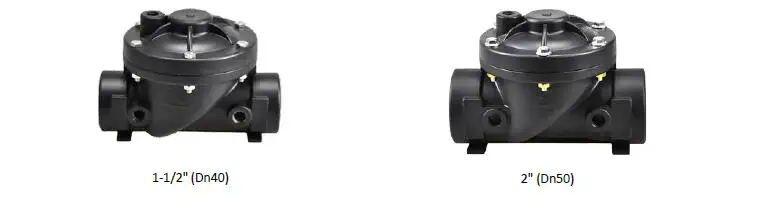

1. Size: 1-1/2" (Dn40), 2" (Dn50)

2. Connection: BSP or NPT Threaded

3. Working Pressure : 0.35-10bar (5-145psi).

4.. Max pressure: 10Bar / 145Psi.

5. Highest working temperature: 60 °C.

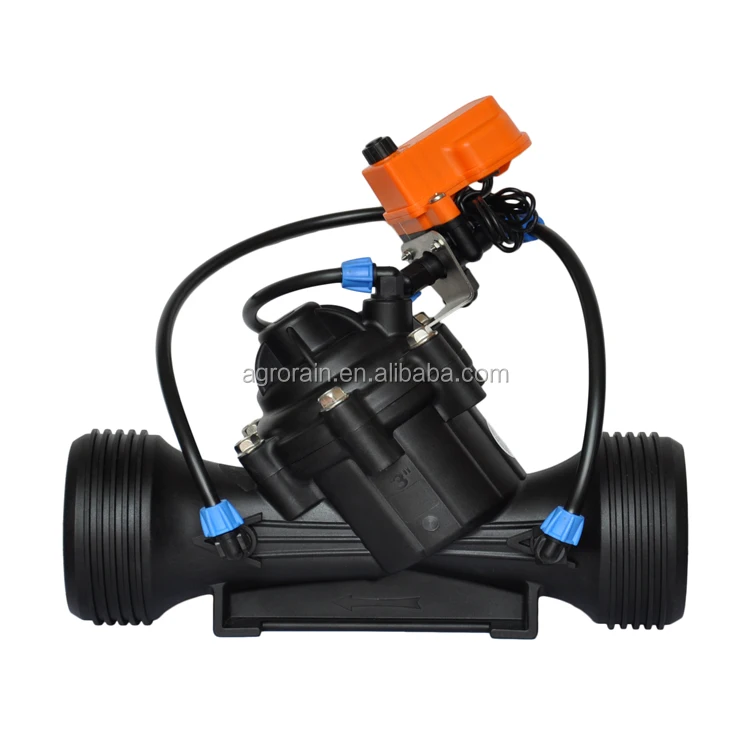

Plus Solenoid Valve Advantage:

1.This Solenoid can be fitted with the common controllers for automatic irrigation system.

2. Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.

3. Three version AC (DC) and DC Latching available, AC and DC version is 2 in 1.

4. NC (Normally Closed) and NO (Normally Open) two modes available for selection.

5. Designed with diaphragm inside which makes controlling main part separate from water passageways for long service life.

6. Width water passageways designed for short reaction of controlling valve and anti-clogging.

7. Manual controlling knob for CLOSE-AUTO-OPEN operation.

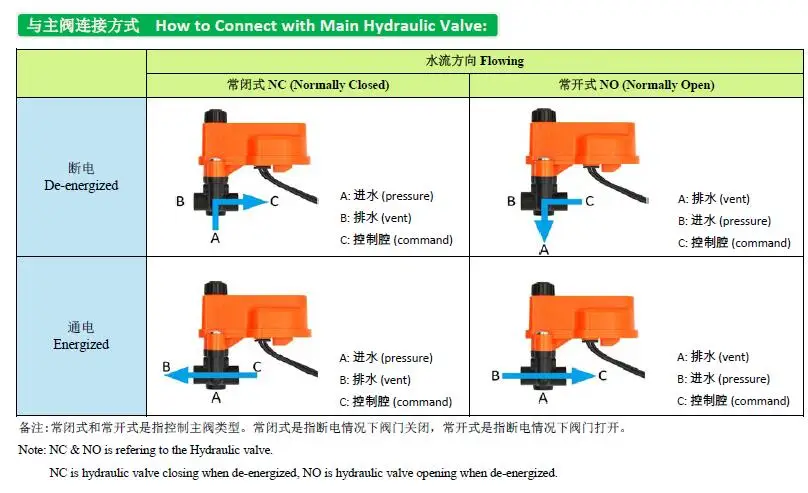

8. 3-way hydraulic base can be fitting for the Hydraulic controlling with 3 position 2 way.

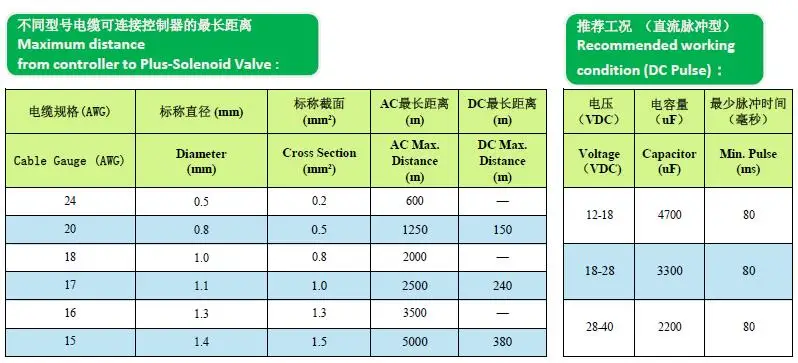

9. Very low energy consumption for long distance control with long wire.

Plus Solenoid Valve Technical data:

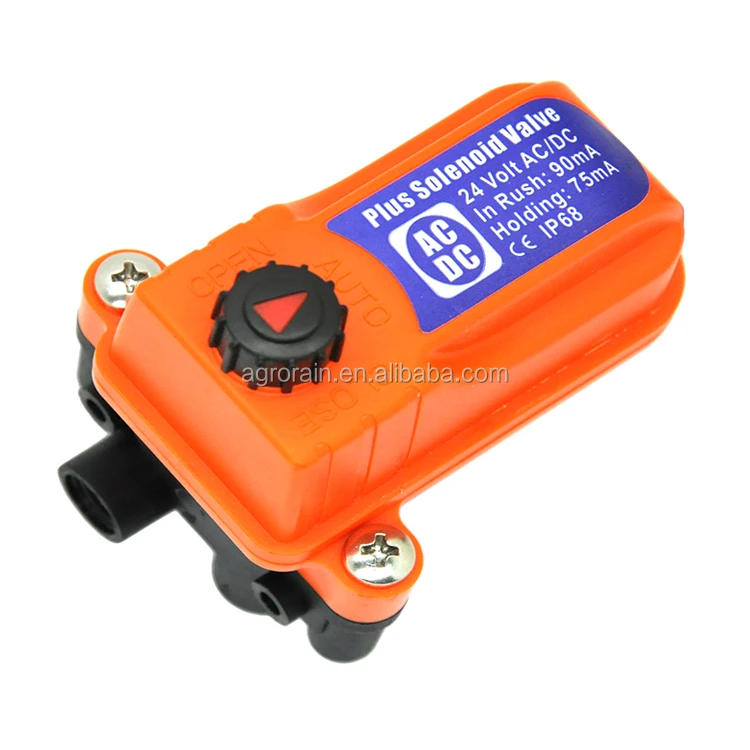

1. AC (DC) version: Voltage 24V (15-30V), Current Inrush 90mA, Holding 75mA

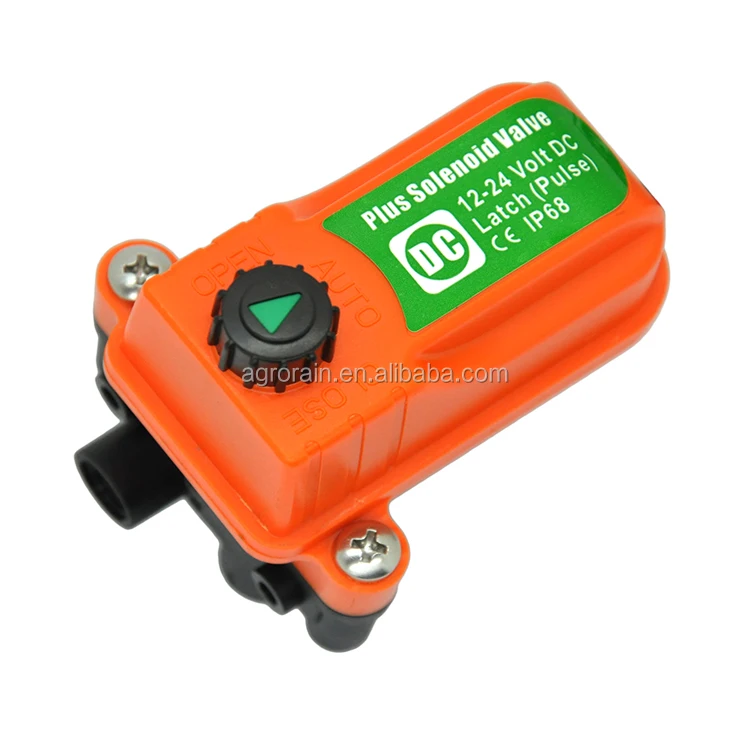

2. DC Latching version: Voltage 12-40V, Pulse width: 80-500ms

3. Pressure range: 0-10bar (0-140 psi)

4. Max. ambient temperature: 60℃ (140℉)

5. Max. fluid temperature: 60℃ (140℉)

6. Filtration: Min. 80 mesh

7. Hydraulic ports connecting: 1/8" BSP

8.  With 100cm Wires

9  DC Latching version has red (positive) wire and black (negative) wire

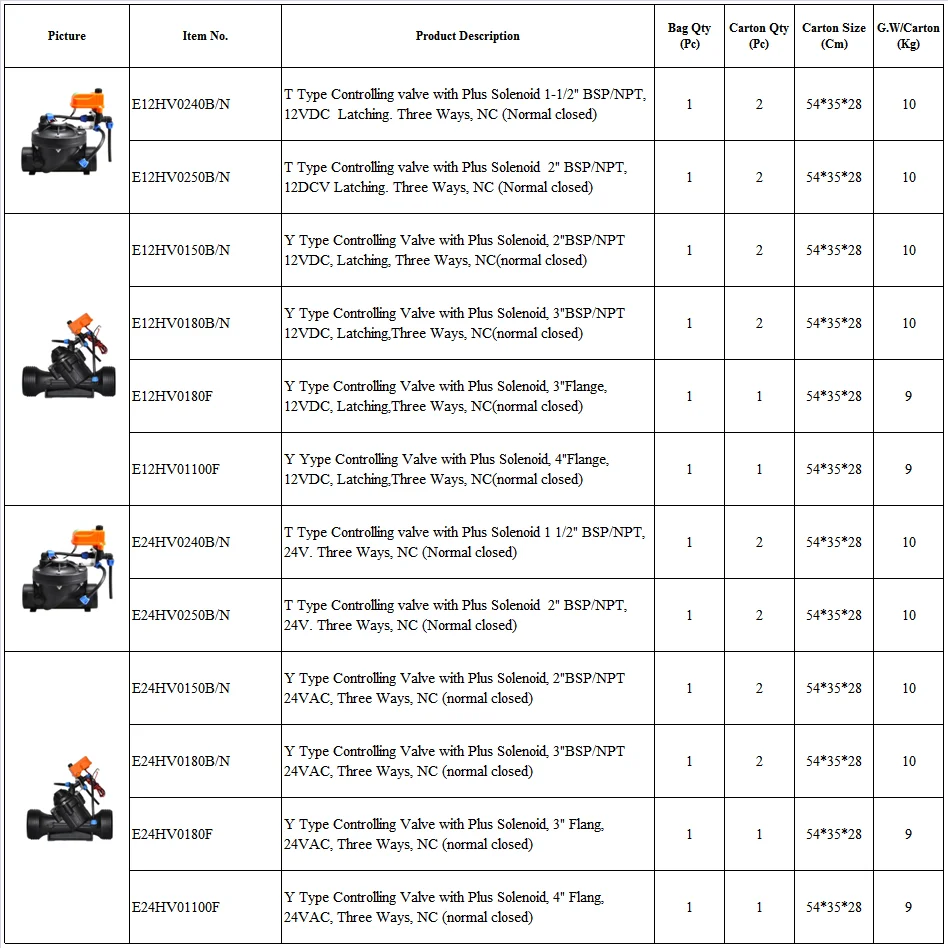

Hydraulic Valve with solenoid valve Family:
