CNC Foam Cutting Machine Fastwire Contour Cutter

CNCHK- 1(Fastwire contour cutter) is the first generation of CNC foam cutting machine since our company was founded. It's easy to learn and operate. Although it will cause some dust during cutting,it's the best choice to use CNCHK-1 to cut some special material, such as very hard PU foam, EVA, PE,PEE and so on, which can not be cut with CNC oscillating blade cutting machine.

Technical Data

G.W.(T)	2.4	Type of CNC	Industrial computer
Cutter Power	8KW,380V,50HZ	Display	LCD
Size(mm)	5000×3000×2800	Controlling module	Motion controlling card
Max.work piece size(mm)	2500×2100×1200	Operating System	Windows 2000 or above
Cutting wire size(mm)	10830×1.5	Programmable axis	X,Y,Φ
Speed of wheel	2800	Step motor torque(Nm)	20
Working speed(m/min)	0-6.3	Min.Arc Size of work piece(mm)	10
Product precision(mm)	±0.5	Self-test system	Installed
Min. working size	5	Blade alert	Installed

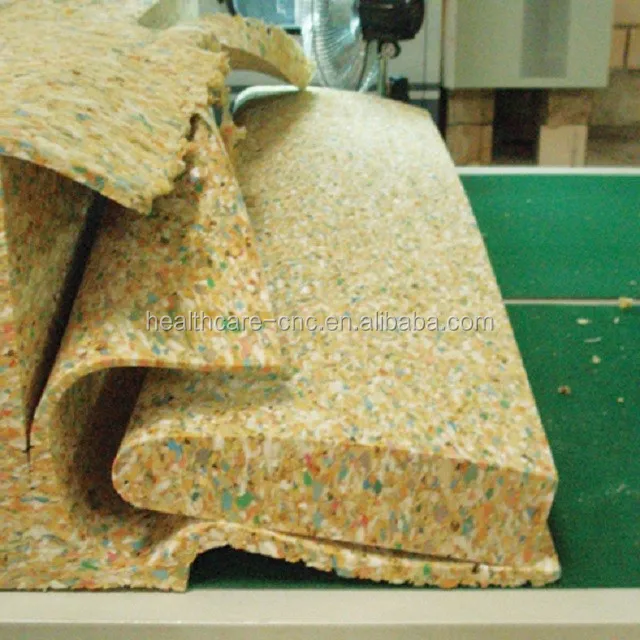

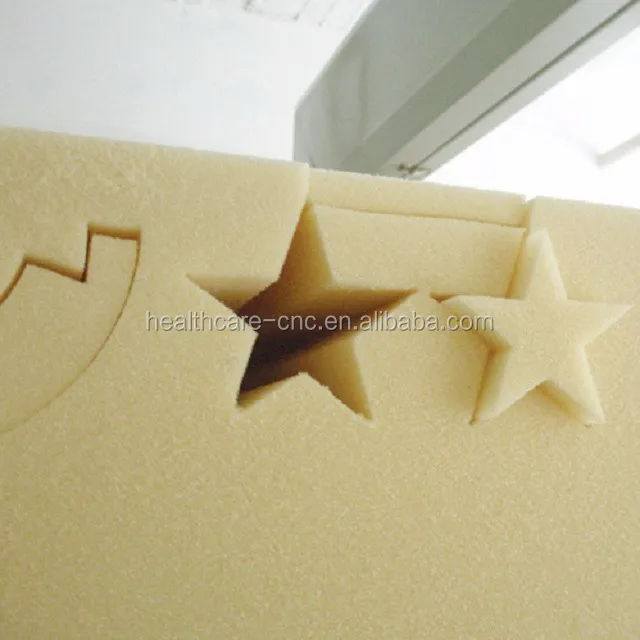

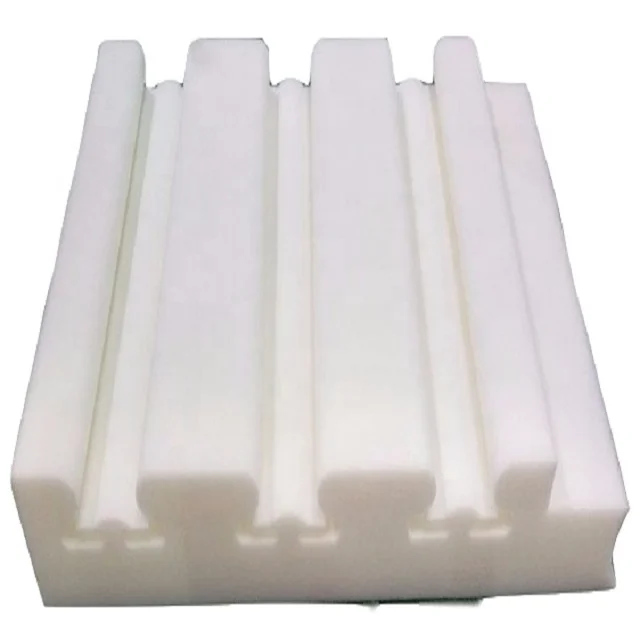

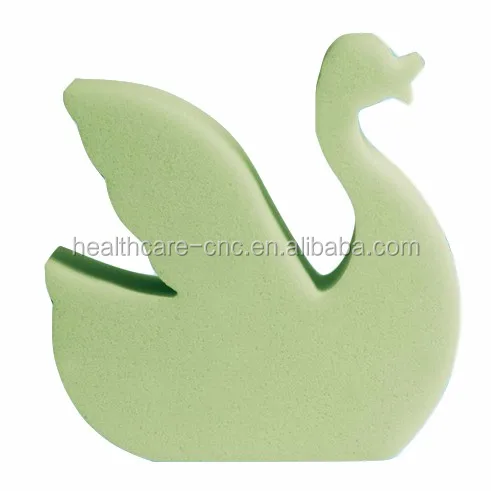

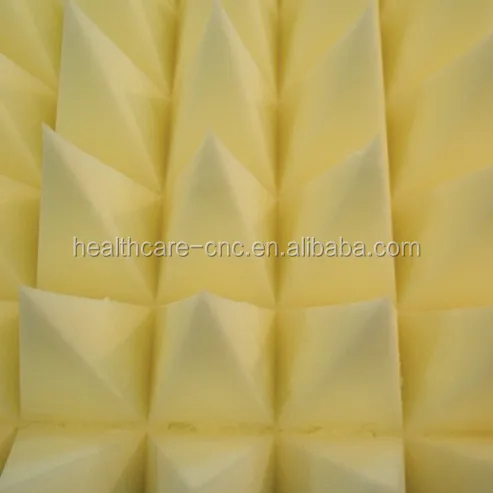

Detailed Images
