Product Overview
Description
Product Description
(1)Transimission model
The Automatic 3d Wood Turning Lathe adopts rack-gear transmission.Compared to ball screw transmission. Its advantage is that cutting and engraving quickly with more power and very small precision gap.Imported linear square guide rail(TAIWAN HIWIN,PMI,THK is optional ),x,y axis with grew gear tooth,and it is more precise,anti-friction and better load-bearing than straight gear.
(2)DSP Control system
The excellent DSP control system can finish multilevel 3D processing, which makes the 3D engraving and cutting faster and smoother.
(3)Lathe bed
The Automatic 3d Wood Turning Lathe body casted by iron,the special heat-treatment ensures minimum distortion.The machine is very heavy-duty to avoid shaking when the rotary spindle run quickly.

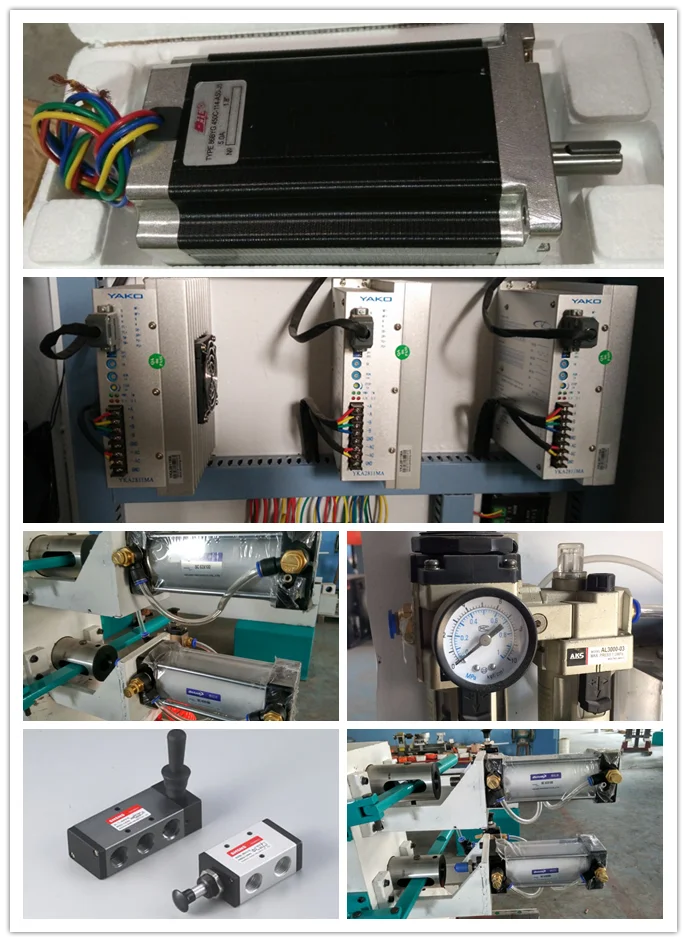

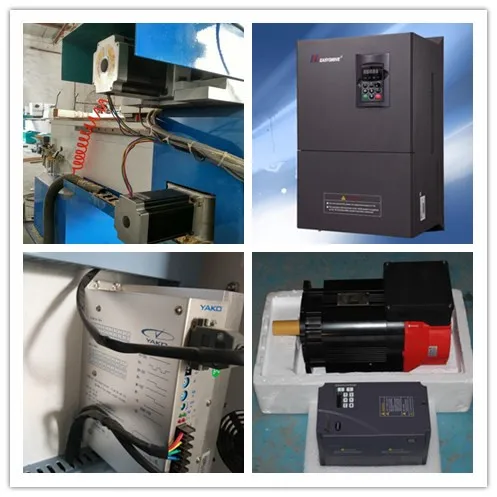

(4)Electric power system
X,Y axis Adopt Stepper motors and drives, rotary axis adopts servo motor and dirves,Making the rotary axis turn Quickly and stably during the processing.
1.Magnetic Encoder;strong anti-interference
2.Low maintenance and repair requirements
3.Rapid heat dissipation
4.low noise ,low vibration and long service life.
(5)Machine case
External independent case is connected to the machine.Case switch is not convex and it is convenient to operate.Equipped with Leakage protector, Mains filter,inverter, AC contactor, Voltage transformer,Drivers, Control panel.
Parameters
Certificate | CE |
Machine material | Cast iron |
Max diameter | 300mm(Custom model 400mm specifications) |
Max length | 1500mm(Custom model 2000mm specifications) |
Rotary spindle motor speed | 0-3000r/min |
Drive system | stepper motors 450C/450B and Yako 2811 drives |
Guide rail | Taiwan HIWIN linear square guide rail 25mm |
Transmission | Rack and pinion, Taiwan TBI rolling ball screw |
Air pressure | 0.6-0.8Mpa |
Control system | DSP system |
Software compatiliby | Type3/Artcam/Artcut/Ucancam/JDpaint etc. |
Command language | G-code |
Computer interface | USB |
Working voltage | 380V, 50/60HZ |
Maintainance | Oil lubricating system |
Environment temperature | 0-45 centigrade |
Relative humidity | 30%-75% |
Machine size | 2000*1300*1350mm |
Machine Weight | 1600kgs |

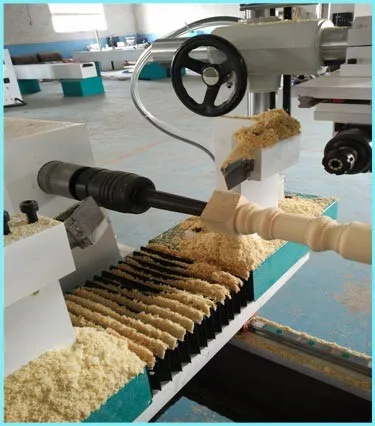

Application
Packaging & Shipping
Warranty
Quality inspection
The machine will be inspected carefully by skilled workers before delivery,whose purpose is to ensure the quality of the machine .we will provide the best product and service to you.
Productive process
1.We have professional and skilled workers,they weld and paint the machine body of the machine ,so the price is competitive.
2. The skillful workers assemble the machine in 3-4 days efficiently. During this time, you can still make some changes about your ordered machine.
3. The test department will test the quality of the machine in time and find problem and solution to make sure the final machine is perfect.
4. When the machine is finally finished, it will work for 24-hours before shippment. We will show you the producing process in time.
