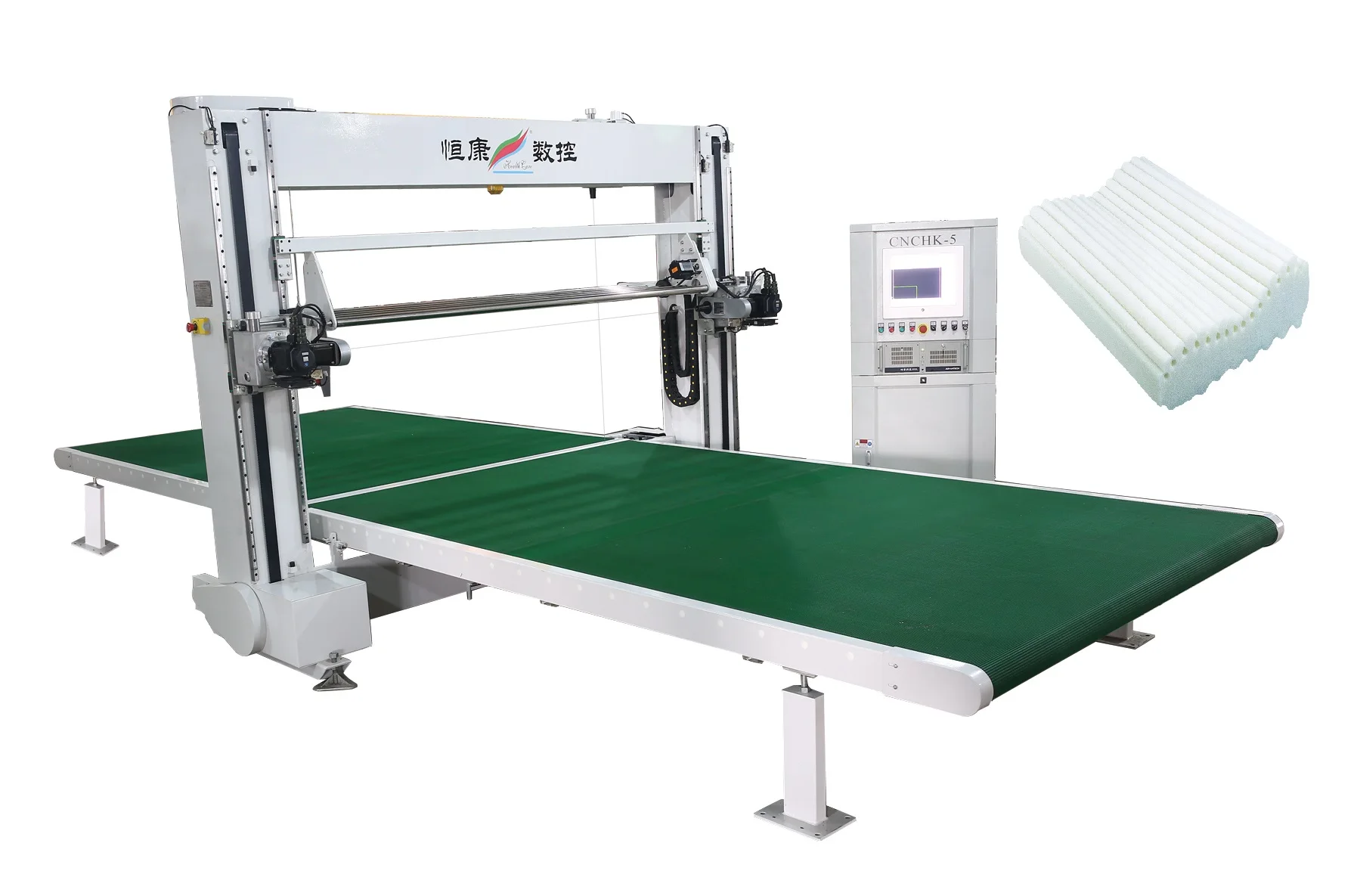

CNC Foam Cutting Machine CNCHK 5 Double blade Machine
- Category: Foam Cutting Machine >>>
- Supplier: Nantong Healthcare Machinery Co. Ltd.
Share on (62182269779):
Product Overview
Description
Product Description
CNCHK-5 is equipped with both horizontal and vertical blade, can cut all kinds of contours for a wide range of materials, such as PU flexible foam, HR foam, Memory foam, latex and some rebounded foam. High precise cutting by means of the oscillating blade. It’s the perfect machine for foam, mattress and furniture plants.
Advantages
High precise cutting
For wider range of material
Reduce manpower
Lower use cost
Easy to operate
Dust-free
For wider range of material
Reduce manpower
Lower use cost
Easy to operate
Dust-free
Material
PU flexible foam
HR Foam
Memory foam
Latex
Re-bonded foam
HR Foam
Memory foam
Latex
Re-bonded foam
Technical Data
Weight(T) | 3.0 | Type of CNC | Industrial computer |
Full Power | 10KW,380V,50HZ | Display | LCD |
Size(mm) | 6480×3200×2300 | Controlling module | Motion controlling card |
Max foam size(mm) | 3000×2300×1300 | Operation system | Window 2000 or above |
Blade size(mm) | 2400×3×0.5 1600×3×0.5 | Programmable axis | X,Y1,Y2,Z1,Z2,φ1.φ2 |
Servo system(r/min) | 2400-2800 | Step motor torque(N.m) | 20 |
Max cutting Speed(m/min) | 0-6.3 | Min cutting radius(mm) | 10 |
Admissible error(mm) | ±0.5 | Self-test system | Installed |
Min cutting size(mm) | 5 | Blade alert | Installed |

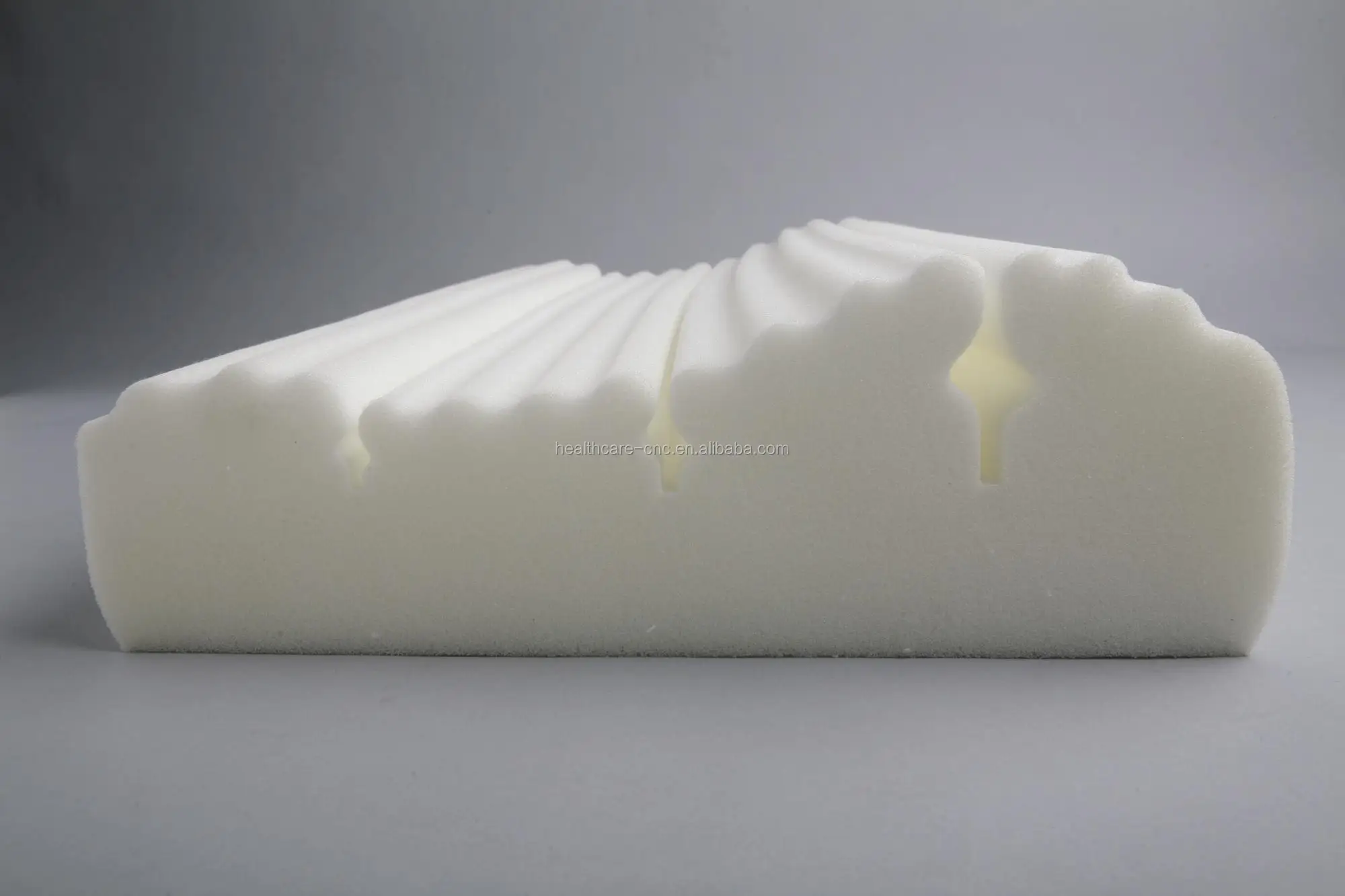

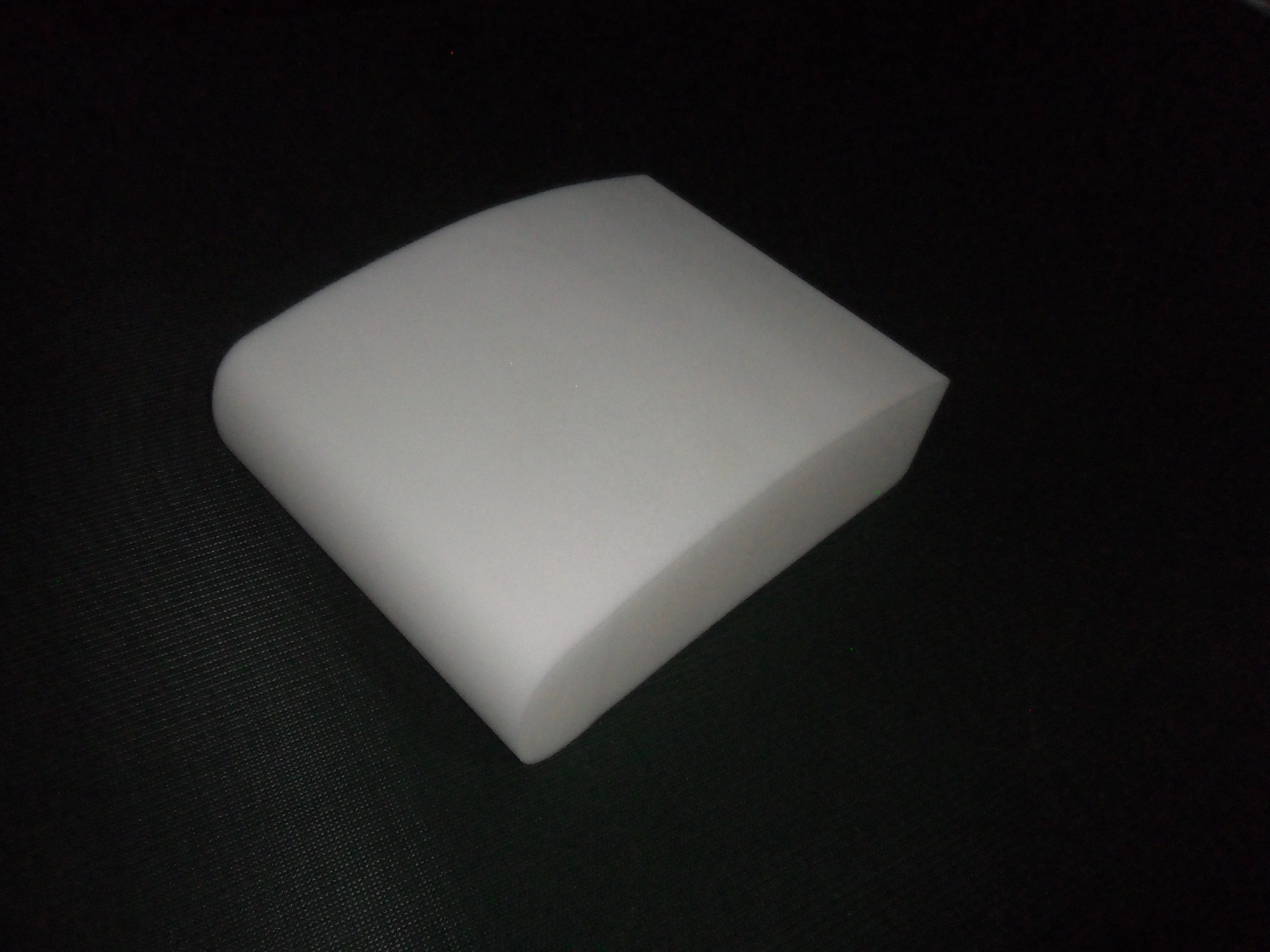

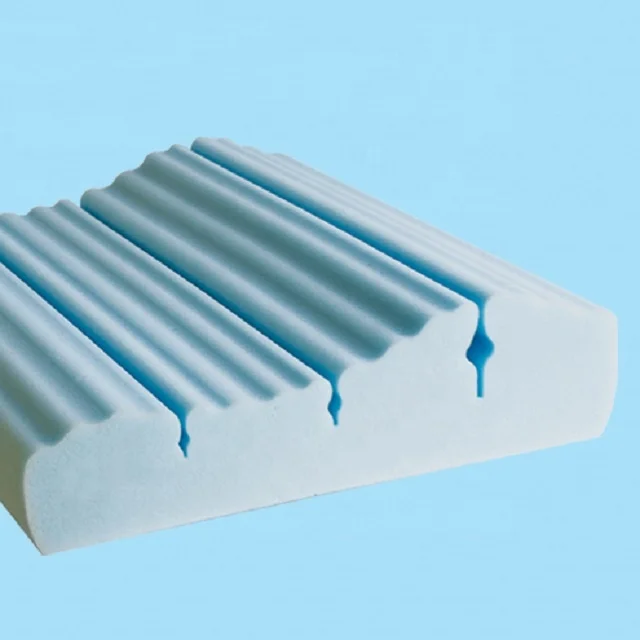

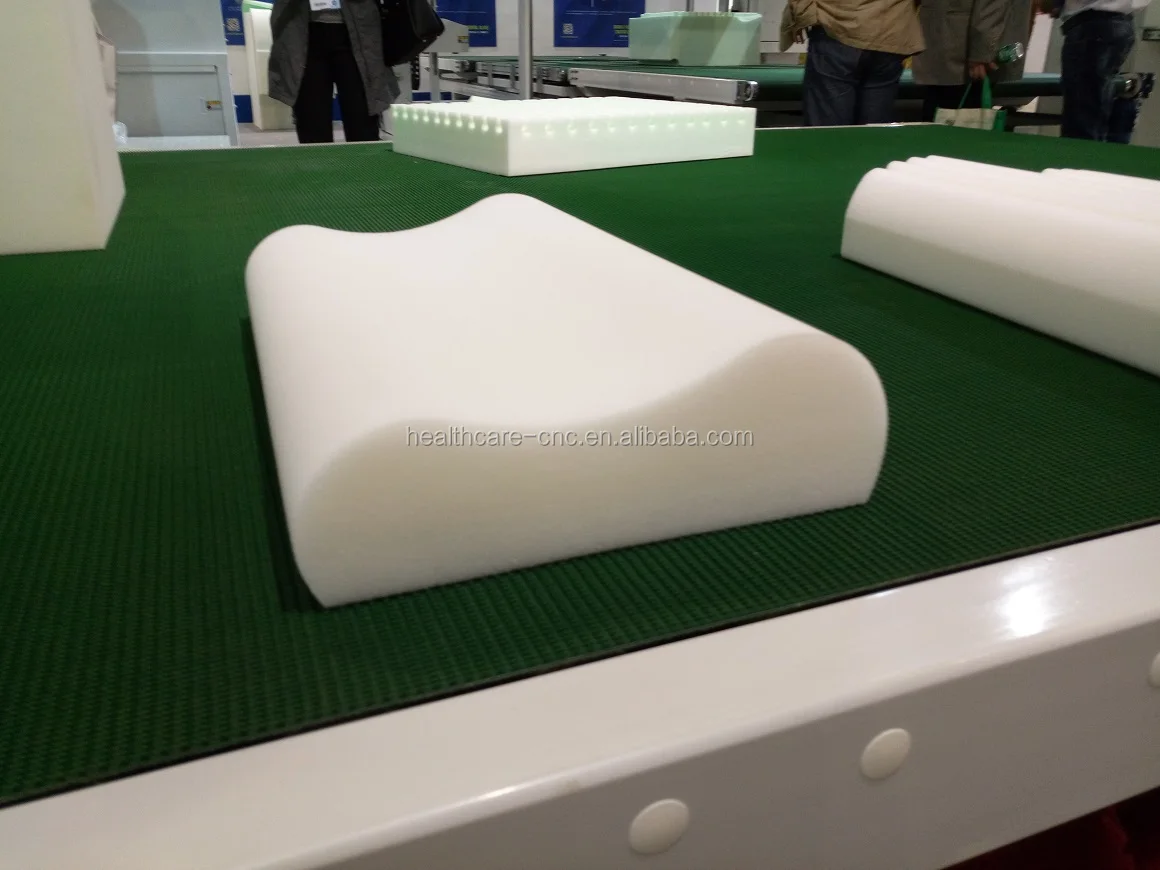

Details Images

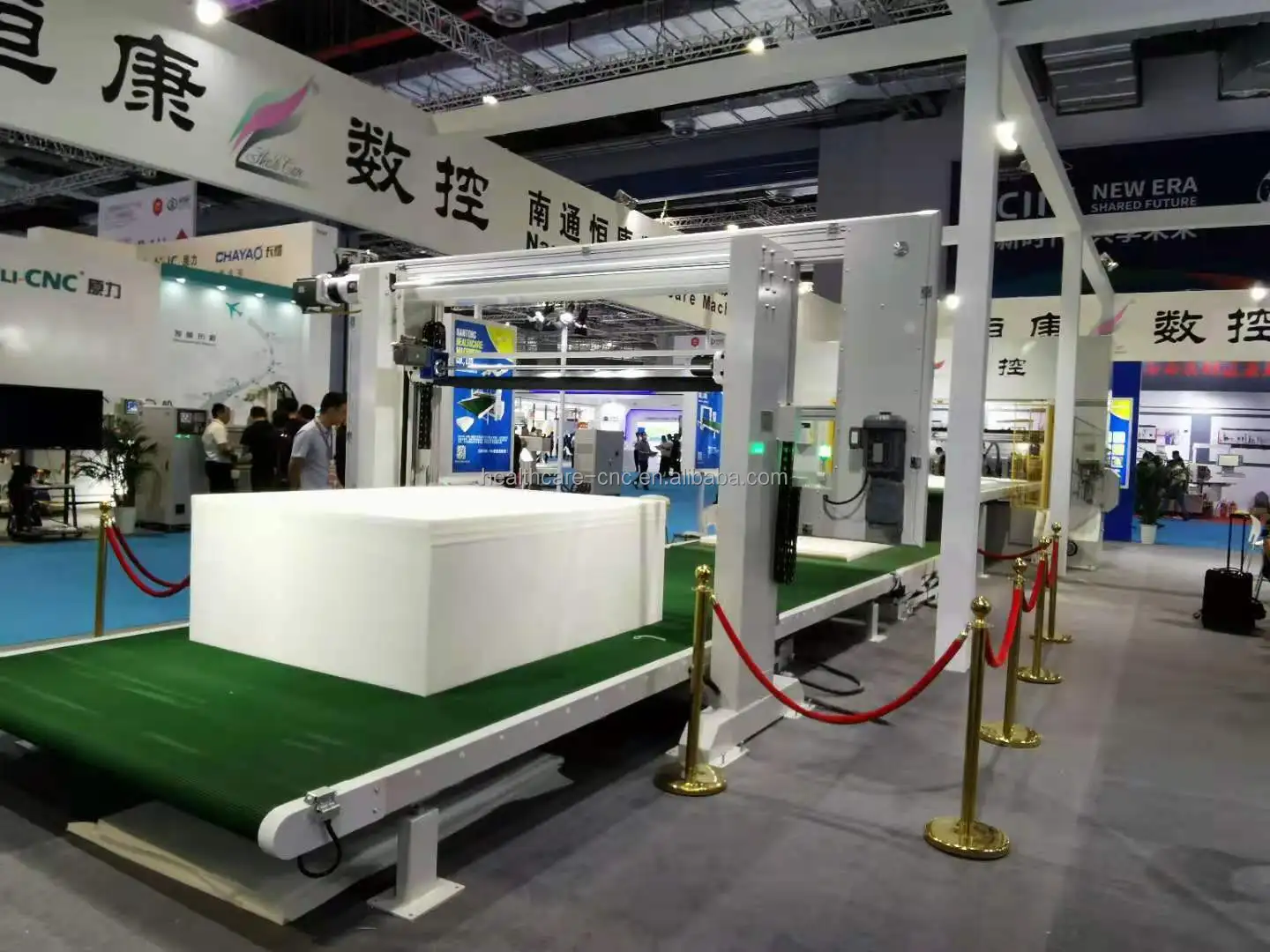

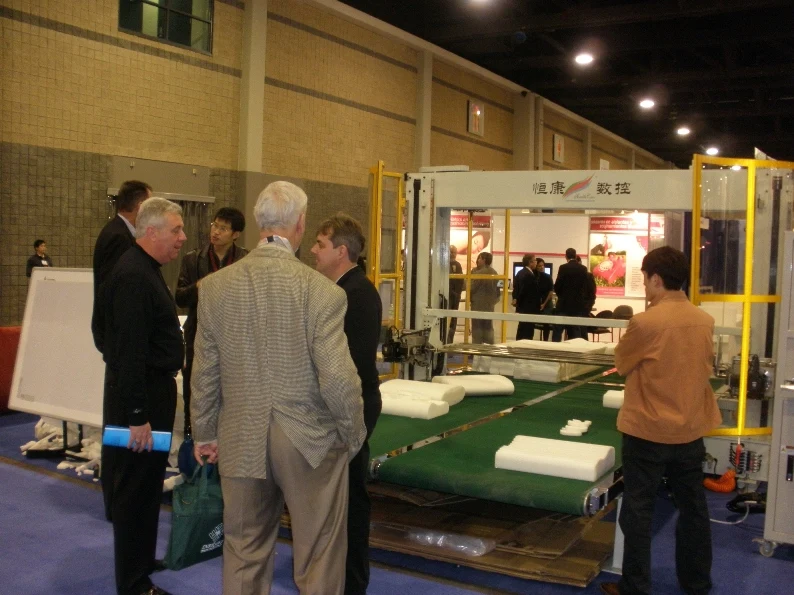

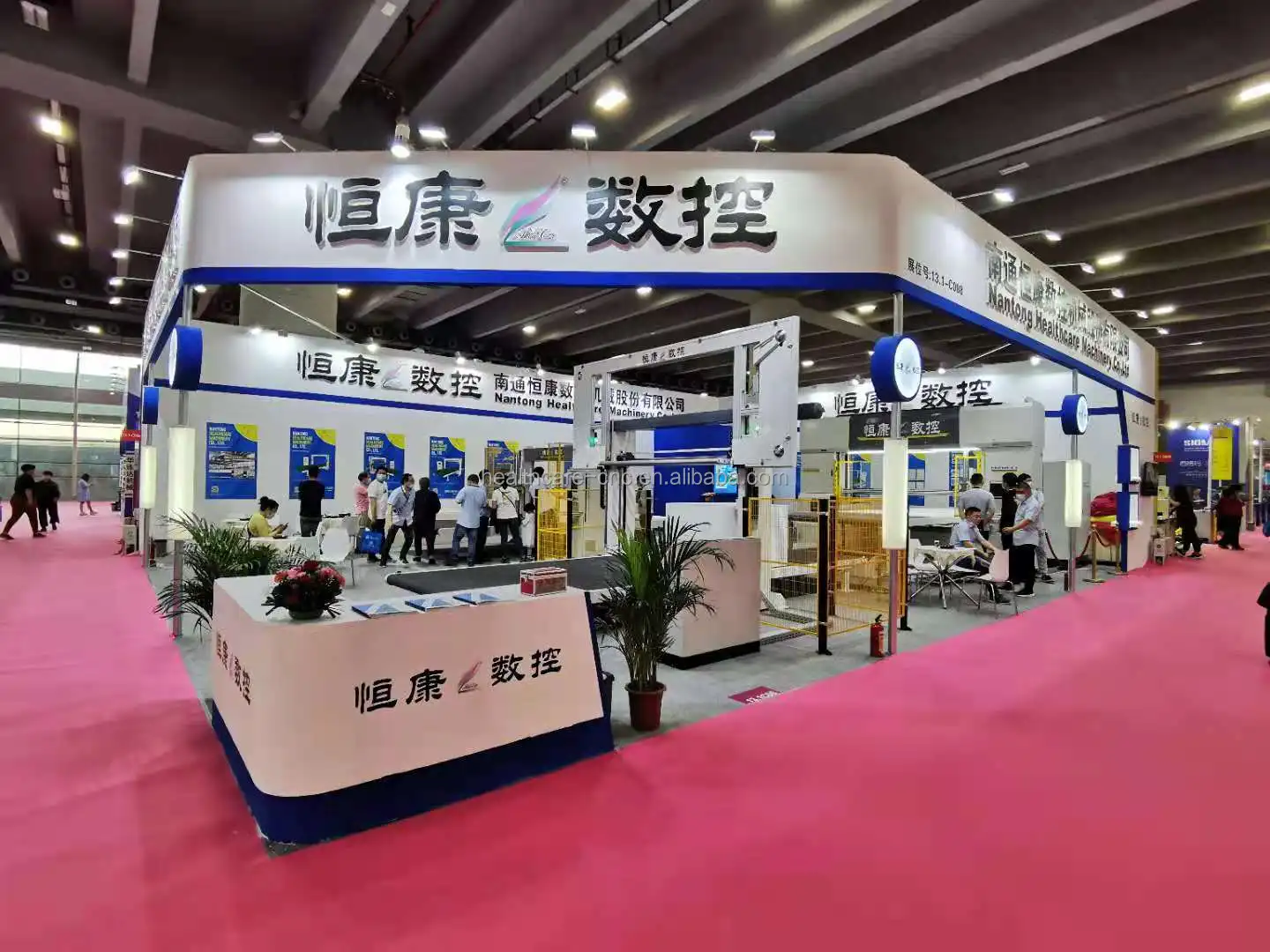

Exhibition
Company Introduction
Nantong Healthcare Machinery Co., Ltd was founded in 2007, specializing in research, design and manufacture of CNC contour cutting equipment. It is one of the first professional companies to do extensive research and development to produce Oscillating blade foam cutting machinery for the professional foam conversion. Due to the continues improvement of our existing equipment as well as new development of state of the art machinery, Nantong Healthcare Machinery Co., Ltd has won numerous national patents for their innovative ideas.
Healthcare CNC cutting machines are valued by our international customers of whom many are at the top of their industry in foam conversion. Since it was introduced in the market in 2007 the number of customers has grown rapidly and it has been the number 1 selling equipment for 10 consecutive years.
The Oscillating Blade and Continuous Blade Machines incorporate exceptional engineering design that provides for smooth, fast and efficient processing of blocks (regular foam, memory foam, latex and very hard foam) in minutes. All the machines are designed to require only one operator eliminating additional manpower. Operators all over the world appreciate the ease and usability of the Healthcare Software. Most existing files can be easily and quickly converted to DXF files making them suitable for processing foam blocks. Their System Cut Check will monitor and correct the load on the servo motors by checking for phase errors. The program will be automatically corrected adding life to the motors and increasing blade life.
Healthcare CNC cutting machines are valued by our international customers of whom many are at the top of their industry in foam conversion. Since it was introduced in the market in 2007 the number of customers has grown rapidly and it has been the number 1 selling equipment for 10 consecutive years.
The Oscillating Blade and Continuous Blade Machines incorporate exceptional engineering design that provides for smooth, fast and efficient processing of blocks (regular foam, memory foam, latex and very hard foam) in minutes. All the machines are designed to require only one operator eliminating additional manpower. Operators all over the world appreciate the ease and usability of the Healthcare Software. Most existing files can be easily and quickly converted to DXF files making them suitable for processing foam blocks. Their System Cut Check will monitor and correct the load on the servo motors by checking for phase errors. The program will be automatically corrected adding life to the motors and increasing blade life.
Our Services & Strength
1、Field installetion,commissioning and training;
2、Online support;
3、Video technical support;
4、Field maintenance and repair service.

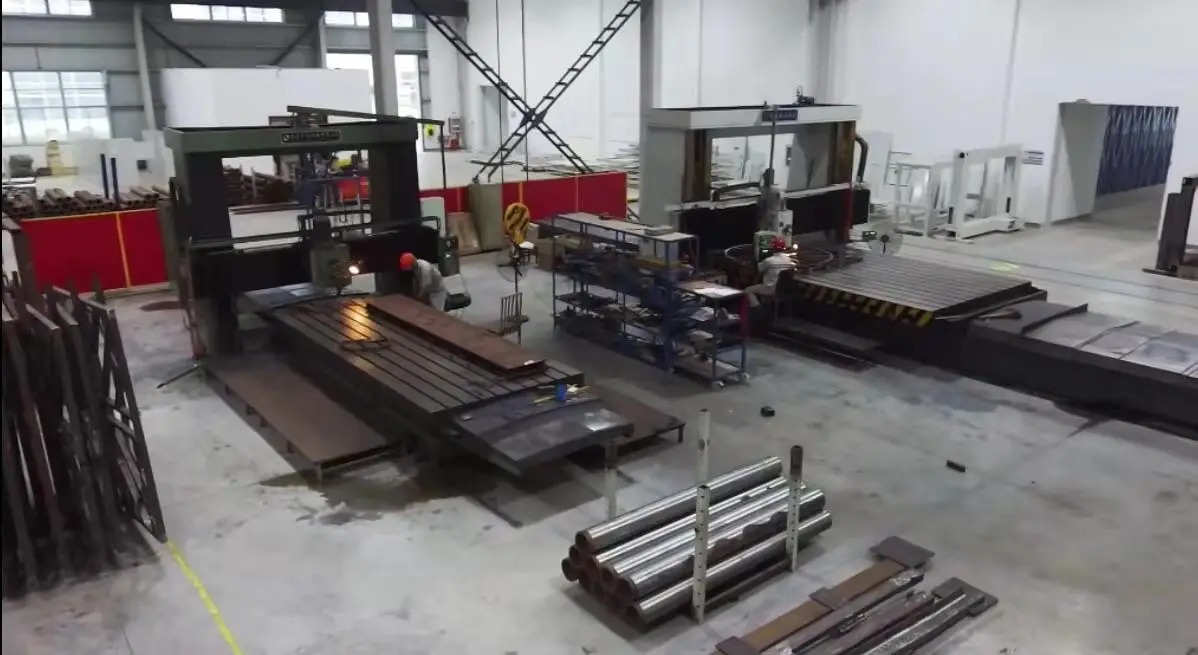

Company Profile

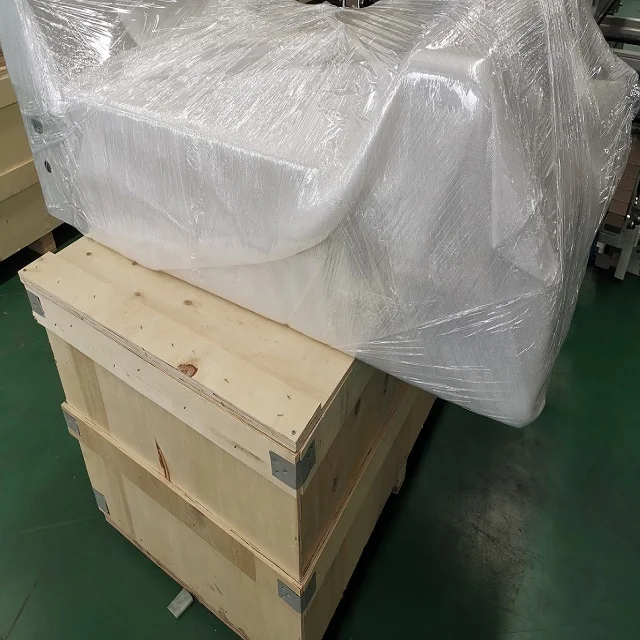

Packing&Shipping
Packaging Details:Protective film + Corrugated paper + Metal frame+Wooden case.
