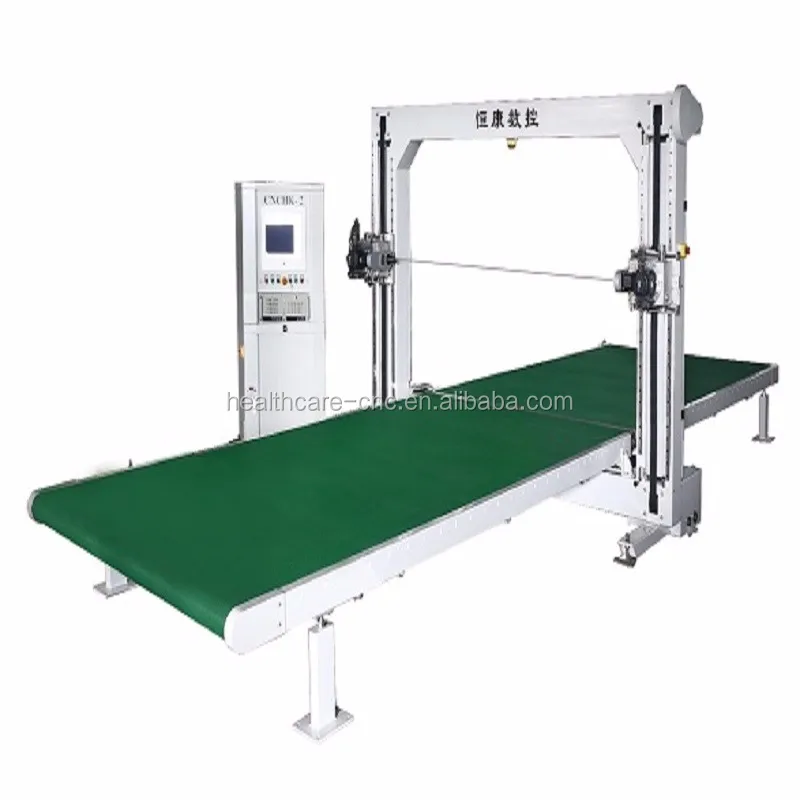

CNC Foam Cutting Machine Horizontal Blade

CNCHK-2 (Horizontal blade) is a simple and efficient machine. The table is 5600 x 3200x 2300mm (220" x 126" x 90"). Block size can be 2900 x 2300 x 1300mm (114"x90"x51").

Technical Data

Weight(T)	2.0	Type of CNC	Industrial computer
Full Power	8KW,380V,50HZ	Display	LCD
Size(mm)	6000×3200×2300	Controlling module	Motion controlling card
Max foam size(mm)	3000×2300×1300	Operation system	Window 2000 or above
Blade size(mm)	2400×3×0.5	Programmable axis	X,Y,Z,φ
Servo system(r/min)	2400-2800	Step motor torque(N.M)	20
Max cutting Speed(m/min)	0-6.3	Min cutting radius(mm)	10
Admissible error(mm)	±0.5	Self-test system	Installed
Min cutting size(mm)	5	Blade alert	Installed

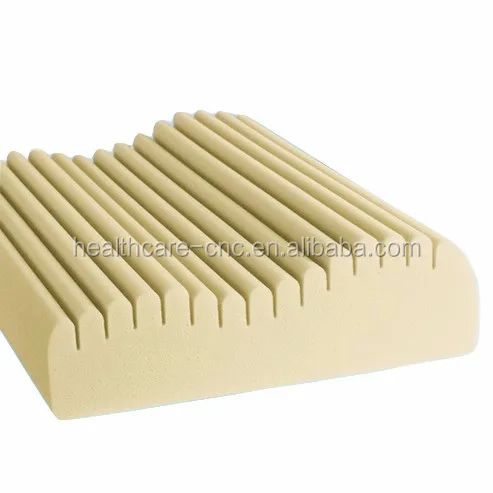

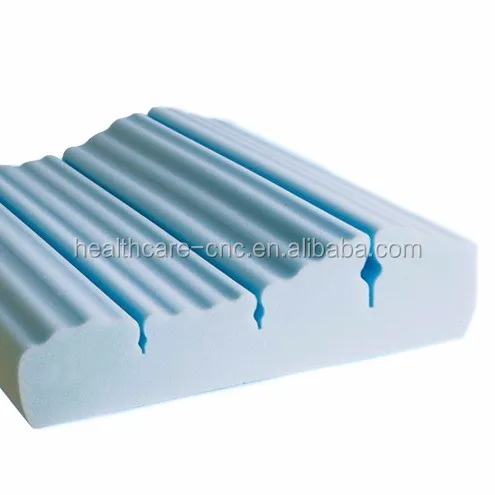

Detailed Images
