capsule slip ring Flange and Gold gold Contact,for High precion Instruments mini slip ring

 Bargain Price Only in Alibaba

Description

The LPMS-10A super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor.

The LPMS-10A allows tremendous flexibility in dealing with system size restriction when larger versions are not an option. It is available in 1 to 8 circuit configurations.

Features

• 10circuits


• 1 amp per circuit, 240 VAC/DC


• Precision assembly to provide exceptional rotational life


• Speed up to 300 rpm continuous


• Gold to Gold contacts


• Flexible, color-coded, silver-plated lead wires


• Superior handling of low-level control signals


• Metal housing optional

Advantages

• Low torque minimizes system torque budget


• Compact design to fit into the most demanding space.


• Compact package


• Low electrical noise


• Quick shipment per your urgent requirement


• 360°continuous rotation


• Addition of special components

Main Application

• Electrical Test Equipment


• Manufacturing and Processing Control Equipment


• Indexing Tables.


• CCTV Pan / Tilt Camera Mounts


• Robotics, Rotary Sensors, Urgent Illumination Equipment


• Exhibit/Display Equipment.


• Mini-type Coiling Machine


• Closed-circuit Control

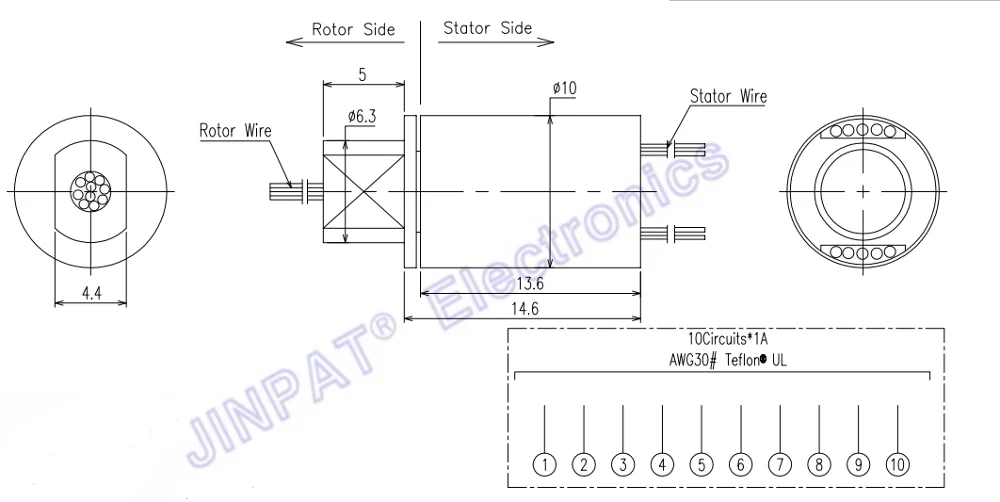

Product drawings

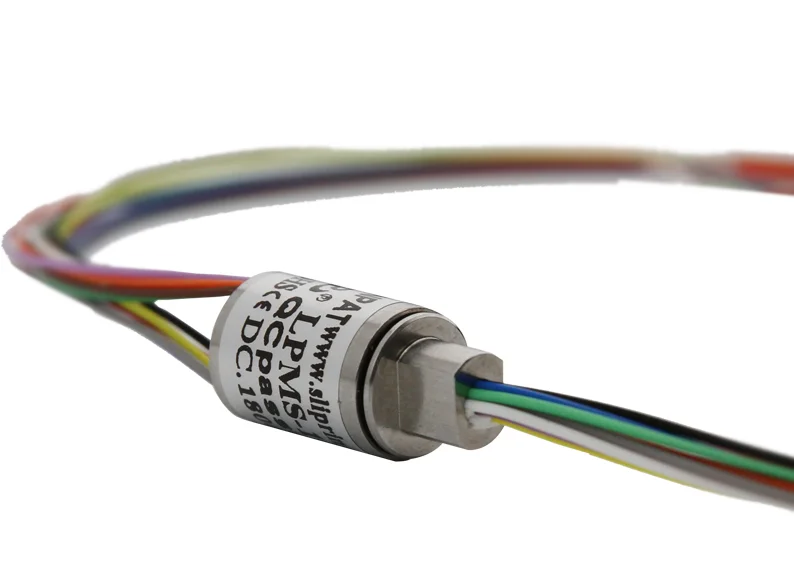

Product Image
