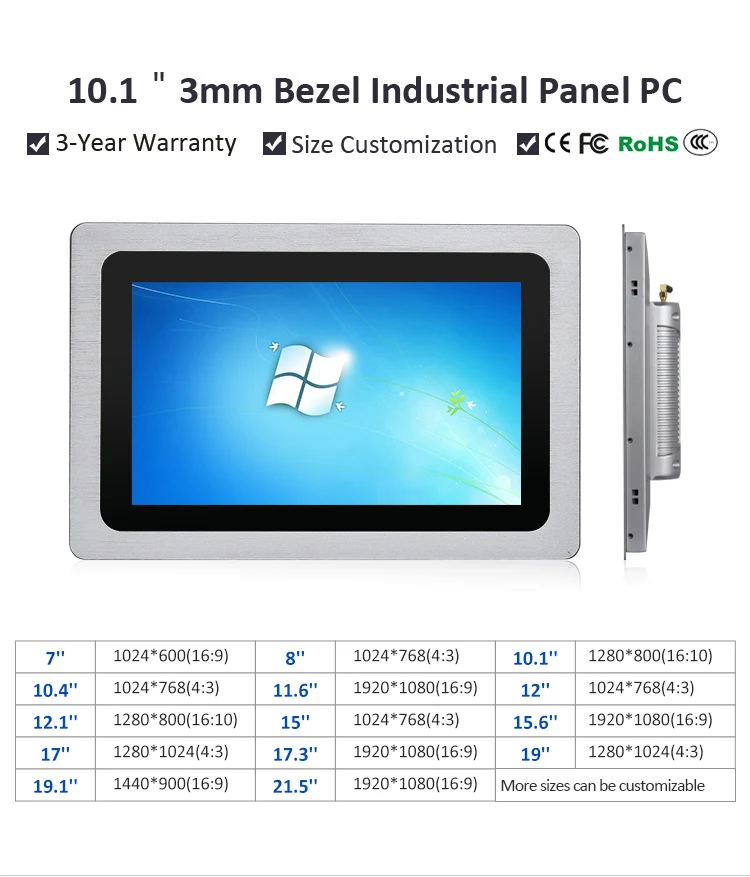

10.1 INCH Touch panel pc industrial computer price touchscreen all in one embedded pc
| Model: TPC101-W210 | |
| PC | |

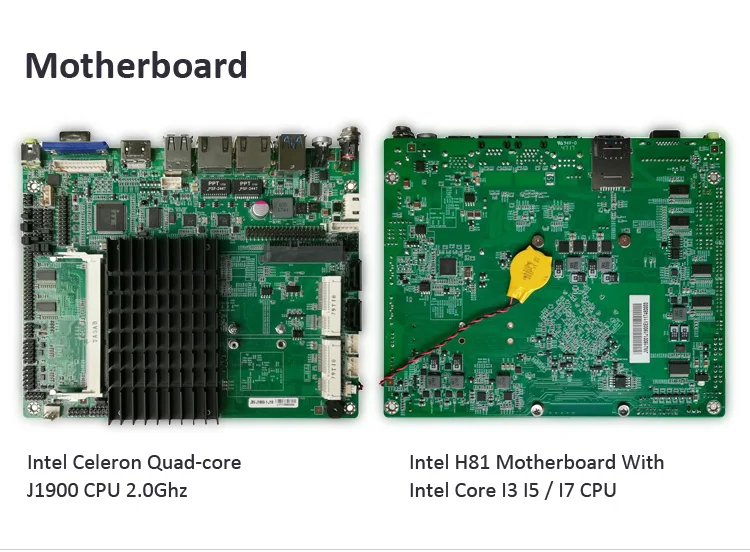

| CPU | In-tel Ce-leron J1900, quad core, 2.0GHz, fanless |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Wireless Network | WIFI |

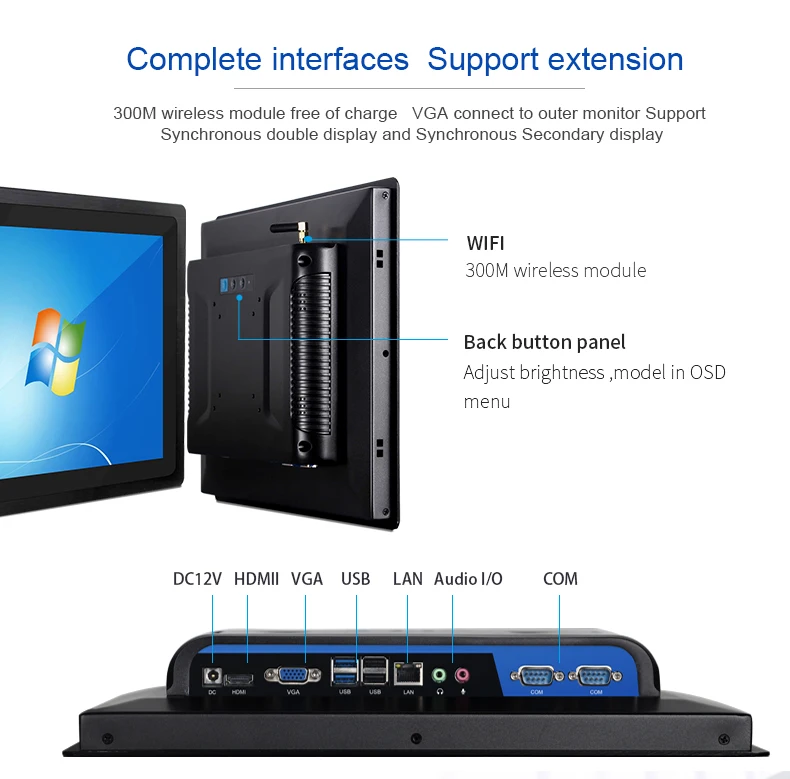

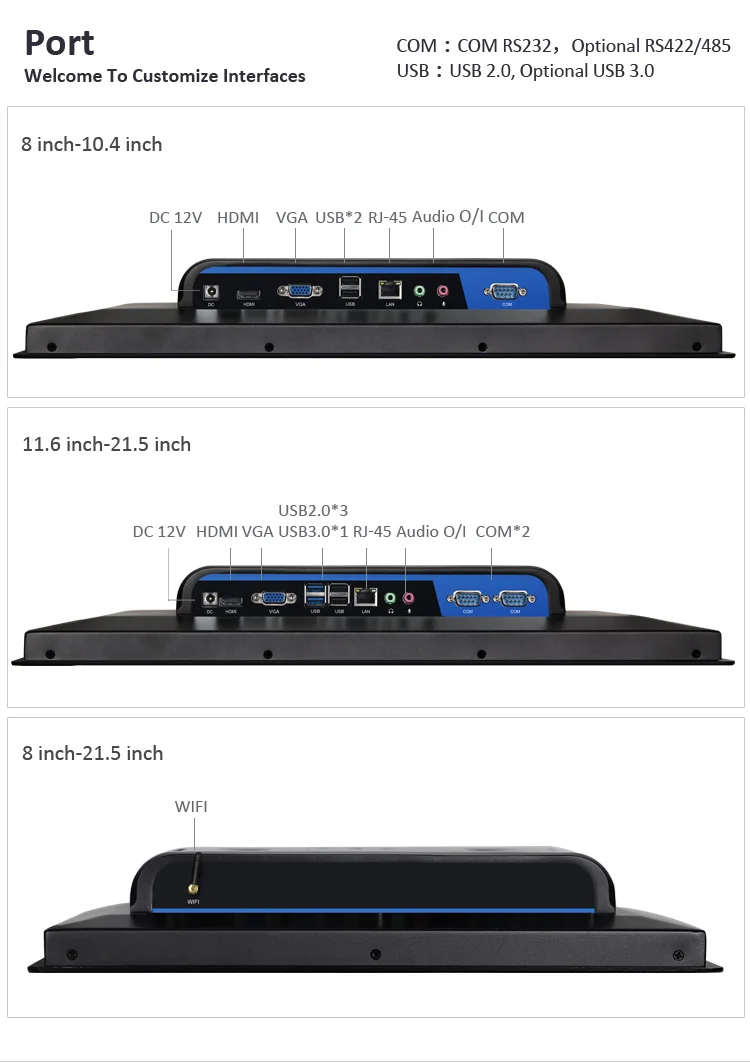

| I/O Interface | 2xUSB 2.0, 1xCOM RS232 |
| 1xVGA/HD*MI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Win7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |

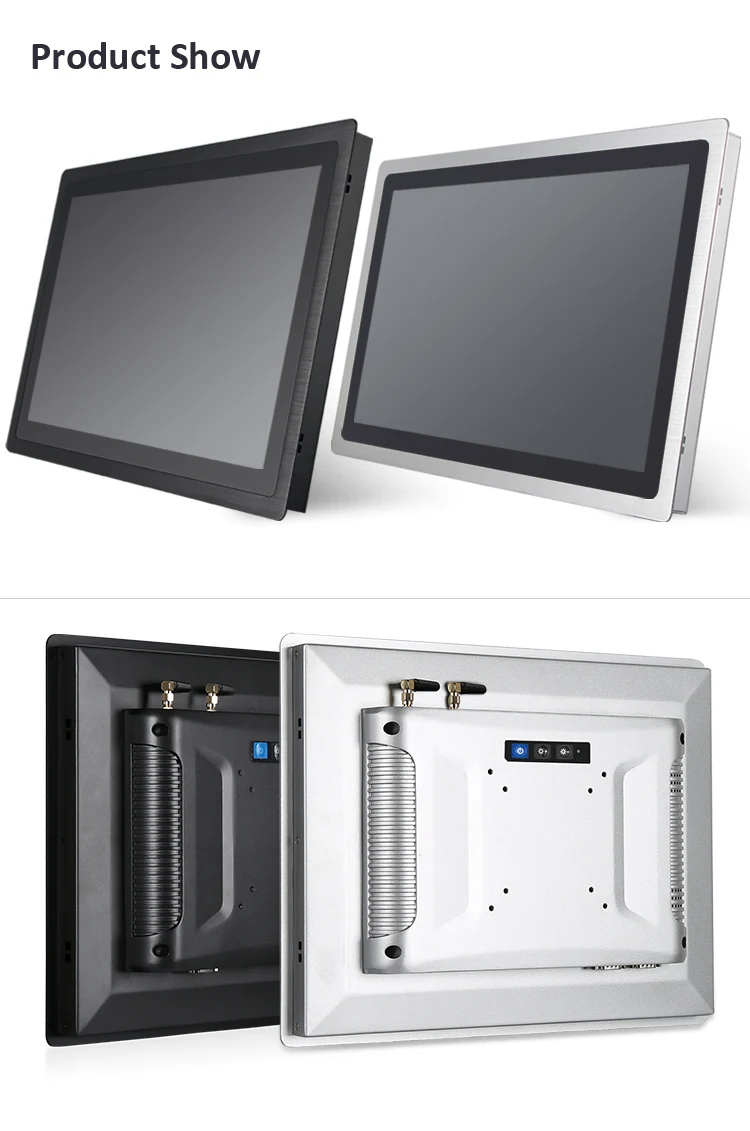

| Color | Silver, Black, white can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 4kg |

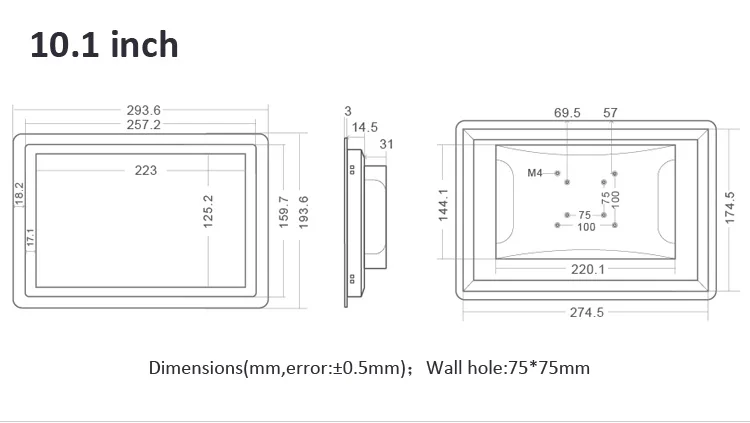

| Product Dimension | 29.36x19.36x4.85cm |
| Packing size | 43x38x18cm |

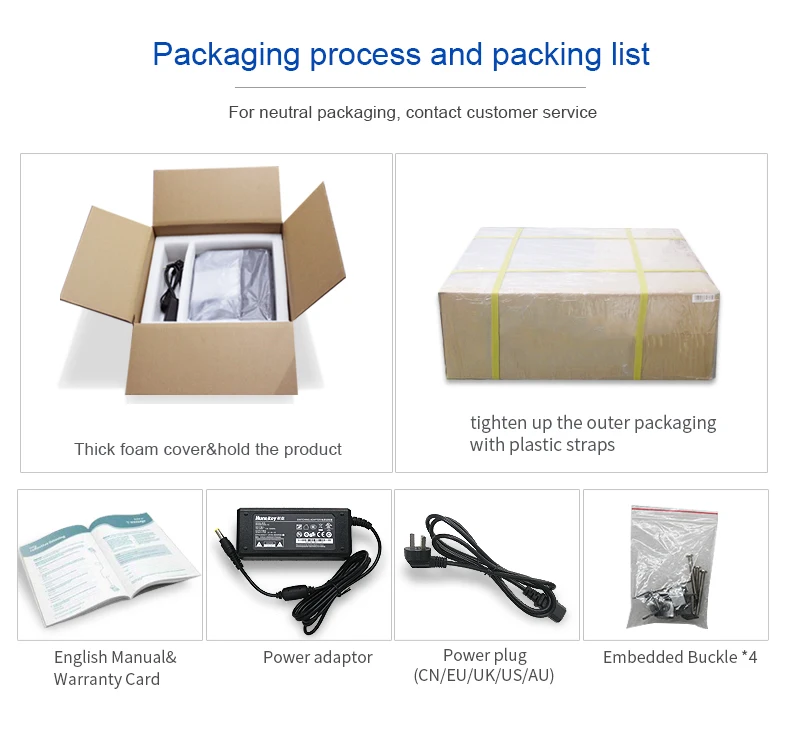

| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other | |

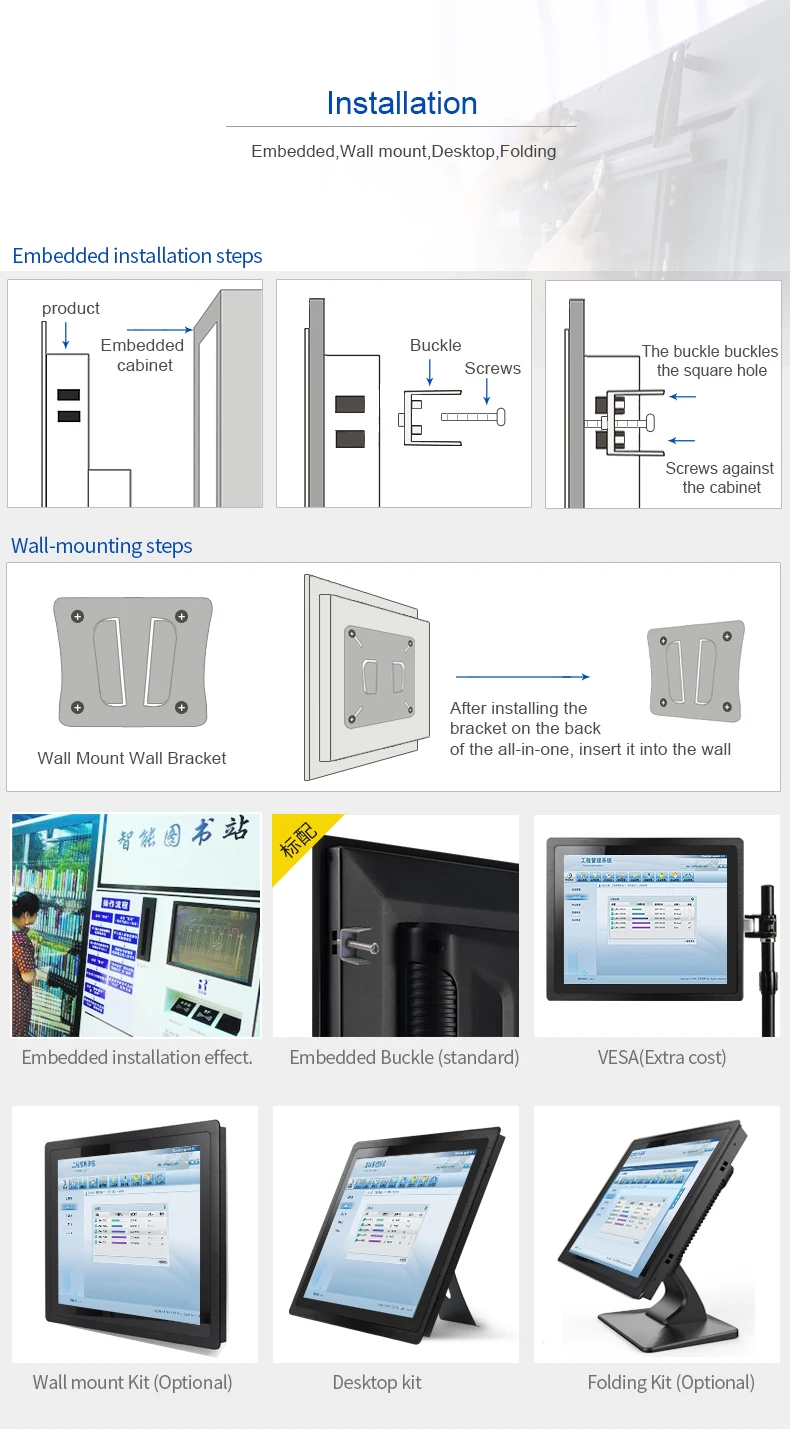

| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 3 years |
| Certificate | CE, FCC, RoHS |
Packaging & Shipping
Transport and Packing process
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
500PCS or More orders: 12-17 working days
Company Information
Shenzhen Touch Think Intelligence Co.,Ltd was established in 2013.It is a high-tech enterprise that develops and produces industrial intelligent automated touch display devices.
Touchthink's products have passed more than ten national and industry standard certifications, and the core products have independent intellectual property rights. Touchthink strives to provide our customers with one-stop intelligent automation from board research and development, AIO PC mold development and manufacturing, design, product production, quality testing, and end customer back-end support. Equipment solutions.
Rich product lines such as industrial touch screen monitor, Industrail All-in-one Panel PC, Industrial Android All-in-one Tablet PC,industrial boards, and customized PC,etc.
The product has strong environmental adaptability, which can meet the requirements of any complex and harsh industrial environment; adopts internationally renowned brands of industrial-grade components, independent research and development of boards and test software; 7*24 hours of uninterrupted high-load stable operation, a thousand times without Verification tests such as intermittent restart provide a solid technical guarantee for the stable operation of the whole machine. The software is compatible with more than 99% of industrial control software on the market, and the hardware is equipped with rich port designs to meet customers' diverse external equipment needs and support secondary development services. The company uses the international ISO testing standards as its quality management system to ensure that products are safer and more durable when used, and maximize economic efficiency.
Touchthink will create the world's leading brand of industrial intelligent touch display devices.
