Заводская Высококачественная машина shotcrete для подземной горной промышленности pz 5 портативная

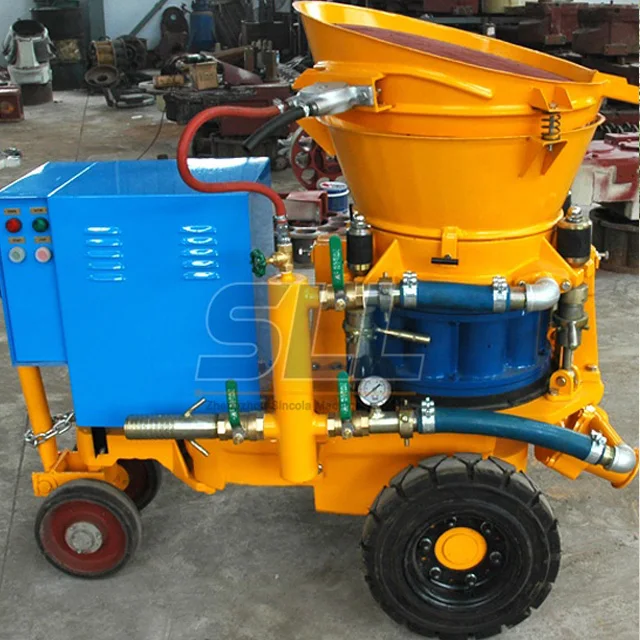

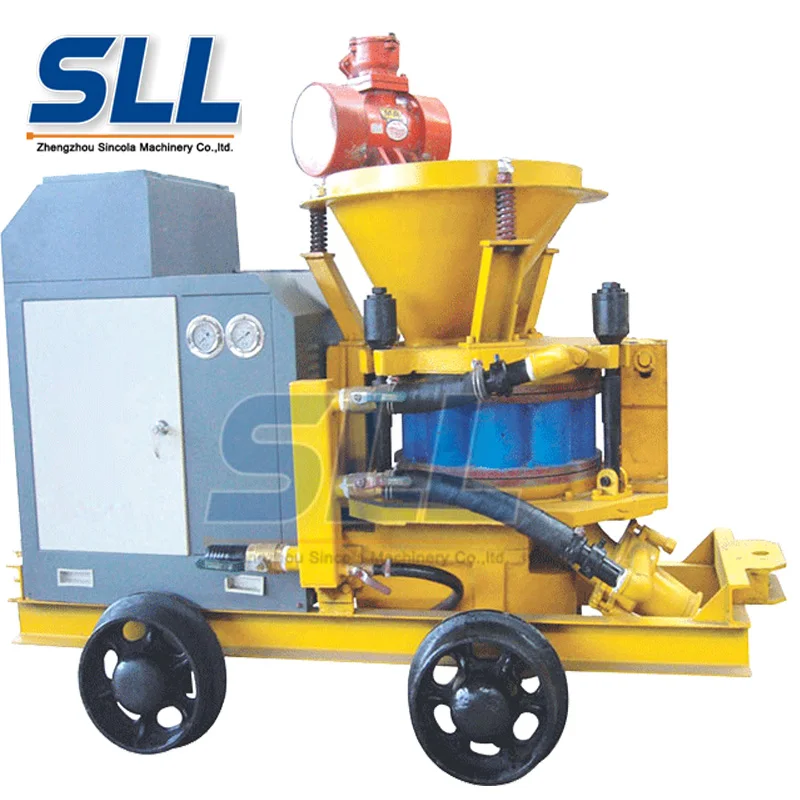

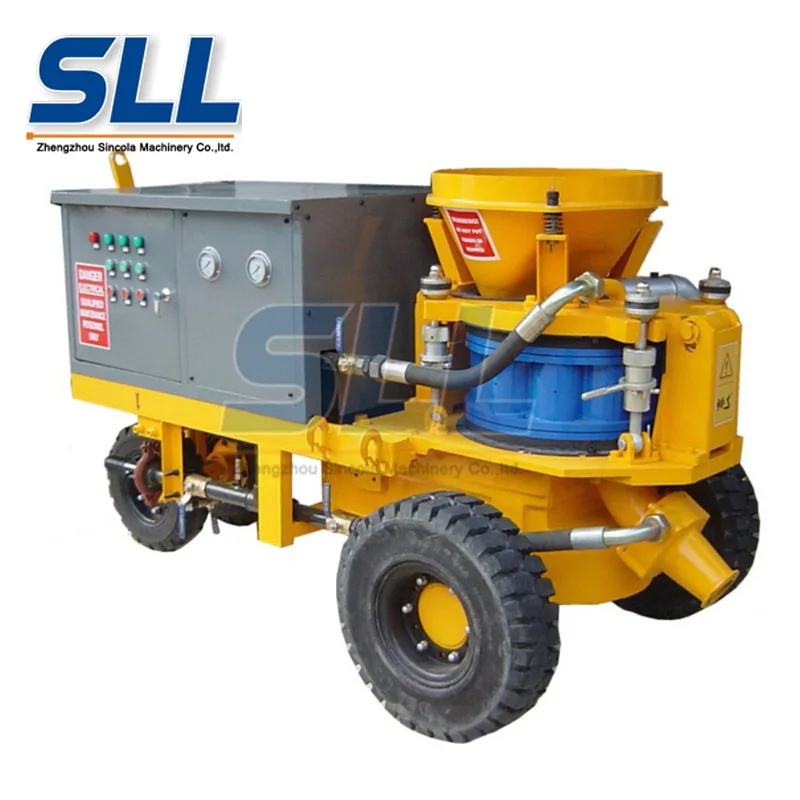

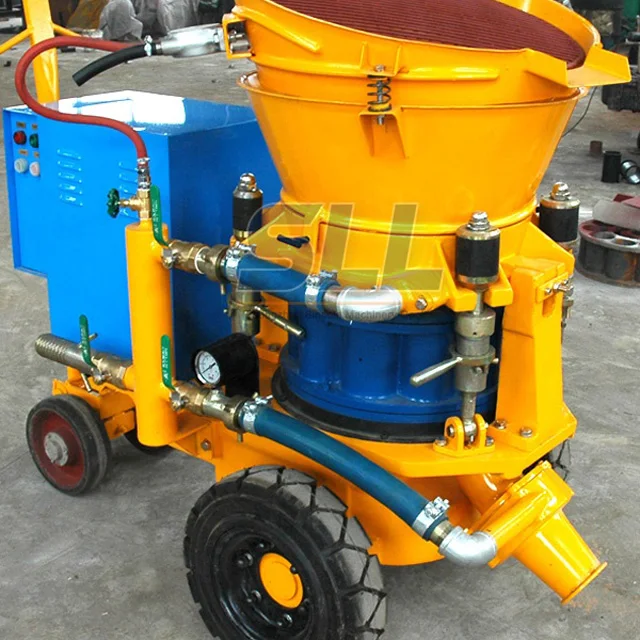

Product Description of SPZ-3 Shotcrete Machine

SPZ-3 shotcrete machine use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.

Features of SPZ-3 shotcrete machine

1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .

SPZ-3 Concrete shotcrete machine Advantages

1.The shotcrete machines are designed for easy opearating which only need two workers to opearate so as to saved you human resources and much labour charge.

2.All the fittings of the shotcrete machines are made by China's most famous manufactures which ensured its high quality with low cost.

3.It has a long lifetime which can reached 6-10years long.

4.Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.

5.The machine always works with efficiency and silence with air valve remote-contral function.

6.The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any  circumstance

Applications Of SPZ-3 Shotcrete Machine

1. Used for dry mix concrete spraying operation.
2. Shotcrete for Civil Underground Foundation , Express-Way Construction, Railway Construction;
3. The Concrete shotcrete machine shotcretes for building surface;
4. Shotcrete for Tunneling , Mining ,Hydropower Project;
5. Shotcrete for Slope Stabilization.

For example, build up the swimming pool.

FAQ

1.How much is the output of SPZ-3 Concrete Dry Mix Shotcrete Machine?

Output :3 m3/h

2. Is the voltage of the SPZ-3 Concrete shotcrete machine variable?

Acceptable

3. How much is Max.Aggregate.size ?

20mm

4. Can be used to build a swimming pool, etc.?

Sure

5. What is SPZ-3 Concrete shotcrete machine used for ?

mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower,engineering,etc

6. What is advantage of SPZ-3 Concrete Dry Mix Shotcrete Machine ?

High quality, high efficiency, environmental protection
