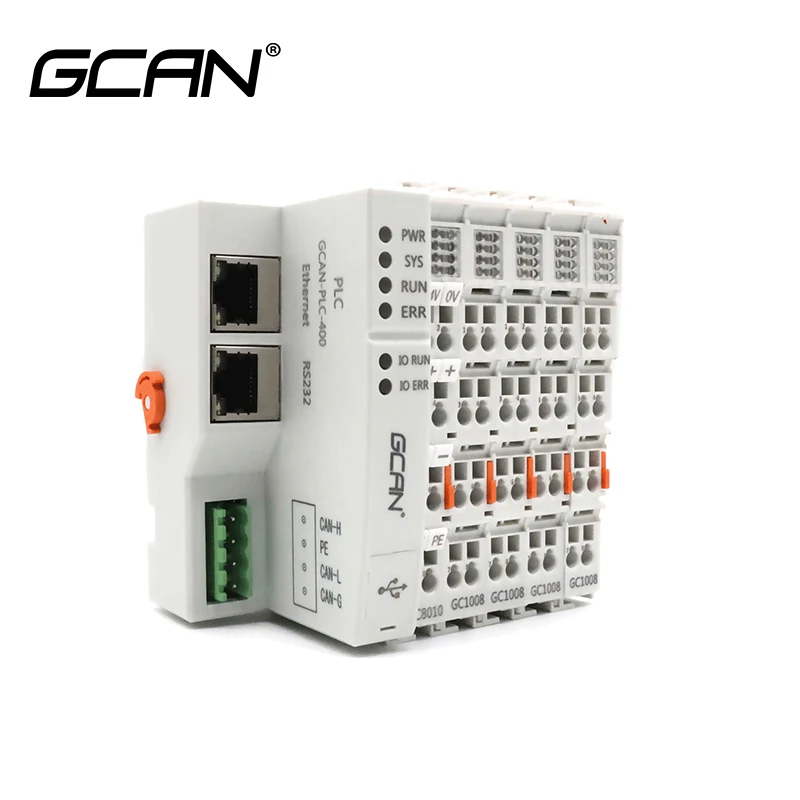

New original PLC controller plc with software connected with HMI for industrial automation process plc ethernet
- Category: PLC >>>
- Supplier: Shenyang Guangcheng Technology Co. Ltd.
Share on (62185267990):
Product Overview
Description
Related
Notice
Dear! Before payment, please confirm your detail requirement, GCAN-PLC-400 itself doesn't include any IO points, if you want different IO modules, please contact us.

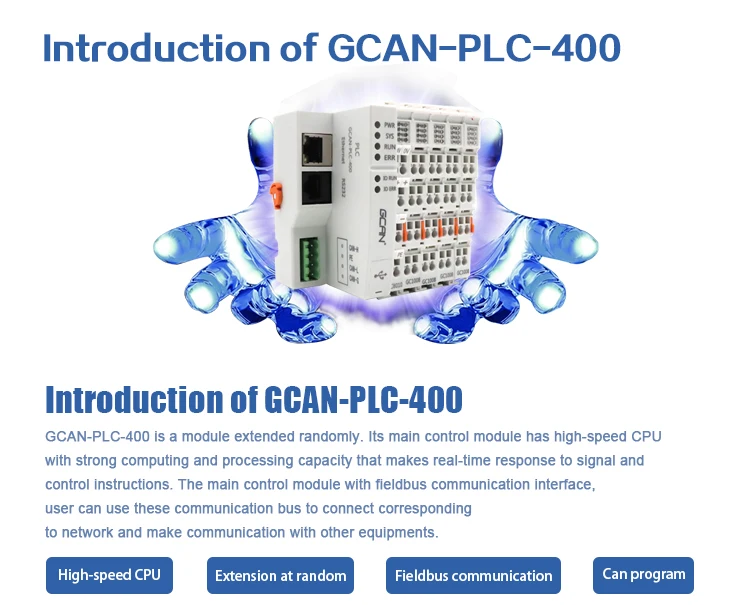

Product introduction
Product parameter
①CANopen baud rate supports : 1000k, 500k, 250k, 125k, 100k, 50k 10k
②PDO mode supports : Synchronization, looping, event-driven, polling
③Terminal modules : Up to 32 bus terminal modules
④Transmit : 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
⑤Configuration mode: Automatic configuration
⑥CAN interface : one open 4 terminal
⑦Supply power :24V DC (-15%/+20%)
⑧Input current：70mA+ ( total GC-bus current), maximum 2.5A
⑨Starting current ：About 2.5 times continuous current
⑩Power contacts：Maximum 24V DC/maximum 10A
⑪Electrical isolation ： 1500 Vrms
⑫Working temperature ：-40.00℃~ 85.00℃
⑬Working humidness ：95%RH，without condensation
⑭EMC test：EN 55024-2011-09;EN 55022-2011-12
⑮IP grade ：IP 20
⑯Weight：100g▶ CANbus Interface , According to ISO11898 standard
▶ Ethernet interface ,10/100M self-adaption
▶ serial interface, RS232/485
▶ Programming environment: OpenPCS ( According to IEC 61131-3 standard)
▶ Supply power: 24V DC (18~36V)
▶ Terminal modules : Up to 32 bus terminal modules
▶ Working temperature : -40.00℃~ 85.00℃
▶ SIZE：100mm*69mm*48mm
Typical applications
◆Coal mine underground transportation control system networking
◆Intelligent hotel room control system networking
◆Control system of automobile production line
◆Fire alarm and fire control system
◆Irrigation and fertilization control system
◆Extended control of data acquisition and transmission
①CANopen baud rate supports : 1000k, 500k, 250k, 125k, 100k, 50k 10k
②PDO mode supports : Synchronization, looping, event-driven, polling
③Terminal modules : Up to 32 bus terminal modules
④Transmit : 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
⑤Configuration mode: Automatic configuration
⑥CAN interface : one open 4 terminal
⑦Supply power :24V DC (-15%/+20%)
⑧Input current：70mA+ ( total GC-bus current), maximum 2.5A
⑨Starting current ：About 2.5 times continuous current
⑩Power contacts：Maximum 24V DC/maximum 10A
⑪Electrical isolation ： 1500 Vrms
⑫Working temperature ：-40.00℃~ 85.00℃
⑬Working humidness ：95%RH，without condensation
⑭EMC test：EN 55024-2011-09;EN 55022-2011-12
⑮IP grade ：IP 20
⑯Weight：100g▶ CANbus Interface , According to ISO11898 standard
▶ Ethernet interface ,10/100M self-adaption
▶ serial interface, RS232/485
▶ Programming environment: OpenPCS ( According to IEC 61131-3 standard)
▶ Supply power: 24V DC (18~36V)
▶ Terminal modules : Up to 32 bus terminal modules
▶ Working temperature : -40.00℃~ 85.00℃
▶ SIZE：100mm*69mm*48mm
Typical applications
◆Coal mine underground transportation control system networking
◆Intelligent hotel room control system networking
◆Control system of automobile production line
◆Fire alarm and fire control system
◆Irrigation and fertilization control system
◆Extended control of data acquisition and transmission
IO module
I/O | Type | Characteristic | Signal | Channel |
Digital input | GC-1008 | PNP,filtering 3.0ms | 24V DC | 8-channel |
GC-1502 | Add/Subtract 24V DC,100kHz | Counter | 2-channel | |
Digital output | GC-2008 | PNP,Imax=0.5A | 24V DC | 8-channel |
GC-2204 | 4-Relay output | 230V AC 30V DC | 4-channel | |
GC-2302 | 24V DC,0.1A | PWM | 2-channel | |
Analog input | GC-3604 /3624 | -5~+5V / -10~+10V, 16-bit | -5~+5V -10~+10V | 4-channel |
GC-3644 /3654 | 0-20mA / 4~20mA, 16-bit | 0-20mA 4~20mA | 4-channel | |
GC-3664 /3674 | 0~5V / 0~+10V AI, 16-bit | 0~5V 0~+10V | 4-channel 2-channel | |
GC-3804 | PT100, 16-bit, 2-wire | PT100 | 4-channel | |
GC-3822 | PT100, 16-bit, 3-wire | PT100 | 2-channel | |
GC-3844 /3854 / 3864 | K / S /T | Thermocouple | 4-channel | |
Analog output | GC-4602 /4622 | -5~+5V / -10~+10V, 16-bit | -5~+5V -10~+10V | 2-channel |
GC-4642 /4652 | 0-20mA / 4~20mA, 16-bit | 0-20mA 4~20mA | 2-channel | |
GC-4662 /4672 | 0~5V / 0~+10V, 16-bit | 0~5V 0~+10V | 2-channel |
Function & Application
About us
Packing & Delivery
advantage
The products are packed in rigid corrugated cartons. In order to ensure that in the transport process will not produce product damage due to extrusion.
Our advantages
3 kinds of interface
CAN, Ethernet, RS232/485
Follow ISO 11898, support CANopen/ Modbus RTU/ Modbus TCP , can be used as master or slave
IO freely expand
Planty of IO modules optional
Including digital input, digital output, analog input, analog
output.
5 programming language
Support SFC (Sequential function chart),
LD (Ladder diagram), FBD (Function block),
ST (Structured text), IL (Instruction List)
Free Program software
Support OpenPCS software
Follow IEC 61131-3, The software is free with GCAN-PLC.
After-Sales Service
7 days every week after-sales technical support with our
Without specialized downloader
GCAN-PLC can use common micro usb to complete
debugging and downloading.
FAQ
1.Are you a manufacturer or trade company?
We are both factory and trae company, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.
2.What is your MOQ?
No MOQ Limits!
We support sample order, and could do products with & without Logo.
3.How to deal with the interrupt?
//www.coolmay.net/kindeditor/attached/file/20160722/20160722151620_6881.pdf
4. If I am not familiar with the operation, do you have a manual to help?
Our Software, User Manual and Programme case can be downloaded freely on our official website, or you could consult the sales for those documents.
Meantime, we have engineers team who could do help on your technician problem and give you useful solution.
