LPC Capsule Slip Ring It is able to integrate various signals: Ethernet, USB, etc
- Category: Electrical Contacts and Contact Materials >>>
- Supplier: Shenzhen Jinpat Electronics Co. Ltd.
Share on (62188876908):
Product Overview
Description
Bargain Price Only in Alibaba
Our Advantages
Providing free custom slip rings solutions,creating propulsion for your technology
- With a large plant of over 12,000 square meters and more than 500 employees.
- The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
- Long-term cooperation with global famous enterprises and agents all over the world.
- With Over 10,000 designs with success in civil, military, commercial and industrial applications.
- Founded in 1996, with more than 20 years of production and R & D experience.
- Providing free custom slip rings solutions,which can be suitable for a variety of equipment
- Fast delivery
Brief Introduction
Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from
22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact
and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various
signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
Features:
- Military standard surface processing /Precise/Gold-to-gold contact/Low resistance/Long service life
Options:
- Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass produc-
tion
Main applications:
- High speed dome/Camera platform/Electrical testing equipment/Rotary table /Manufacturing and control equipment
If you have special needs, please contact us in time so that our sales engineers can recommend the best slip ring model and customized solution for you.
Electrical & Electronics | Mechanical | Enviromental | |||
Number of Circuits | 1-125 or more | Rotating Speed | 0-300rpm or higher | Temperature | Industrial: -20℃~+60℃ Military: -50℃~+80℃ |
Current | ≥2A each circuit | Contact Material | Gold-to-gold | Humidity | 60%RH or higher |
Voltage | 240VAC/DC | Housing Material | Engineering Plastics/ Metals (optional) | Protection Grade | IP54 |
Dielectric Strength | ≥500VAC@50Hz | Torque | ≤0.88 g.m (for reference) | Others | |
Insulation Resistance | ≥100MΩ@500VDC | Wire Type | AWG28#Teflon or others | Life Span | Customizable |
Dynamic Contact Resistance | 1mΩ min. | Wire Length | 250mm(optional) | ||

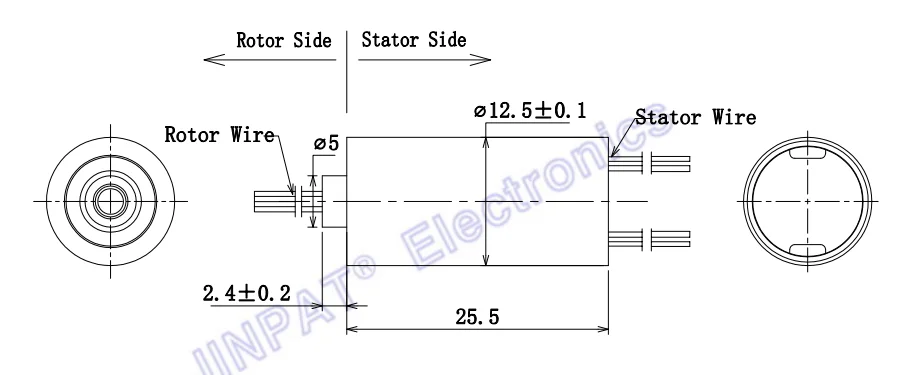

Product drawings
Product display
