4 Bay 3,5 SATA/SAS Hot замены модуль

Product Overview

Description

Product Description



4 Bay 3.5″ SATA or SAS 6G Hot Swap Module
All Aluminum Design with Heat Dissipation Grooves
Support Plug & Play and Hot-Swappable Tray
RoHS compliance
Electromagnetic Interference shield design
Two 4-pin Redundant molex PSU connectors

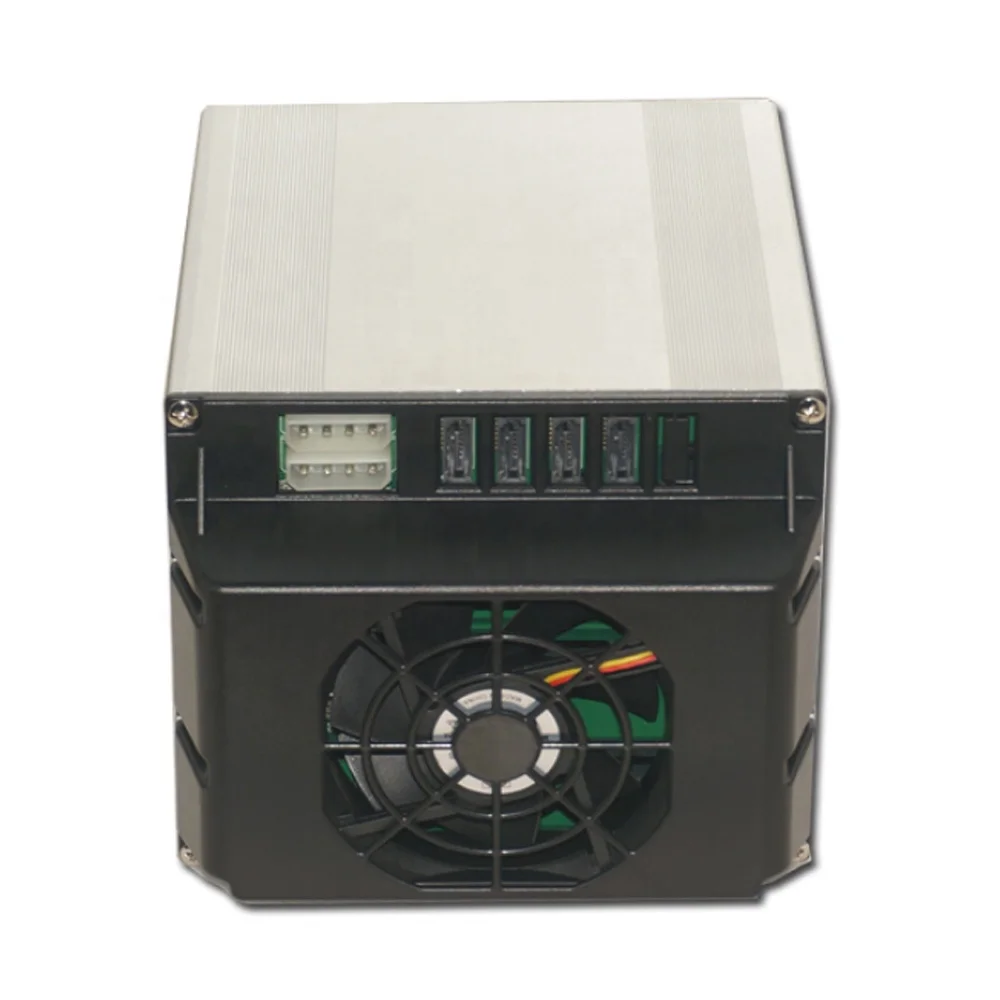

One 80mm ball bearing cooling fan with air duct for effective air flow & cooling
Drive bay guide slots allows for use in most desktop cases
Power & HDD Busy LED indicators
Support Windows XP, Vista, Windows 7, Linux, MAC, etc.
Supports RAID 0, 1, 5, 6, 10 functions (RAID card required)
Drive Bay	Guide slots allows for use in most PC Desktop cases – Requires desktop case with (3) empty 5.25″ drive bays and becomes (4) 3.25″ hot-swappable HDD Subsystem
Interface	SATA to SATA, SAS to SAS
Alarm	Overheating alarm
Cooling System	One 80mm ball bearing fan with air duct including fan failure sensor
RAID	Supports RAID 0, 1, 5, 6, 10 functions (RAID card required)
Power Connector	Two 4-pin molex PSU connectors
Data Connector	Four SATA (I or II)/SAS data ports

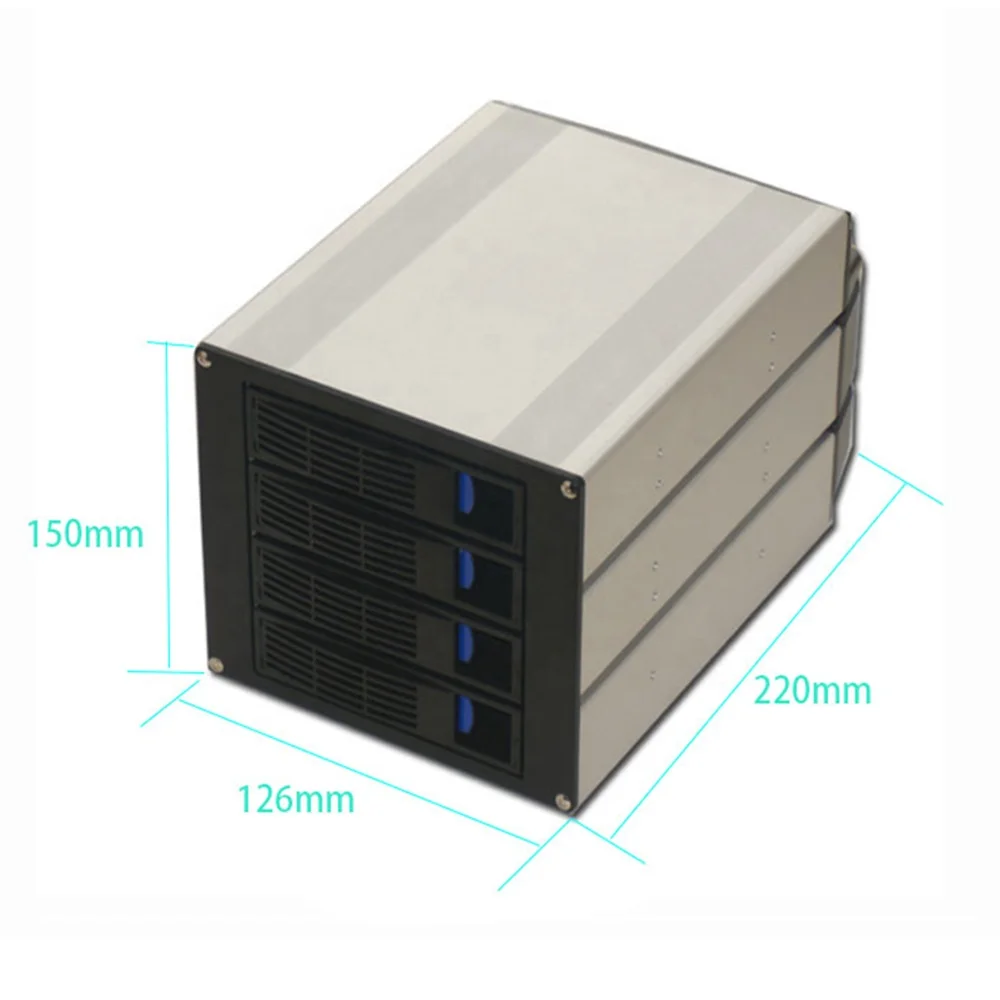

Dimensions(L x W x H)	220*126*150mm
Weight	2.3kg

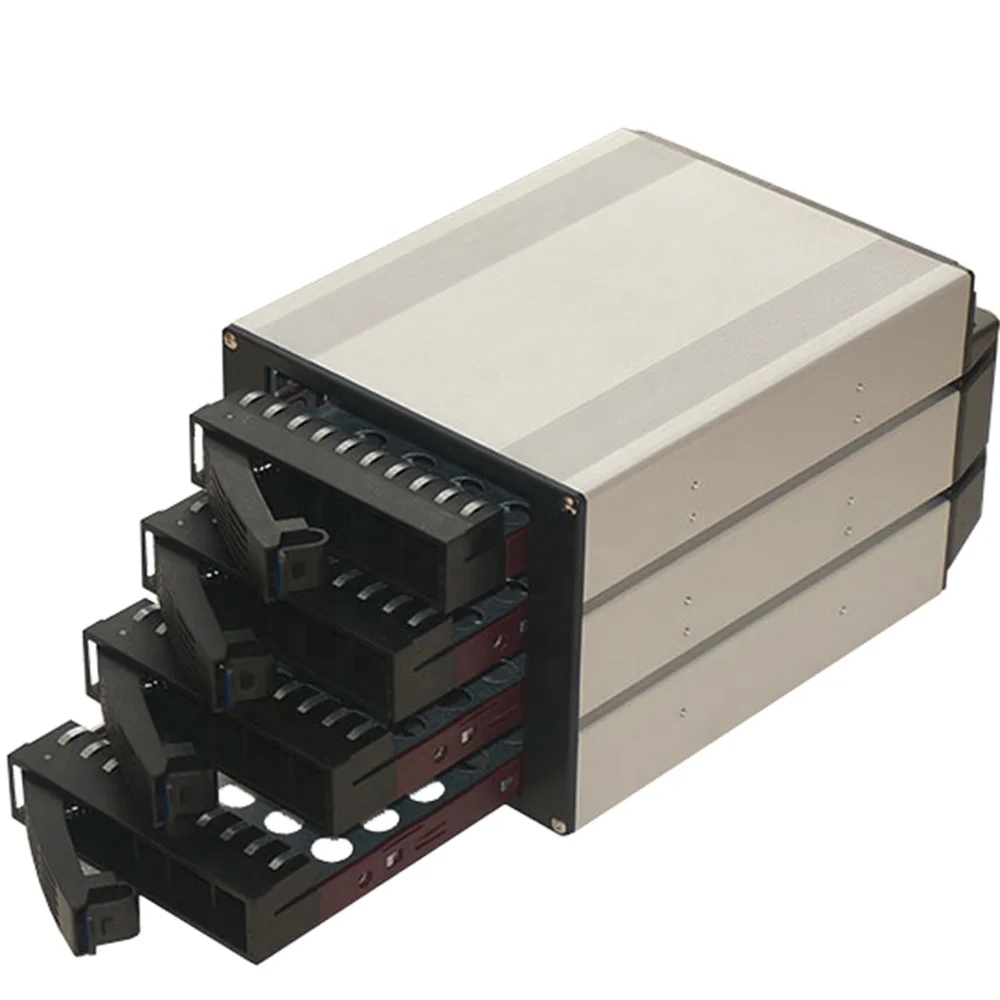

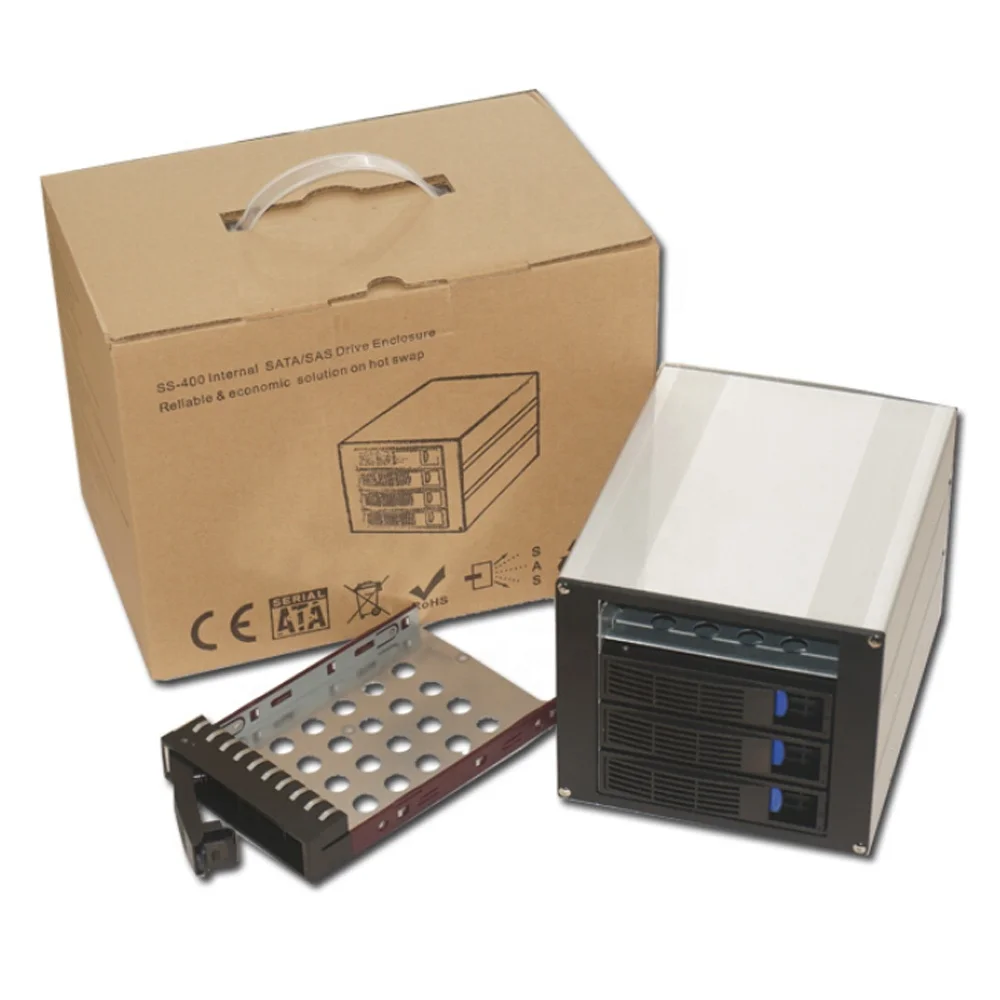

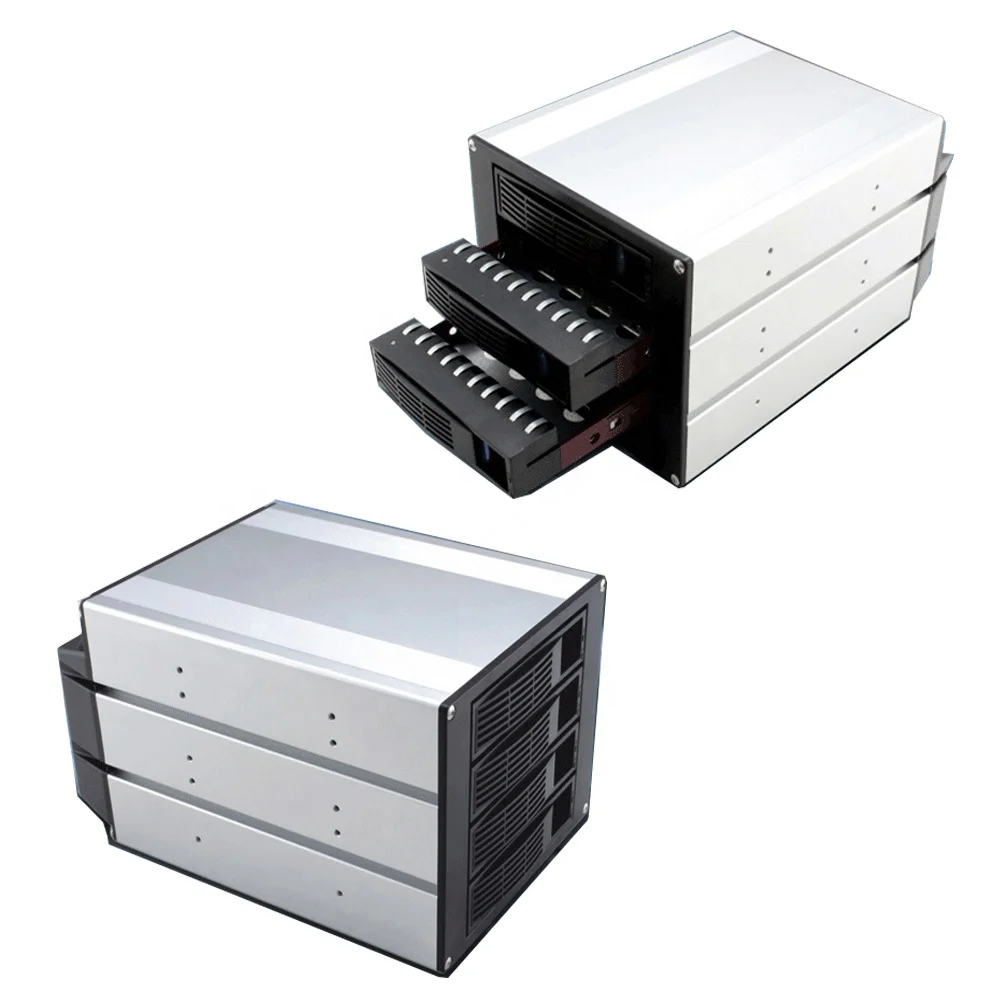

Detailed Images
