White 3mm 5mm 7mm Thickness Expanded PTFE Tape
- Category: >>>
- Supplier: Hitex Insulation (ningbo) Co. Ltd.
Share on (62190410898):
Product Overview
Description

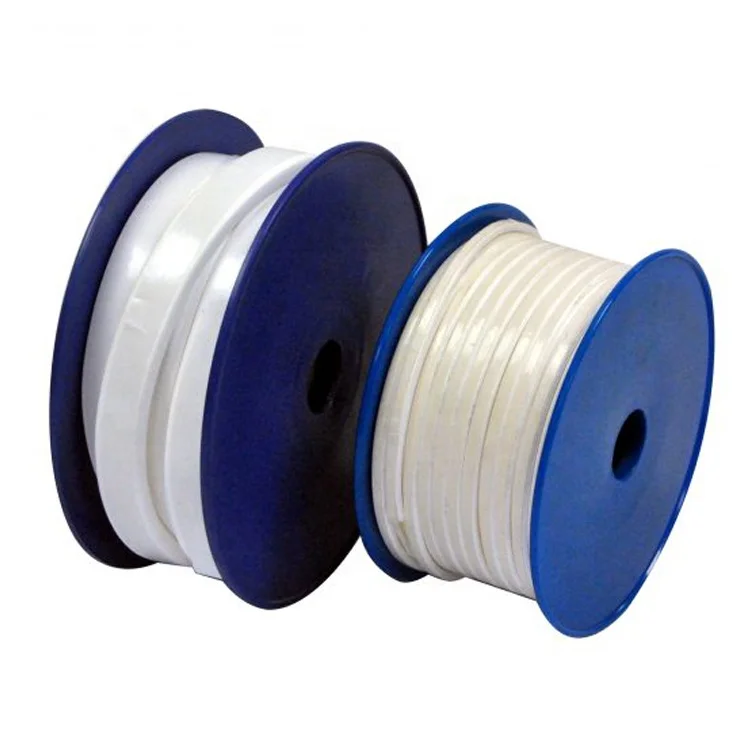

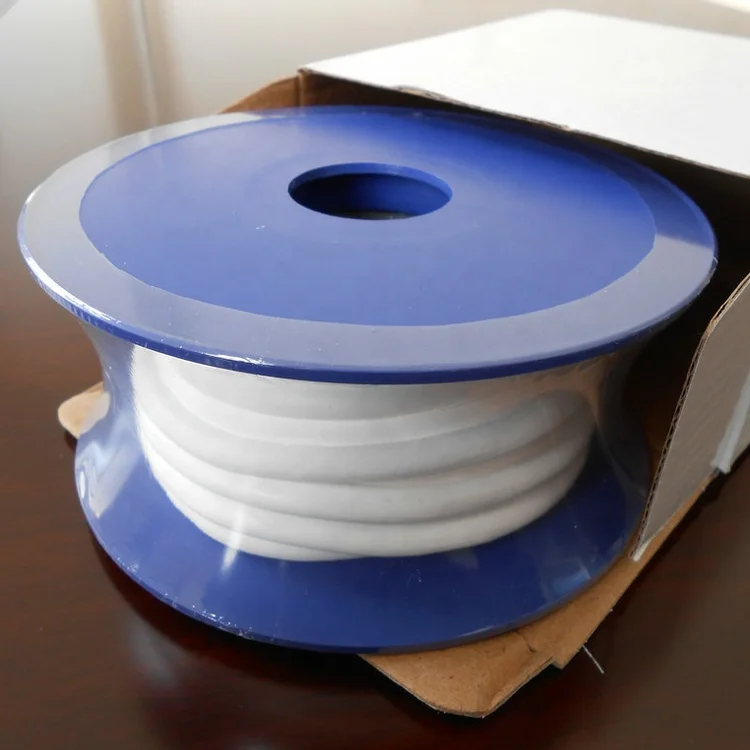

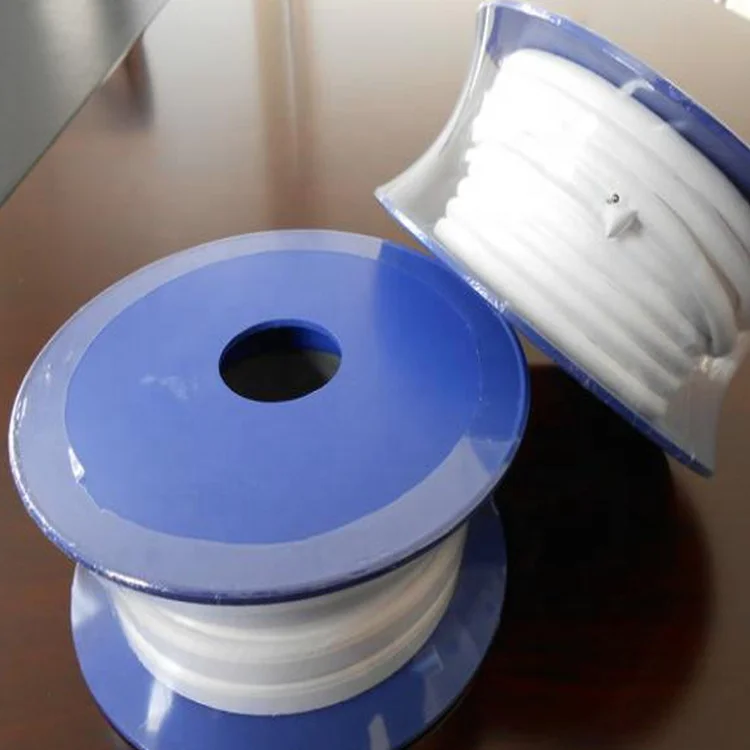

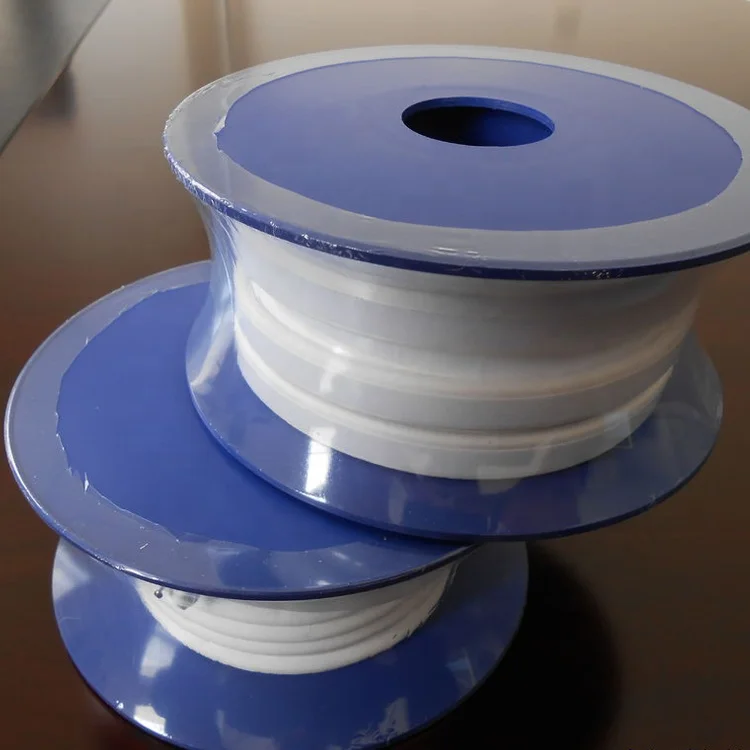

White 3mm 5mm 7mm Thickness Expanded PTFE Tape
Product Description
Expanded PTFE Gasket Tape is made from 100% virgin PTFE and is flexible and conforms easily to irregular surfaces. Additionally it is easily compressed and exhibits excellent resistance to creep and cold flow. EPTFE offers excellent chemical resistance and is rated to temps from -400℉to +500℉.
Technical Data
Technical Data for PTFE Substrate
PTFE Gasket Tape is manufactured from pure PTFE (Polytetrafluoroethylene) resin.
Excluding the Pressure-Sensitive Adhesive and Release Liner, this product contains no other ingredients, fillers or additives.
Expanded PTFE Gasket Tape | |
Pressure Range | Full Vacuum to 3,000 psi |
Temperature Range | -265℃to260℃continuous to315℃intermittent |
Maximum P x T (psi x deg F) | 350,000 |
pH Range | 0-14 (resistant to all common chemicals,except molten alkali metals and elemental fluorine) |
Stability | No Age Deterioration Unlimited Shelf Life |
Technical Data for Pressure Sensitive Adhesive and Release Liner:
Our Pressure Sensitive Adhesive is a double coated reinforced tissue tape that is coated on both sides with a high tack dead load synthetic-based adhesive system.
Technical Data for Pressure Sensitive Adhesive and Release Liner | |
Backing Tissue (in.) | 0.001” thick |
Adhesive | Synthetic copolymer, permanent type |
Release Liner | 45 lb., 3 mil polypropylene, silicone-coated |
Thickness, Release Liner (in.) | 0.003 |
Thickness, Tape (in.) | 0.0055 |
Adhesion (ozs per inch of width) | 120 |
Holding Power (min.) | 5,000+ |
Tack (in.) | 1 |
Tensile Strenth (lb./sq-in) | 5 |
Elongation (%) | 4 |
Application Temperature (F) | 60-120 |
Temperature Range (F) | 0-120 |
Lift Edge | No |
Application
l Glass-lined and plastic flanges
l Flanges with limited available space
l Flanges where compressed thickness is important
It is also the perfect solution for punching out expanded PTFE gaskets and washers.
Specification
Width | Thickness | Length |
3mm | 1.5/2mm | 25/50m |
5mm | 2/3mm | 25/50m |
7mm | 2/3mm | 15/25m |
10mm | 3/5/7mm | 15/25m |
12mm | 3/5/7mm | 10/15/25m |
15mm | 3/5/7mm | 10/15/25m |
17mm | 3/5/7mm | 10/15/25m |
20mm | 3/5/7mm | 10/15/25m |
25mm | 3/5/7mm | 10/15/25m |
30mm | 3/5mm | 5/10m |
35mm | 3/5mm | 5/10m |
40mm | 3/5mm | 5/10m |
45mm | 3/5mm | 5/10m |
50mm | 3/5mm | 5/10m |
*Specific products could be made according to customers’requirements.
About US
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
