Slip ring rotary joint electrical connector,12 circuit 5A hole size 25.4mm,wind generator slip ring
Slip ring rotary joint electrical connector,12 circuit 5A hole size 25.4mm,wind generator slip ring

Slip ring rotary joint electrical connector,12 circuit 5A hole size 25.4mm,wind generator slip ring

Share on (62193458476):


Price:

Quantity:


Product Overview

Description



Product Description


Bargain Price Only in Alibaba





LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.



Features:


  • Transmit analog and digital signal

  • The power and signal are mixed transmitted, and the signal categories are as follows:

  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

  • HD video: SDI, LVDS, etc.

  • Serial communication: RS232, RS485, RS422, etc.

  • Universal Serial Bus: USB2.0

  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

  • Long service life, maintenance-free

  • Easy to install


Main Applications:


  • Industrial automation equipment

  • Medical equipment

  • Wind power equipment

  • Test equipment/Exhibition

  • display equipment

  • Robots

  • Turntable equipment

  • Amusement equipment

  • High-speed railway equipment

  • Packaging

  • machinery

  • Ship offshore equipment

  • Construction machinery





Specification




























































Circuits12
Current Rating5A
Voltage240 VAC/DC
Dielectric Strength1000V@50Hz between circuits
Insulation500MΩ@500VDC
Hole Diameter25.4 mm
Working Speed0~300 RPM
ContactPrecious metal
HousingAluminum alloy
Wire Length300mm (rotor), 300mm (stator)
Working Temperature-20~+60℃
Humidity≤60%RH
Protection GradeIP50

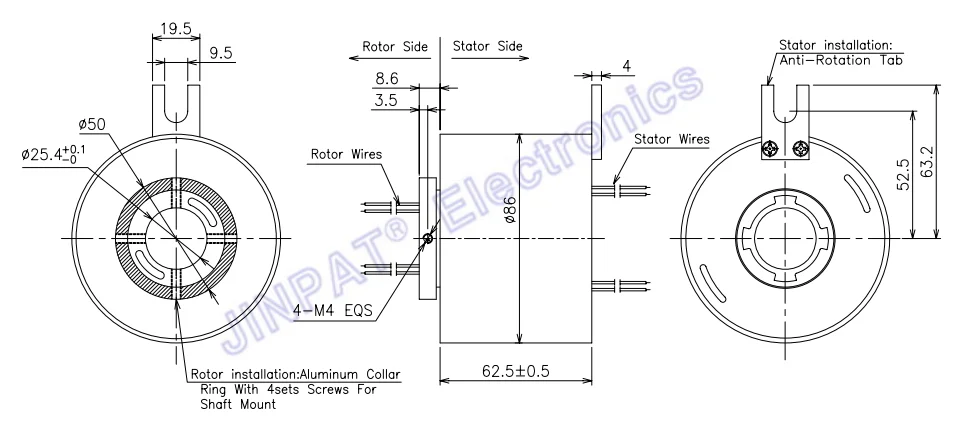

 Outline Drawing

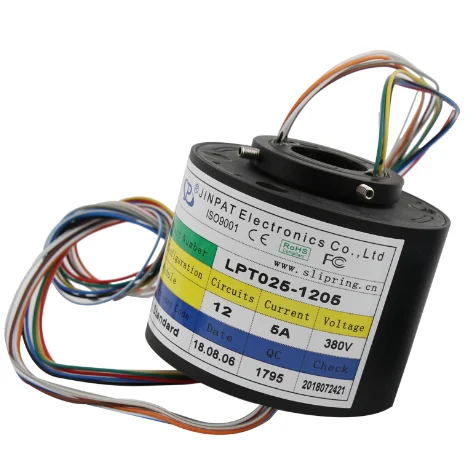

Product Display
