Suncenter gas air compressor with max 50 Mpa pressure
US $2000-$15000

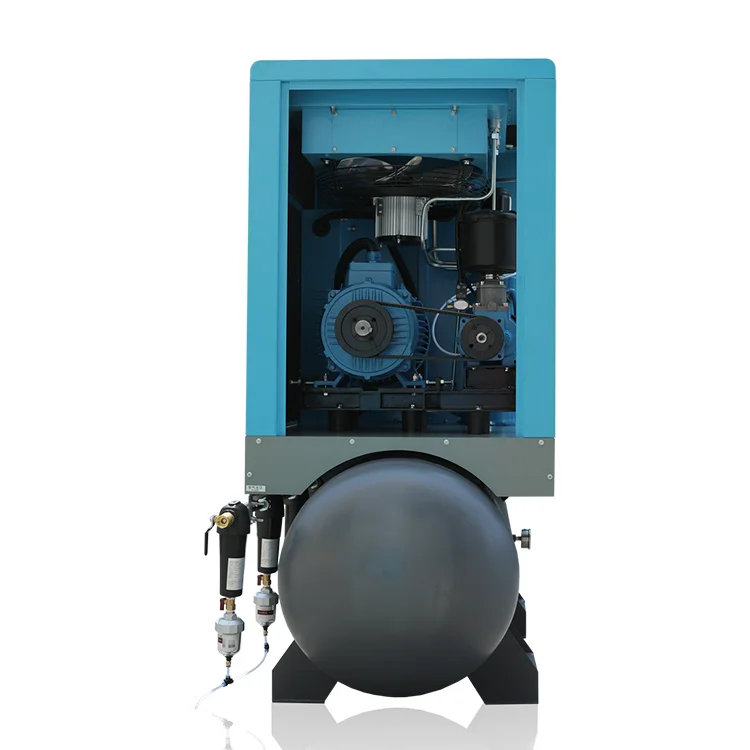

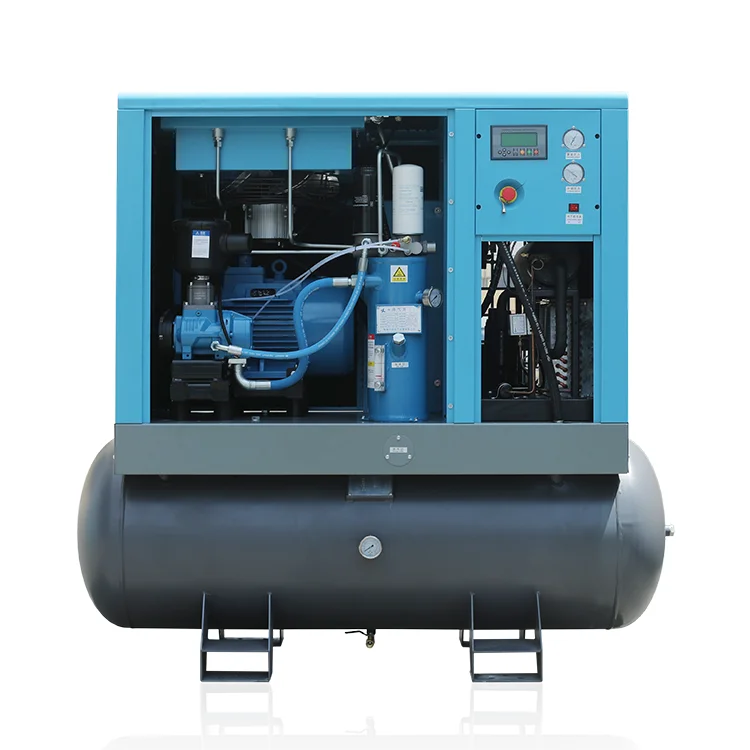

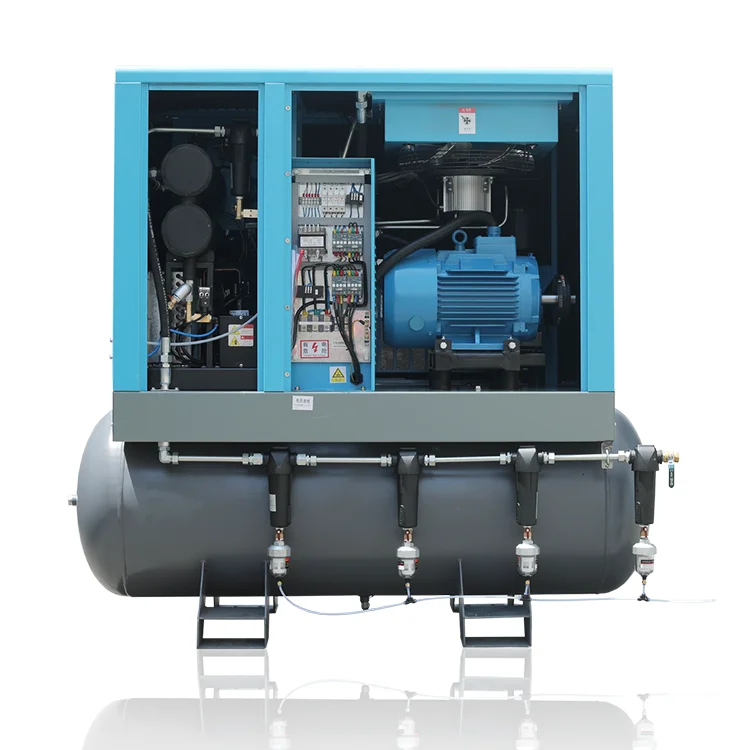

11kW 15 HP Electric Rotary Screw Air Compressor Machine with 500L Air Tank
- Category: General Industrial Equipment >>>
- Supplier: Dhh Compressor Jiangsu Co. Ltd.
Share on (62194251029):
Product Overview
Description
Product Description
Technical Parameters
DBZY Series(Combined with air dryer and tank) Screw Compressor | |||||||||||||||
| MODEL | Air flow Capacity(m3/min)/cfm | Power KW/HP | Noise DB(A) | Diameter INCH | Dimension W×D×H mm | Weight Kg | |||||||||
| 7bar | 8bar | 10bar | 13bar | 16bar | |||||||||||
| m3/min | cfm | m3/min | cfm | m3/min | cfm | m3/min | cfm | m3/min | cfm | ||||||
| DBZY-7.5A | 0.91 | 32.1 | 0.84 | 29.6 | 0.75 | 26.5 | / | / | / | / | 5.5/7.5 | 65 | G3/4'' | 1418×700×1500 | 375 |
| DBZY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1.0 | 35.3 | 0.84 | 29.6 | 0.55 | 19.4 | 7.5/10 | 65 | G3/4'' | 1418×700×1500 | 395 |

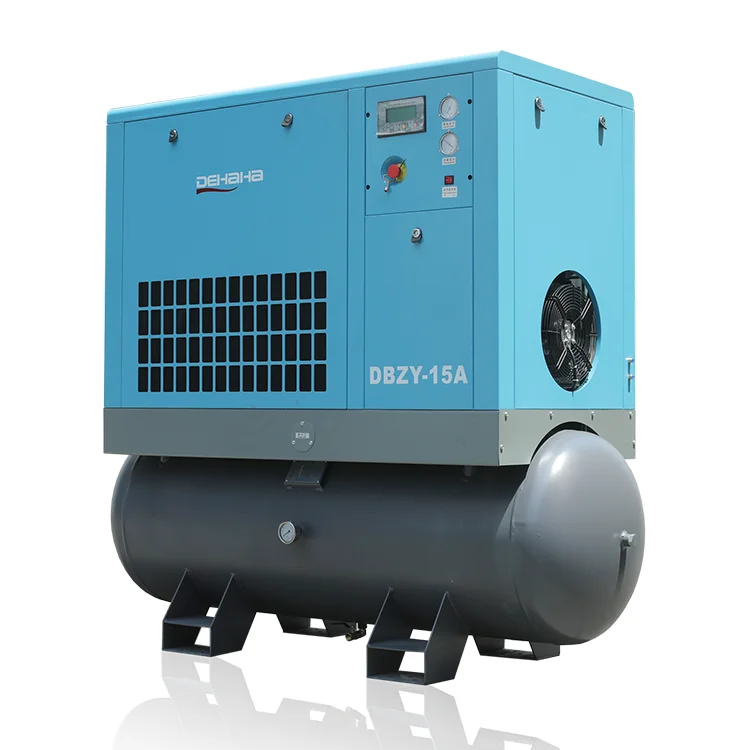

| DBZY-15A | 1.7 | 60 | 1.6 | 56.5 | 1.4 | 49.4 | 1.2 | 42.4 | 1.05 | 37.1 | 11/15 | 65 | G3/4'' | 1418×860×1628 | 560 |
| DBZY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 1.8 | 63.5 | 1.6 | 56.5 | 1.51 | 53.3 | 15/20 | 65 | G3/4'' | 1882×790×1731 | 572 |
| DMZY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1.0 | 35.3 | 0.84 | 29.6 | / | / | 7.5/10 | 65 | G3/4'' | 1418x700x1500 | 395 |
| DMZY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 1.8 | 63.5 | 1.6 | 56.5 | 1.52 | 53.7 | 15/20 | 65 | G3/4'' | 1882x790x1731 | 572 |
| Motor Efficiency Class: Ultraefficient/IE4/IE3/IE2 as per your required. Motor Protection Class: IP23/IP54/IP55 or as per your required. Certification: CE/ISO9001/TUV//ASME. Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok. | |||||||||||||||
About us
Packaging & Shipping
Our Services
1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Jiangsu and all distributors’depots.
6.All kinds of technical documents in different languages.
Related Products
FAQ
Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Jiangsu, China, more than 24 years.
Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.
Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
Q10.How long could your air compressor be used?
A: Generally, more than 10 years.
