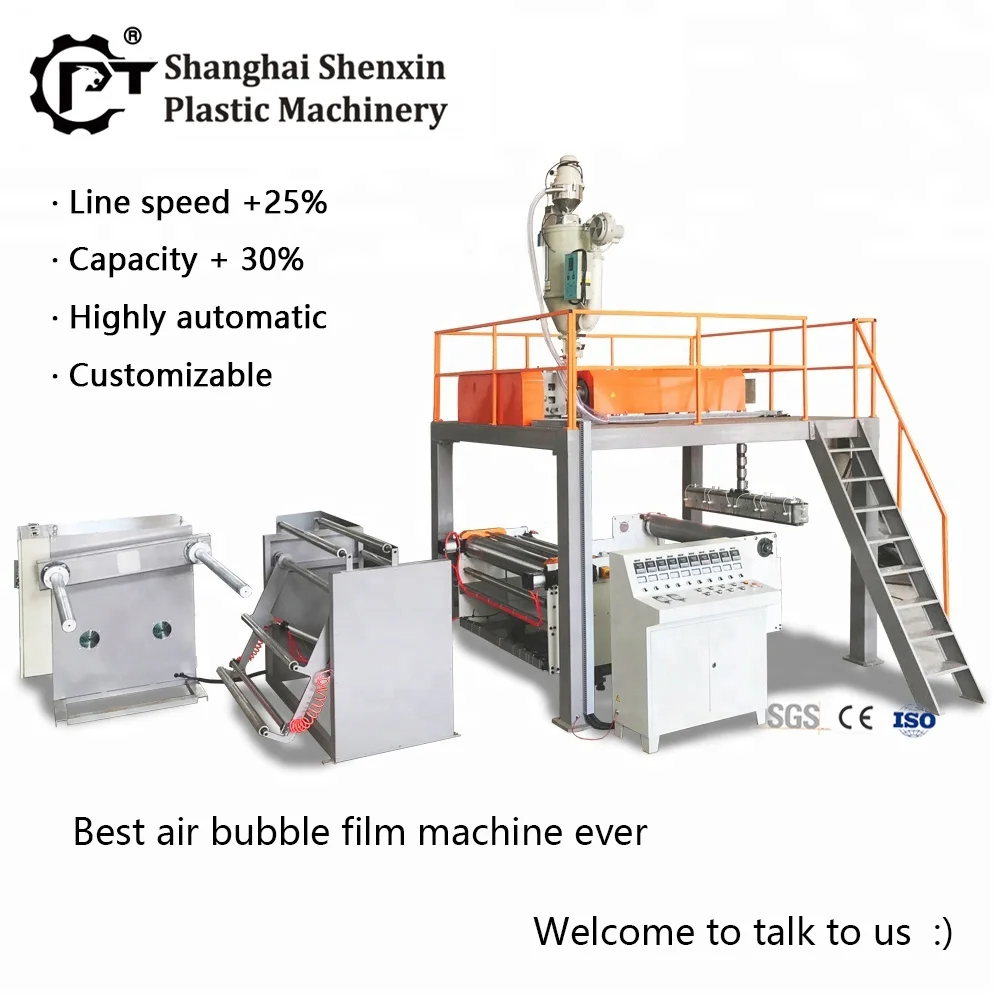

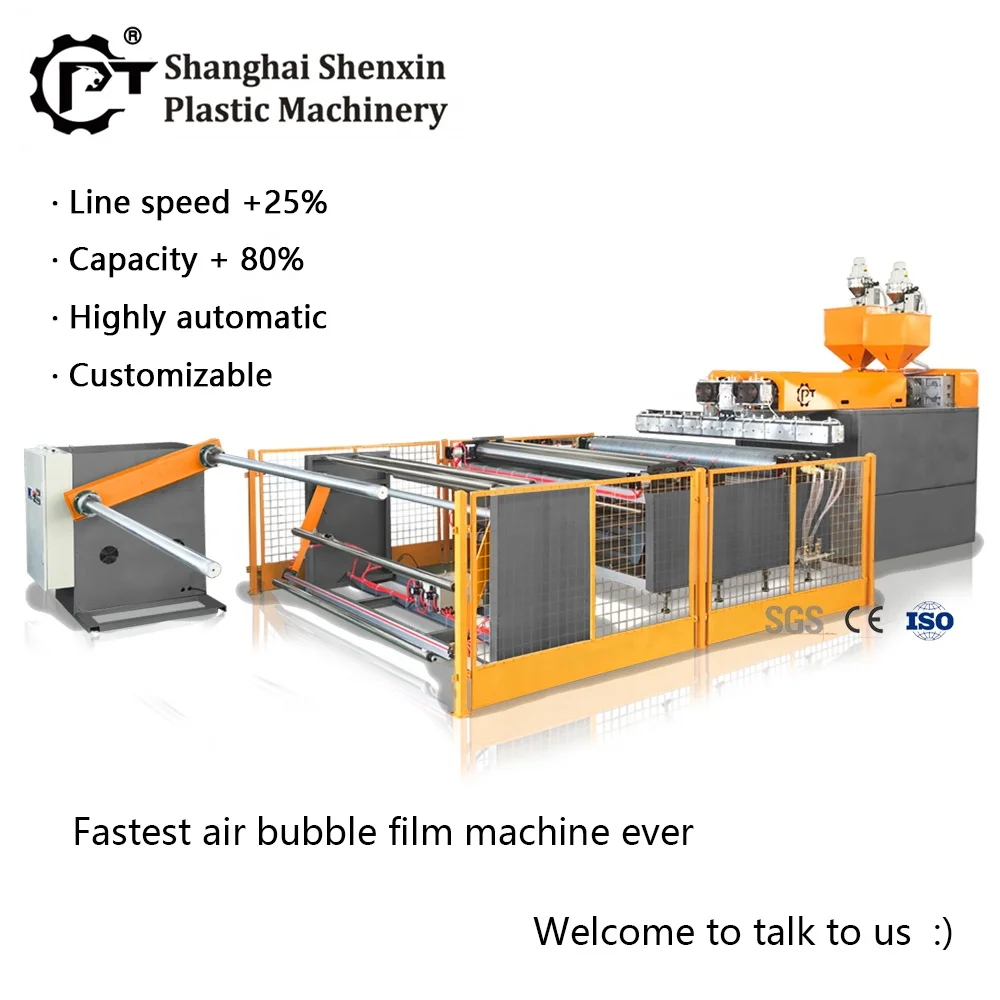

Шанхай Shenxin высокоскоростная фабрика точно изготовленная пластиковая воздушная пузырчатая пленка, рулон листа, производственная машина
- Category: Plastic Extruders >>>
- Supplier: Shanghai Shenxin Plastic Machinery Factory
Share on (62194457245):
Product Overview
Description
Machine Description

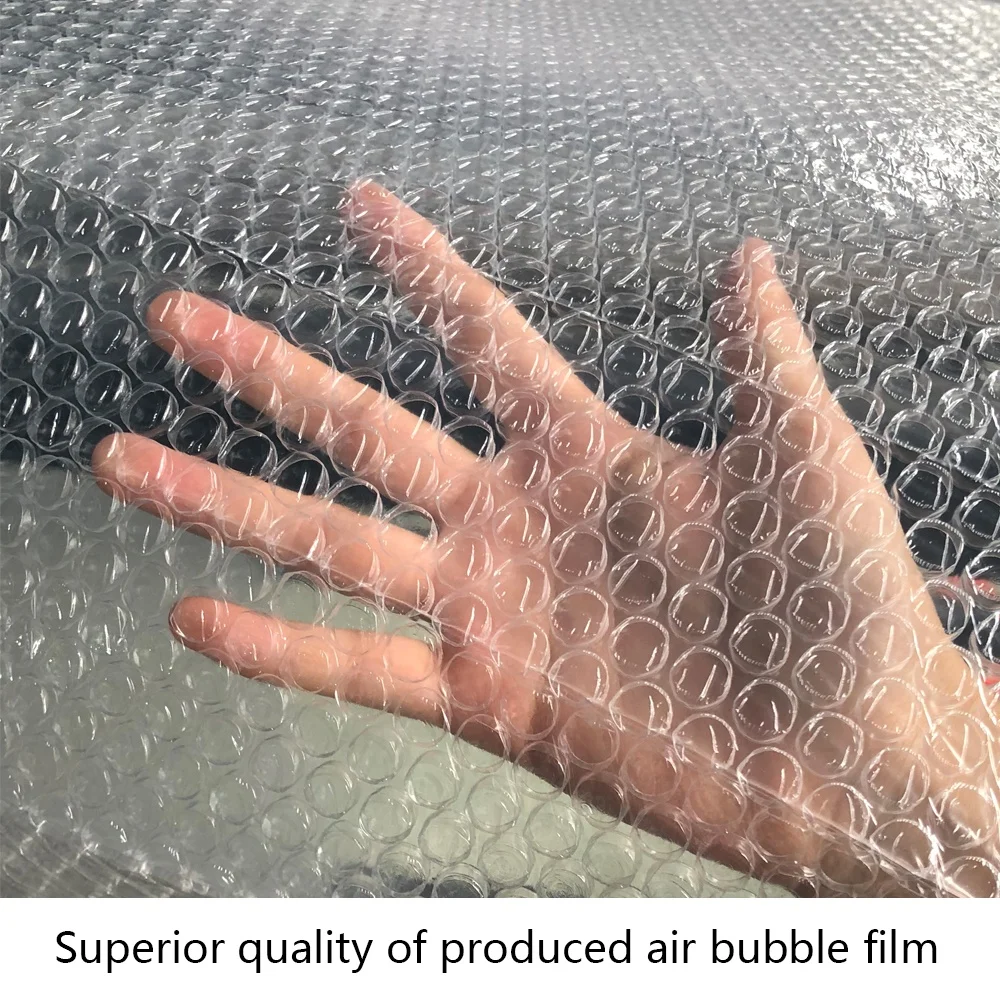

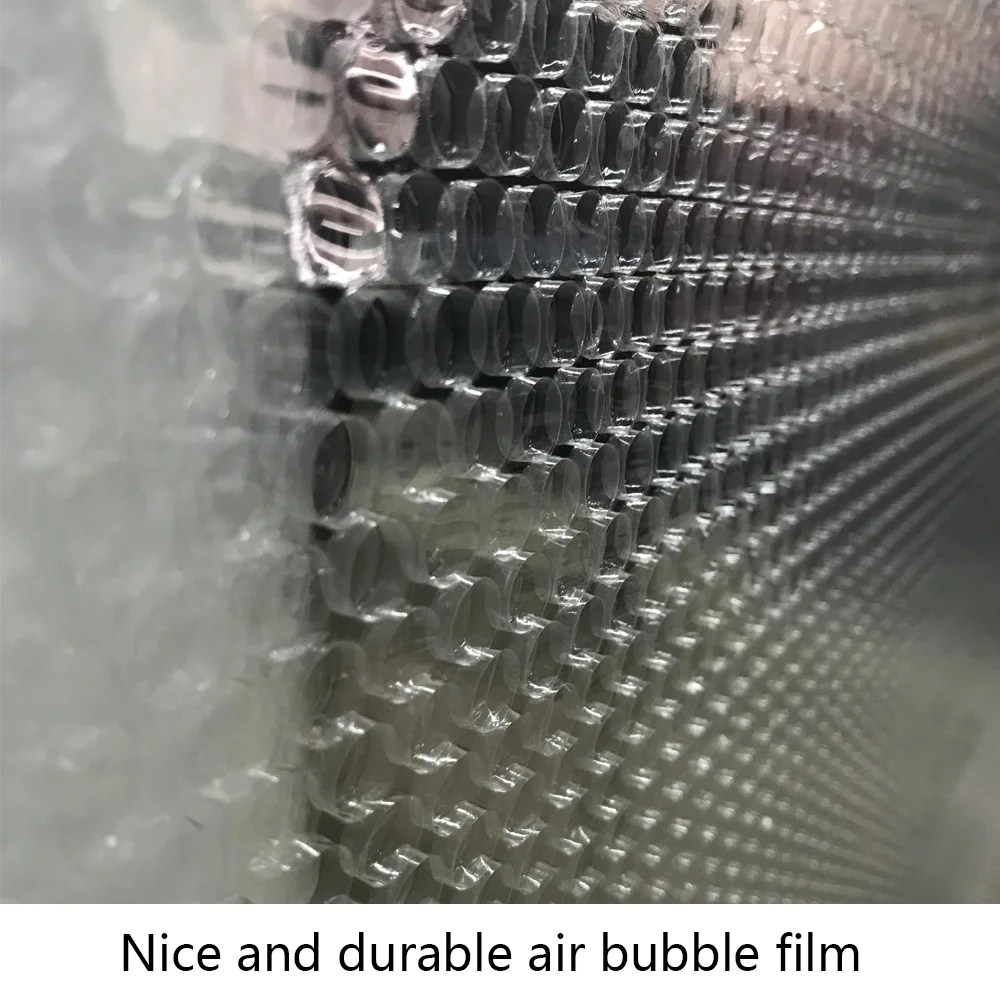

Produced air bubble film (try to click the products you want to produce)
Two layers
air bubble film
Two - side - flat
three layers air bubble film
High GSM harden
three layers air bubble film

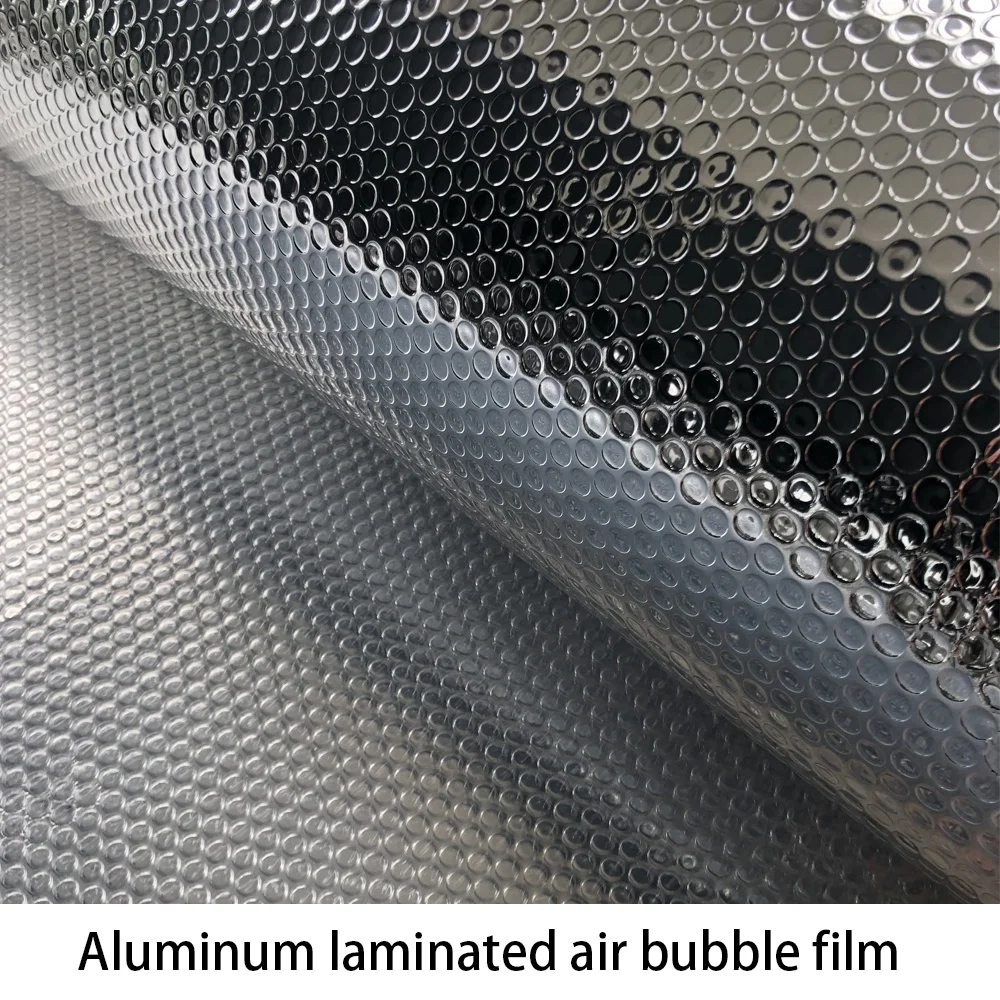

Aluminum laminated
four layers air bubble film
EPE/PE foam/film
laminated air bubble film
Two - side - laminated
five layers air bubble film

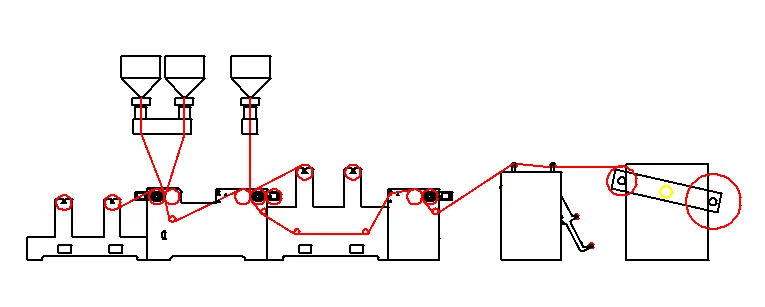

Production process on five layers double screws laminated air bubble film machine:
Bag making machine series
With our bag making machines, you can make finished air bubble film products into bags as following:
Two layer air bubble bag
Laminated air bubble bag
Kraft paper laminated bubble bag
Machine Parameters

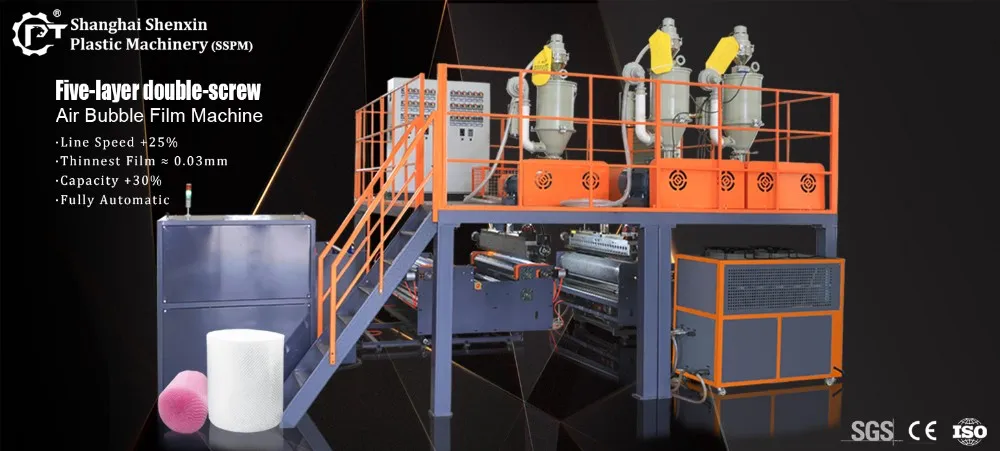

Machine parameters about five layer double screw laminated air bubble film machine
Film width (mm) | 1200 | 1600 | 2000 | 2600 | 3000 |
Model | SXDS-L5-W1200 | SXDS-L5-W1600 | SXDS-L5-W2000 | SXDS-L5-W2600 | SXDS-L5-W3000 |
Line speed (m/hr) | 600 - 2100 | 600 - 2100 | 600 - 2100 | 600 - 2100 | 600 - 2100 |
Capacity (kg/hr) | 85- 140 | 100 - 170 | 125 - 200 | 145 - 220 | 180 - 260 |
Thickness (mm) | 0.04 – 0.3 | 0.04 – 0.3 | 0.04 – 0.3 | 0.04 – 0.3 | 0.04 - 0.4 |
Film weight (g/m2) | 38 - 300 | 38 - 300 | 40 - 300 | 45 - 300 | 45 - 300 |
Screw Diameter (mm) | Φ65x2 | Φ65x2 | Φ75x2 | Φ80x2 | Φ90x2 |
Sub screw Diameter (mm) | Φ45 | Φ45 | Φ65 | Φ75 | Φ80 |
Power (kw) | 40 - 82 | 51 - 104 | 66 - 136 | 75 - 155 | 85 - 180 |
Dimension L×W×H (m) | 10×5.5×2.5 | 10×6.5×2.5 | 11×7.0×2.5 | 12×8.0×2.5 | 12×8.7×2.5 |
Weight (kg) | 5500 | 6200 | 7500 | 9500 | 12000 |
Company Profile
Certificates
We are one of the few verified suppliers passed SGS,CE, ISO 9001 and other certificates.
Different from gold suppliers, verified suppliers are officially examined by Alibaba.com, and proved to be solid and reliable manufacturers.

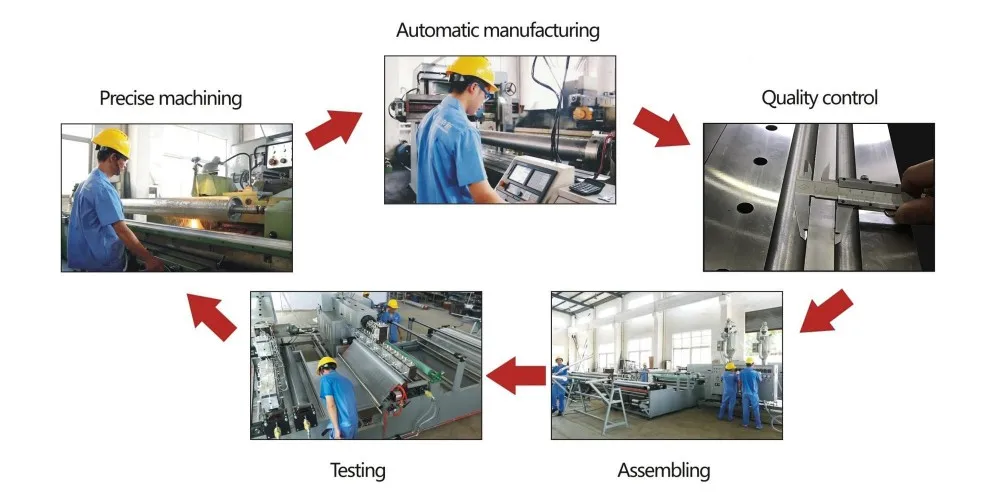

Manufacture Process
Service
Pre-sale Service
· Free consulting about machine type and size,
providing installation, shipping and other service
base one your production needs.
After-sale Service
· One-year warranty.
· Engineer available onsite.
· Installing, testing and training service.
· Lifelong technical support.
