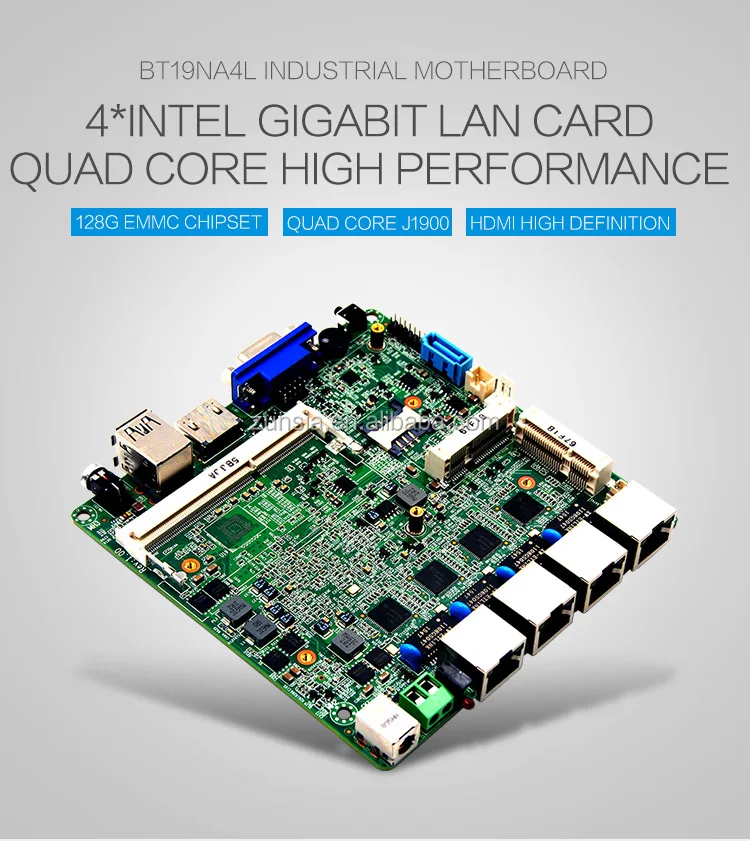

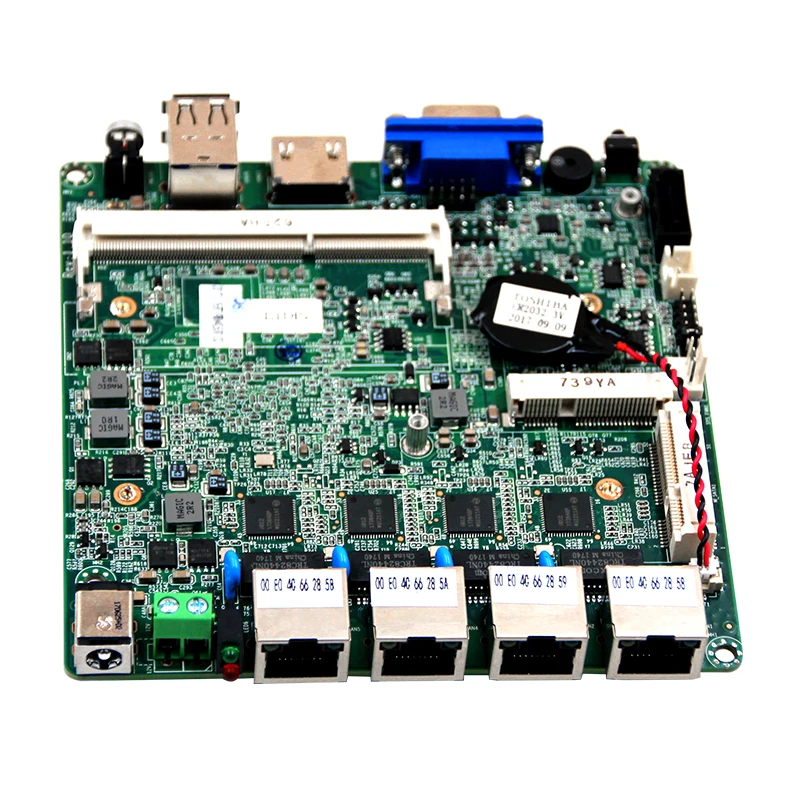

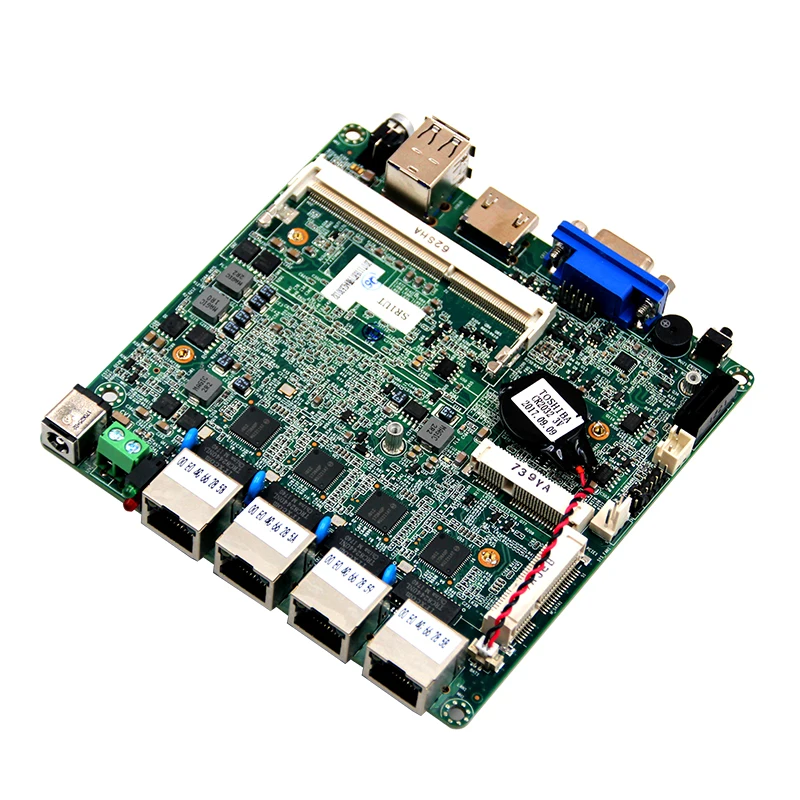

Intel quad core 4 порта ethernet материнская плата Встроенный мини ПК 4 lan J1800/J1900 процессор с поддержкой win 10 Linux OS

CPU

Support Baytrail-I/D/M serial Processor (J1900 N2900 J1800 N2806/E3845)

CPU package

BGA

Chipset

Support Baytrail-I/D/M serial Processor

BIOS

EFI BIOS

Technology framework

Singel channel DDR3 1066/1333/1600MHz

Capacity

Max support 8GB Ram

socket

DDR3LSODIMM 204 Socket

Graphic controller

Intel HD Graphics

Dual LVDS

Support dual channel 24bits display,mac resolution :1920 x 1080

VGA

VGAResolution maximum2048x1536

HDMI

HDMIResolution maximum 1920x1080

Dual display

HDMI + VGA sync or asynchronous display

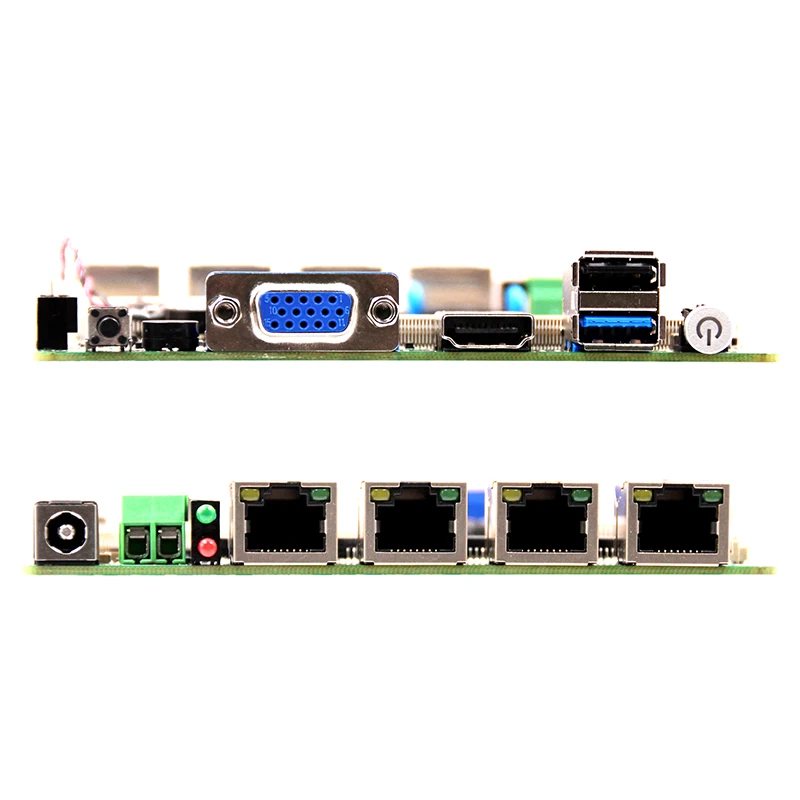

Interface Port

1*VGA 1*HDMI 1*USB3.0 1*USB2.0 4*LAN 1 * Quick Power On button with indicator 1 * Restart button

Controller

4*Intel I211AT high performance Gigabit Ethernet Port,RJ45 Port

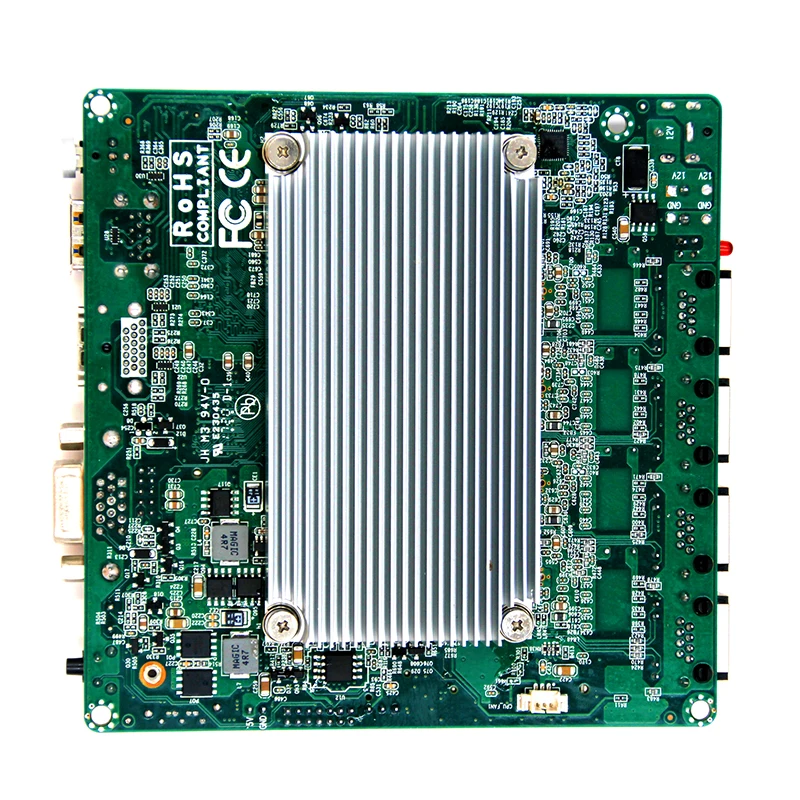

Cooler

Aluminum alloy heat sink with fan

USB

1*USB2.0 1*USB3.0 Max support +5V/1A

PS/2

NO

Mini-PCle

1*Mini-PCIe slot ,only support USBprotocol equipment

SATA

1*SATAII connector,  Maximum transmission rate 3Gb/s

M-SATA

1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s

Power Type

Single-input DC power supply, DC12V-19v  power supply

Power consumption

20W

Working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

 OS support

Windows7 Windows8.1 Windows10 Linux. When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10, E3845 CPU supports Windows8.1 Windows10 Linux

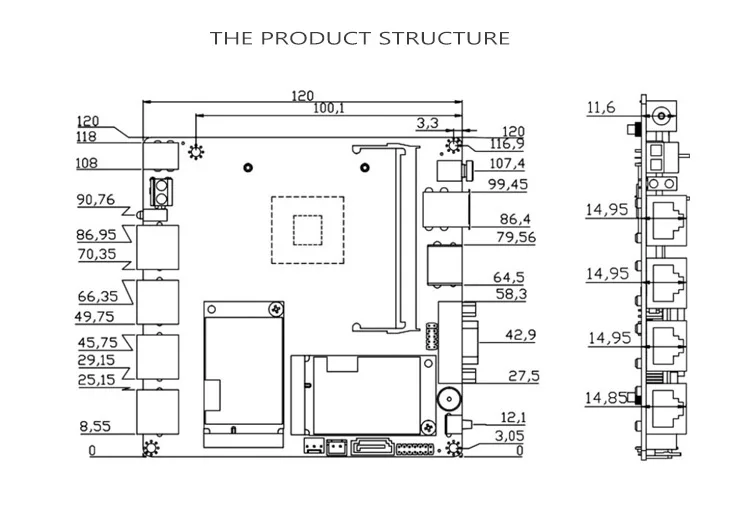

size

120*120 mm

weight

0.5KG
