Natural graphite is sintered with flake graphite and earthy graphite, and its carbon content reaches 99% ~ 99.99%. Oriented film: Graphite film using advanced technology to make high-purity graphite materials to regular orientation structure

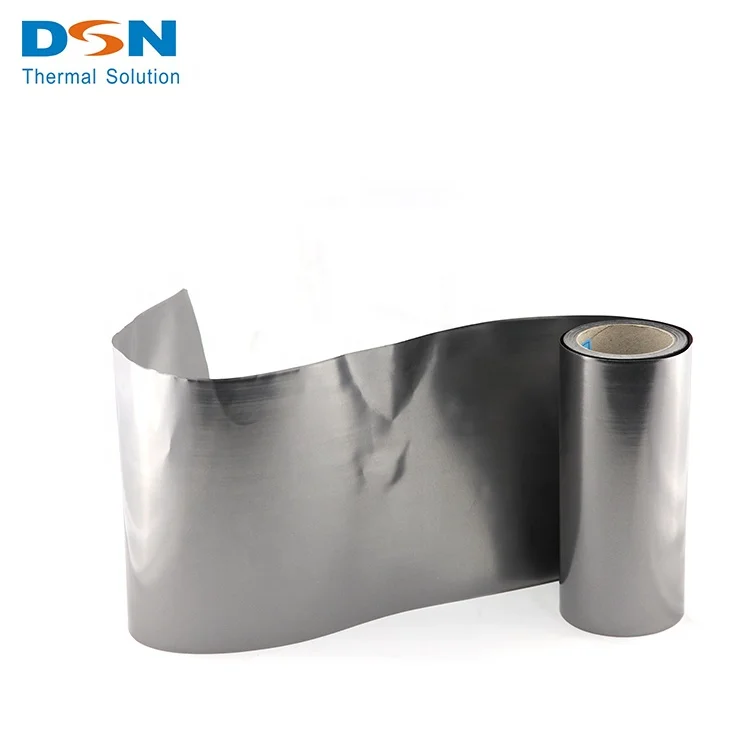

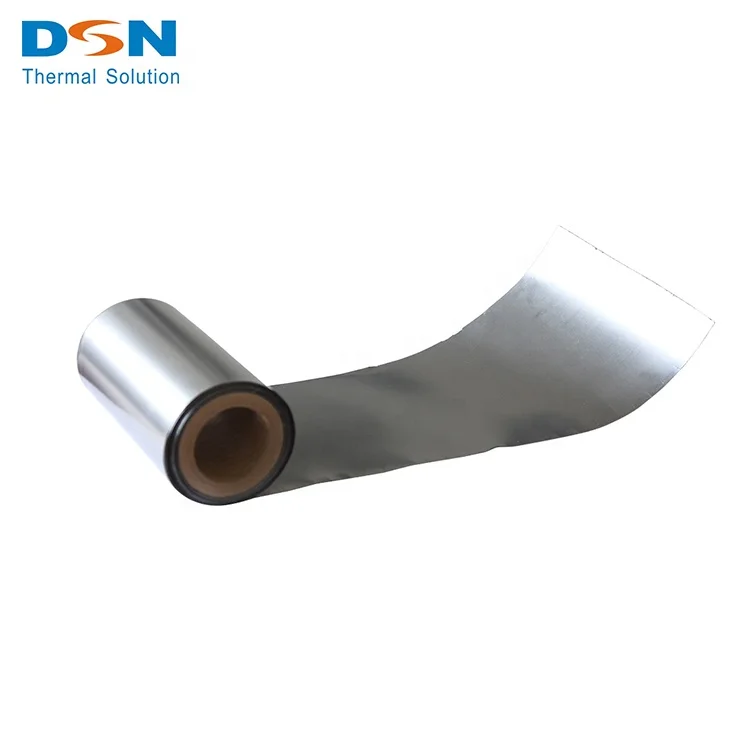

Pictures of the natural graphite sheet
Features of natural graphite sheet: * Excellent thermal conductivity: up to 500W/m·K * Lightweight: Specific gravity: 0.87 to 1.6 g/cm3 (30% lighter than aluminum, 80% lighter than copper in the same size) * Low thermal resistance, 40% lower than aluminum, 20% lower than copper * Low heat resistance with flexible Graphite sheet* * Low repulsion and easy to keep the product's shape after attaching * RoHS, REACH compliant * Siloxane Free
Parameters of the natural graphite sheet
TYPE
DSN60030
DSN60050
DSN60080
DSN60100
DSN60130
DSN60150
Carbon Content
99.80%
99.80%
99.80%
99.80%
99.80%
99.80%
Color
Dark Grey
Dark Grey
Dark Grey
Dark Grey
Dark Grey
Dark Grey
Thickness (mm)
0.03
0.05
0.08
0.1
0.13
0.15
Thickness Tolerance (mm)
±0.005
±0.005
±0.01
±0.02
±0.02
±0.03
Density (g/cm³)
1.5±0.1
1.5±0.1
1.5±0.1
1.4±0.1
1.3±0.1
1.3±0.1
Hardness (shore A)
85
85
85
85
85
85
Tensile Strength (psi)
650
650
650
650
650
650
UL Flammability Rating
94VO
94VO
94VO
94VO
94VO
94VO
Temperature Range
-40℃to400℃
-40℃to400℃
-40℃to400℃
-40℃to400℃
-40℃to400℃
-40℃to400℃
Thermal Conductivity(X-Y axis)
400-500 W/m.K
400-500 W/m.K
350-450 W/m.K
300-400 W/m.K
300-400 W/m.K
250-350 W/m.K
Thermal Conductivity (Z axis)
7~10 W/m.K
7~10 W/m.K
7~10 W/m.K
7~10 W/m.K
7~10 W/m.K
7~10 W/m.K
Thermal Resistance @100pis
0.07℃-in²/w
0.08℃-in²/w
0.9℃-in²/w
0.1℃-in²/w
0.16℃-in²/w
0.2℃-in²/w
@681pis
0.42℃-in²/w
0.51℃-in²/w
0.57℃-in²/w
0.66℃-in²/w
0.95℃-in²/w
1.07℃-in²/w
Volume Resistivity
11*10-4
ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
Outgassing TML
0.15%
0.15%
0.15%
0.15%
0.15%
0.15%
Outgassing CVCM
0.09%
0.09%
0.09%
0.09%
0.09%
0.09%
TYPE
DSN60200
DSN60500
DSN60800
DSN61000
DSN62000
DSN63000
Carbon Content
99.80%
99.80%
99.80%
99.80%
99.80%
99.80%
Color
Dark Grey
Dark Grey
Dark Grey
Dark Grey
Dark Grey
Dark Grey
Thickness (mm)
0.2
0.5
0.8
1.0
2.0
3.0
Thickness Tolerance (mm)
±0.03
±0.05
±0.08
±0.1
±0.15
±0.15
Density (g/cm³)
1.2±0.1
1.1±0.1
1.1±0.1
1.0±0.1
1.0±0.1
1.0±0.1
Hardness (shore A)
85
85
85
85
85
85
Tensile Strength (psi)
650
650
650
650
650
650
UL Flammability Rating
94VO
94VO
94VO
94VO
94VO
94VO
Temperature Range
-40℃to400℃
-40℃to400℃
-40℃to400℃
-40℃to400℃
-40℃to400℃
-40℃to400℃
Thermal Conductivity(X-Y axis)
250-350 W/m.K
250-350 W/m.K
200-300 W/m.K
100-200 W/m.K
100-200 W/m.K
100-200 W/m.K
Thermal Conductivity (Z axis)
7~10 W/m.K
3~5 W/m.K
3~5 W/m.K
3~5 W/m.K
3~5 W/m.K
3~5 W/m.K
Thermal Resistance @100pis
0.25℃-in²/w
0.37℃-in²/w
0.5℃-in²/w
0.6℃-in²/w
0.77℃-in²/w
0.73℃-in²/w
@681pis
1.16℃-cm²/w
1.3℃-cm²/w
1.58℃-cm²/w
1.7℃-cm²/w
1.93℃-cm²/w
1.88℃-cm²/w
Volume Resistivity
11*10-4
ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
11*10-4 ohm-cm
Outgassing TML
0.23%
0.23%
0.23%
0.23%
0.23%
0.23%
Outgassing CVCM
0.16%
0.16%
0.16%
0.16%
0.16%
0.16%
Product Application
★ Widely used in the metallurgical industry as refractories ★ Widely used in the electronics industry as the electrode conductive material ★ Water-resistant lubricating material ★ Anticorrosion materials in petroleum metallurgical industry ★ Used in a centrifugal pump and other equipment: make a pump or a seal ★ Used in an industrial furnace: make industrial furnace parts ★ The point solution process is used as an electrolytic plate: quality assurance
Nine industries:
· High-temperature furnace · Metal industry · Glass refractories · Petrochemical industry · Automobile industry · Mechanical engineering · Electric discharge · Semiconductor industry · Photovoltaic power generation
