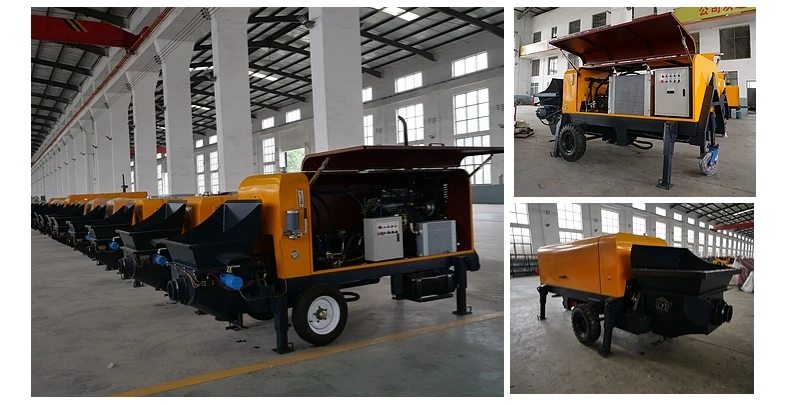

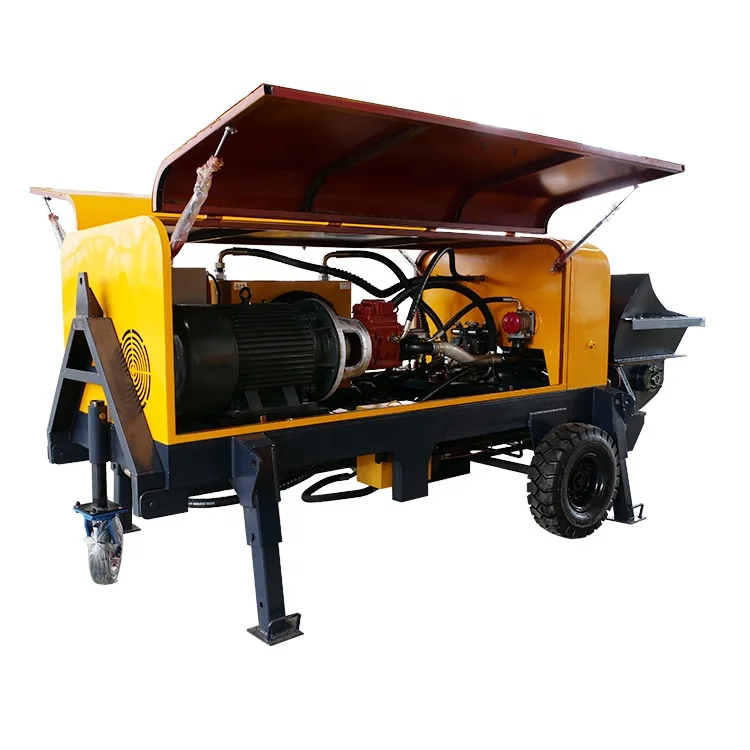

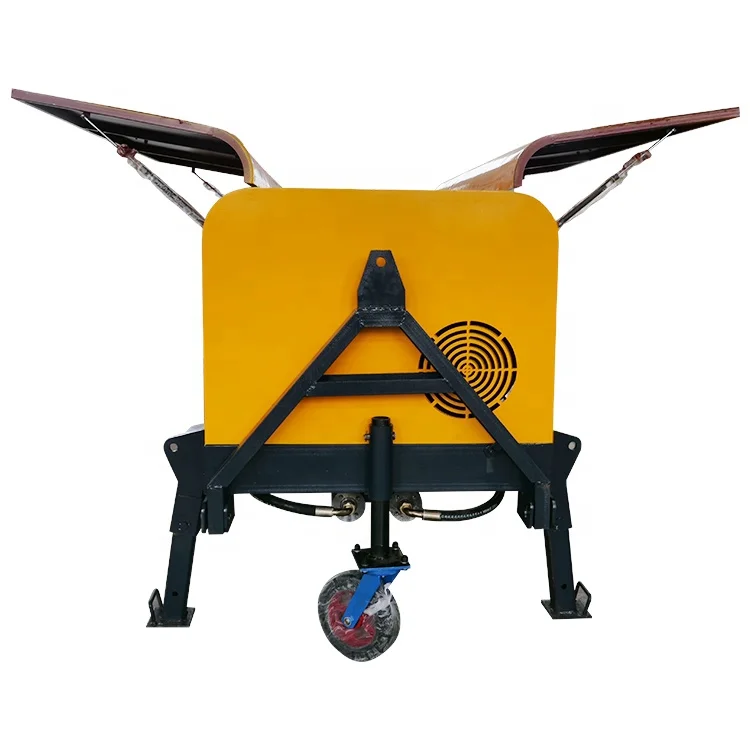

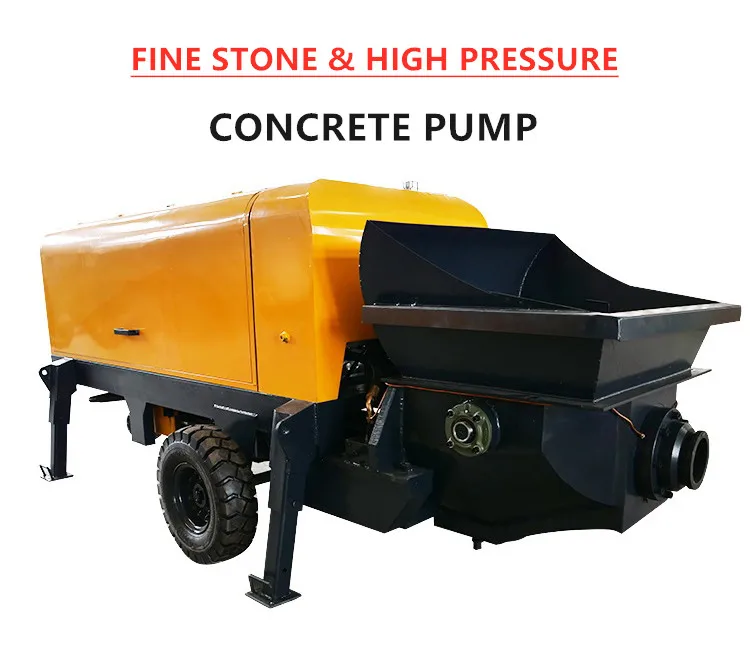

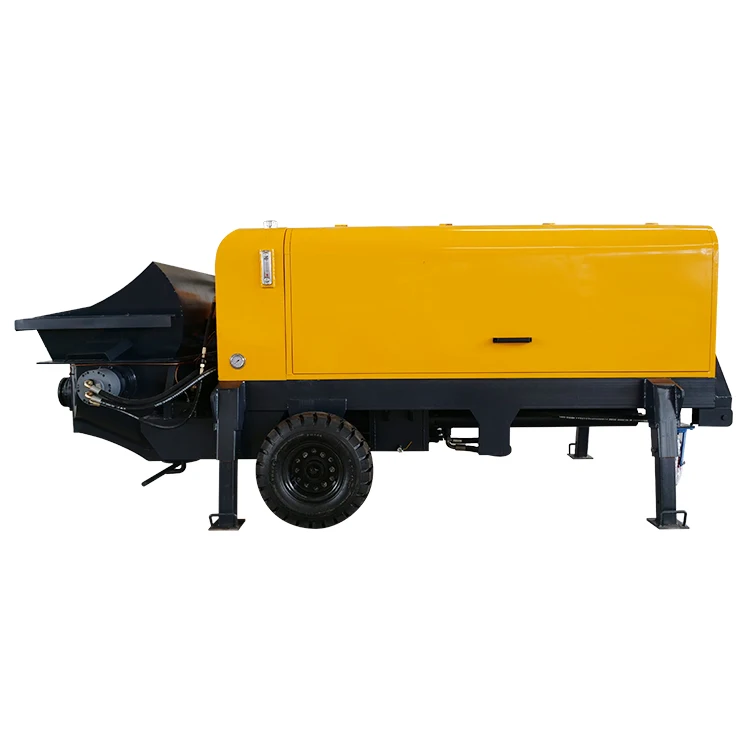

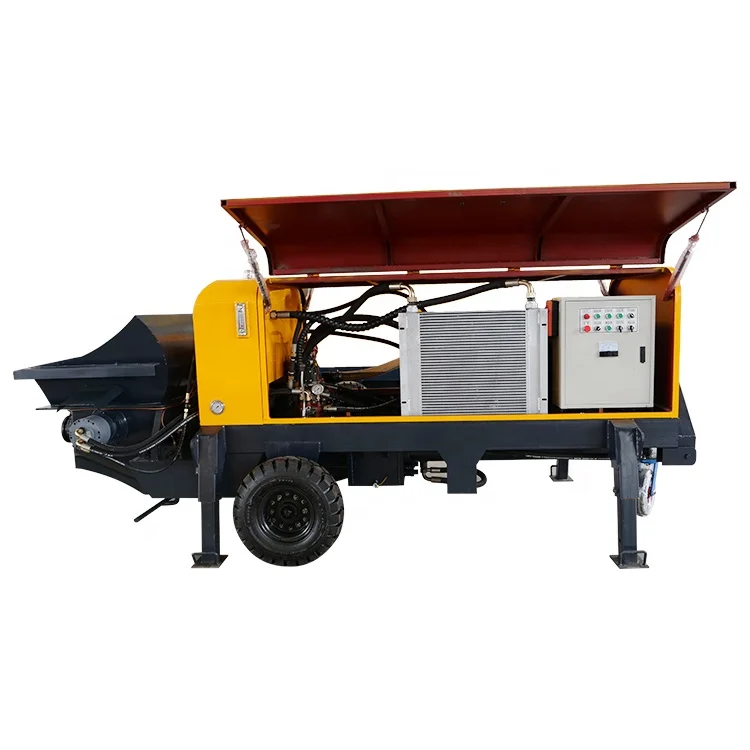

Portable Hydraulic Concrete conveying transport pump for high rise use
- Category: Concrete Pumps >>>
- Supplier: Xingtai Bailun Machinery Manufactor Co. Ltd.
Share on (62196204436):
Product Overview
Description
PORTABLE HYDRAULIC CONCRETE CONEVYING TRANSPORT PUMP
SPEC. DETAILS
| No. | ITEM | UNIT | BLM-CP20M | BLM-CP30M | BLM-CP40M | BLM-CP50M |
| 1 | Processing Aggregate sizes | mm | ≤30 | ≤30 | ≤20 | ≤50 |
| 2 | Capacity | m³/h | 8-12 | 15-20 | 20-25 | 30-40 |
| 3 | Vertical transport distance | m | 25mts | 70mts | 150mts | 100mts |
| 4 | Horizontal transport distance | m | 80mts | 130mts | 400mts | 200mts |

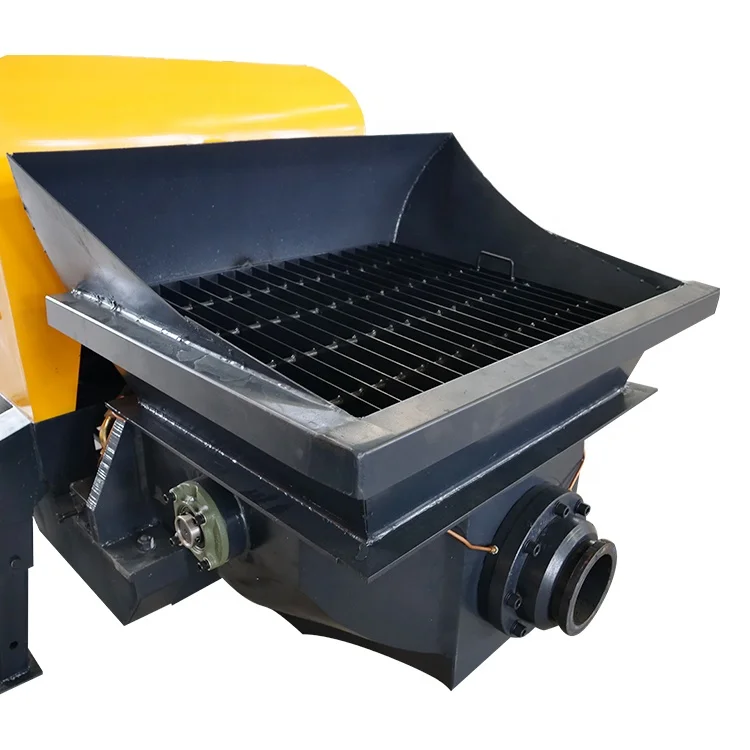

| 5 | Hopper height | mm | 1100 | 1150 | 1150 | 1200 |
| 6 | Working pressure | mpa | 10 | 10 | 12 | 12 |
| 7 | Motor power | kw | 30 | 37 | 45 | 55 |
| 8 | Dimension | mm | 3100x1300x1450 | 4200x1500x1600 | 4200x1600x1600 | 4500x1800x1700 |
| 9 | Total Weight | kg | 1700 | 2250 | 2500 | 3000 |
| 10 | Use condition | large size ≤30 Short Distance | Small size ≤20 Long Distance | Big size ≤50 | ||
