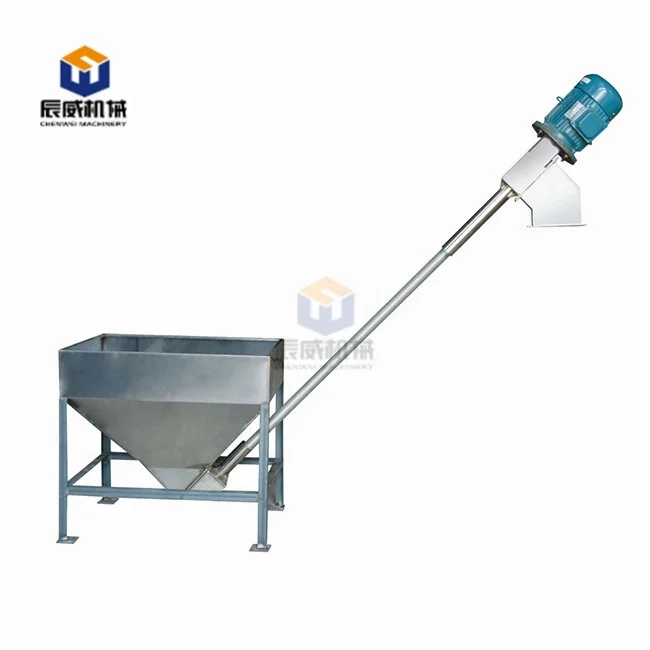

Jiabao factory direct sale feed hopper incline screw conveyor for industry
US $180.00-$780.00
Flexible Shaftless Screw Auger Conveyor For Powder Granule
- Category: Conveyors >>>
- Supplier: Xinxiang Chenwei Machinery Co. Ltd.
Share on (62196597873):
Product Overview
Description
Product Description

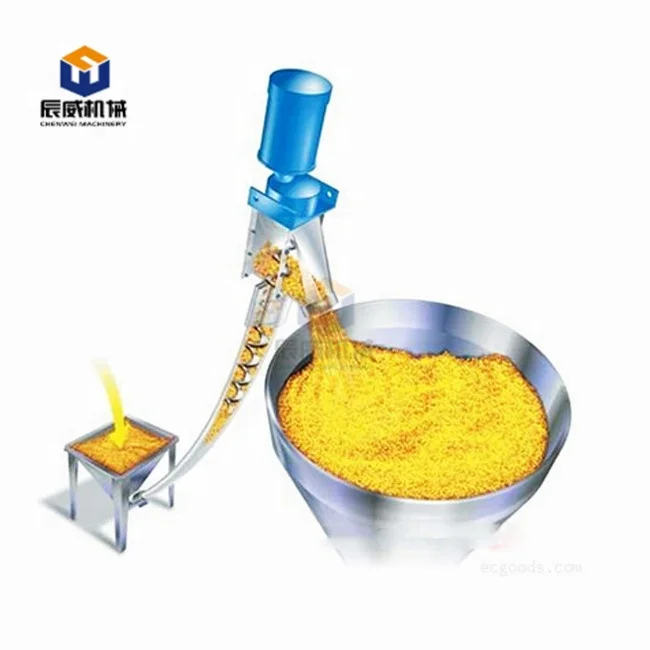

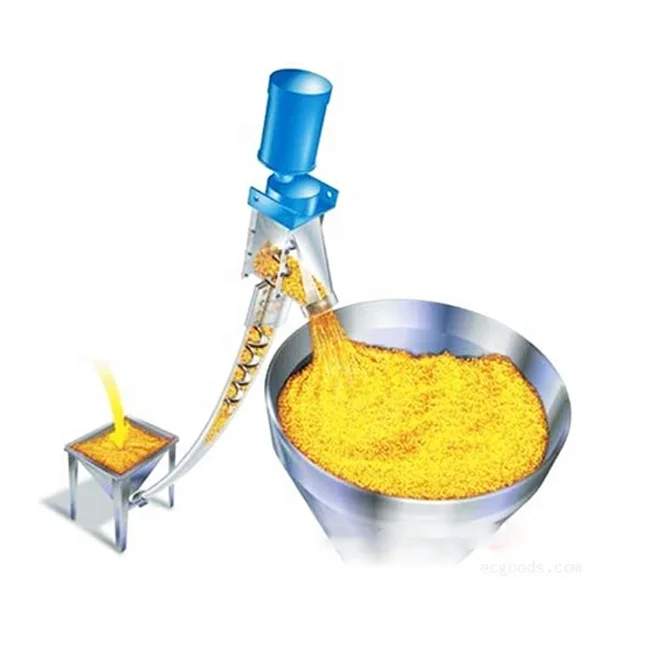

Introduction of spring feeder
The spring feeder is mainly used for conveying powder, granular, spherical and other materials, because of its good flexibility and bendability, it is one of the most reliable and economical methods to transfer materials from one point to another.
Technical Parameters
MODEL | CAPACITY (KG) | SPEED (r/min) | DIA OF TUBE(mm) | CONVEYING LENGTH(m) | POWER(kw) | VOLTAGE (v) |
CW-300 | 300 | 910 | φ76 | 3,5,8,10,20 | 1.5/2.2/3.0 | 220/240/380/415/440/460 |
CW-700 | 700 | 910 | φ90 | 3,5,8,10,20 | 1.5/2.2/3.0 | 220/240/380/415/440/460 |
Main Features Of Flexible Screw Conveyor
1)The temperature range is wide,the anti sticking line is good.
2)The baffle can be added,the angle of lifting is large.
4)The utility model has the characteristics of high strength,acid and alkali resistance,salt water,etc.
5)The utility is used for conveying under various environments.
Application
*Metallurgy metal mining industry:lead oxide,zinc powder,aluminum powder,iron powder
*Plastic industry:PVC powder etc
*Food powder:sugar,salt powder,soy milk powder etc

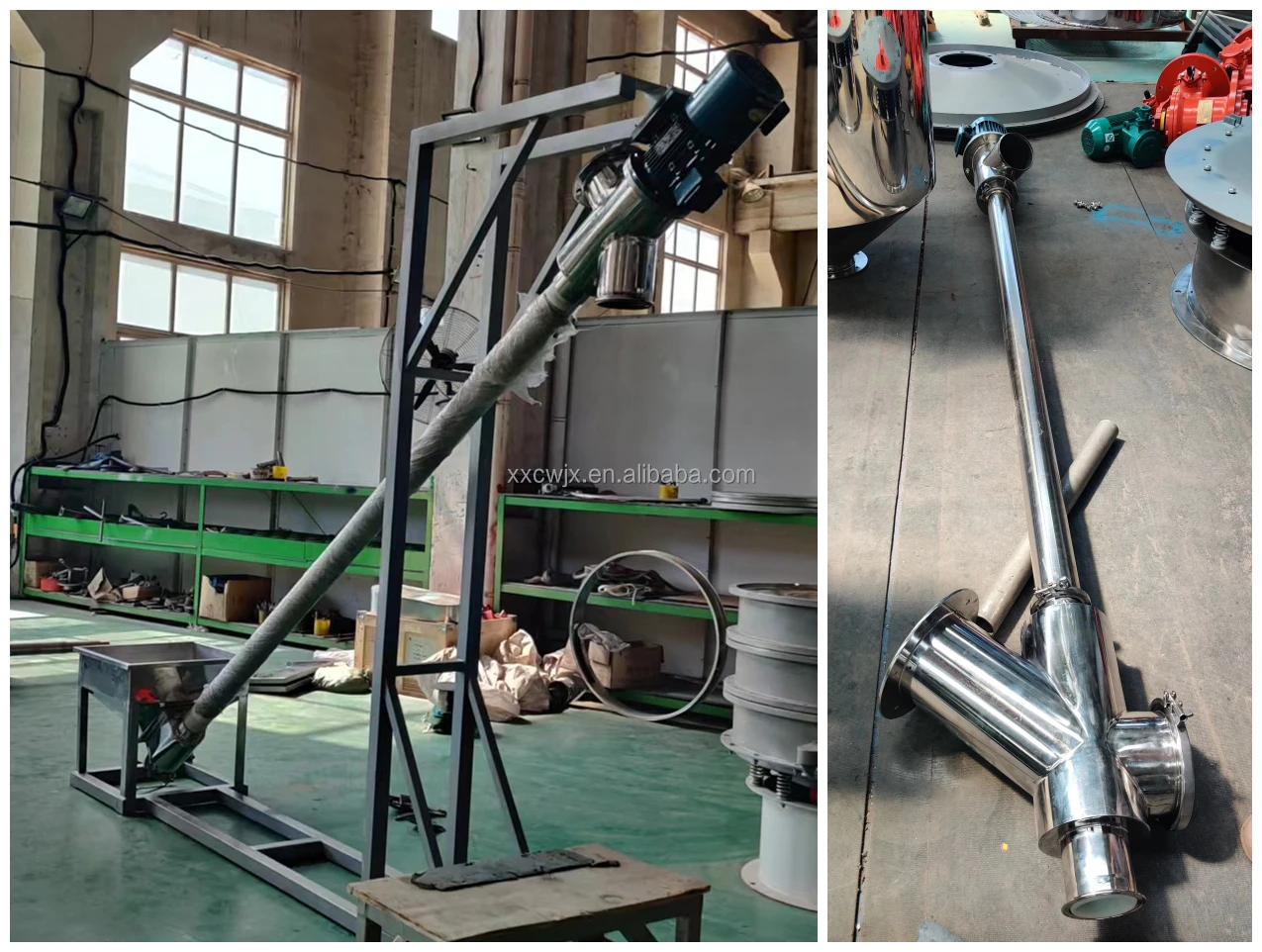

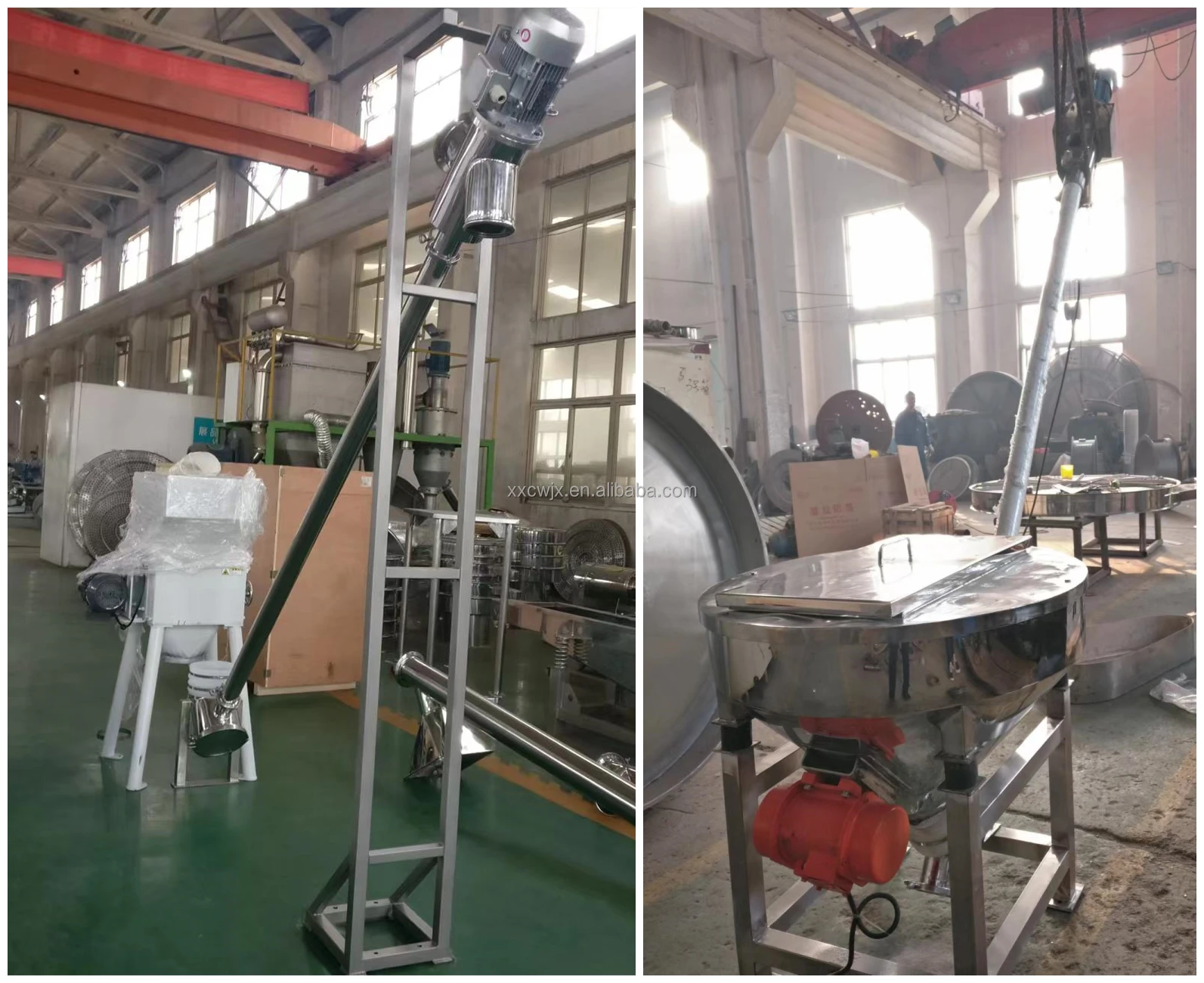

Detailed Images
Stainless steel conveying spring
PPR Tube
Conveying spring
Stainless steel pipe
Hopper
PPR Tube
Circular Spring
Packing & Delivery
Our Company

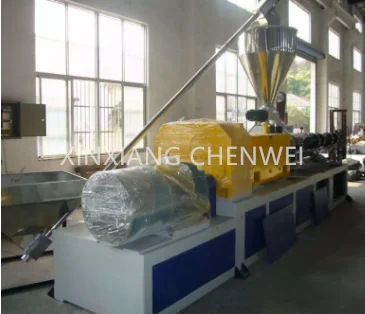

Xinxiang Chenwei Machinery has 36 years' experience in producing Sifter, Conveyor, Lift Crusher, Mill and Mixer machines. We mainly specialized in providing solutions for Liquid, powder, particles processing in different industries. Most of our customers come from food,pharmaceutical,PVC, grain processing, food additive, seasoning processing, detergent powder production, snacks processing refine sugar processing Industries. Besides providing single equipment,we can also provide production line,such as 300-500kg/h spices crushing production line, 2 tons/h refine sugar refine sugar process line 50tons/h cloves separation and cleaning line, poultry feed production line and so on.
FAQ
Q: How can I get the price quickly ? Please let us know
A1: Material bulk density
A2：Length and angle of conveying
A3：Material of machine (carbon steel Q235A, stainless steel SUS304 or SUS316, etc.materials)
A4：voltage and frequency (Hz) also need accurate quotation.
Q: What is the actual delivery time of your factory?
A: 7-15 days for general series products, 30-60 days for batch products and customized products according to different situations.
