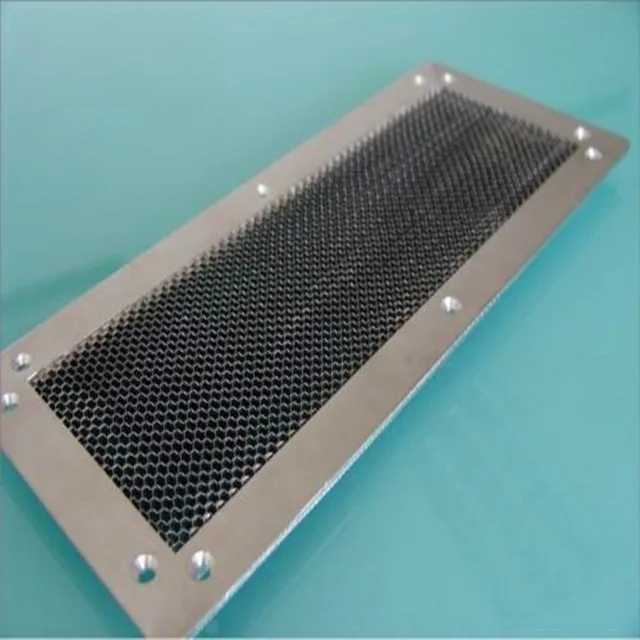

EMI RFI shield honeycomb ventilation air filter for faraday cage
- Category: Filters >>>
- Supplier: Changzhou Haozhuo Electronic Co. Ltd.
Share on (62199012677):
Product Overview
Description

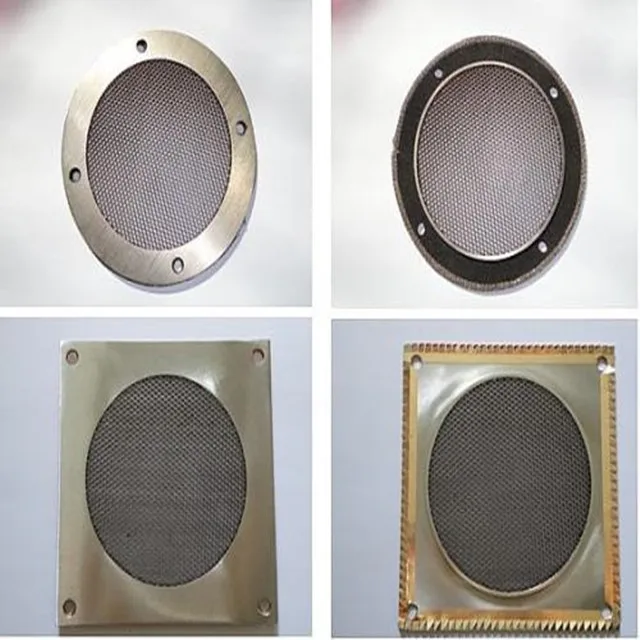

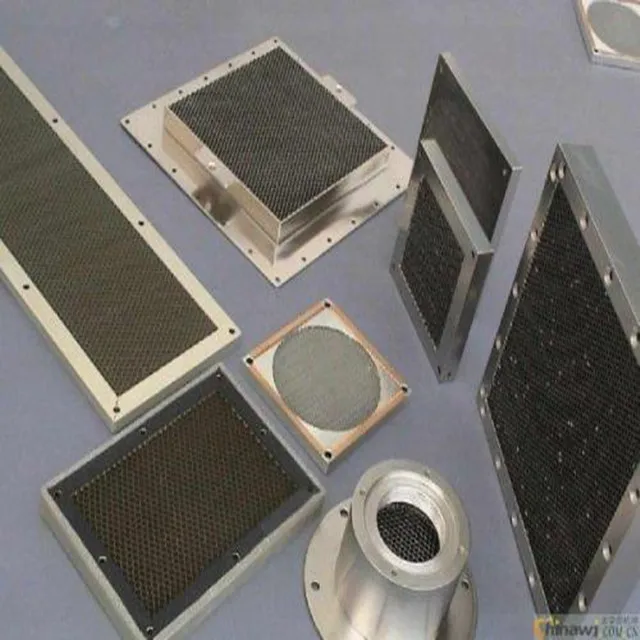

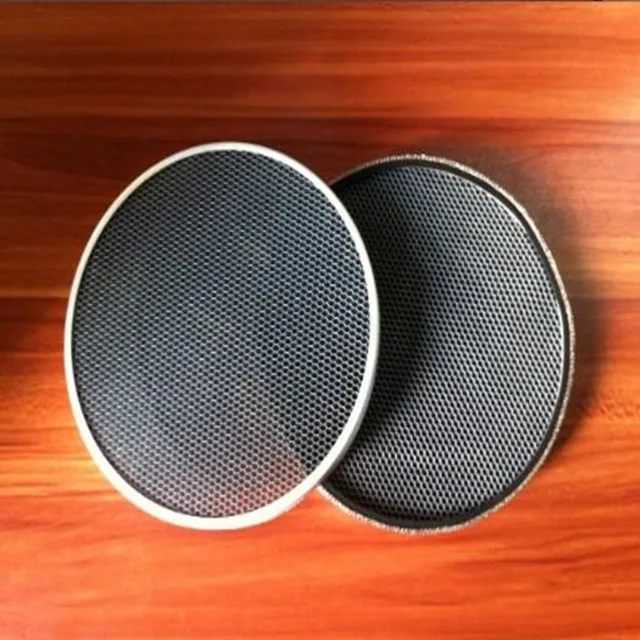

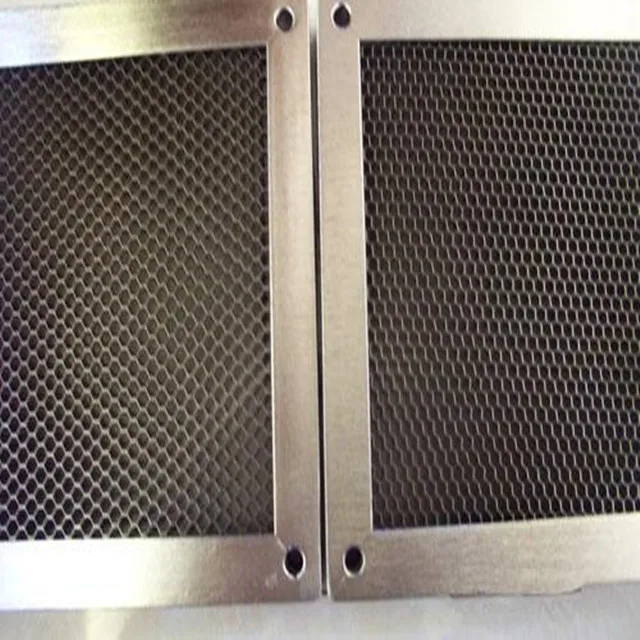

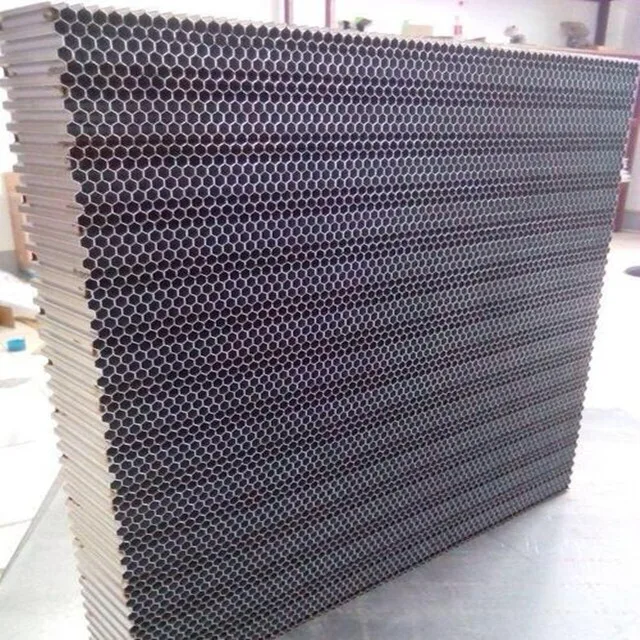

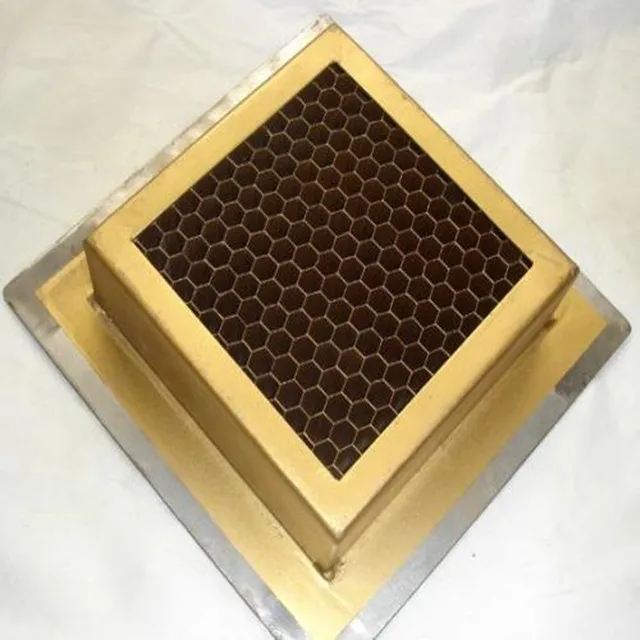

Customized Brass/Steel/Aluminum Honeycomb
Brass/Steel/ Stainless steel honeycomb
1.Material:Steel, brass,stainless steel,aluminum
2.standard size: 300x300mm, 300x600mm
3.Standard cell size: 3.2/4.0/4.8mm
4. MOQ 1 piece
Product Features | |
Honeycomb filter use for shielding room and cabinet | |
Materials: Steel, brass, Aluminum, Stainless steel | |
The waveguide vent provides maximum RF attenuation while allowing optimum airflow | |
We can also produce various customized specification for civil or military use according to customer`s requirements. | |
High quality, Reasonable price and Short delivery, sample order accept | |
Technical Specifications | |
Honeycomb Standard Thickness(mm) | 12.5mm/19mm/25mm/50mm |
Honeycomb standard size | 300x300/300x600/450x450/600x600mm |
Hole size | 3.2mm/4.0mm/4.8mm |
The frame materials | Brass, Steel, Stainless steel |
MOQ | 1PCS |
Shielding Performance | |
Magnetic field | 14KHz≥75dB 150KHz≥100dB |
Electric field | 200KHz-50MHz≥110dB |
Flatwave | 50MHz-1GHz≥110dB |
Microwave | 1GHz-10GHz≥100dB 10GHz-18GHz≥90dB |
