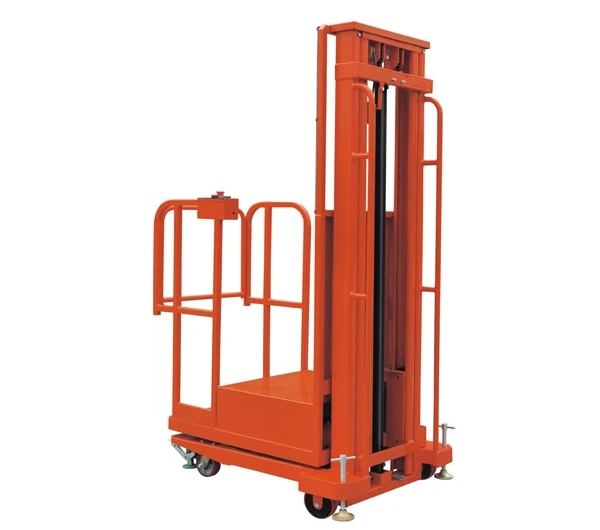

Semi-electric Aerial Order Picker
|
Model Number |
SOP2-2.7 |
SOP2-3.3 |
SOP2-4.0 |
SOP2-4.5 |
|
|

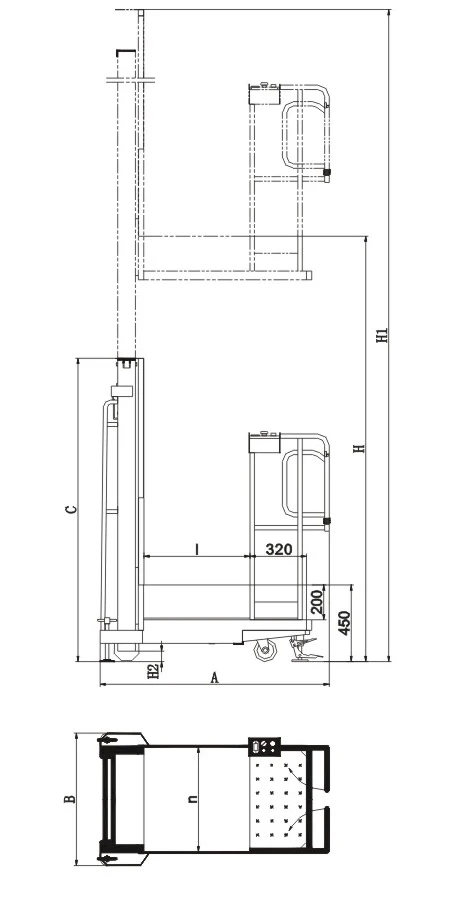

Max. Platform Height (H) |
mm |
2720 |
3300 |
4000 |
4500 |
|
Max. Machine height (H1) |
mm |
4020 |
4900 |
5400 |
6100 |
|
Ground Clearance (H2) |
mm |
30 |
30 |
30 |
30 |
|
Rated Lift Capacity |
kg |
200 |
200 |
200 |
200 |
|
Platform size |
mm |
600x640 |
600x640 |
600x640 |
600x640 |
|
Lifting Motor |
v/kw |
12/1.6 |
12/1.6 |
12/1.6 |
12/1.6 |
|
Battery |
v/Ah |
12/120 |
12/120 |
12/120 |
12/120 |
|
Charger |
v/A |
12/15 |
12/15 |
12/15 |
12/15 |
|
Overall Length (A) |
mm |
1300 |
1300 |
1300 |
1300 |
|
Overall Width (B) |
mm |
850 |
850 |
850 |
850 |
|
Overall Height (C) |
mm |
1760 |
2040 |
1830 |
2000 |
|
Overall Net Weight |
kg |
270 |
320 |
380 |
420 |
