YEROO advertising LED screen pylon for gas station
US $2000-$2500
Video VAN with multiple functions produced in Shanghai Factory
- Category: Outdoor Advertising >>>
- Supplier: Leyard(Shanghai) Digital Technology Co. Ltd.
Share on (62199576206):
Product Overview
Description

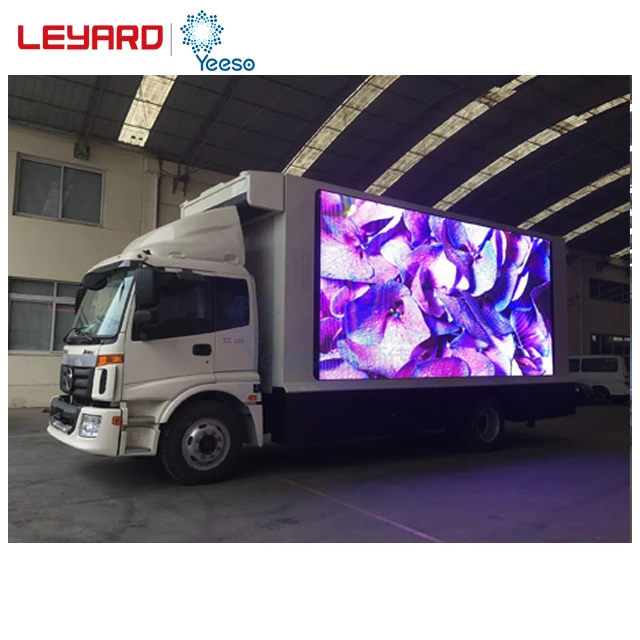

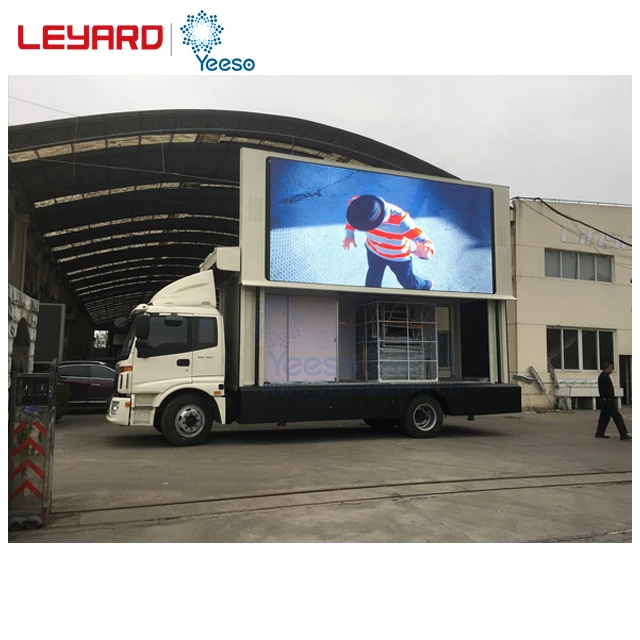

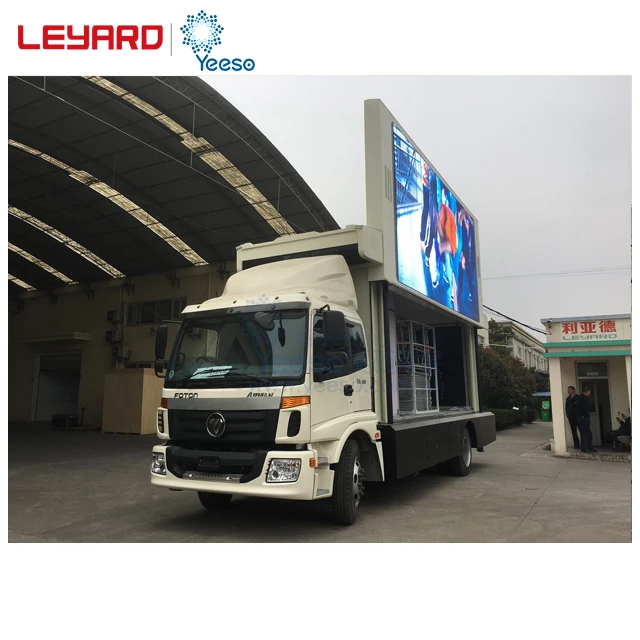

LED VAN with multiple functions produced in Shanghai Factory
LED VAN with multiple functions produced in Shanghai Factory
1. Use mini truck chassis, also can be other chassis as customer requirement
2. Built-in generator to procvide continuous power
3. it can play any multimedia files at anytime
4. The both side can be LED displays or light boxes as you wish
Overall Description | |||
Chassis Brand | Japan brand | External Dimension | 7935mm x 2300mm x 3800mm |
Emission Standard | Euro IV | Gross Mass | 9030kg |
Hydraulic Lifting & Supporting System | |||
Lifting System for LED Screen | Electric putt. Lifting height: 2000mm, afford 3T, Synchronous error: 1mm | Supporting System | Hydraulic cylinder. Lifting height: 300mm, each afford 5T, wind-proof level can reach to max level 8 |
Extreme Super Silent Generator Set | |||
Dimension | 1510mm x 900mm x 1060mm | Power | 16KW |
Motor Type | Extreme super silent type | Air Displacement | 1.995L |
LED Display System | |||
LED Screen Size | 4800mm x 2400mm | Module Size | 160mm(W) x 160mm(H) |
Chip | R,G,B: EPISTAR | Pixel Pitch | 10mm |
Brightness | ≥6500cd/ m² | Life Span | 10,000.00h |
Average Power Consumption | 500W/ m² | Max Power Consumption | 1200W/ m² |
Rear Screen Size | 1220mm x 1952mm(SMD) | Chip | R,G,B: EPISTAR |
Module Size | 244mm(W) x 122mm(H) | Pixel Pitch | 7.62mm |
Red Color LED Size | 5440mm x 480mm | Pixel Pitch | 10mm |
Chip | R,G,B: EPISTAR | Module Resolution | 32pixel(W) x 16pixel(H) |
Scrolling Light Box | |||
Display Size | 3900mm x 1500mm | Roller Diameter | 100mm |
Motor Power | ≥80W | Control Mode | Intelligent remote control |
Outer Power Supply | |||
Input Voltage | AV380/50A | Output Voltage | AC220V |
Multi-media Control System | |||
Industrial PC | Processor: Dual core CPU, Display card: 1G, Hard disk: 500G, CD-ROM: DVD, Internal storage: 2G | Monitor | 15-inch LCD display |
Power Amplifier | Unilateral output power: 200W | Speaker | Max power consumption: 200W |
Control System of LED Screen | LINSN |
|
|
Outer Frame and Inner Decoration | |||
Frame Material | 1.5mm cold rolled metal plate | Surface Color | Pure white car baking varnish |
Inner Decoration | Fire retardant board | Water-proof Processing | Vehicle plastic irrigation processing |
Vehicle-Specified Air Conditioner | |||
Cooling Power | 4000W | Heating Power | 1600W |
Instillation | Overhead | Applying Space | 15m³ |
Press Release | News conferences, product launches, channel investment activities, press appearances , etc |
Activities Road Show | Promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales |
Live | Sporting events, live events, concerts, etc. |
Parade Display | Product buildings parade promotion, exhibitions, fairs, shows, etc |
Forum Lecture | Forums, conferences and seminars |
Celebration &Ceremony | Real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies. |
Election | promotion for election, policy promotion |
Other Applications | Wedding live, auction, et |
