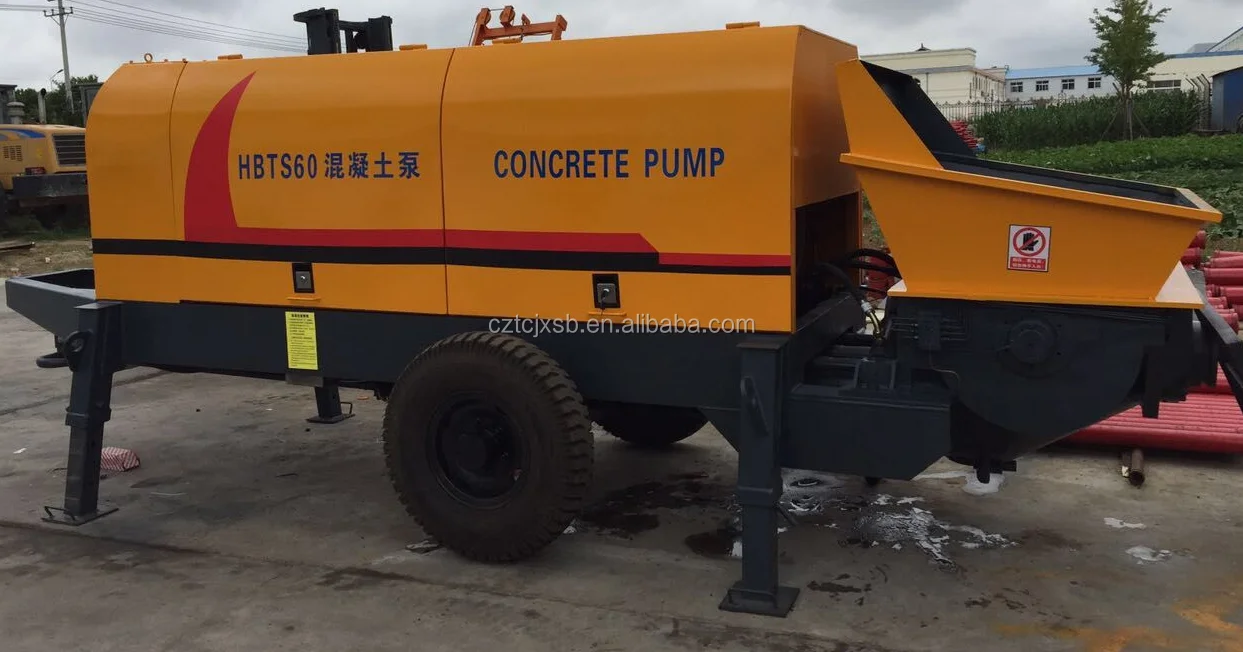

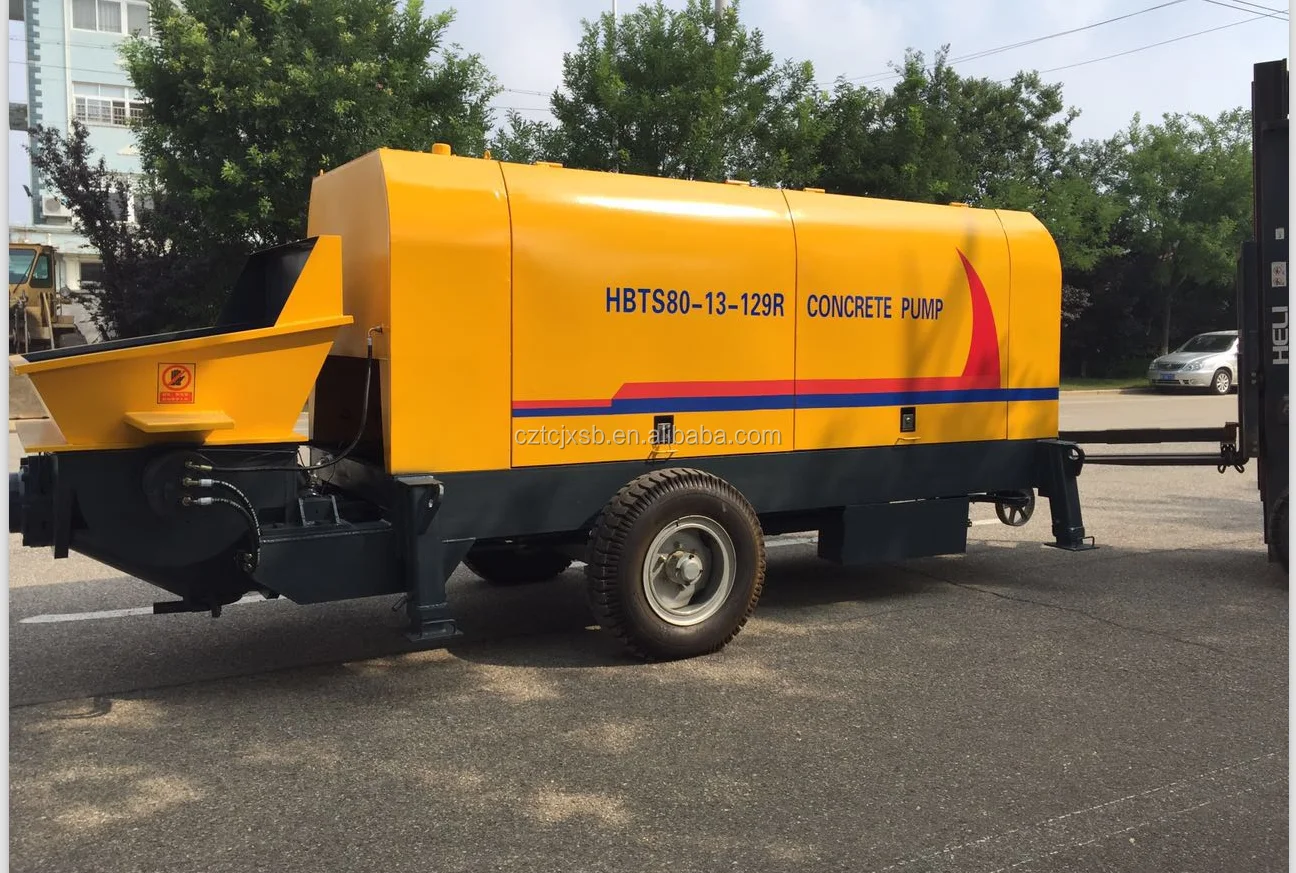

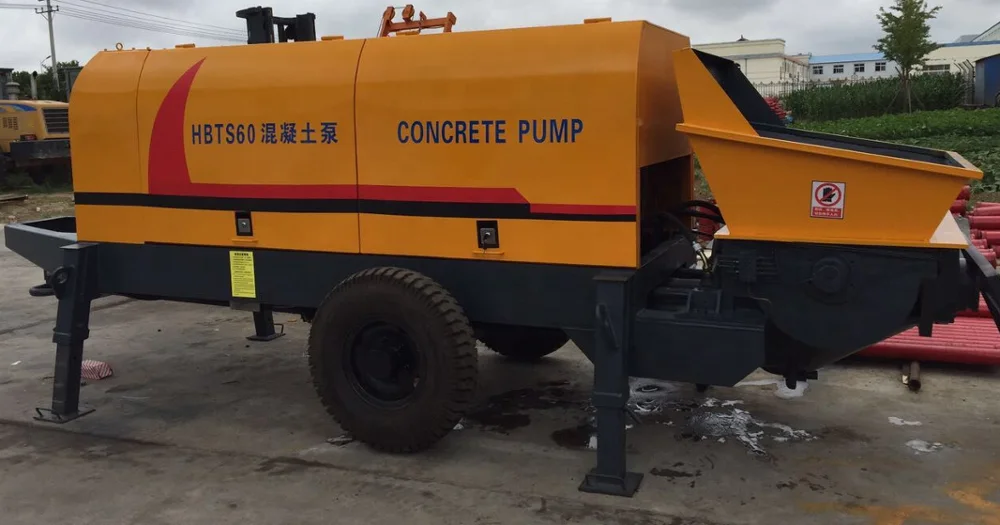

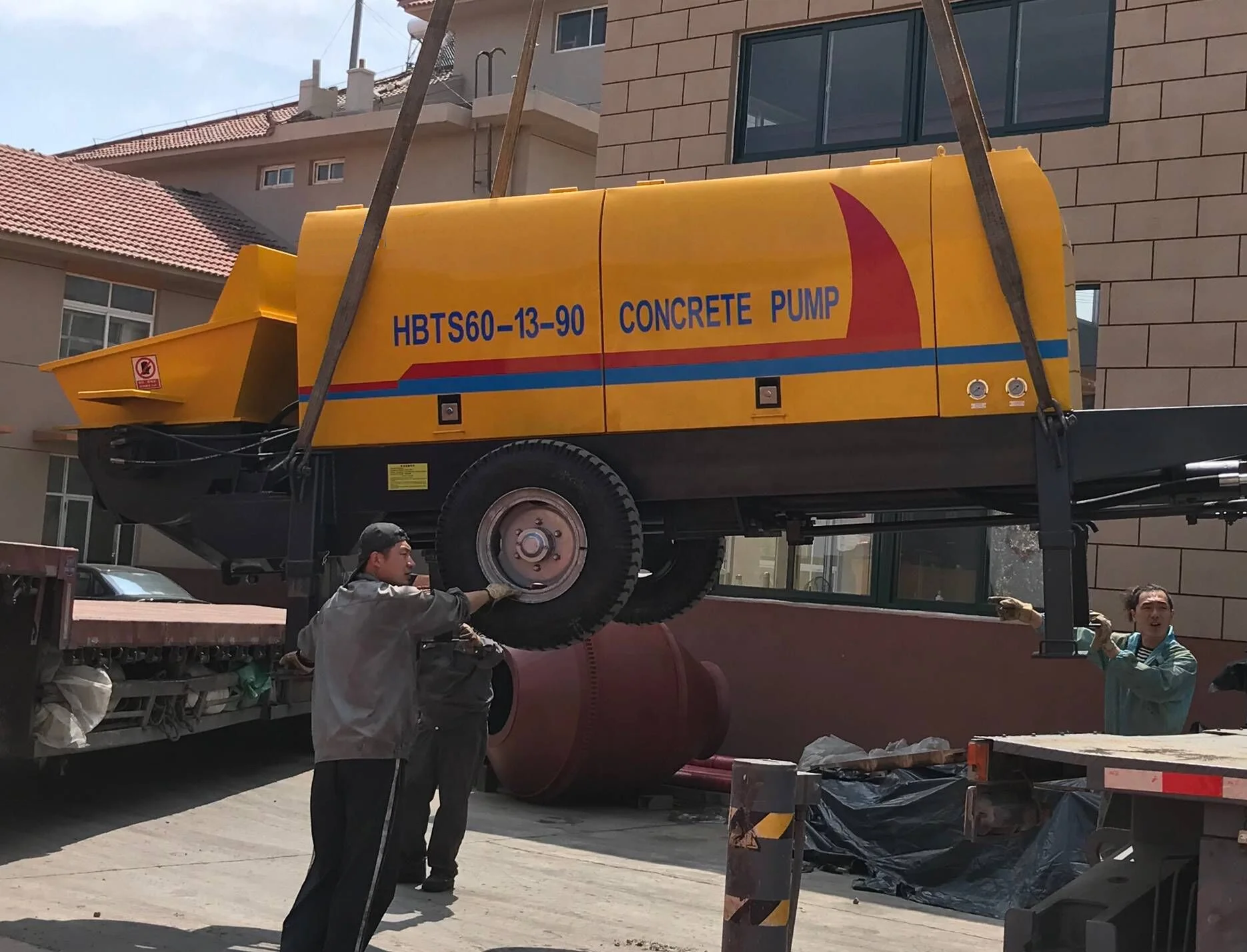

High quality factory supply electric/diesel power concrete pump

Product Overview

Description









Item	HBT-20	HBT-30	HBT-40	HBT-50	HBT-60	HBT-80	HBT-90
Max. Theoretical  Throughput(m3/h)	20	30	40	50	60	80	90
Max. Pumping Pressure (MPa)	10	11	43782	43812	13/15/16	16	16/18
Max.Theoretical Vertical  Conveying Distance (m)	140	150	150	150	190	200	220
Max.Theoretical Horizontal  Conveying Distance (m)	500	600	600	600	800	1000	1200
Max. Aggregate Diameter (mm)	20	20/30	30/40	40/50	50	50	50
Conveying Pipe Radius (mm)	100	100	125	125/150	150	150	150
Conveying Cylinder Bore  X Piston Stroke(mm)	Φ140 ×1000	Φ160 ×1200	Φ180 ×1200	Φ180 ×1300	Φ200 ×1650	Φ200 ×1800	Φ200 ×1850
Hydraulic Oil Tank   Capacity(L)	240	370	370	370	580	580	580
Feeding Height (mm)	1100	1100	1100	1400	1420	1420	1420
Hopper Capacity (m3)	0.35	0.4	0.6	0.68	0.68	0.68	0.8
Power (kw)	37	45	45/56	75	90	110	110
Dimension (Length×Width×Height)(mm)	4000×1350 ×1550	4500×1750 ×1600	4600×1850 ×1770	5200×2000 ×2260	6000×2160 ×2600	6300×2100 ×2250	6300×2100 ×2250

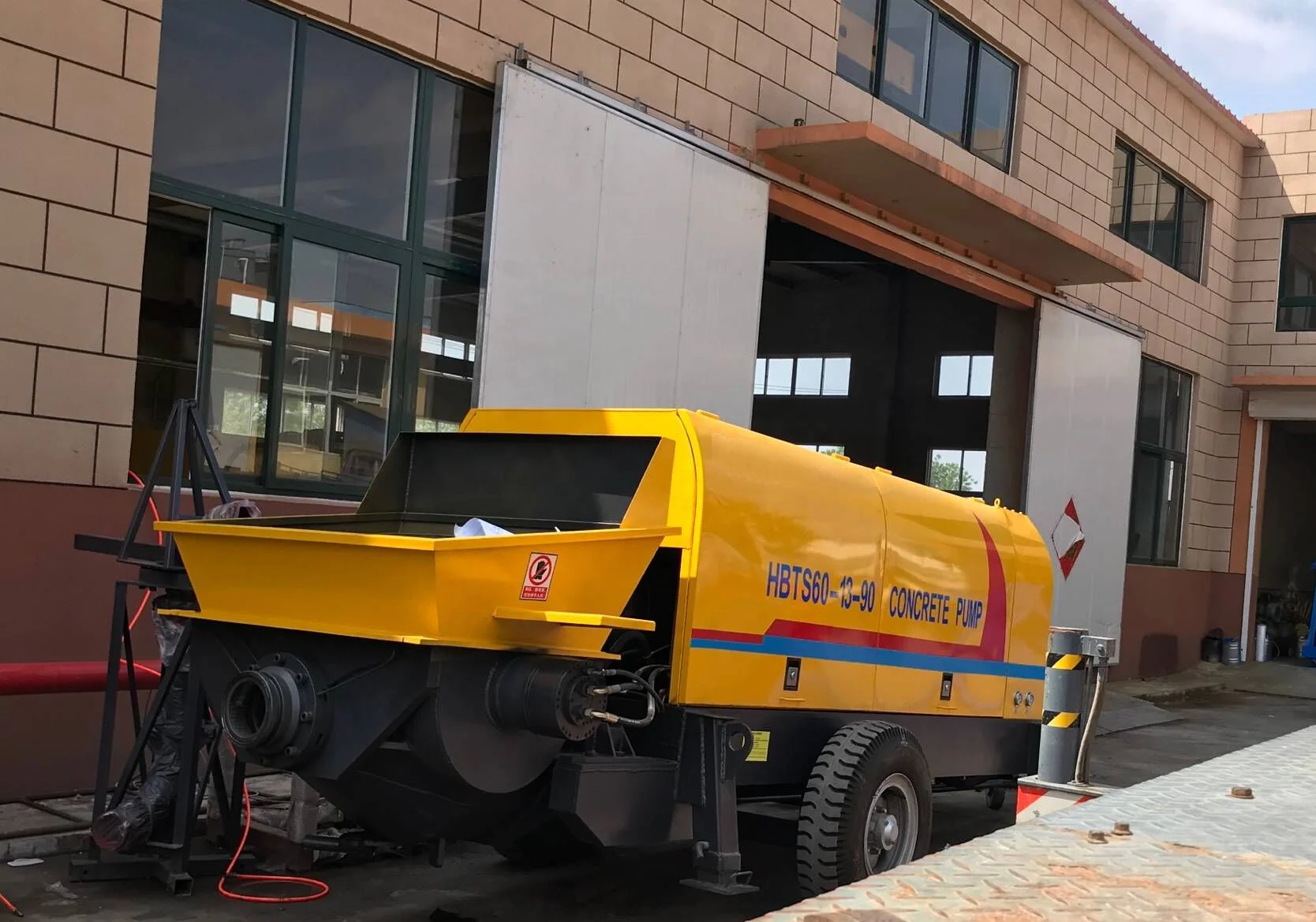

High quality factory supply electric/diesel power concrete pump



Features and Advantages of Our Electric Concrete Pump for Sale

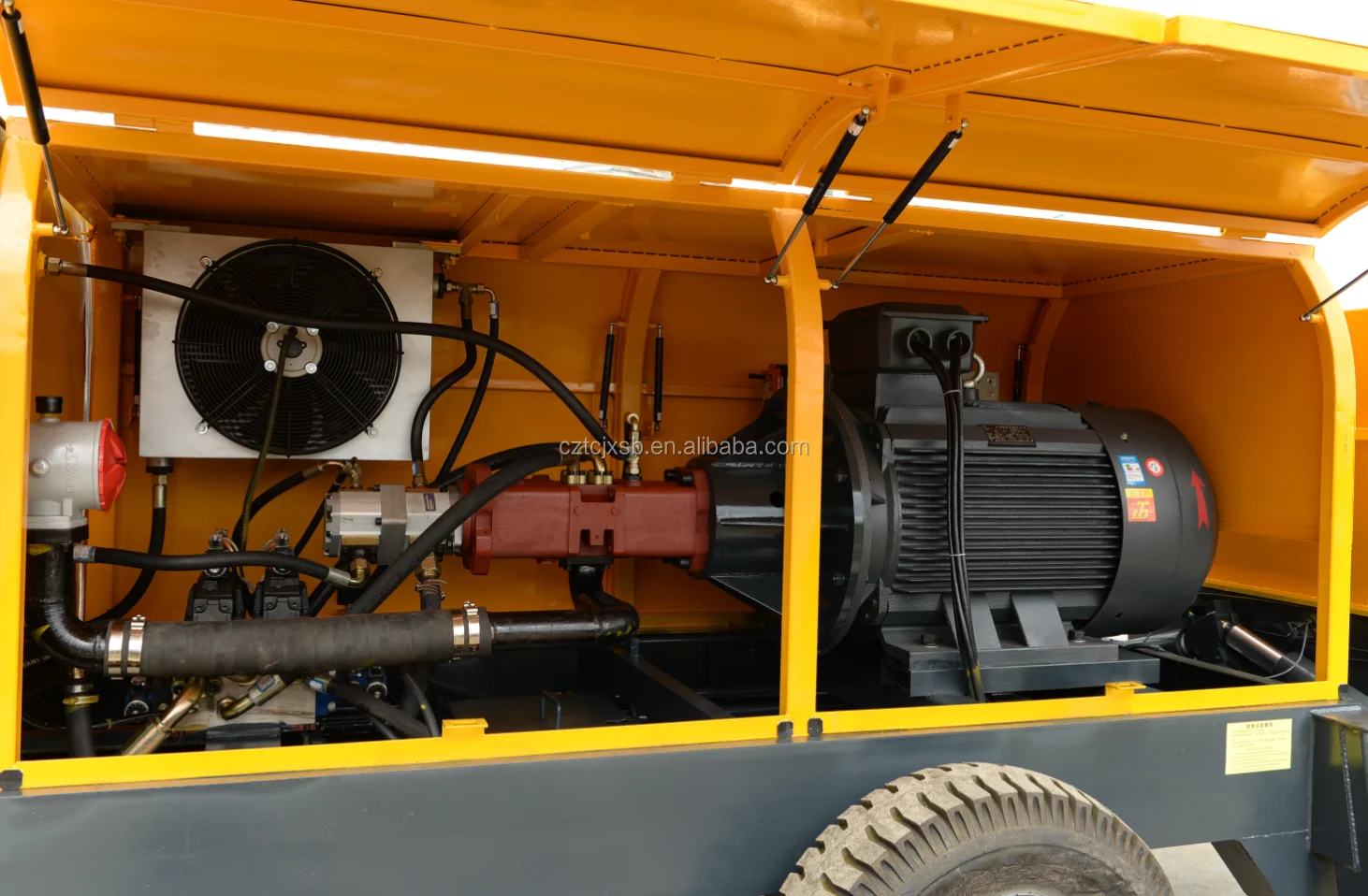

 1. Hydraulic System:

Double open hydraulic loops with two pumps, makes the whole hydraulic system much simpler.

The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly.

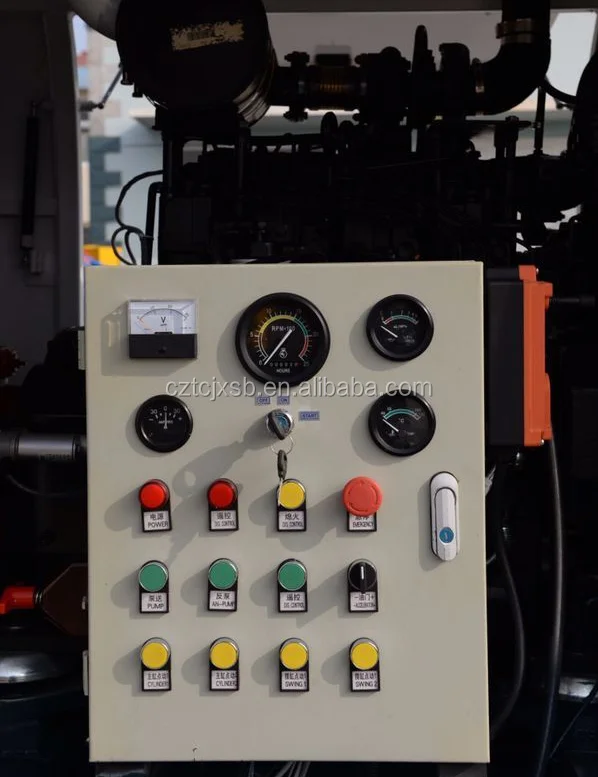

2. Electric control system:

Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.

Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.

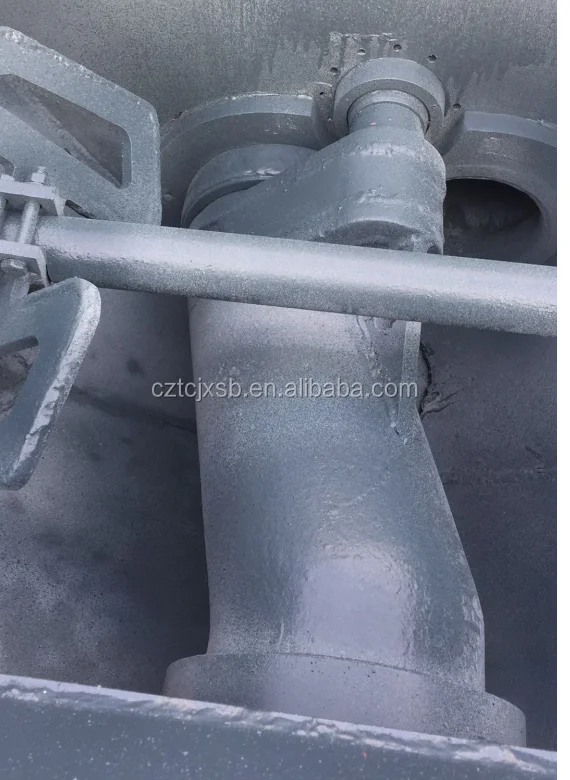

3. S valve:

The design of hopper and S valve and so on adopt I-DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

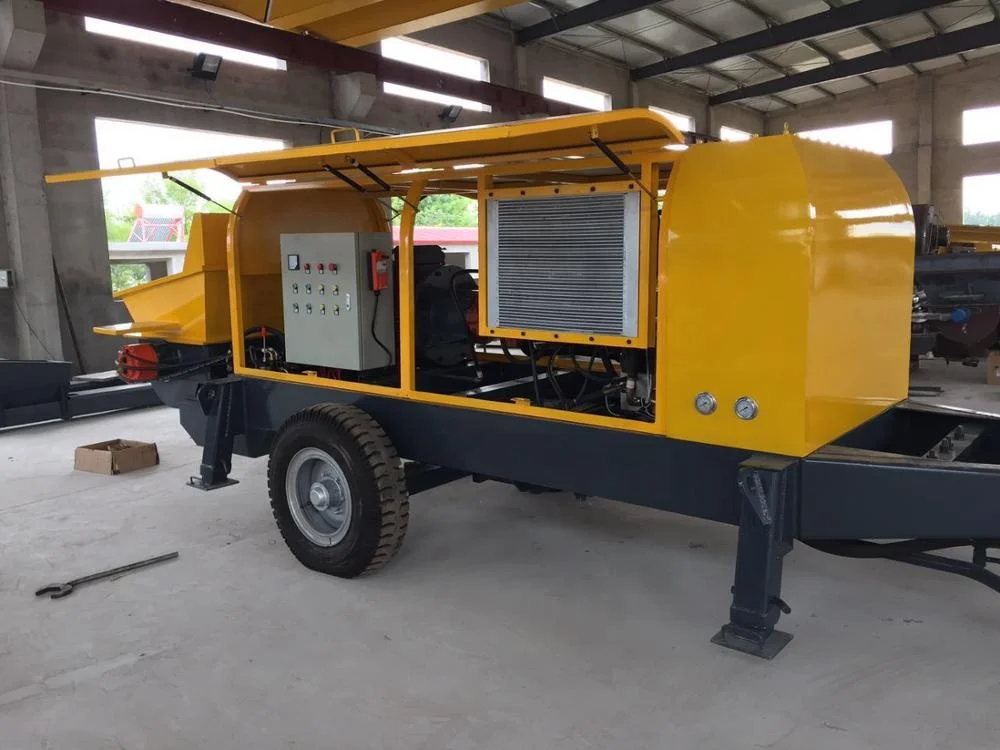

4. Cooling system:

The radiator equipment makes the working oil temperature of hydraulic system below 70℃and makes the machine in normal status
