Description

4x4 fire truck



ChengLi Special Automobile Co.,tld , which is a big and famous special function vehicles manufacturer in China, we produce many kinds of special function trucks, also include Fire trucks, water tyep fire truck, water and foam type fire trucks, powder fire truck, high altitude spraying fire trucks.With different brand, China brand,  Dongfeng, Foton, JAC,  also include Japanese brand of Hino, and so on.
Currently We produce fire trucks type as following.

1.  Water tank fire engine truck form 3000~18000 liters.
2. Foam tank fire fighting truck from 3000~18000 liters
3. Powder tank fire rescue tank truck from 3000~18000 liters.
4. Water, foam ,powder  together type, Customized.

• 4x4 fire truck, introduction in detail
• water tank fire truck, water foam tank fire truck, powder tank fire truck



Item		Unit		Description
Model				FTR Fire Fighting Truck
Dimension		mm		8005*2480*3470
Tank Dimension		m3		Water Tank			Foam Tank
				4			2
		Material		Stainless steel			Stainless steel
Curb Weight		kg		9605
Wheel Base		mm		4500
F/R track base		mm		1960 / 1855
F/R Axled-Load		Kg		6300 / 13000
Approach/Departure angle		.		21/13
Traction system		Type		4*2
Max speed		Km/h		90
Tire Specification/Number		Type		10.00-20, 6+1 Spare Unit
Engine		Model		4HK1-TCG40
		Emission/Kw		5193 cc, 141 Kw / 2500 r
		Horse Power		190 Hp
		Power		640 N.m -  1600 r/min
		Type		Diesel, 6 cylinder, turbocharge, water cooling
		Brand		brand Engine
Gear box		model		6F&1R,  Manual
Electronic		V		24
Cab		Person		6
		Type		Reversable, Manual
		Installing		Mp3 , Radio, Speaker
		Air Conditioner		Hot wind / Cooling wind
Fire Cannon Specification on the top fo fire truck
Fire Cannon model		PS 30, water		Working Range			Water >50 m
		Foam type, Optional Item
		PP 24, mulity		Working Range			Foam >40 m
Working angle		- 30 ~ 80		Operation			Mannual
working pressure		1~4 Mpa
Flowing Speed		<50 L / s

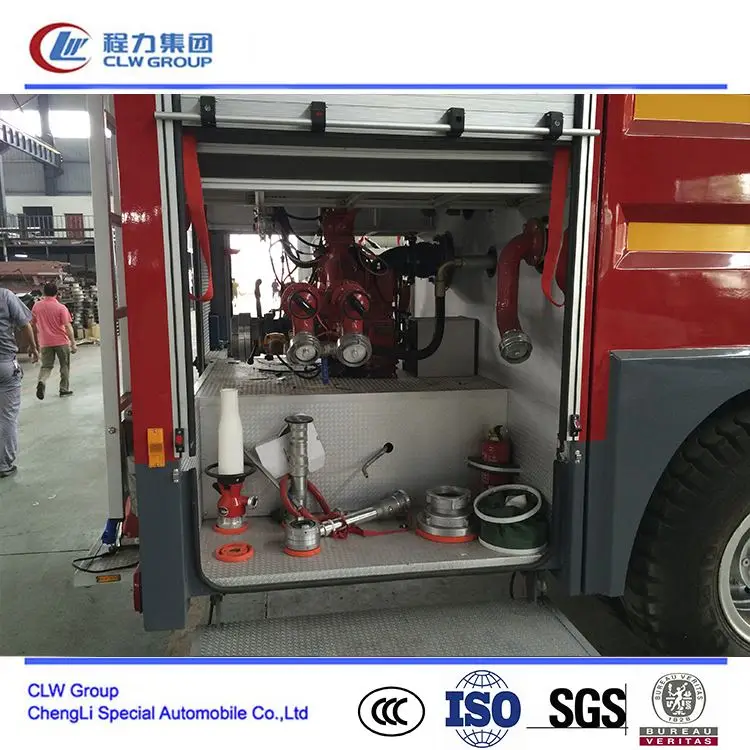

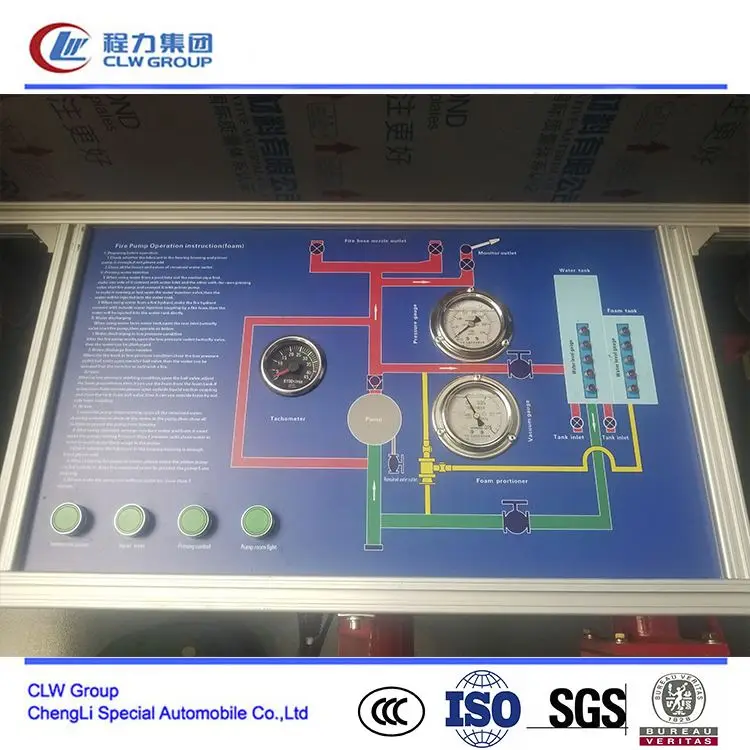

Fire Pump Specification
Fire Pump model		CB10/40
Flowing Speed		40L/s		Pressure			1.0 Mpa
Water input Port		DN 135mm x 1		Water suction pipe			8 m, one Unit
Liquid Output Port		DN 80mm x 2 , with ball valve control
Liquid Output Port		DN 65mm x 2, with ball valve control
Outside water input port
Liqid input Port		DN 65 x 2 Unit, at two side of fire truck
Foam Tank Specifiation For Option
2000 liter, pipe and valve are all stainless steel material
Installing
Long beem alarm light, light detector x2~12V60W, 5 Unit Window type warehous, Rear climp ladder
Spare List
Fire Pipe		DN 65 x 8 Unit		Fire Pipe			DN 80 x 4 Unit
Fire Pipe Length		20 m
Fire pipe protector		4		Fire Pipe storage			1
Fire Pipe Hocker		4		Fire extinguisher			1
Fire bucket		1		Fir axe			1
Fire Crowbars		1		Iron collars			1
Liquid port Connector		5 Unit, Y type, U type, X Type
Fire spanner		2 Unit,  Above ground fire hydrant, undergound hydrant.
Spanner		2 Unit, for sunction pipe
Fire cannon		3 Unit, two for water, one for foam ( Optional)
Option Item		Fire cloth, addtion foldable stainless steel ladder, safety cabline.

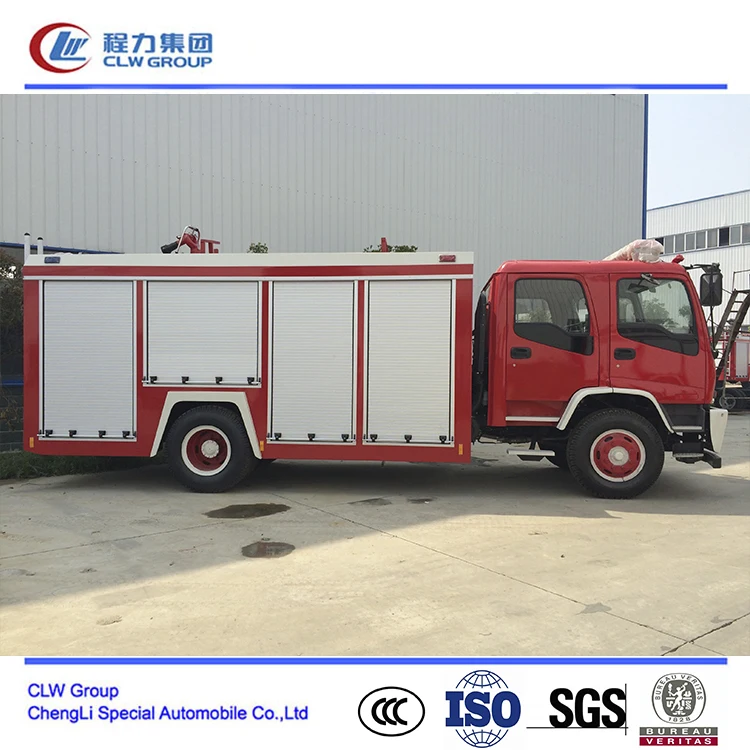

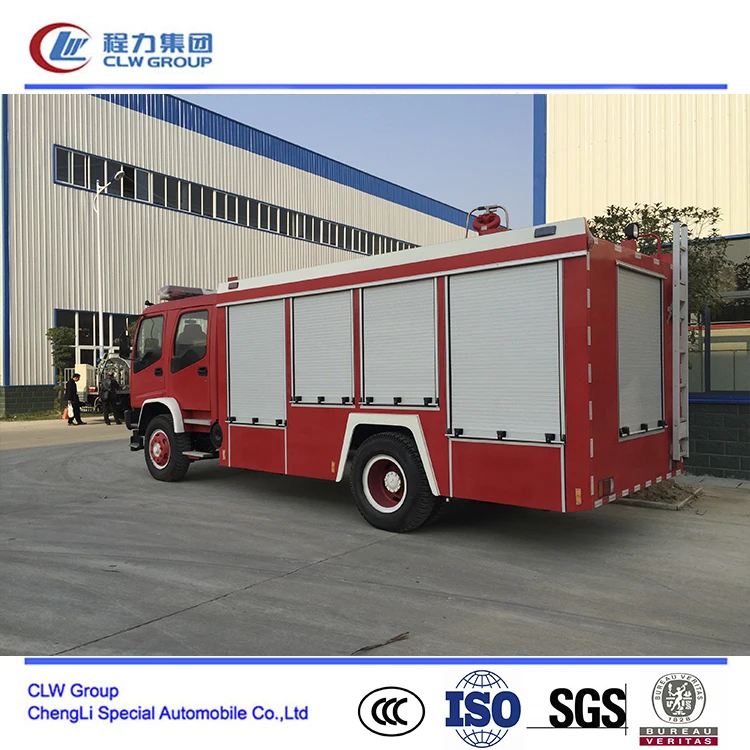

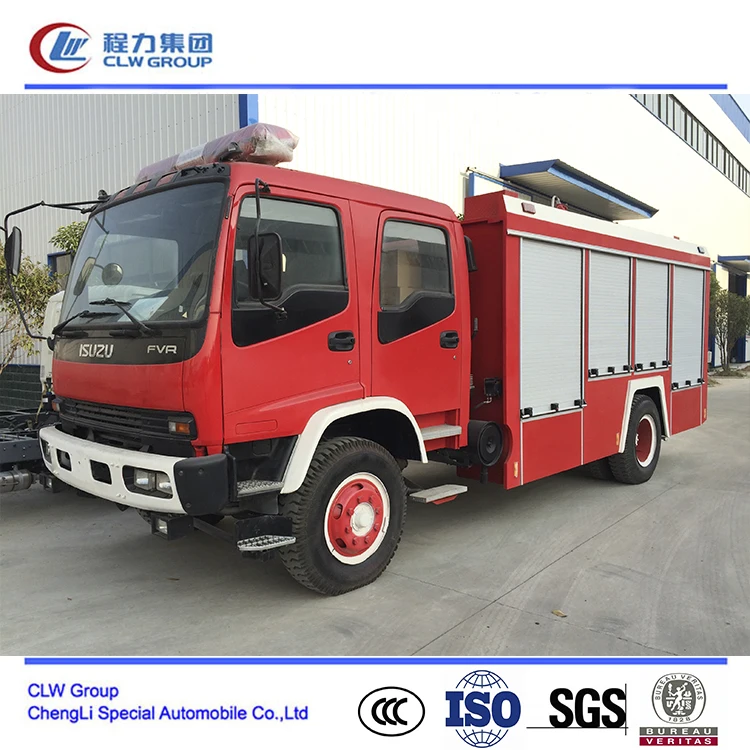

•  More photos showing ,4x4 fire truck
