New Design Wood Processor Firewood in Cheap Price

New Design Wood Processor Firewood in Cheap Price

Category: Forestry Machinery >>>
Supplier: Weifang Kinger Machinery Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

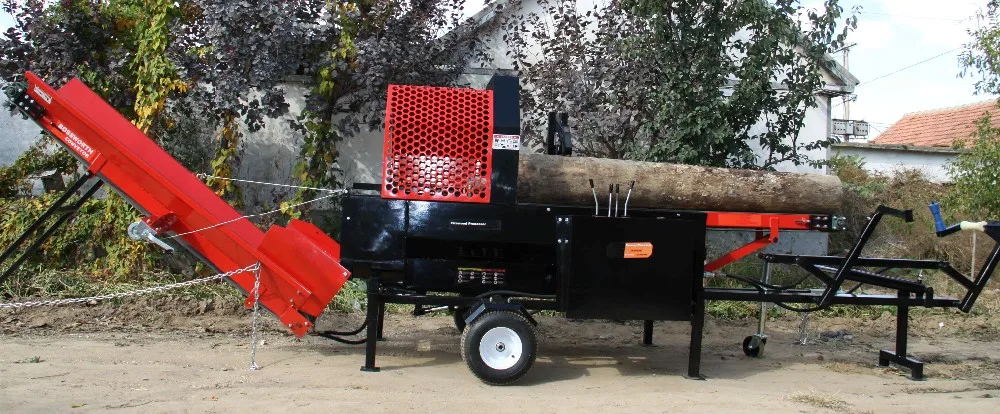

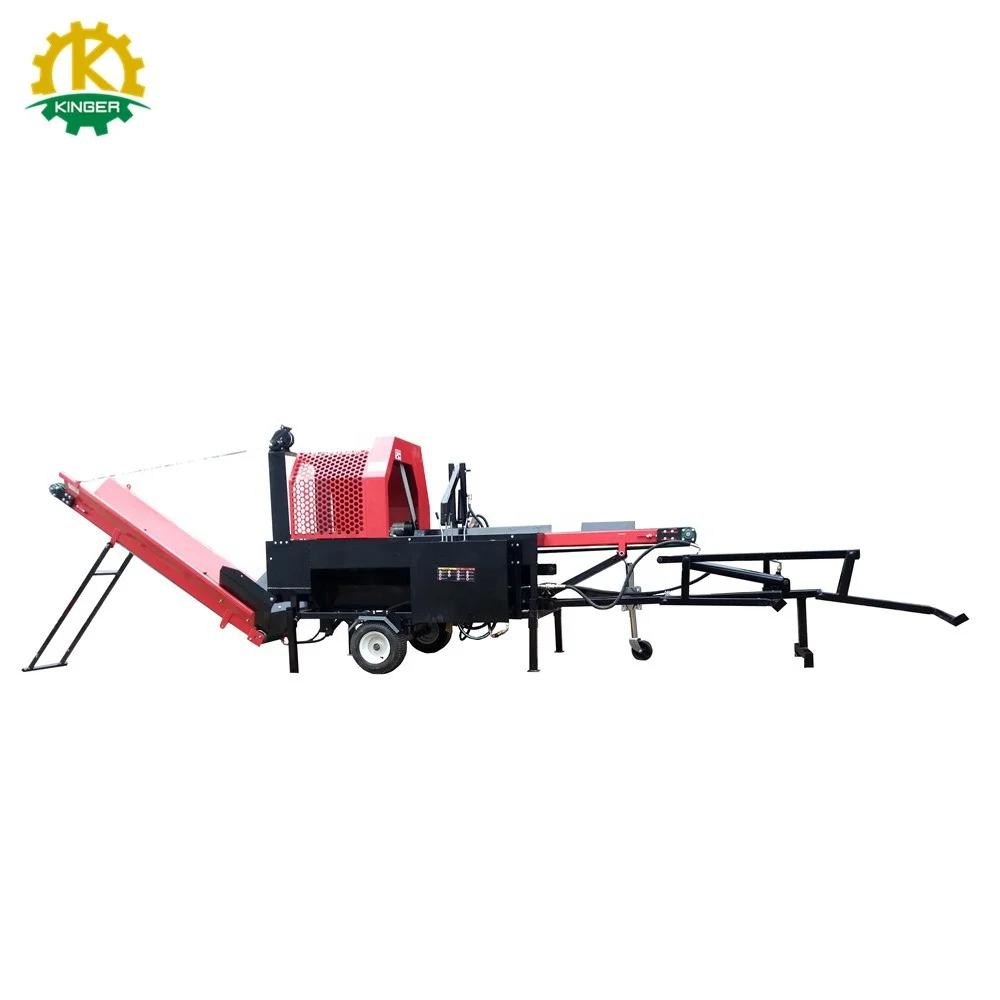

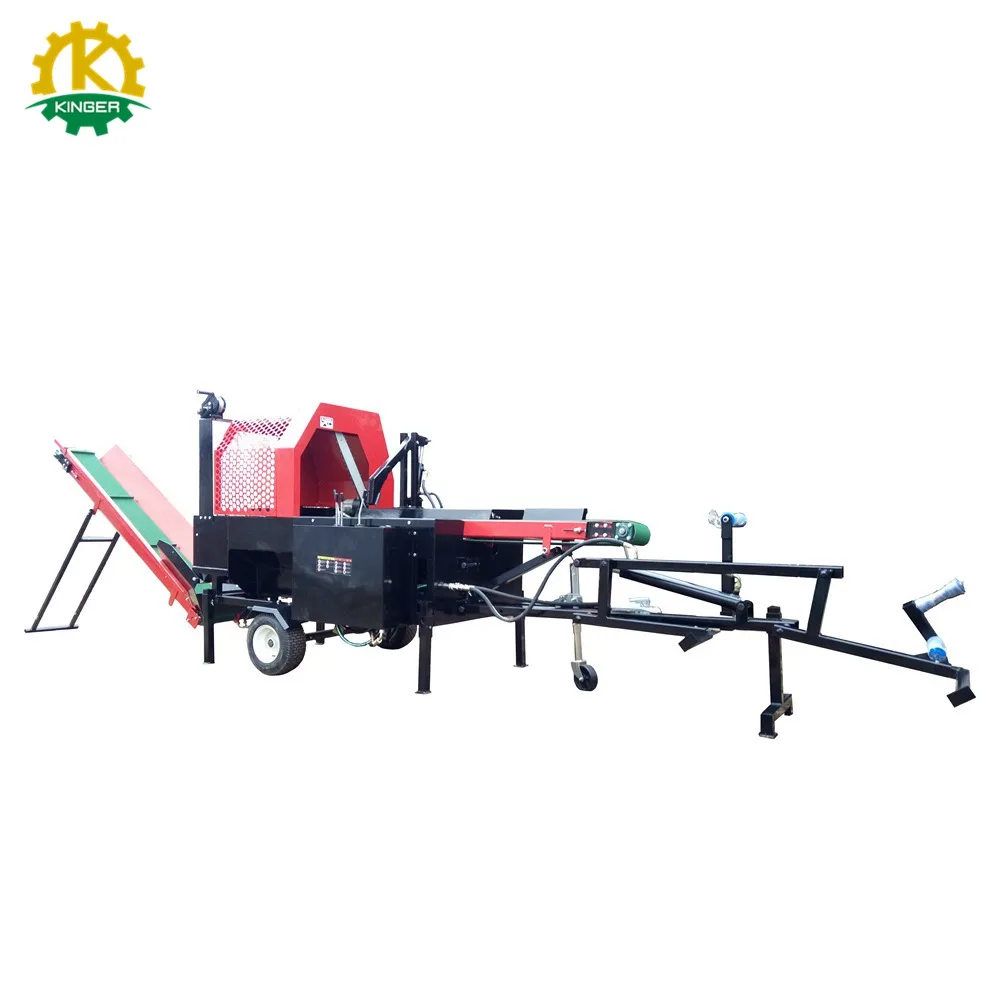

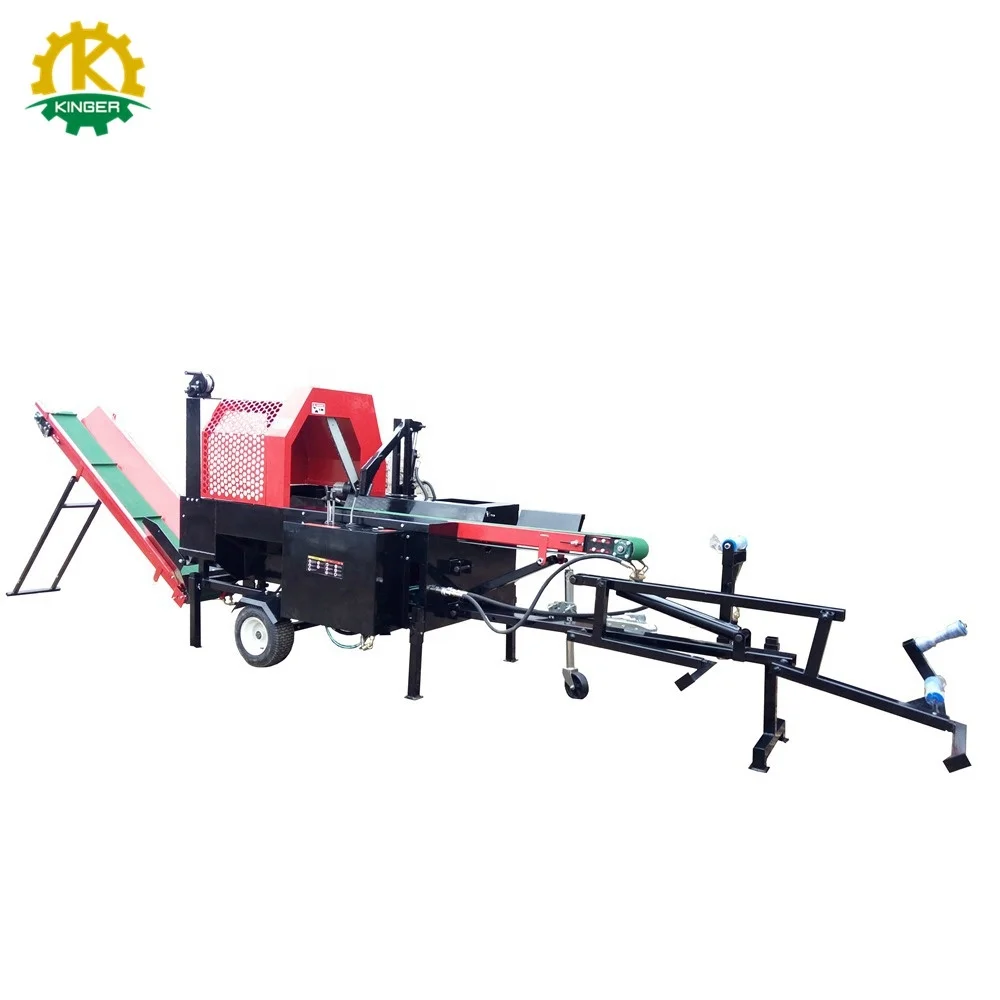

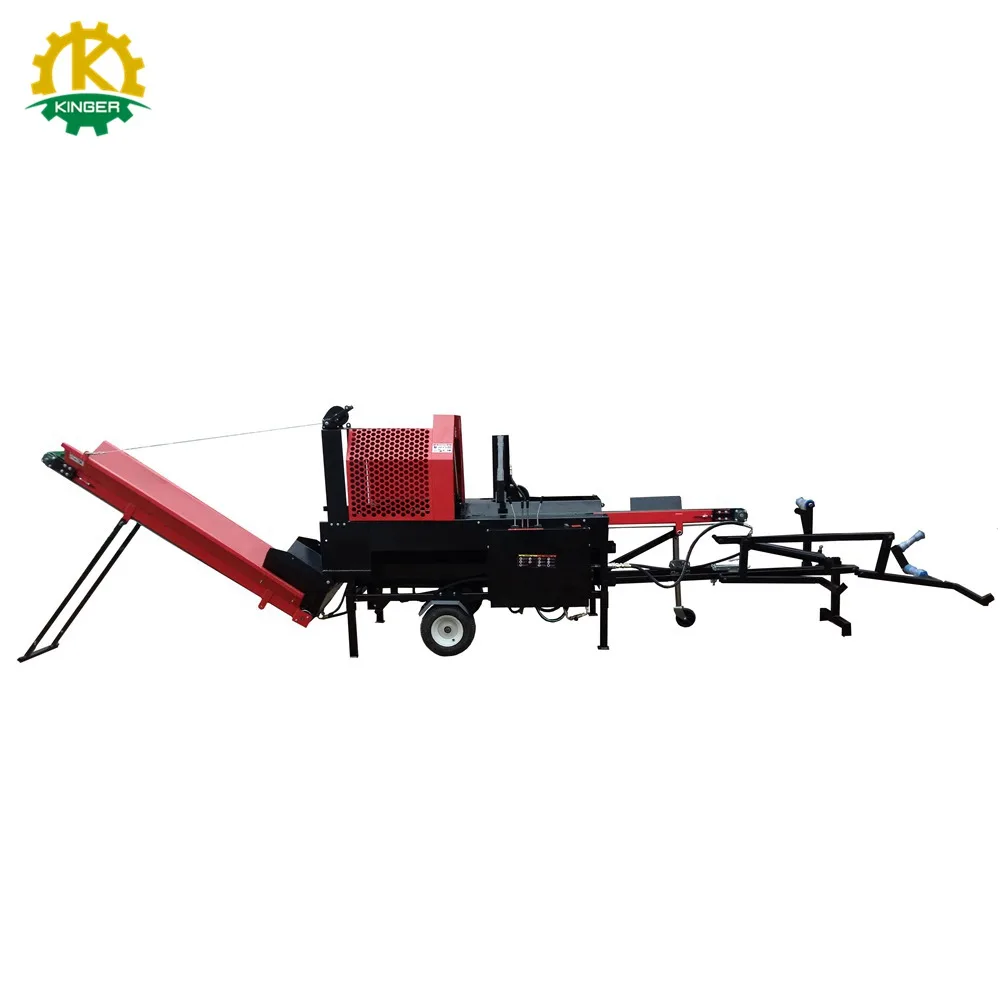

New Design Wood Processor Firewood in Cheap Price

Product Application

* Efficient firewood processor which cuts and splits the firewood in a moment.

* Handles log length up to 61 cm and log diameter up to 50 cm.

* The splitter will automatically start after the log has been sawn off.

* The chain is activated when it is used and stops automatically when not in use.

\t SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
\t Model	\t 350G	\t 500G
\t Max Splitting Force	\t 20ton	\t 30ton
\t Max Splitting Length	\t Standard 610mm	\t Standard 610mm

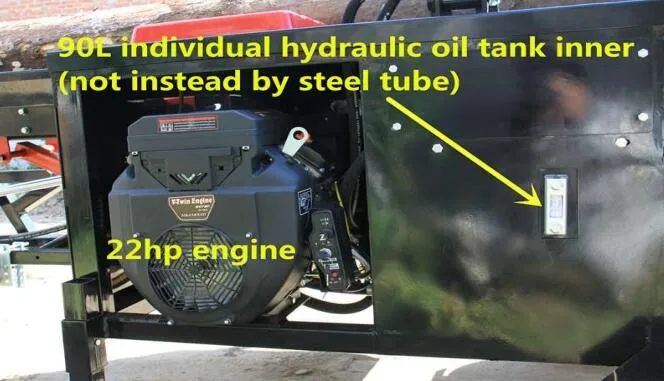

\t Engine	\t 15HP(with electric start) GAS	\t 22HP(with electric start) GAS

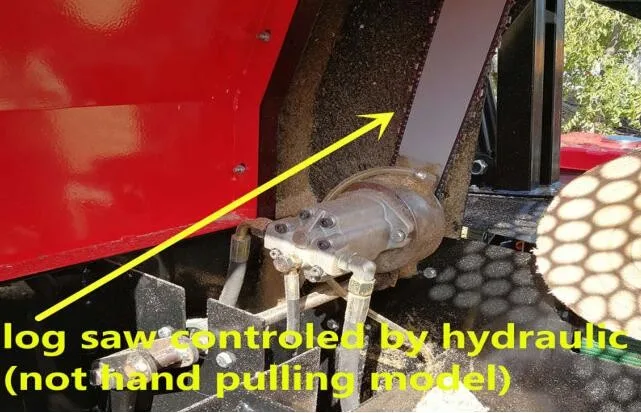

\t Cutting	\t Chain-saw with hydraulic drive	\t Chain-saw with hydraulic drive
\t Chain saw rotate speed	\t 8000rpm	\t 8000rpm
\t Saw chain lubrication	\t Automatic lubrication, adjustable oil size	\t Automatic lubrication, adjustable oil size
\t Sawing down speed	\t Adjustable	\t Adjustable
\t 4-Way Wedge	\t Standard(optional 6way)	\t Standard(optional 6way)
\t Pump flow	\t 22GMP, 2-stage	\t 22GMP, 2-stage
\t Cycle time(sec)	\t 20s	\t 20s

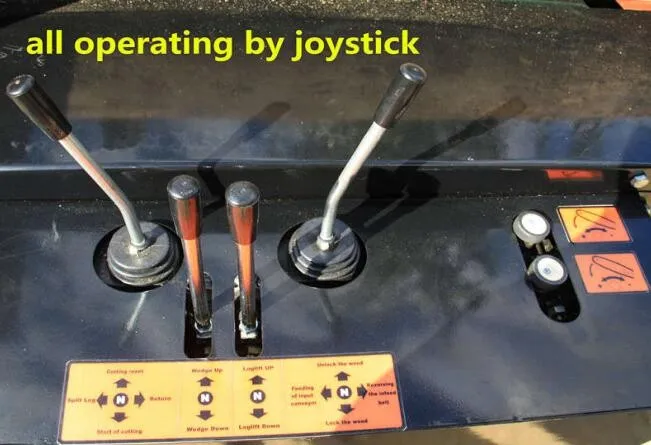

\t Control Valve	\t Two-handle 8-Directional control valve	\t Two-handle 8-Directional control valve

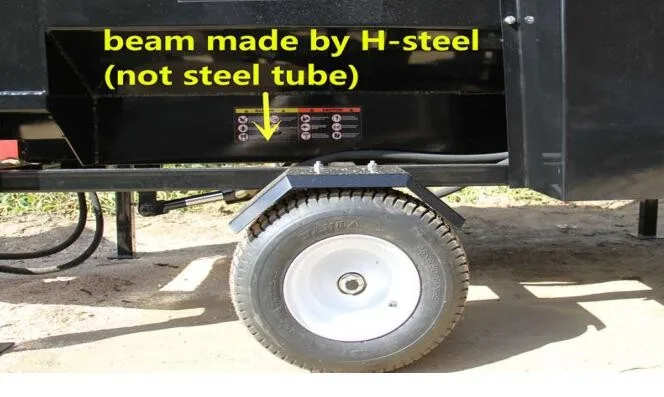

\t Tire	\t 16x6.5-8	\t 16x6.5-8
\t Battery	\t 12V/36A	\t 12V/36A

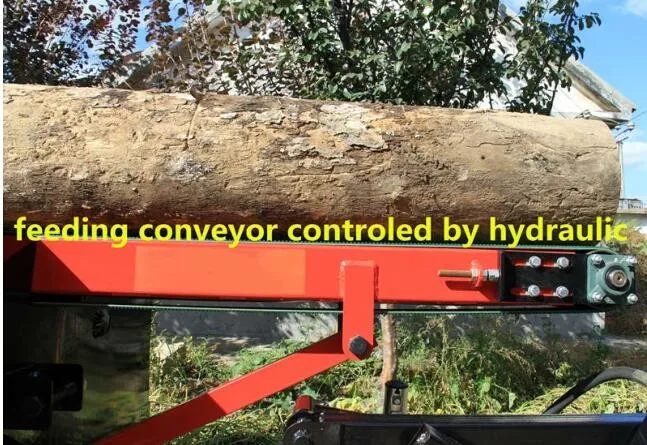

\t Including	\t log feeding conveyor
	\t log discharge conveyor

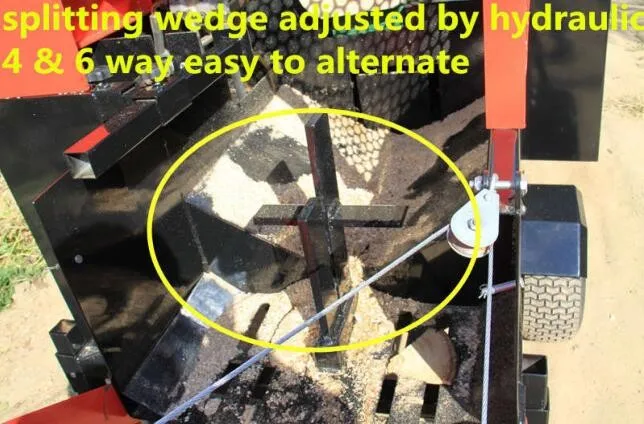

	\t 4 &6 way splitting wedge

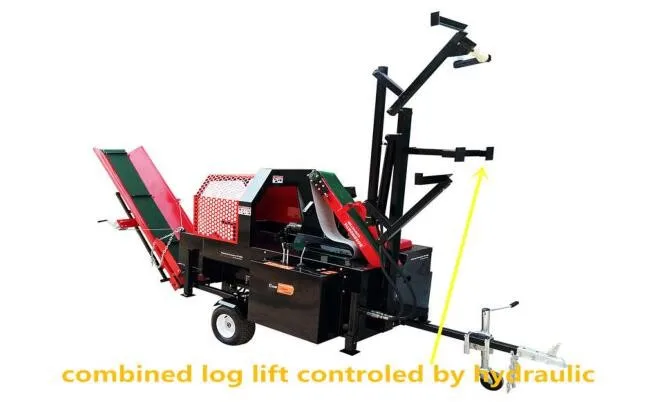

	\t log loading device

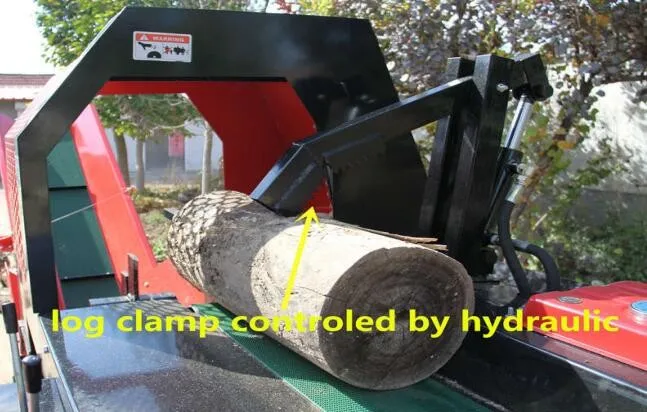

	\t log fixing device (clamp)
	\t height of splitting wedge adjustable
\t Weight	\t 650KG	\t 800KG
\t Package size:	\t 2300x1200x1000mm

Main Features

1) A very efficient and user-friendly log splitter for cutting and splitting the log in one operation.
2) 15HP or 22HP gasoline engine, Lifan, B&S, Loncin, Huasheng brand engine as optional.
3) Splits wood 61cm in length and 35cm-50cm in diameter.
4) A great choice for the home, shop or farmer who needs a compact, rugged as well as the priced machine.

Detailed Images
