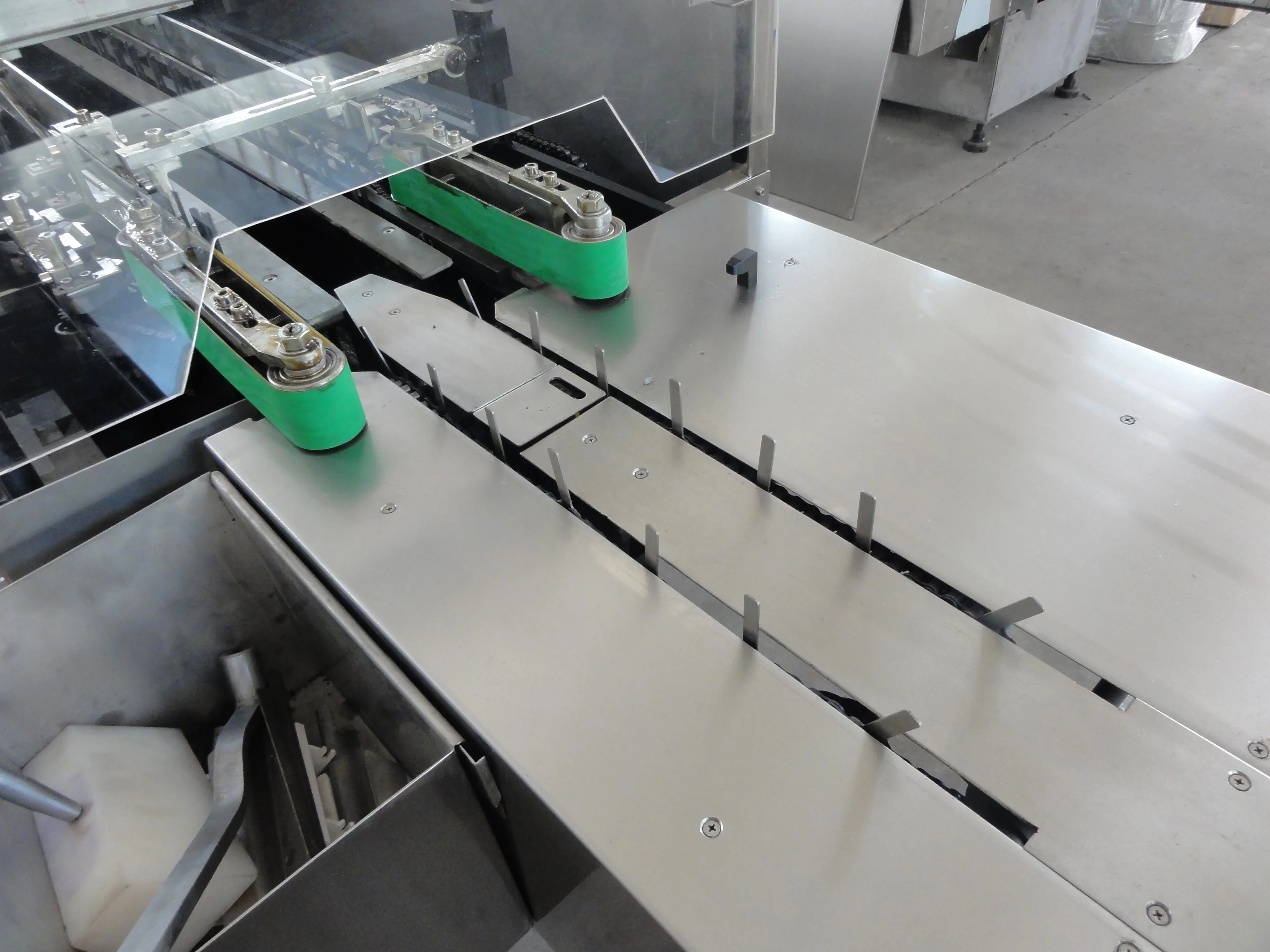

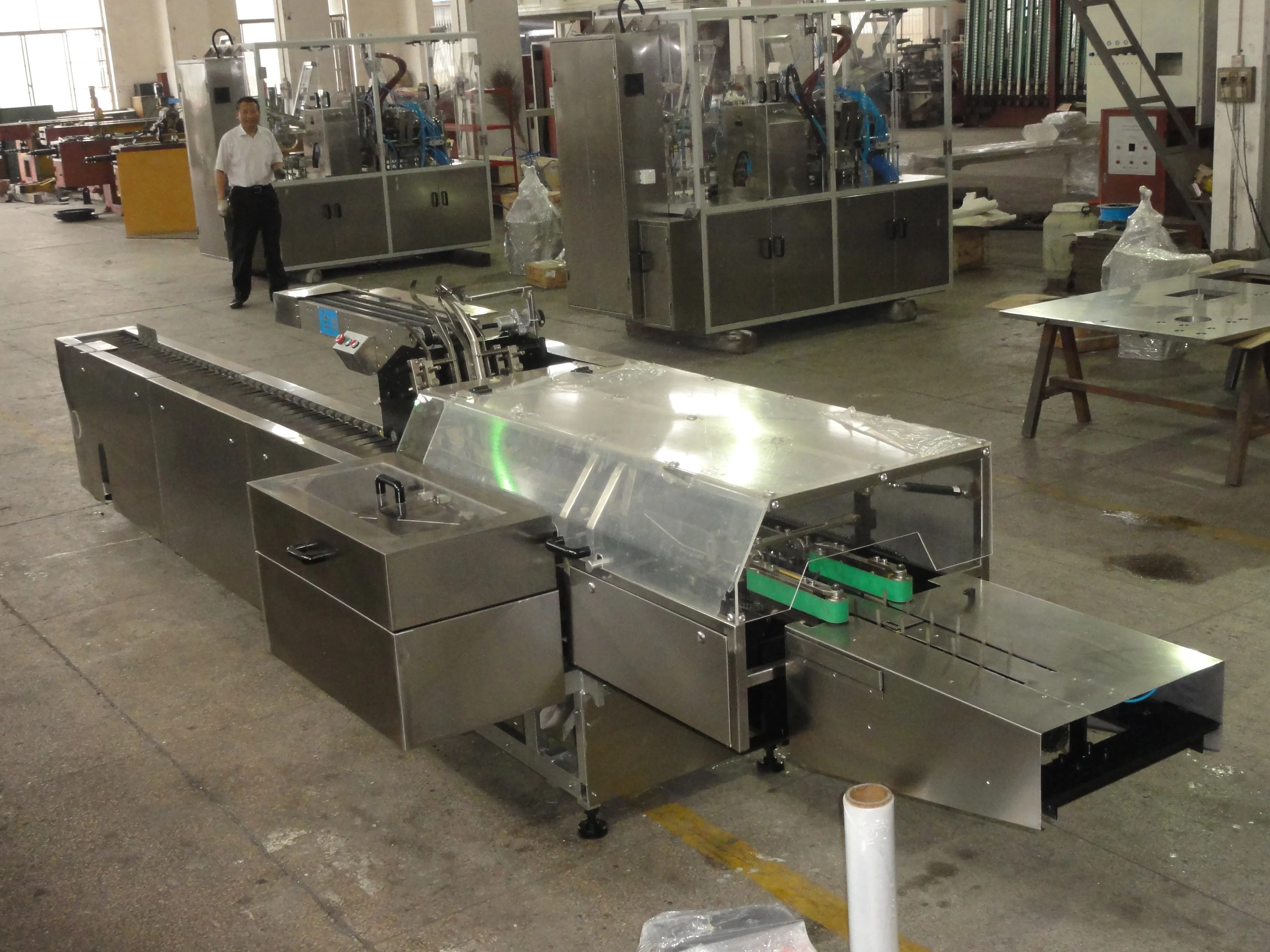

AUTOMATIC BOX PACKING MACHINE FOR TOOTHPASTE IN TOOTHPASTE MAKING LINE

BZ02automatic box packing machine can pack single regular-shaped product into box through a series of mechanical actions and realize automatic packing.

The whole process can be divided into four sections: putting down boxes, opening boxes, filling boxes and closing boxes. Putting down boxes often means that a suction cup absorbs a box that moves down to the boxing line. The guide rail locating device fixes the box. Then the pushing board opens the box while two movable locating devices rise underneath, get the box's sides stuck from the front and back, make the box open at right angles and move into the filling area. After filling, the machine folds the sides of box into the guide rail and closes the cover. Before closing, the machine bends box's side paperboard. Then the push plate pushes the cover to bend, so as to make the paperboard insert into the box and button the lock catch tightly.

The equipment can work alone or form a production line with other machines.

Main Features

A. Big volume container can store many boxes.

B. No boxes, no packing box. Empty box is rejected automatically.

C. The machine applies to different specifications.

D. It has excellent stainless steel shell which is beautiful, clean and convenient.

E. Packing fast.

TECHNICAL DATE
PRODUCT SPECIFICATIONS		110*22*22 -220*50*45 MM
PRODUCT SPEED		≤120 BOXES/MIN
DIMENSION		4700*1100*1400 MM
WEIGHT		1600 KG
INTAKE PRESSURE		4-10 KG/CM2
NUMBER OF STORED BOXES		1000

Certifications

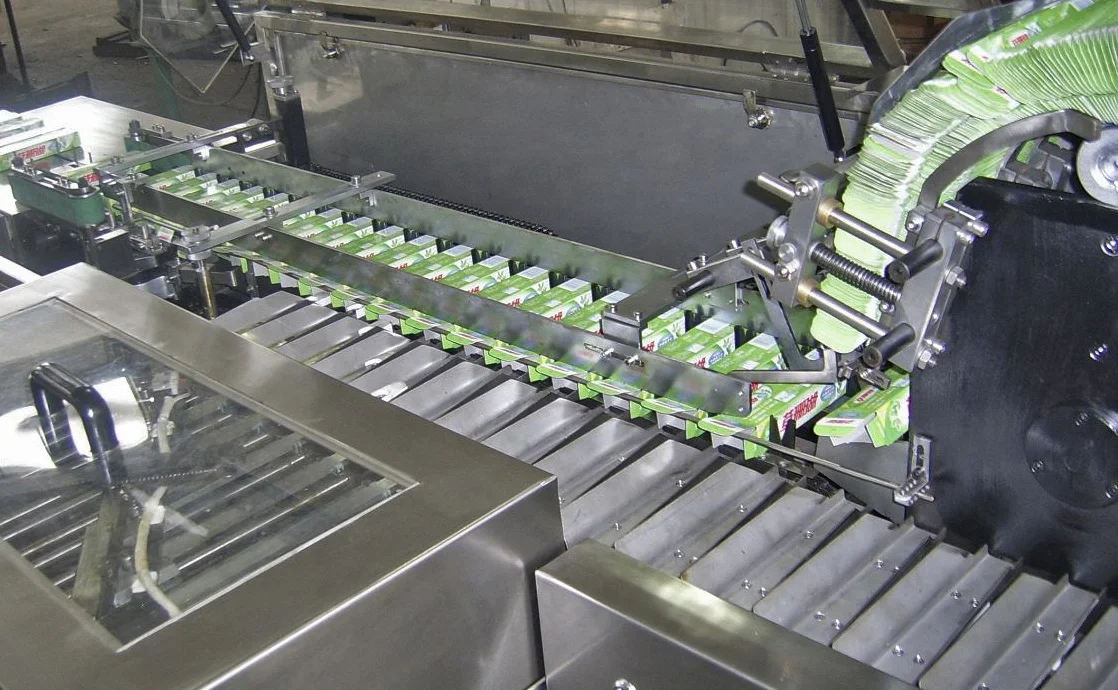

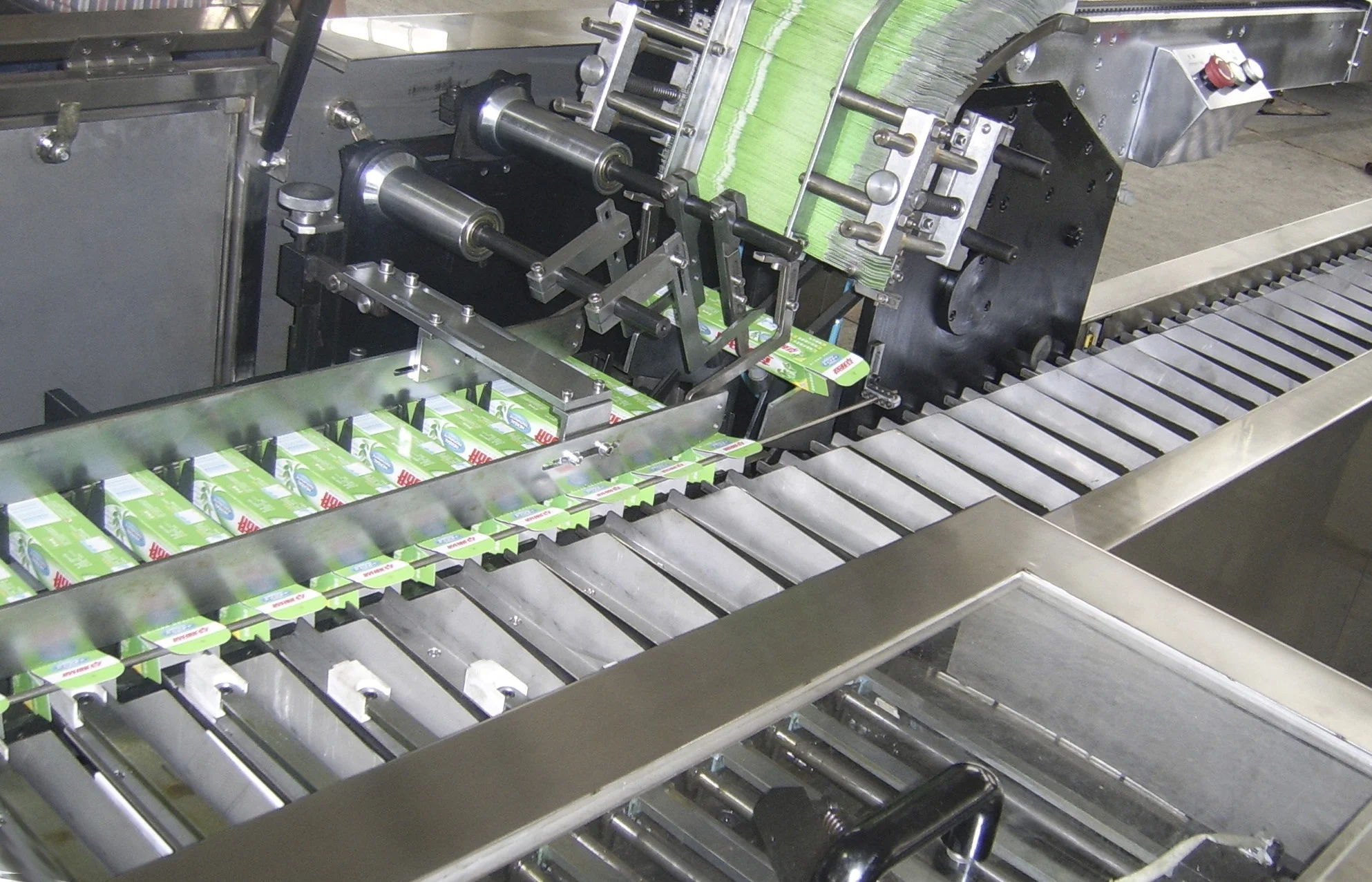

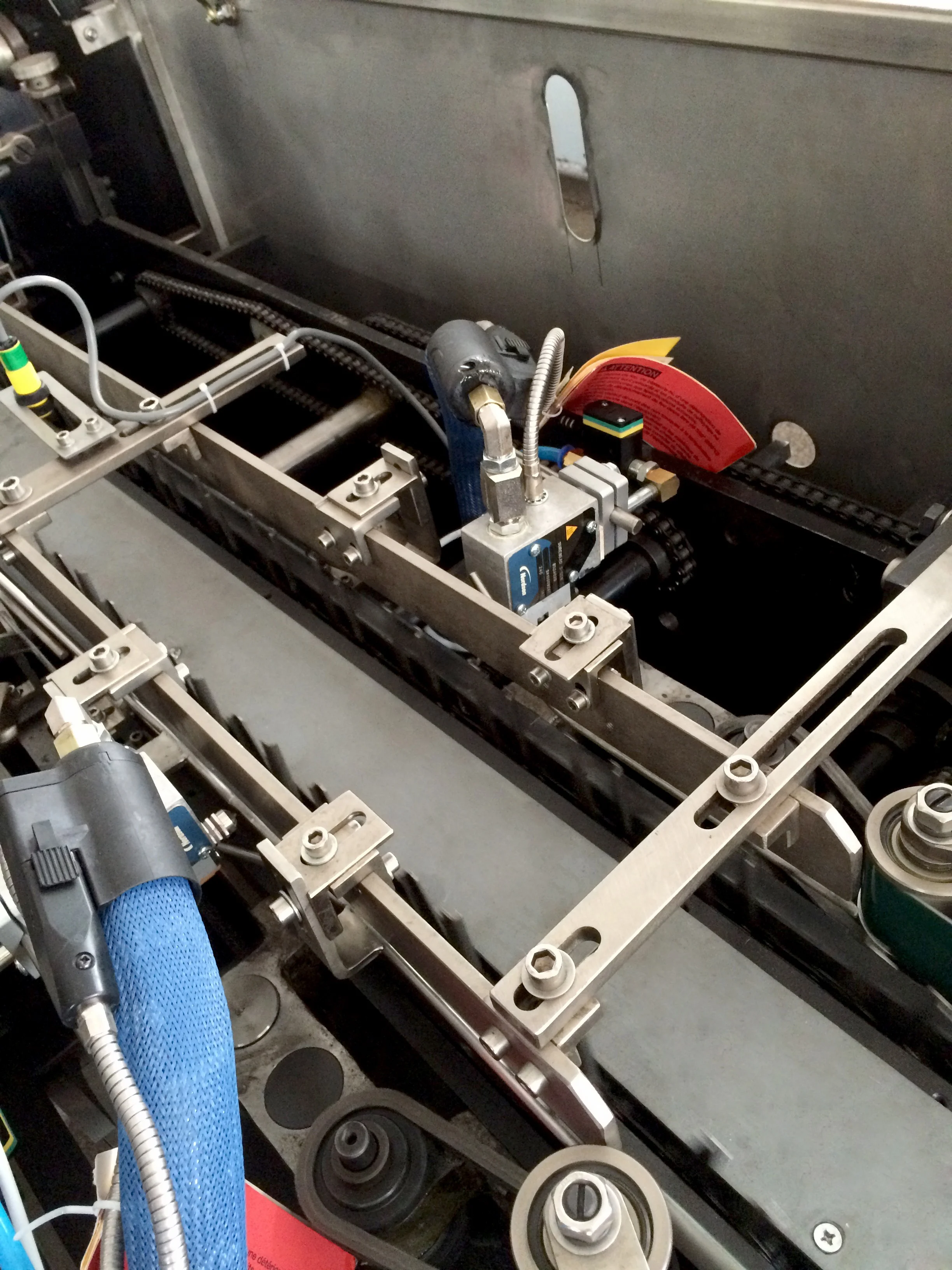

Detailed Images

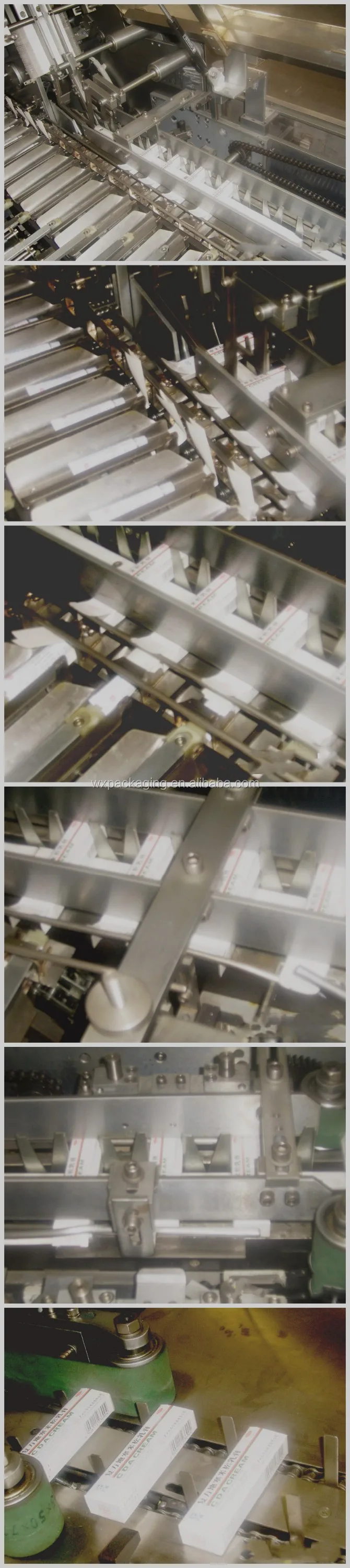

STEP BY STEP PUT THE TOOTHPASTE INTO THE BOX

Our Company

Our Service

Packing & Delivery

FAQ

Q1:WHAT'S YOUR COMPANY'S MAIN P RODUCTS?

A: WE ARE PROFESSINAL PRODUCE THE ALUMINUM CAN MAKING LINE,ALUMINUM TUB EMAKING LINE,TOOTHPASTE LINE,LAMINATED TUBE MAKING LINE AND PLASTIC TUBE MAKING LINE.

Q2:ARE YOU MANUFACTURE OR TRADING COMPANY?

A: BOTH WE ARE.WE HAVE OUR OWM MACHINERY MANUFACTURE.WE ALSO SOLD THE RELATION GOODS OF OUR MACHINE

Q3:WHERE ARE YOU OCATED?IS IT CONVENIENT TO VISIT YOU.

A:WE ARE LOCATED IN WUXI.IT IS NEAR TO SHANGHAI.YOU CAN FLY TO WUXI OR SHANGHAI.WE CAN PICK YOU UP AT THE AIRPORT.WELCOME TO VISIT US.

Q4: HOW CAN YOU GUARANTEE QUALITY?

A:1.WE HAVE COMPLETED WORKING SYSTEM AND PROCEDURES AND WE FOLLOE THEM VERY STRICYLY.

2.WE WILL DO STRICT TEST RUNNING BEFORE THE SHIPPMENT.

3.THE ELECTRICAL PART WITH ALL WORLD FAMOUS BRAND.

4.ALL OF OUR MACHINE WITH CERTIFICATE.

Q5:CAN YOU OFFER OVERSEAS TECHNICAL SUPPORT.

A:YES.WE CAN SEND OUR ENGINEER TO YOUR COMPANY TO SET THE MACHINE AND TRAIN YOUR STAFF.

Related Products

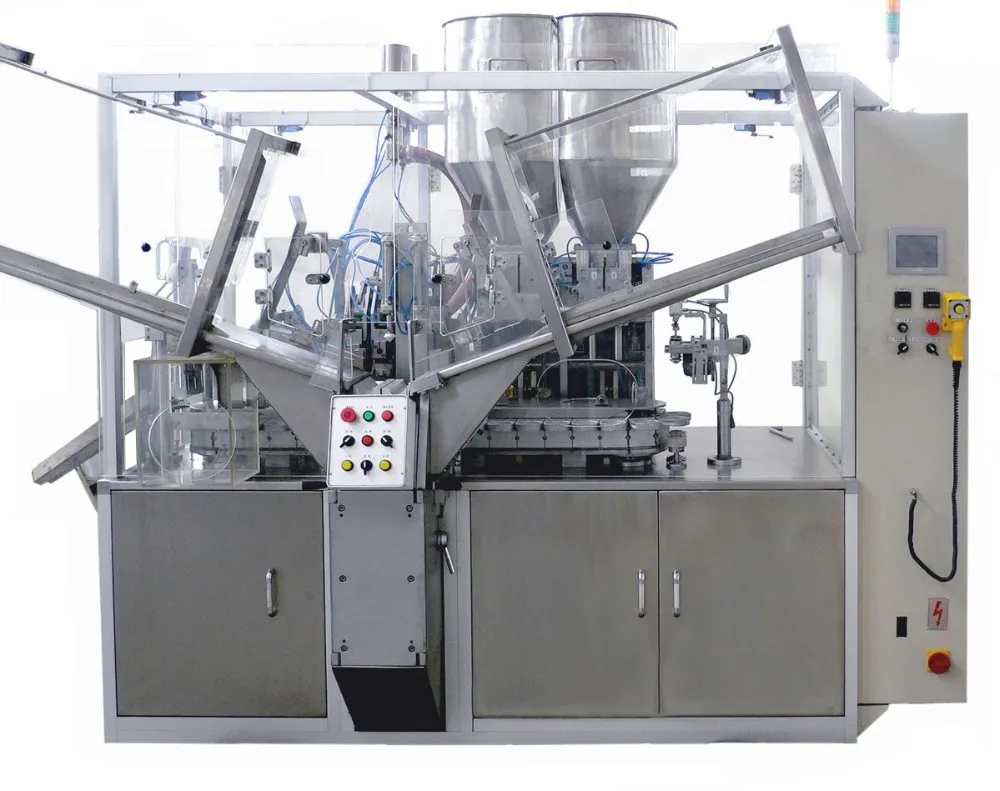

FILLING AND SEALING MACHINE

91.8% Response Rate

PASTE MAKING MACHINE

91.8% Response Rate

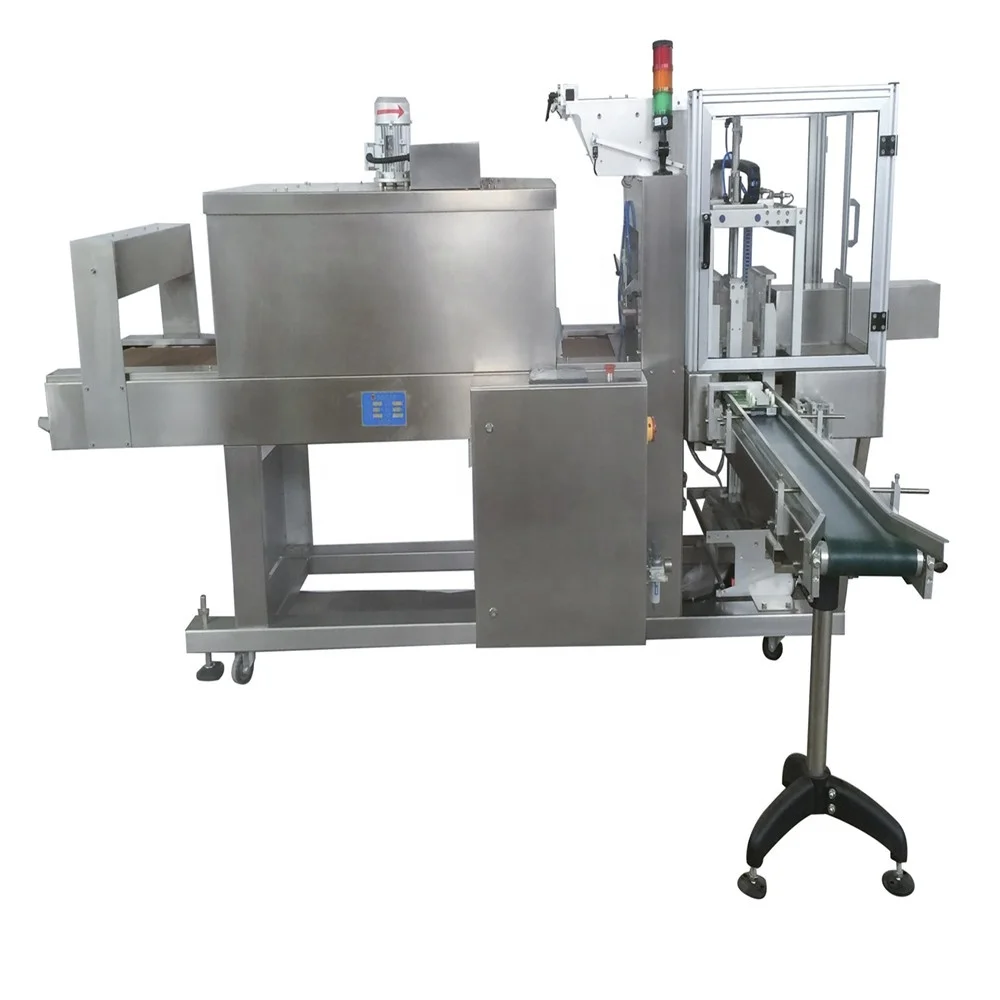

SHRINK FILM PACKING MACHINE
