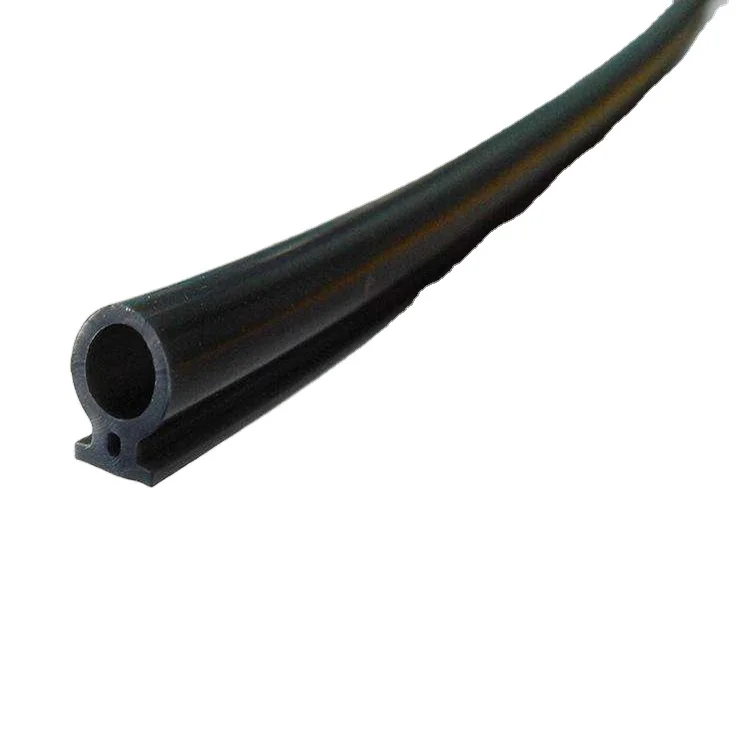

Product name: High quality custom epdm auto door rubber seal strip extruder production line/ rubber seal extruder machine Rubber three-compound extruder production line is mainly produced: steel core rubber seal strip, steel belt compound seal strip, foaming + solid + steel belt rubber seal strip. Other size rubber strip extruder machine we have:
Model
XJ-75
XJ-90
XJ-120
XJ-150
Screw diameter(mm)
75
90
120
150
Draw ratio
20:1
20:1
20:1
20:1
Motor power(kw)
30
55
110
132
Screw speed(r/min)
30-65
30-60
30-50
30-50
Output(kg/h)
80-180
100-300
180-540
500-750
Detailed Images

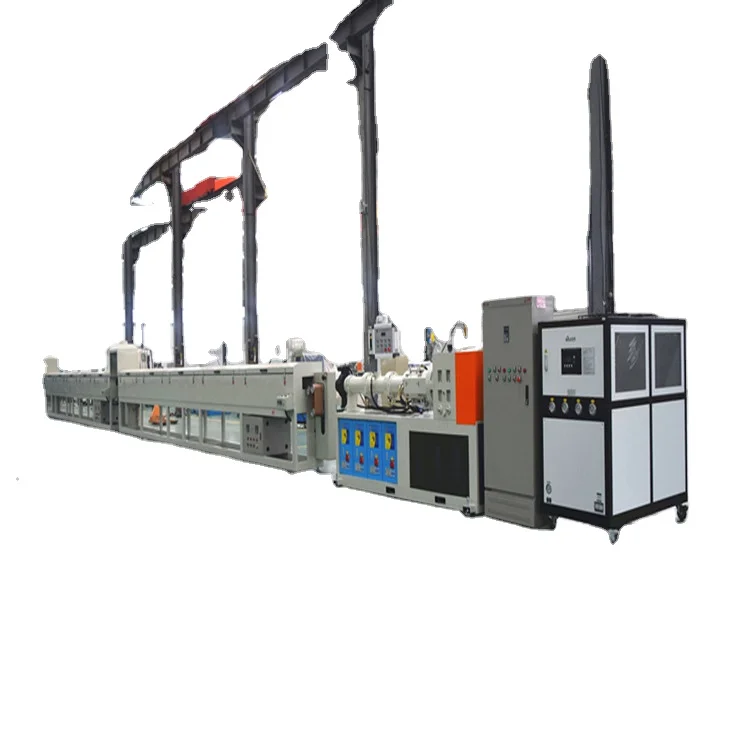

About the line: Working flow: Steel plate-steel belt storage rack-90&75 compound rubber extruder (three composite head)-chiller（10P）-30m vulcanization box-3m stainless steel stink aluminum wheel with traction function -holing machine-steel breaking machine-forming machine- winder(plate)
1. Steel plate
Steel plate, the application of the steel reel is to store the steel belt forward to supply the storage rack, the steel plate has two connected discs for uninterrupted forward transmitting.
2.Storage rack
2.Storage rack Steel plate, the application of the steel reel is to store the steel belt forward to supply the storage rack, the steel plate has two connected discs for uninterrupted forward transmitting.

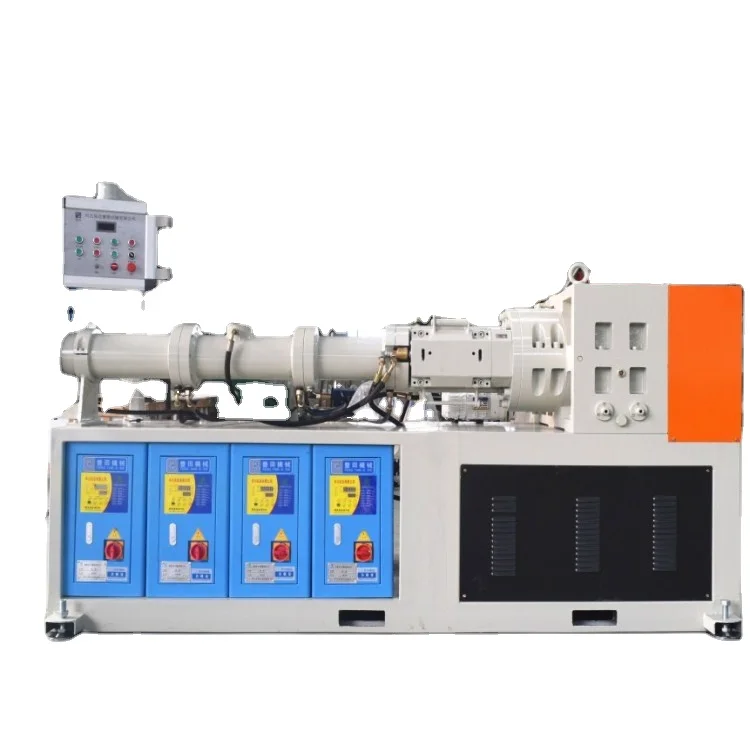

1. 90&75 extruded machine
Through the storage rack the steel belt will pass through the middle of the 90&75 compound rubber extruder to form a rubber three composite product. Why we called rubber three composite product, that is actually a rubber sealing strip composed of three materials. Usually: solid EPDM, EPDM rubber foam and steel belt. So here we will use rubber three composite head.
1. 30 meters of vulcanization box
After extruded the rubber product, will go into the 30 meters of vulcanization box, the extruded product is shaped and vulcanized to change the raw rubber into mature rubber to maintain the performance of the rubber. The temperature of the vulcanization box and conveyor speeds can be adjustable according to different requirements. Continuous operation is convenient.
1.three-meter stainless steel aluminum wheel sink with traction
vulcanization box the transmitted product needs to be cooled. The three-meter stainless steel aluminum wheel sink with traction not only has the effect of cooling and shaping the product, but also have the direction guiding and traction functions. In addition, the sink is equipped with four aluminum wheels, which gives enough power to pull rubber products with hard materials such as steel strips.
1. Steel Belt broken machine
After the hole of the product is finished, it needs to pass through the broken belt machine. The hardness of the steel strip is still relatively large after the previous process, and the steel strip cannot be bent. In order to increase the flexibility of the steel strip, we need to go through the broken belt machine to make the steel strip. broken into a section to make the steel strip bend.
1. Holing machine
Three composite sealing strips Products for auto need to be made a hole at the corresponding location of the product for venting. so the three composite sealing strips need to pass through the holing machine after passing through the water tank, and the holing position of the punching machine can be adjusted.
1. Steel Belt broken machine
After the hole of the product is finished, it needs to pass through the broken belt machine. The hardness of the steel strip is still relatively large after the previous process, and the steel strip cannot be bent. In order to increase the flexibility of the steel strip, we need to go through the broken belt machine to make the steel strip. broken into a section to make the steel strip bend.
Related Products
Configuration: Vent type extruder+30 m vulcanization box+3m stainless tank with traction function+winding machine (recommend 5p chiller) Application: It is suitable for extruding various kinds of rubber such as EPMD, NR, NBR, IIR AND Recycled rubber, used for building doors and windows sealing strip, automobile sealing composite strip, single extrusion production and construction, electrical appliances, machinery, water conservancy and other sheet, strip, tubular, plate shapes and density of foamed rubber products production. Rubber foam:
2 extruder+ co-extruded die head+30 vulcanization box+3m stainless tank with traction function+winding machine(recommend 10p chiller)
Title goes here.
Pay off for steel+steel storage shelf+three co-extruded die head+30 vulcanization box+3m stainless tank with traction function+holing machine+belt breaking machine+forming machine with traction function+winding machine
