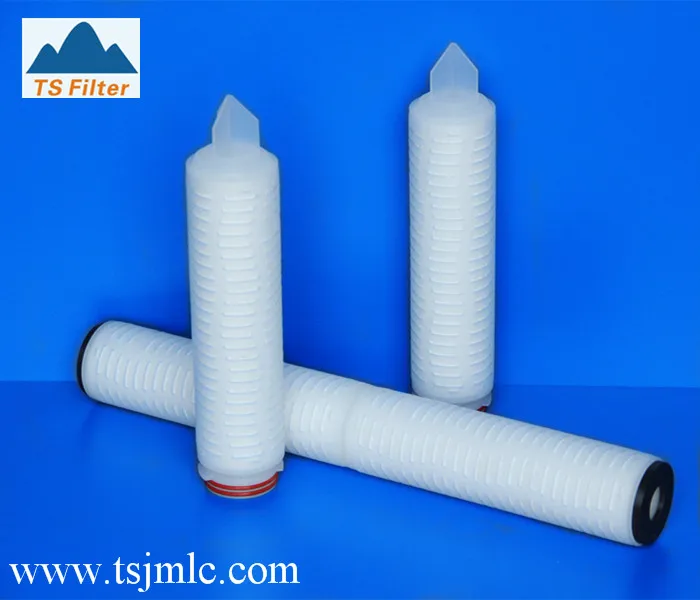

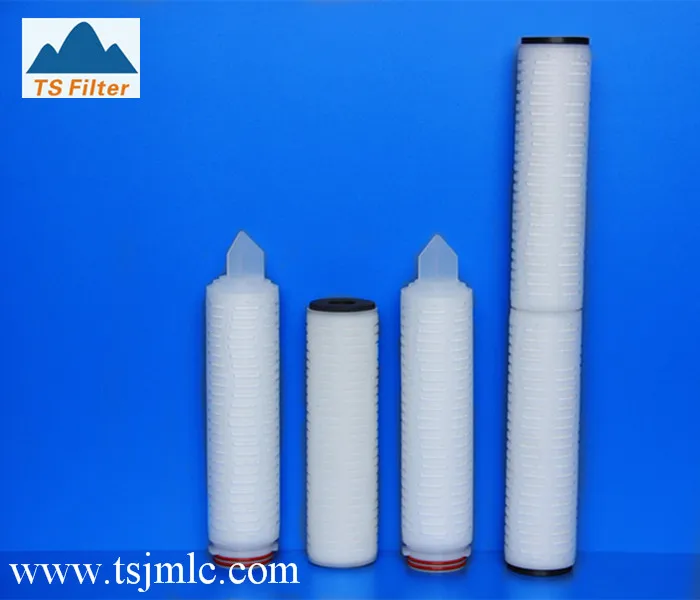

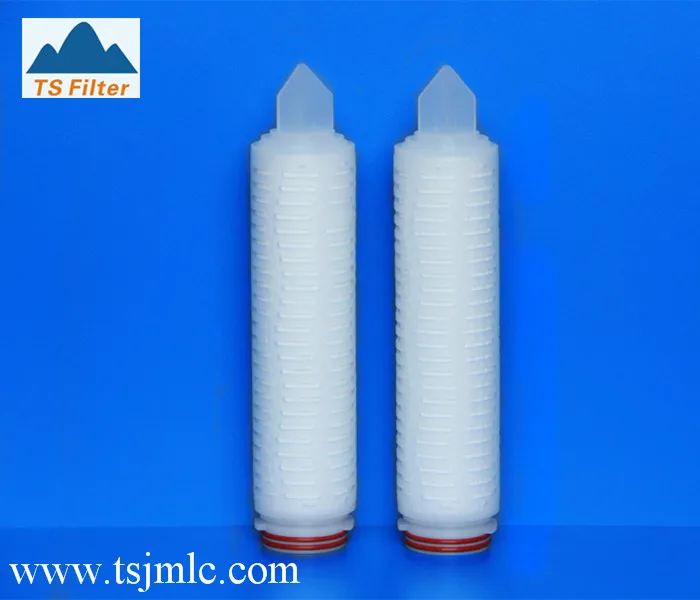

0.65 um Glass Microfiber Membrane Filter Beer Clarification
Product Description
These filters are made of super fine glass fiber media, which has the inherently adsorptive characteristic to enhance the filter retention capability, good choice for prefiltration/clarification and protection of fine filters in various applications.
Features and Benefits
1. Combination of highly adsorptive and mechanical retention for effective clarification;
2. High dirt holding capacity and excellent flow performance;
3. Suitable for the removal of colloids, lipids, protein aggregates and particles;
4. Glass Fiber or PP prefilter layer is available for higher dirt holding capacity and longer service life;
5. Good oil resistance, wide chemical compatibility;
6. Economical and ideal choice for protection of final membrane filters;
Specifications
Materials Of Construction
Filter Media:
Glass Microfiber(GF)
Support Layers:
Polypropylene
Micron Rating:
0.2, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 20 um
Inner Core:
Polypropylene
Outer Cage, End caps:
Polypropylene
Seal Method:
Thermal Bonded, No Adhesives
O-rings/gaskets:
Silicone, Nitrile, EPDM, etc
Filtration Efficiency
≥90%
Cartridge Dimensions
Outer Diameter
69mm(2.75'')
Inner Diameter
33mm(1.30'')
Length(based on DOE end caps)
10, 20, 30, 40 Inch
Filtration Area(m2)
0.4 m2 per 10''
Operating Conditions
Normal Operating Temperature:
Up to 60℃ (140℉)
Max.Operating Temperature:
85℃ (185℉) at P≤1.0 bar (14.5 psi)
Max. Differential Pressure
Normal Flow Direction:
4.2 bar (60.9 psi) at 25℃ (77℉)
Reverse Flow Direction:
2.1 bar (30.5 psi) at 25℃ (77℉).
PH Value Compatibility:
1-13
Sterilization:
In-line steam sterilization is Not recommended, Flush with hot water at 82℃(180℉) for 30 minutes

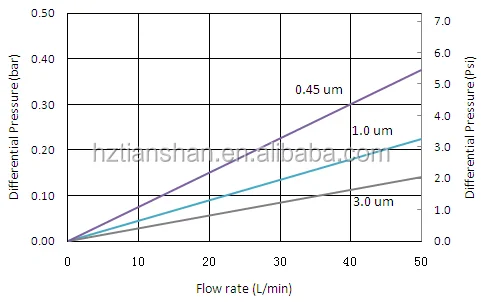

Typical water flow rate @ 25 ℃ (10")
