TJZ 1 Load cells tension wire rope
- Category: Sensors >>>
- Supplier: Anhui Tianguang Sensor Co. Ltd.
Share on (62204095978):
Product Overview
Description
Product Description
1. Rated Tension Force Range: 10kN, 20kN, 40-60kN, 100-140kN,200kN
2. Cable length: 6m
3. OEM: Acceptable
4. Certification: ISO9001
5.Packing: See the details
Parameters
Product Name | Wire rope tension force load cell (100-140kN) |
Diameter of wire rope | φ24~φ36 |
Accuracy | 0.3%FS |
Sensitivity | 1.0~1.5mV/V |
Non-linearity | 0.1% |
Relative creep over 30 min | 0.05% |
Temp. influence on sensitivity | 0.05%FS/10℃ |
Temp. influence on the zero signal | 0.05%FS/10℃ |
Zero output | ±1.0%FS |
Input resistance | 750±15Ω |
Output resistance | 700 ± 5Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Nominal (rated) temperature range | -10~+45℃ |
Reference temperature | 23℃ |
Reference excitation voltage | 10V DC |
Limit force | 150% |
Breaking force | >300% |
Material | Alloy Steel or Stainless Steel |
level of protection | IP66 |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
Mass | 5.2kg |

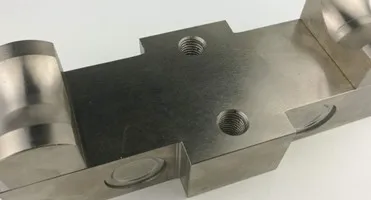

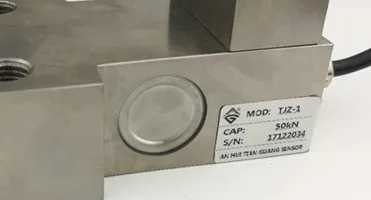

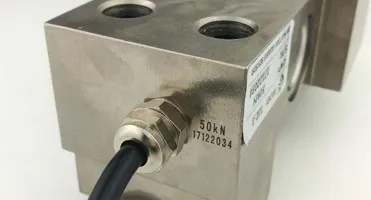

Products Show
Features
1. High accuracy
2. Stable performance
3. Suitable for wire rope tension force measurements.

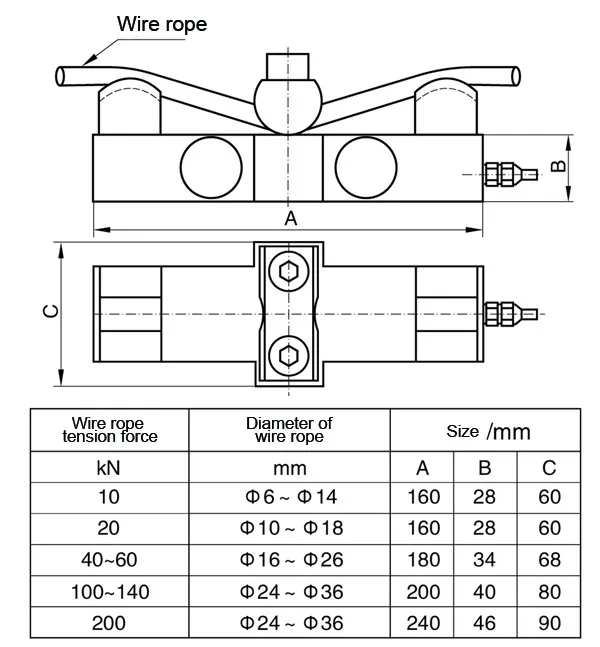

Dimension drawing
Application
Related Products
Wireless transceiver module
Load cell transmitter
Weighing indicator

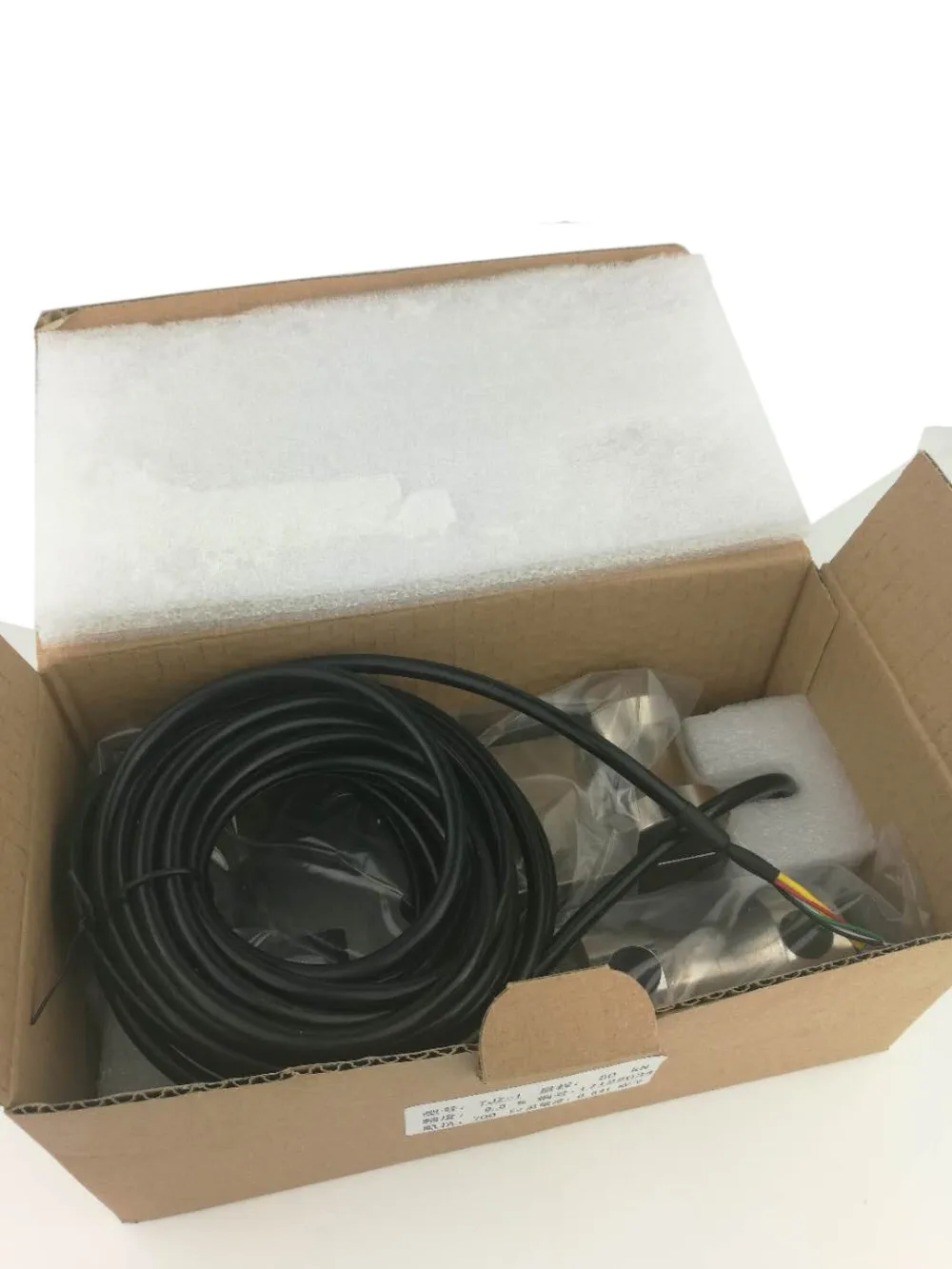

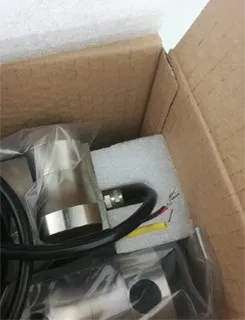

Packing & Delivery
Packing Details : Standard export packaging,carton box,PE cotton
Delivery Details : 5-30 days after payment
Process Flowchart
Our Company
Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million. Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 20 years Skylight constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.
Factory
Workshop
Warehouse
Team
Equipment
Office
Certifications and enterprise honor
Our Service
Free consult support
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
Customization
Provide OEM service, most products are customizable (please consult with us for details).
After sale service
One year warranty since product shipped out. Fully technical support for application.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
