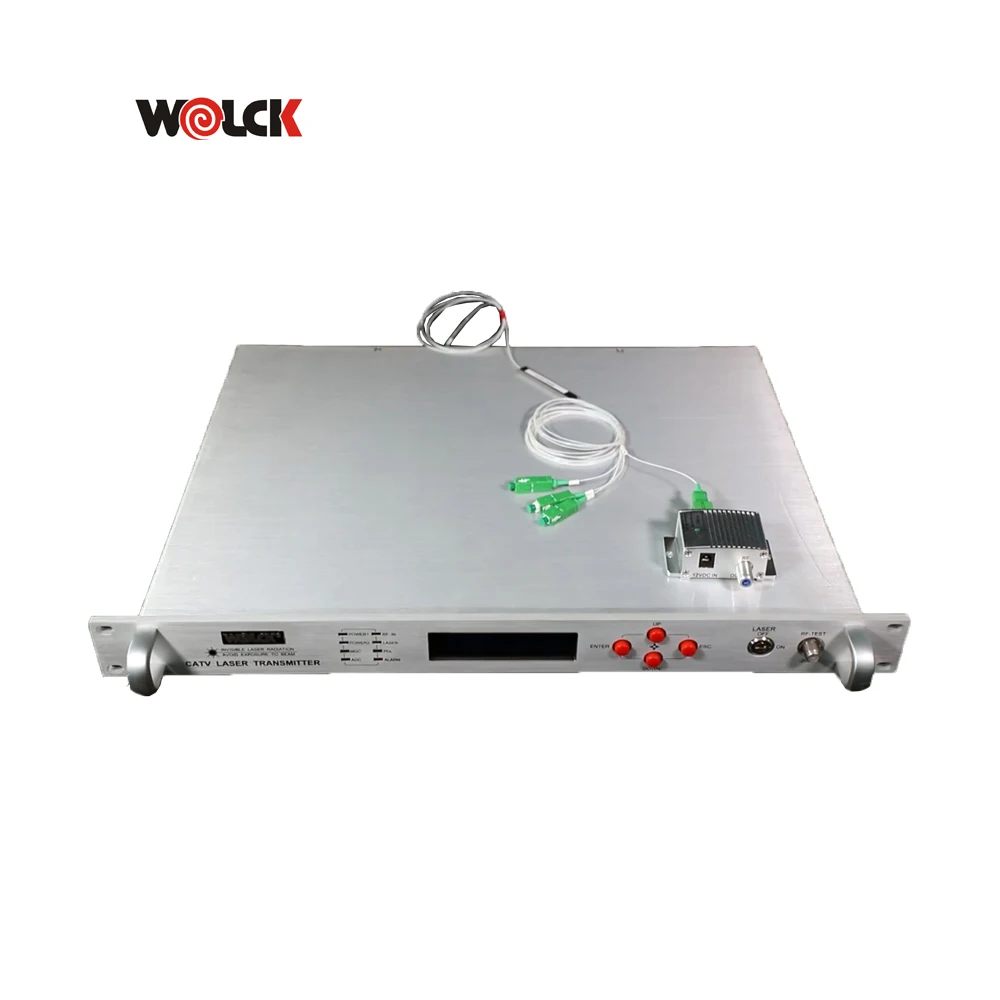

Factory price direct transmitter 10mw mini optical transmitter
- Category: Radio & TV Accessories >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (62204625866):
Product Overview
Description
1550nm Optical transmitter internal modulation
(1) RF-input point and power supply with lighting proof(2) RF input level: 75dB~85dB.
(3) With AGC/MGC function, on-line RF control.
(4) Pre-distortion circuit makes excellent non-linear index.
(5) ATC/APC circuit ensure stability of every index.

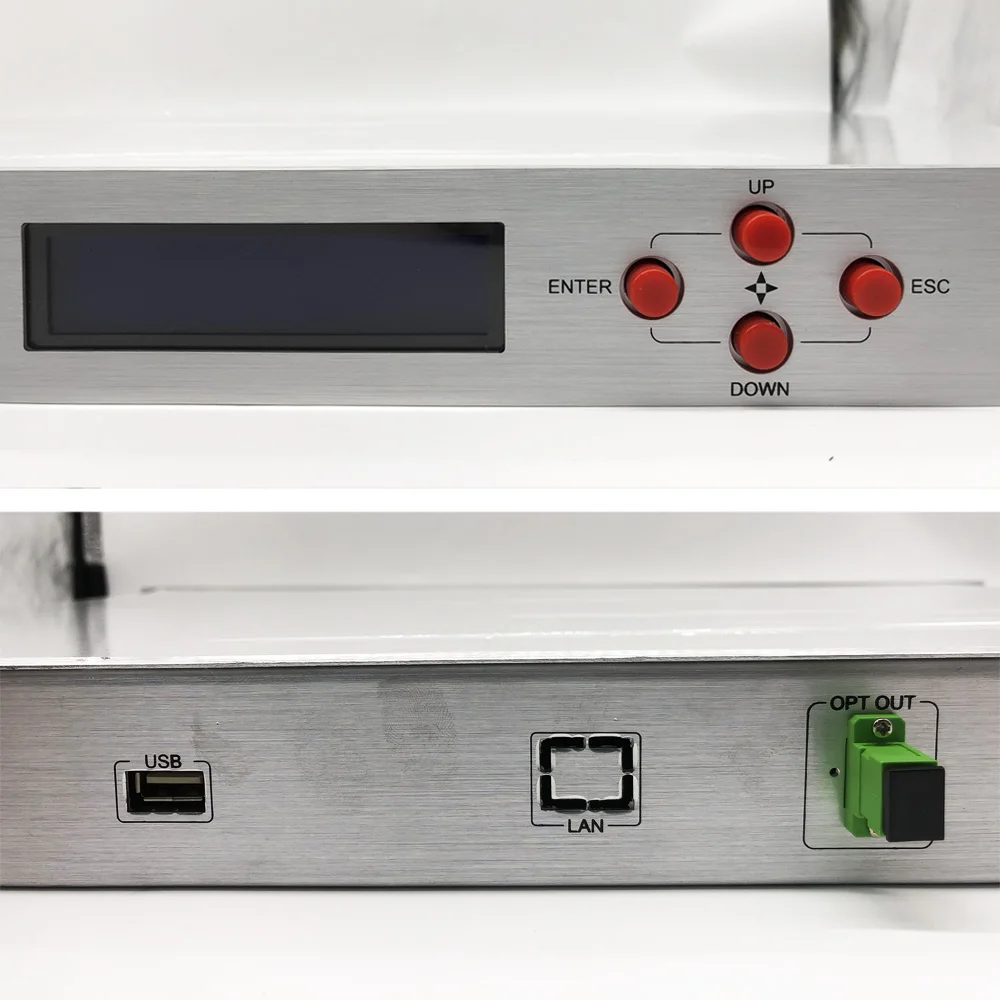

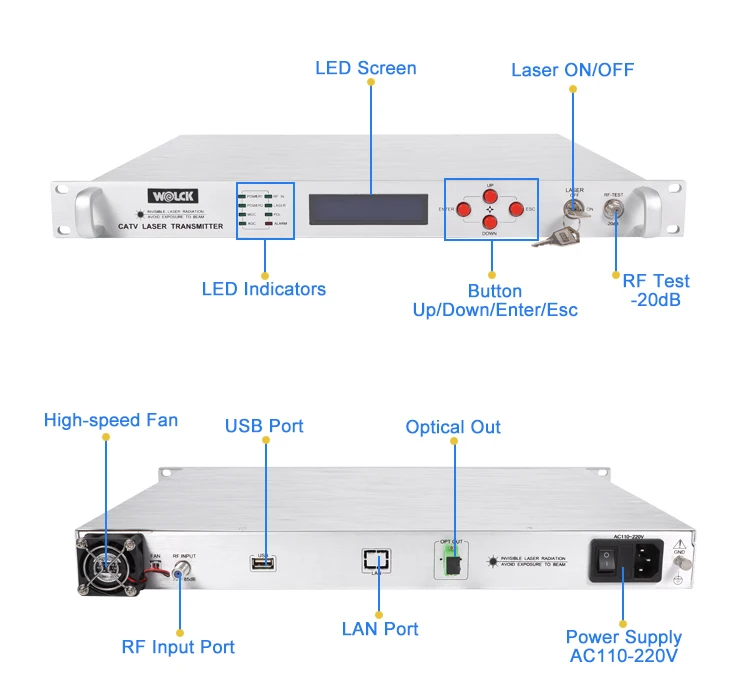

(6) CPU status control, VFD display, user can test every work Parameters at any time.
●Matched with high optical amplifier
●World famous brand DFB laser,with narrowspectral line,good linearity
●RJ45 Interface,for WEB management
●45-1000Mhz operating bandwidth

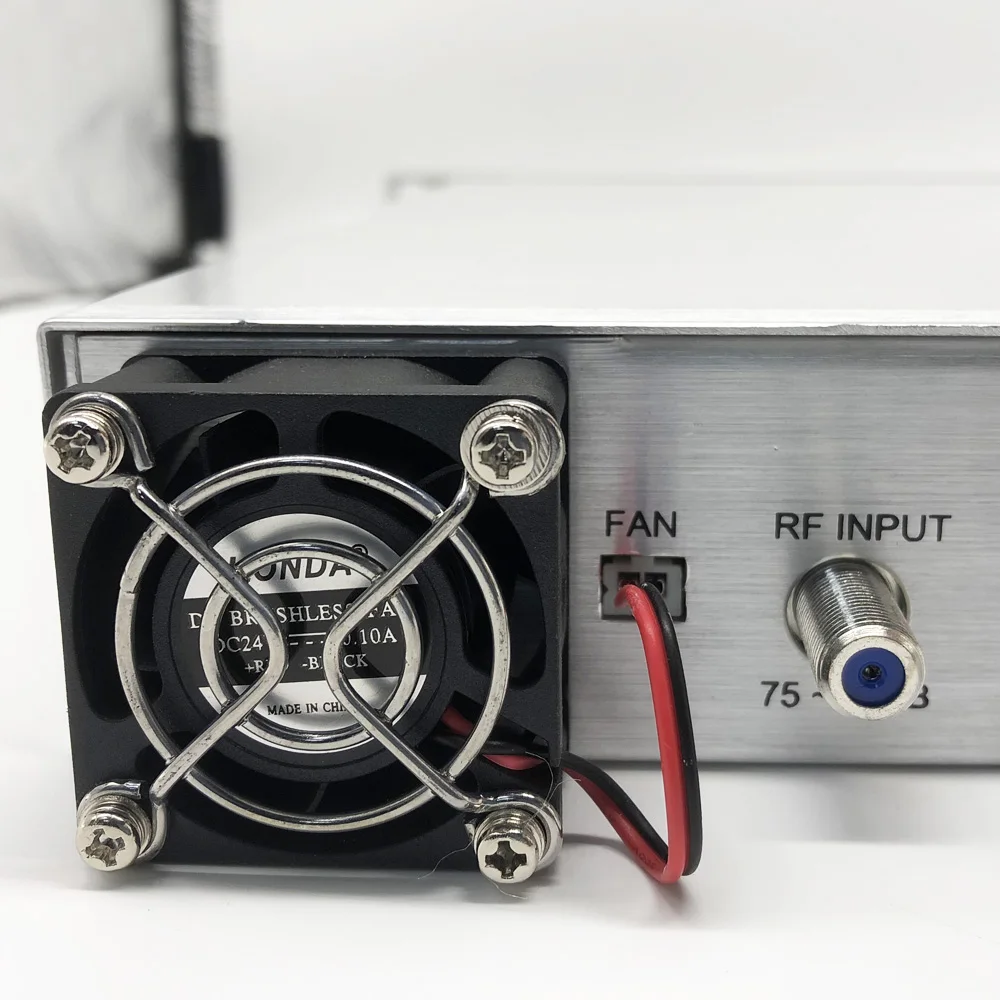

●RF input
●Optical output 1 port 10dbm
●Optical output port:FC/APC or SC/APC for optional
●World famous brand DFB laser,with narrowspectral line,good linearity
●RJ45 Interface,for WEB management
●45-1000Mhz operating bandwidth
●RF input
●Optical output 1 port 10dbm
●Optical output port:FC/APC or SC/APC for optional
ITEM | UNIT | PARAMETER | |||||
Wavelength | nm | 1550±5 | |||||
Output power | dBm | 2～10 | |||||
Optical return losee | dB | ≥60 | |||||
Bandwidth | MHz | 47～865/1000 | |||||
Input level | dBuV | 75～85 | |||||
Flatness | dB | ±0.75 | |||||
Input inpedance | Ω | 75 | |||||
RF return losee | dB | ＞16 | |||||
CNR | dB | ≥51 | |||||
CSO | dB | ≥60 | |||||
CTB | dB | ≥65 | |||||
Power | V | 90～265AC | |||||
Working temp | ℃ | 0～50 | |||||
Storage temp | ℃ | -20～85 | |||||
Max Distance | KM | 20 | |||||
Packaging | 1pcs in one carton,carton size: 62*56*15cm, G.W:10KG | ||||||

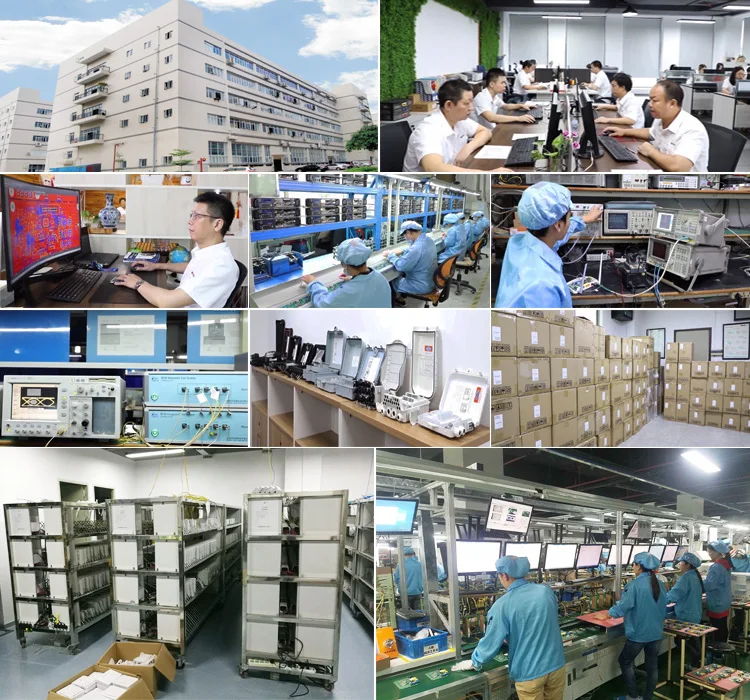

Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
