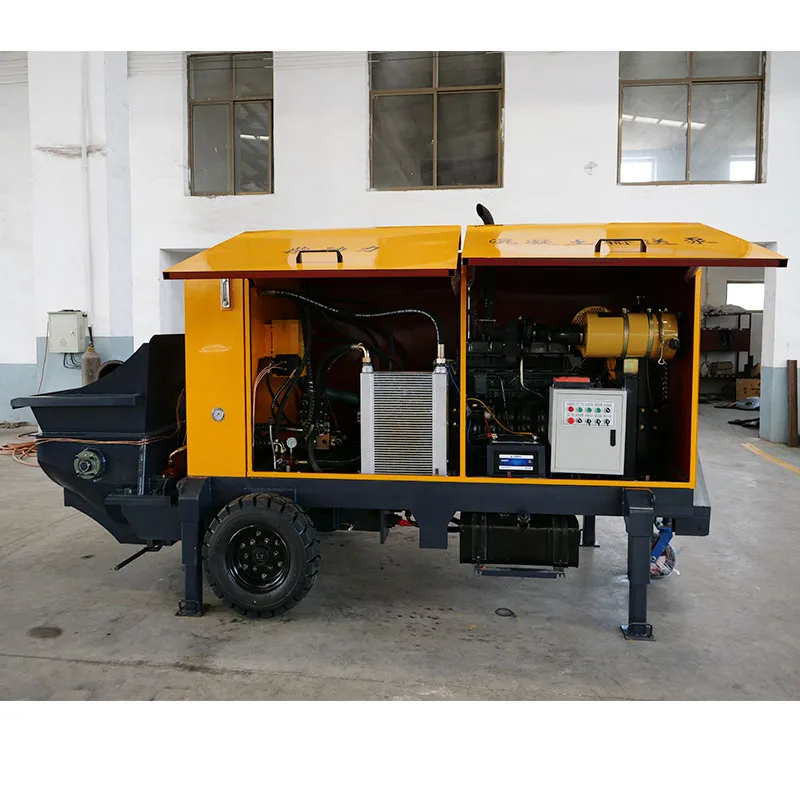

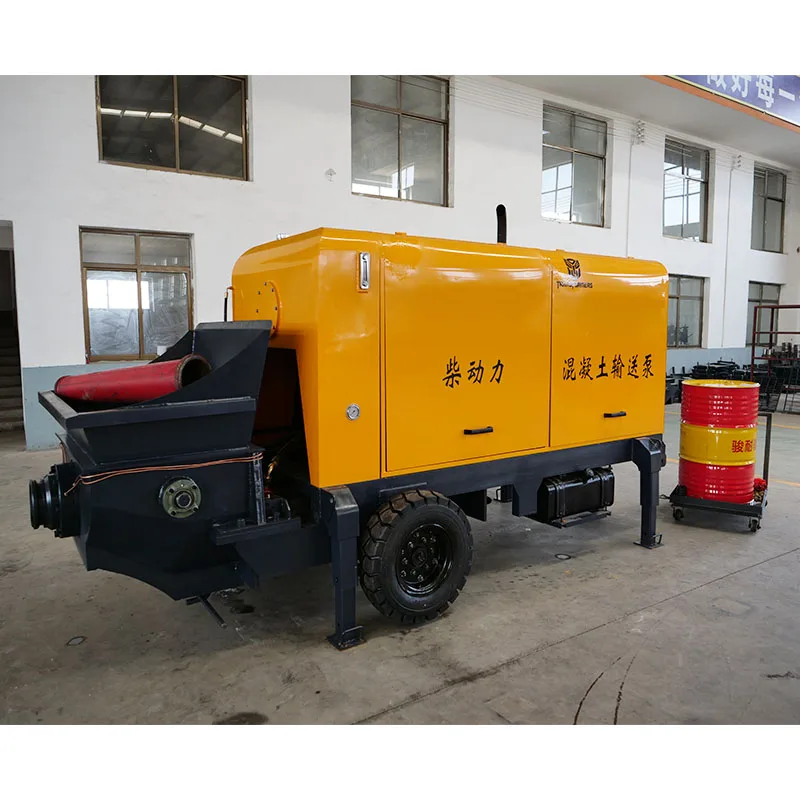

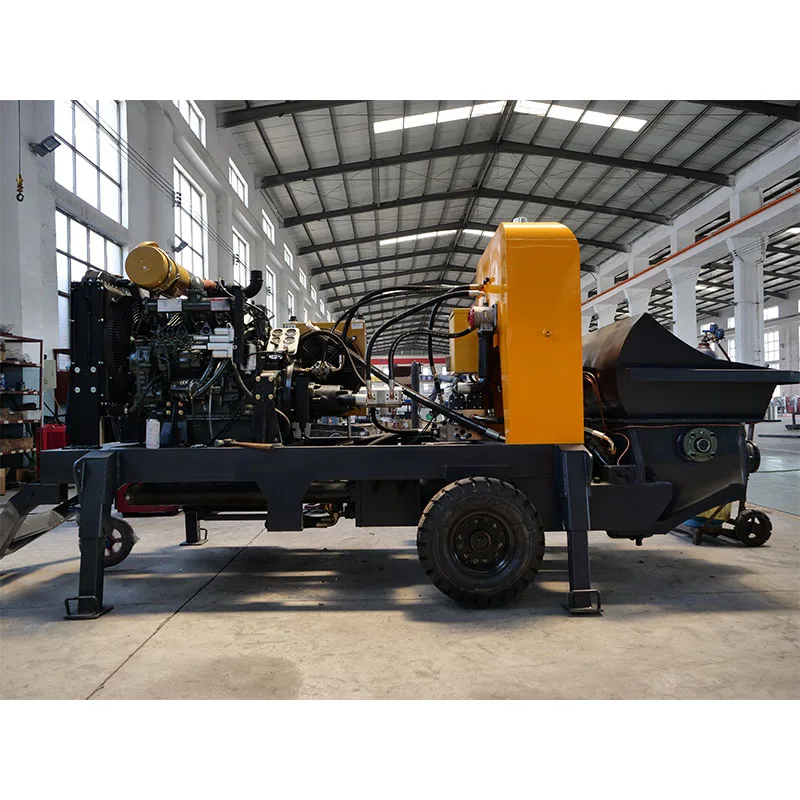

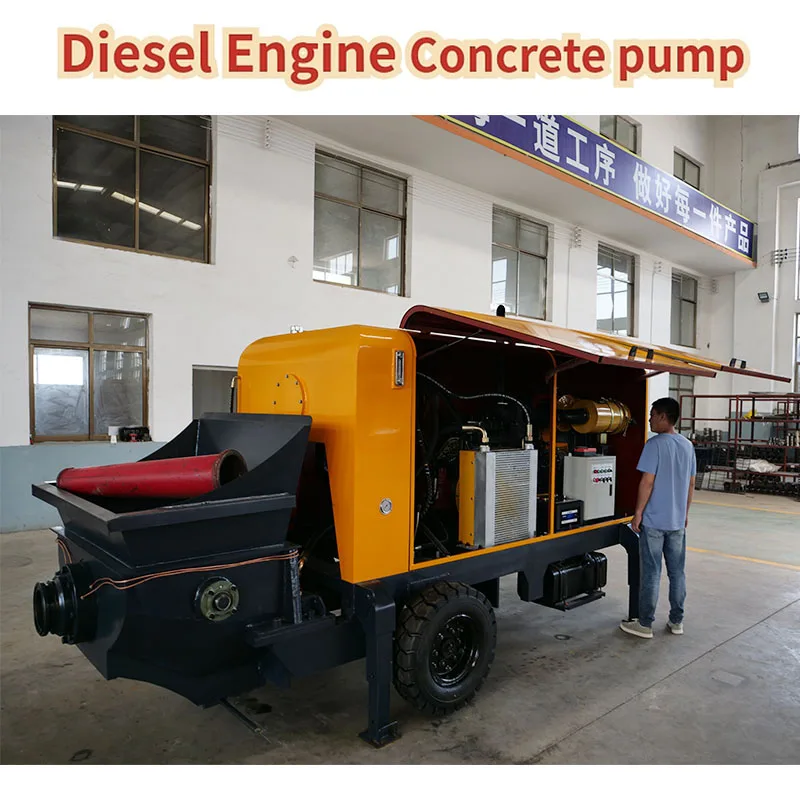

40m3/h Diesel hydraulic trailer concrete transportation pump for sale
- Category: Concrete Pumps >>>
- Supplier: Xingtai Bailun Machinery Manufactor Co. Ltd.
Share on (62206039742):
Product Overview
Description
Diesel hydraulic trailer concrete pump machine equippment
SPEC. DETAILS
| No. | ITEM | UNIT | BLM-CP30D | BLM-CP40D | BLM-CP50D |
| 1 | Processing Aggregate sizes | mm | ≤30 | ≤30 | ≤40 |
| 2 | Capacity | m³/h | 15 | 25 | 40 |
| 3 | Vertical transport distance | m | 25mts | 90mts | 100mts |
| 4 | Horizontal transport distance | m | 90mts | 180mts | 200mts |
| 5 | Hopper height | mm | 1100 | 1100 | 1200 |
| 6 | Working pressure | mpa | 10 | 12.5 | 12 |
| 7 | Diesel engine power | kw | 46 | 66 | 70 |
| 8 | Dimension | mm | 3500x1300x1650 | 4250x1620x1620 | 4550x1830x1720 |
| 9 | Total Weight | kg | 1650 | 2600 | 3200 |
| 10 | Use condition | Size ≤30 Short Distance | Size ≤30 Long Distance | Big size ≤40 |
MACHINE DETAILS
