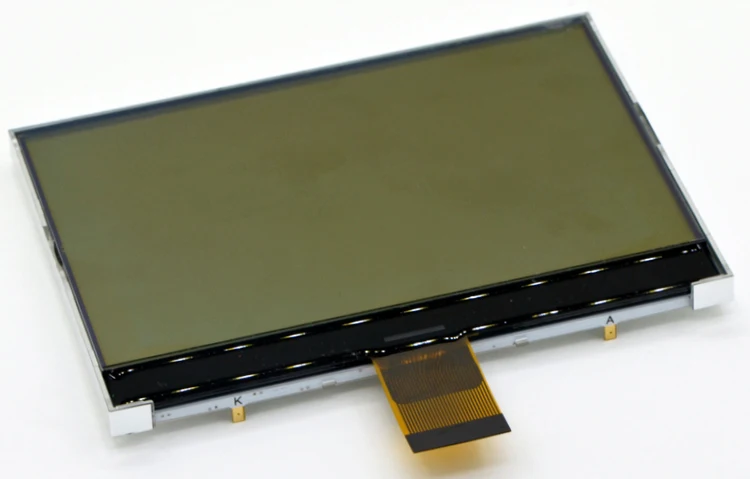

4' 240160 economic LCD module with parallel interface JHD240160 G83BSW G
- Category: >>>
- Supplier: Shenzhen JHDLCM Electronics Co. Ltd.
Share on (62208535450):
Product Overview
Description
Product Description
General Specification
Item | Contents | Unit |
LCD type | FSTN POSITIVE/NEGATIVE | - |
Viewing direction | 6:00 | O’Clock |
Module size (W´H´T) | 101.0*74.5*5.2 (excluded FPC length) | mm |
Viewing area (W´H) | 94.5*59.00 | mm |
Active area(W´H) | 83.97*54.38 | mm |
Dot Pitch | 0.025 | mm |
Dot Size | 0.315X0.325 | mm |
Driver IC | UC1638C | - |
Number of dots | 240*160 | - |
Backlight type | 6 LEDS White 3.0V 90mA | - |
Interface type | Parallel interface | - |
Interface spec | 30 PIN, 0.5 mm PIN pitch | - |
Operating temperature | -20 ~ 70 | ℃ |
Storage temperature | -30 ~ 80 | ℃ |

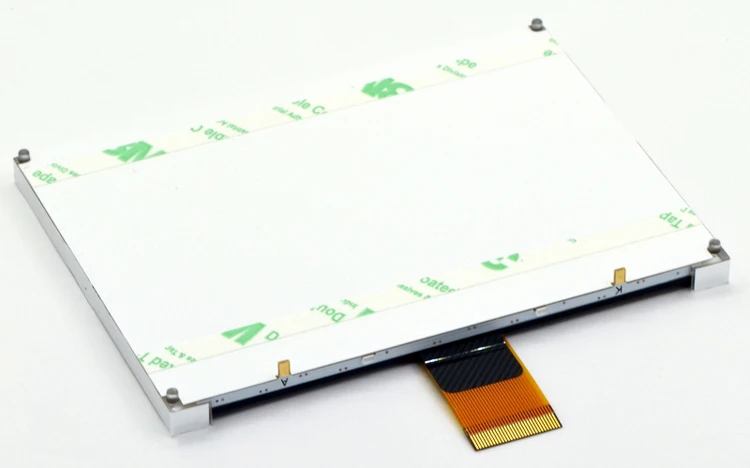

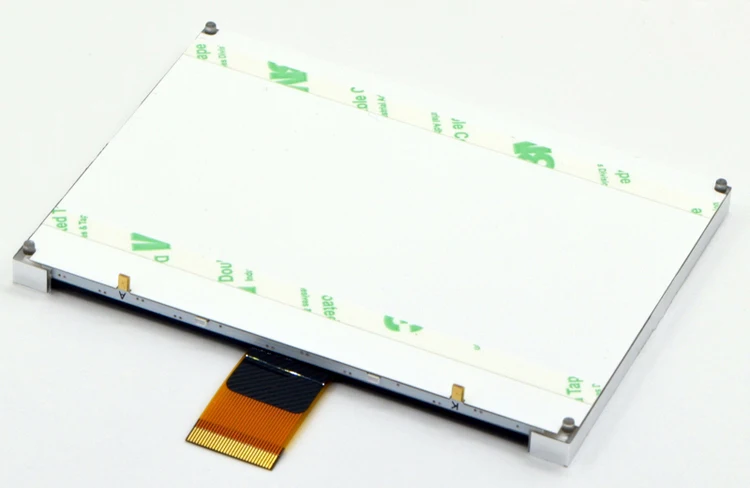

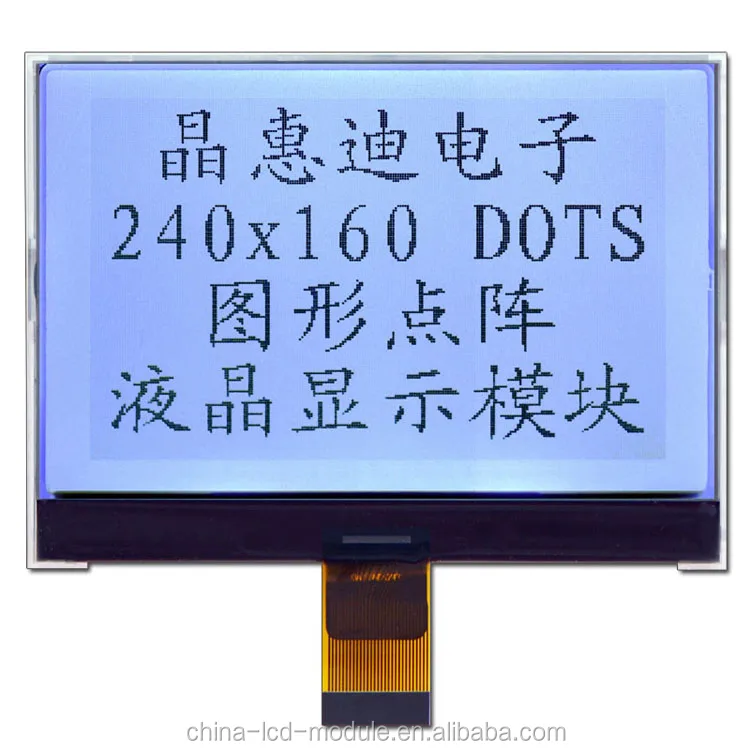

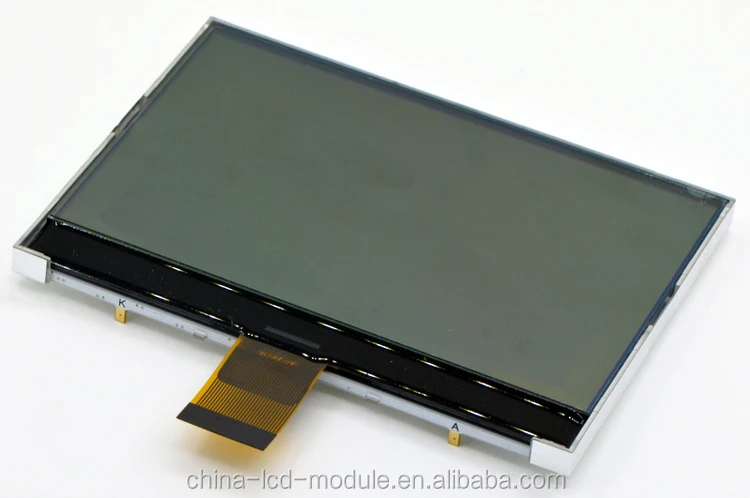

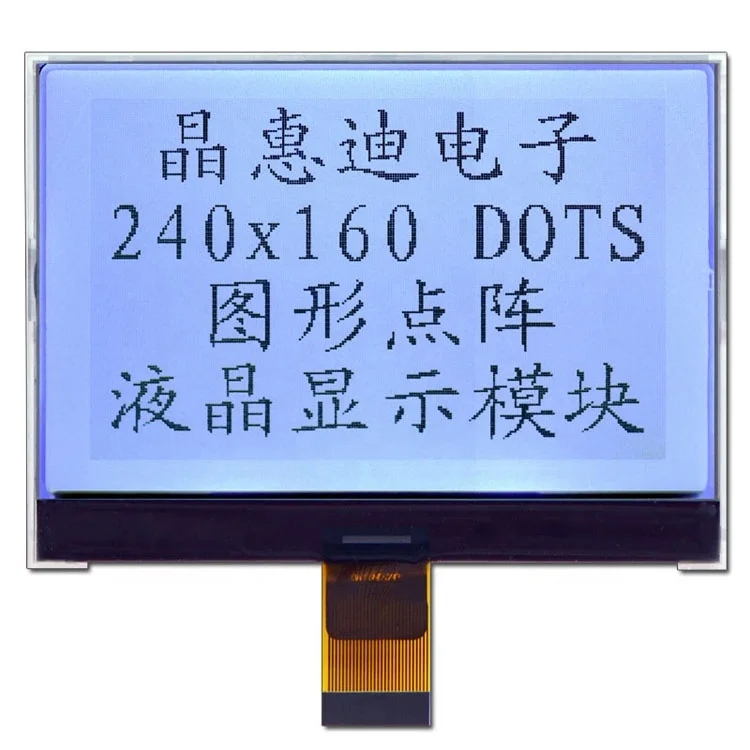

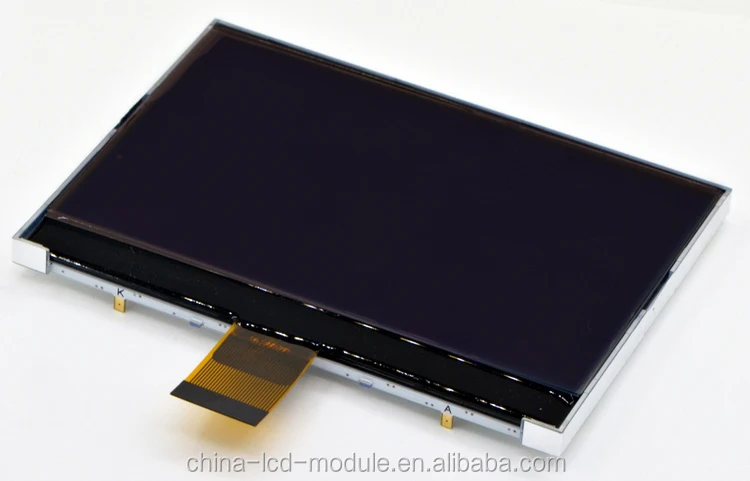

Product Showing
Related Products

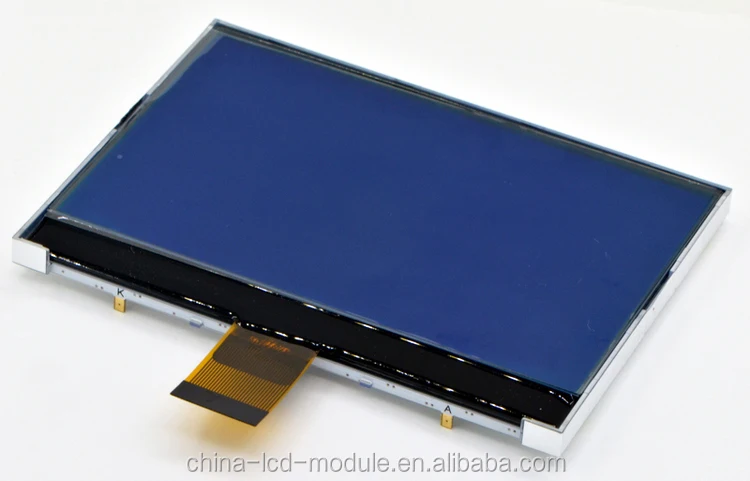

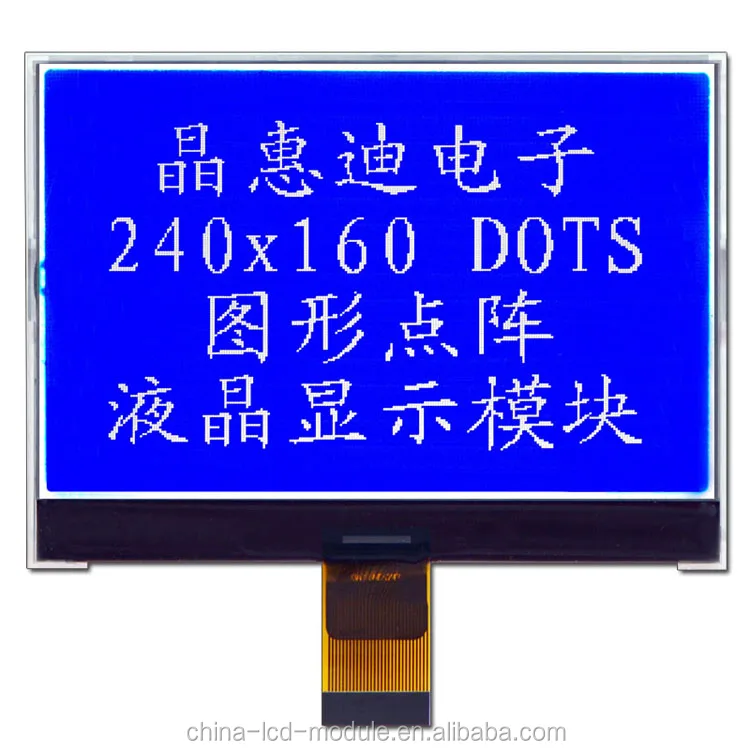

White Words on Blue Background

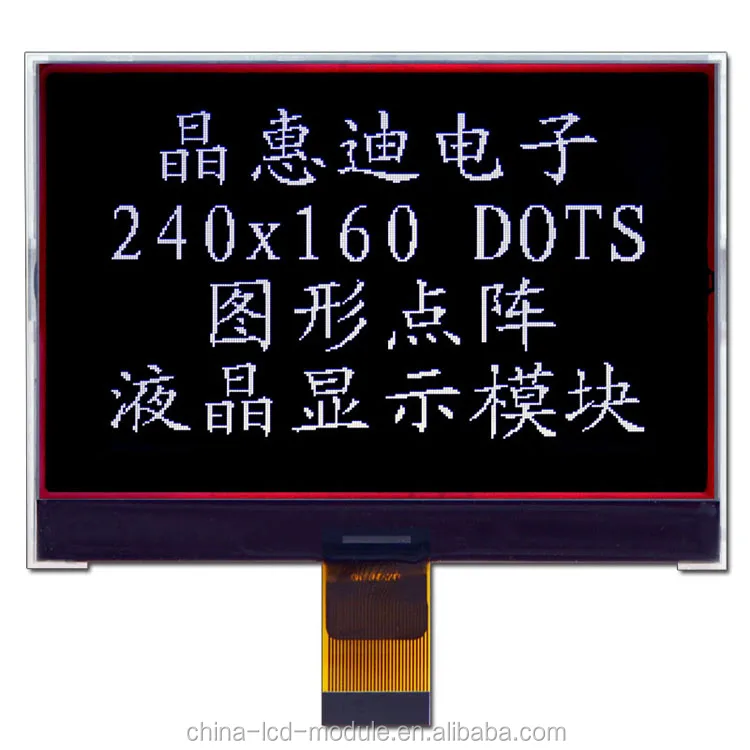

White Words on Black Background

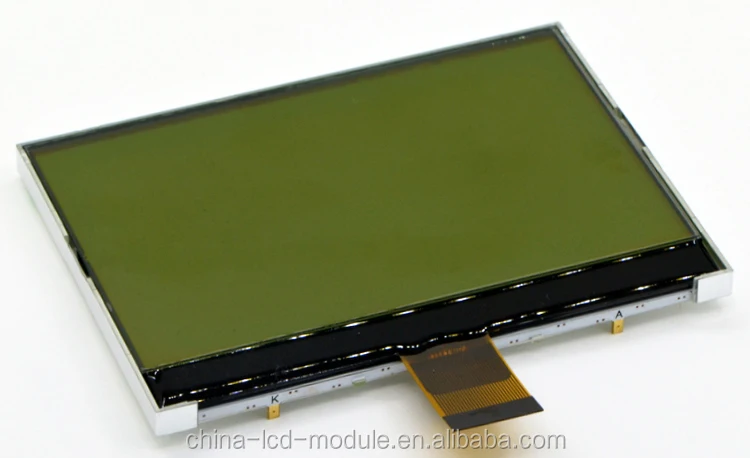

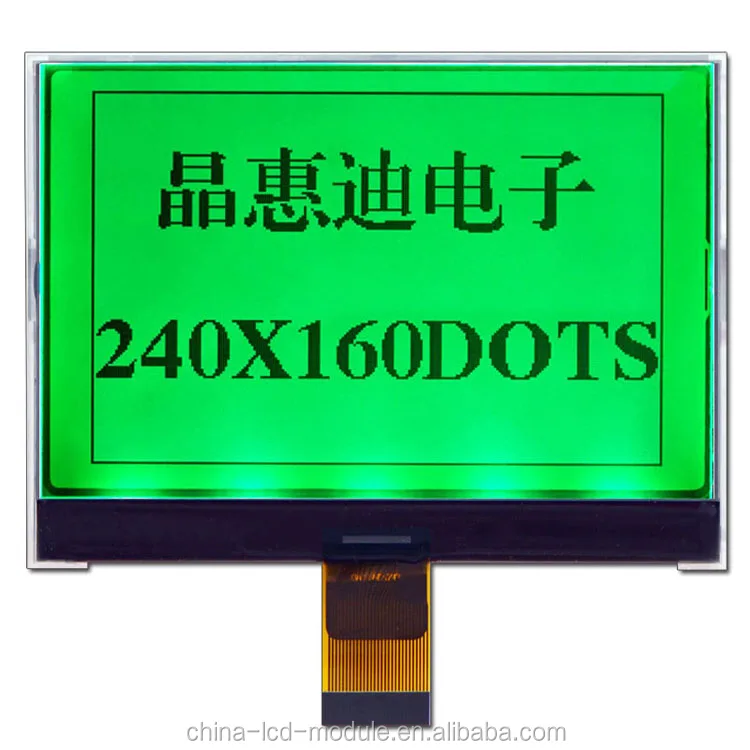

Black Words on Yellow-green Background
Production Procedures in Our Plant
Main Application
Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
Home Appliances | Washing Machine, Refrigerator, Home Integrator |
Industrial Control | Homotaxial Numerically-controlled machine tool |
Instrument and Apparatus | Tester, Medical instruments |
Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
Mining | Mine's lamp charger, gas tester |
Marine | Salinity tester |
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD
