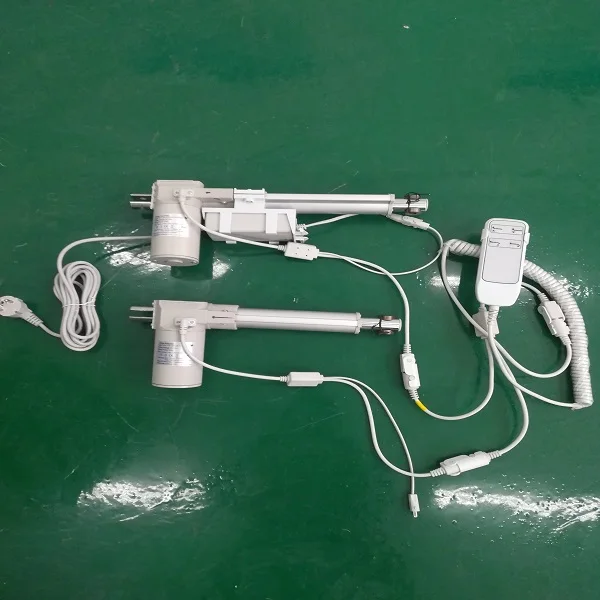

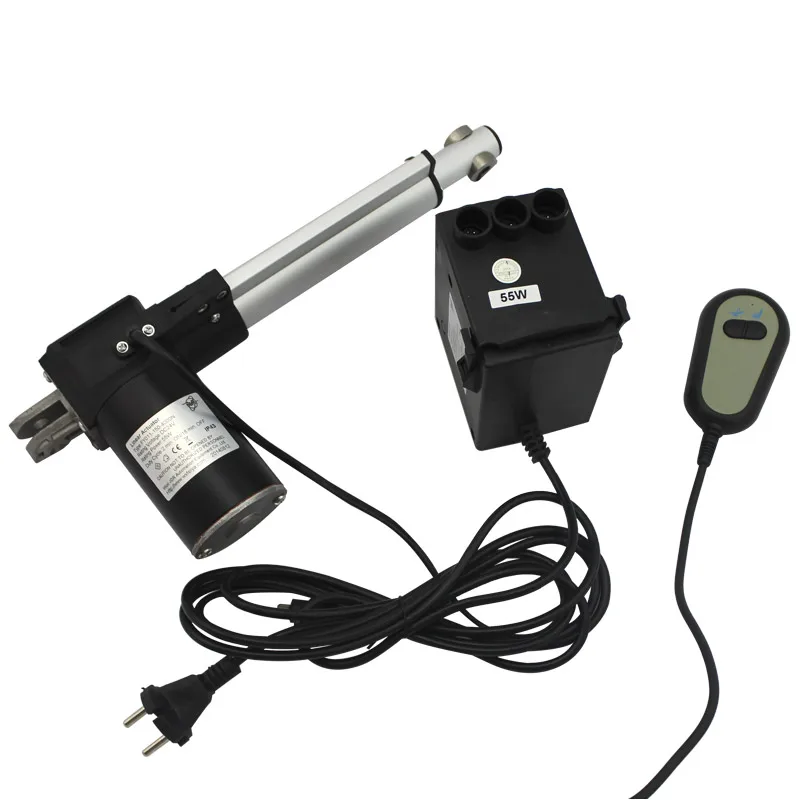

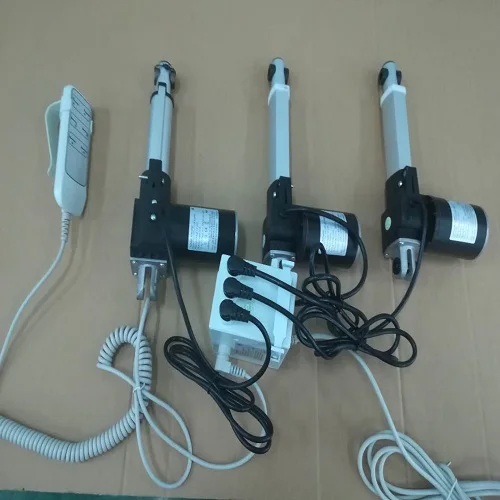

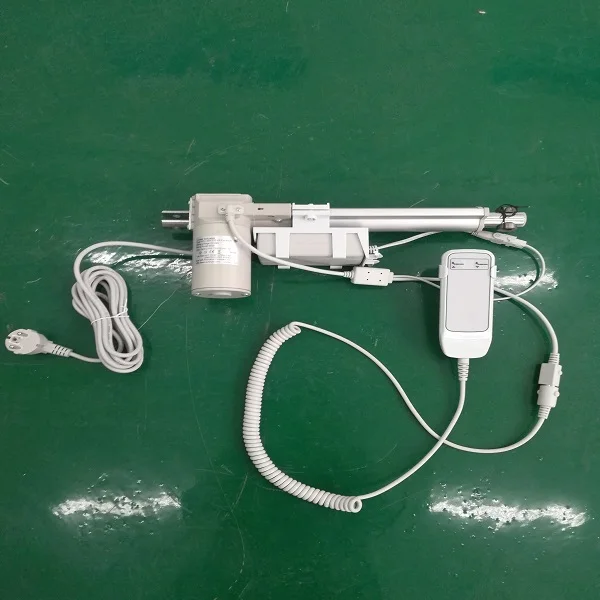

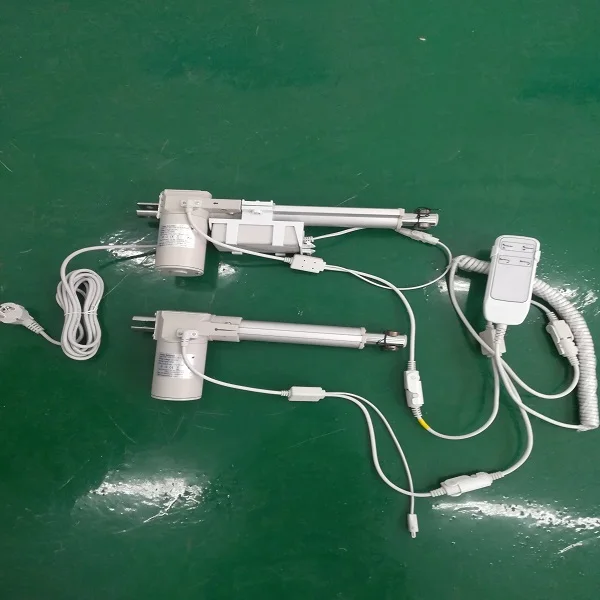

DC Motor Linear Actuator For Recliner Chair Parts FY01
- Category: DC Motor >>>
- Supplier: Wuxi Jdr Automation Equipment Co. Ltd.
Share on (62209193059):
Product Overview
Description
Product Description
Specifications of FY011 Linear Actuator :
FY011 Linear Actuator is a multipurpose product . By advantage of its small size and powerful comprehnsive funtion , it is popular in furniture ,medical equipmet, office and so on .
Feature :
1) High quality
2) Low noise
3) Competitive price
4) Excellent after-sale service
FY011 Linear Actuator specifications :
| 1) 12v or 24v DC motor |
| 2) Thrust up to 6000N in push , and up to 4000 N in pull |
| 3) Elegant and compact design with small instanllation dimensions |
| 4) Built-in limit switches ( not adjustable after leaving factory ) |
| 5) Aluminium or zinc outer tube / inner tube |
| 6) Steel back fixture |
| 7) Standard protection class |
| 8) Noise level < 50 db |
| 9) Warranty : Two years |
| 10) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use |
Specifications of the cntrol box--FYK011
| Input Voltage | 110 or 220V AC |
| Output Voltage | 24V DC |
| Output Power | 50VA |
| Type of duty | 10%~50% |
We can make the products as our customers' requirements .
Name: | Linear Actuator |
Model: | FY011 |
Usage: | Electric Bed, Electric Sofa, Massage Chair, Dental Chair, other Industrial use |
Input Voltage: | 12v or 24v DC |
Load Capacity: | 750N, 1500N, 4000N, 6000N |
Free Load Speed: | 30mm/s, 18mm/s, 8mm/s, 4mm/s |
Standard Stroke: | 50 mm --- 1000mm (Optional) |
Installation Dimension: | S + 175mm |
Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
Work Temp.: | -26 to 65 centigrade |
Protection Grade: | IP43, IP54, IP65 |
Certificate: | CE / EMC + LVD, RoHS |
Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 | |
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 | |
Control 4 Linear Actuators: FYK012-4, FYK016-4 | |
Control 5 Linear Actuators: FYK012-5, FYK016-5 | |
Control 6 Linear Actuators: FYK016-6 | |
Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
WIRELESS REMOTE COTNROL LINEAR ACUTATOR KITS
JDR WORK SHOP
Our Services
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Company Information
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Packaging & Shipping
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
FAQ
Q1: What is our factory product range?
A1: Furniture linear actuator, industrial linear actuator, adjustable height desk etc.
Q2: What’s your MOQ of this linear actuator ?
A2: 10pcs.Small quantity is available.
Q3: Is it all right to make customer’s own brand name?
A3: that’s all right. if customer required, we’ll make customer’s brand name. otherwise we make our own brand name
Q4: So how is the lead time of our order?
A4: Normally 3-5days, the lead time is according to the quantity.
Q5: How do i know the products' quality and the packing ways are the ones we required?
A5: Each product will be tested before sending out. We will send you photos for the goods to confirm again the packing ways.
Q6:How to assure the quality ?
A6:Firstly, all of our materials and components pass the serious China Quality Standard and Control.
Secondly, all of our finished products should pass
quality Check System before export.
Thirdly, our products can be provided to test and cetify by Authories according to customer's special needs.
